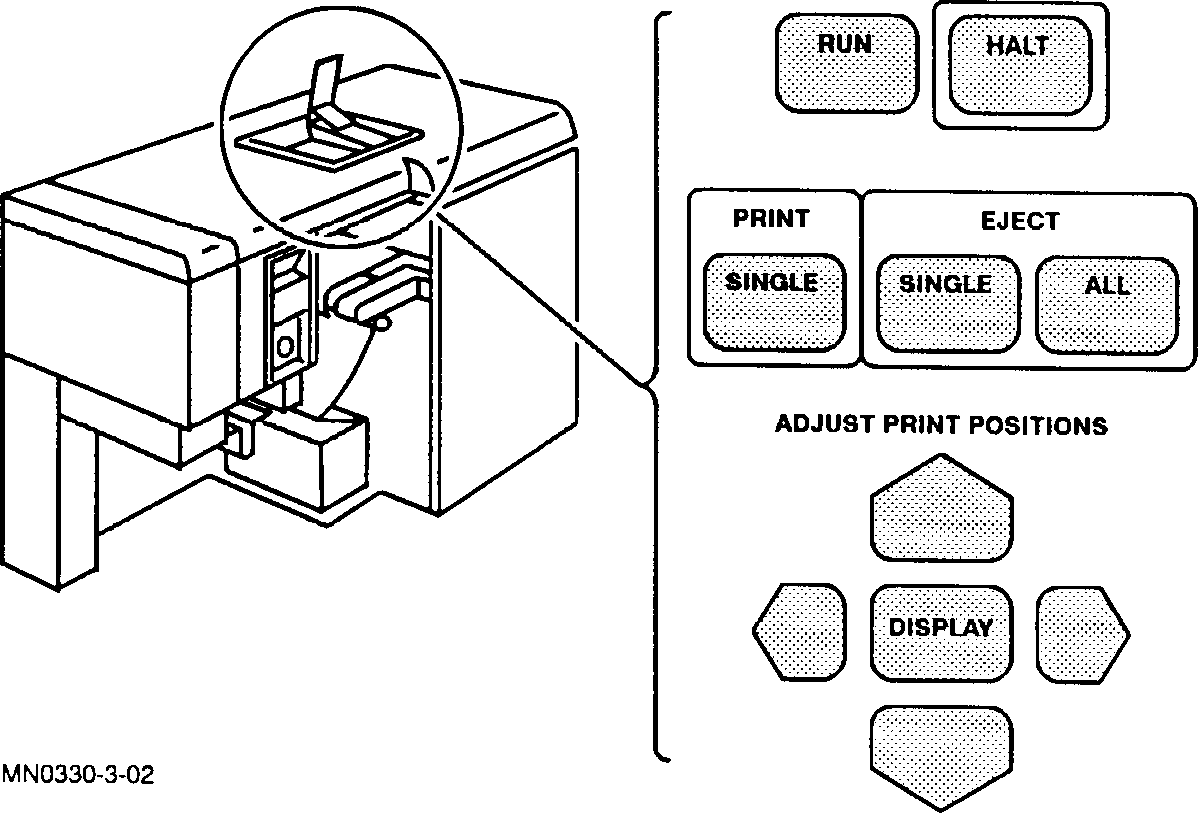

Identifying Page Printers You control most page printers by using the RUN or HALT keys. This allows you to start or stop the printing process without turning off the power. If you are using a printer that is not manufactured by Hewlett-Packard, consult the operator's manual to find out how to start and stop the printing process. To operate a page printer, you should be familiar with the page printer control panel. The following illustration displays the printer control panel.The following table describes the most commonly used page printer functions. Table 3-1. -------------------------------------------------------------------------------------------- | | | | Controls | Description | | | | -------------------------------------------------------------------------------------------- | | | | Front ON/OFF Switch | The operator's ON/OFF switch. Located near the paper splicing | | | table, this switch controls AC power throughout the printer. | | | | -------------------------------------------------------------------------------------------- | | | | LED Display | The front panel LED display provides a visual indication of the | | | operational status of the tape drive. The LED display consists | | | of one red, one green, and one yellow LED. | | | | -------------------------------------------------------------------------------------------- | | | | RUN Indicator | The RUN indicator lights up when the printer is either waiting | | | for or printing data. | | | | -------------------------------------------------------------------------------------------- | | | | RUN Key | When the RUN key is pressed, the printer accepts data | | | transmitted from the computer and the WARMING UP message is | | | displayed until the printer is ready. | | | | -------------------------------------------------------------------------------------------- | | | | HALT Key | When the HALT key is pressed, the halt sequence begins and the | | | printer stops printing data after the current page has been | | | printed. | | | | -------------------------------------------------------------------------------------------- | | | | ADJUST PRINT/ | The four keys are used to adjust the position of the print on | | POSITION Keys | the paper. Press the key that points in the direction you wish | | | to move the print. Each time you press the key, the image moves | | | 0.28 inches. If you press and hold the key, multiple | | | incremental movements occur. | | | | -------------------------------------------------------------------------------------------- | | | | PRINT SINGLE Key | When the PRINT SINGLE key is pressed, a single page is printed. | | | Repeated pressing of the PRINT SINGLE key cause a corresponding | | | number of pages to be printed. The printer returns to a HALT | | | condition after the last page is printed. | | | | -------------------------------------------------------------------------------------------- | | | | EJECT SINGLE Key | When the EJECT SINGLE key is pressed, the paper is advanced one | | | page length. The fuser is active; therefore, paper advanced | | | with this key provides permanent printed output. | | | | -------------------------------------------------------------------------------------------- | | | | EJECT ALL Key | When the EJECT ALL key is pressed, all unfused pages are removed | | | through the fuser and into the stacker. | | | | -------------------------------------------------------------------------------------------- For a description of all the controls and indicators on your page printer, refer to your "printer" handbook.
![[]](../../pic3k/M013464/FFN603c50.gif)
