HP 3000 Manuals

HP Transact Reference Manual

UPDATE Charts

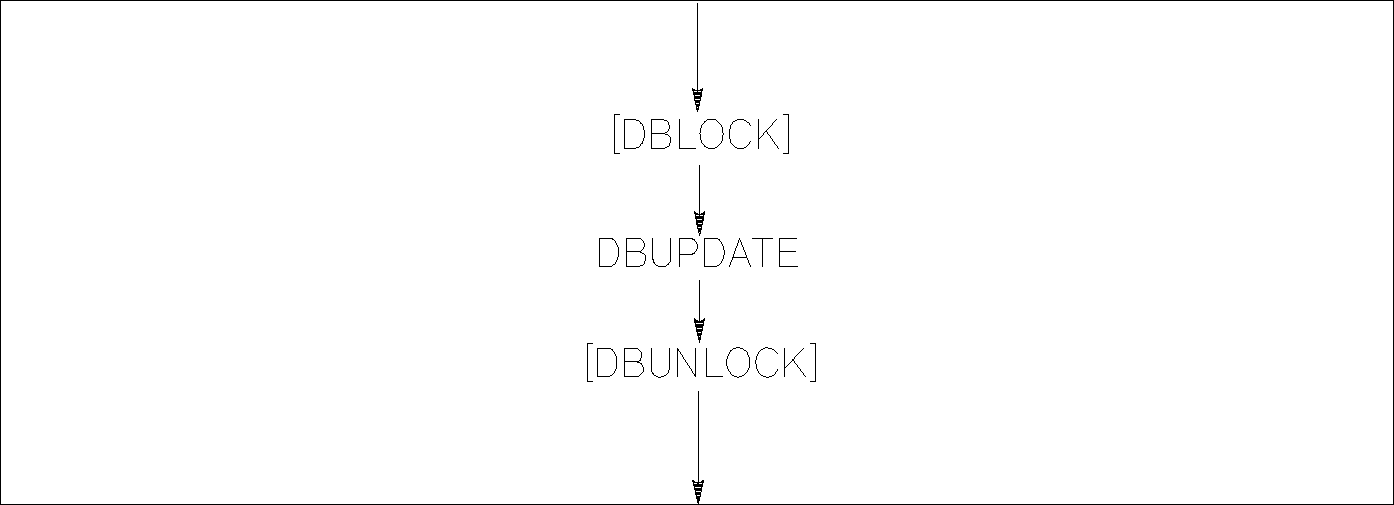

Execution of an UPDATE verb for a TurboIMAGE data set access results in
the following:

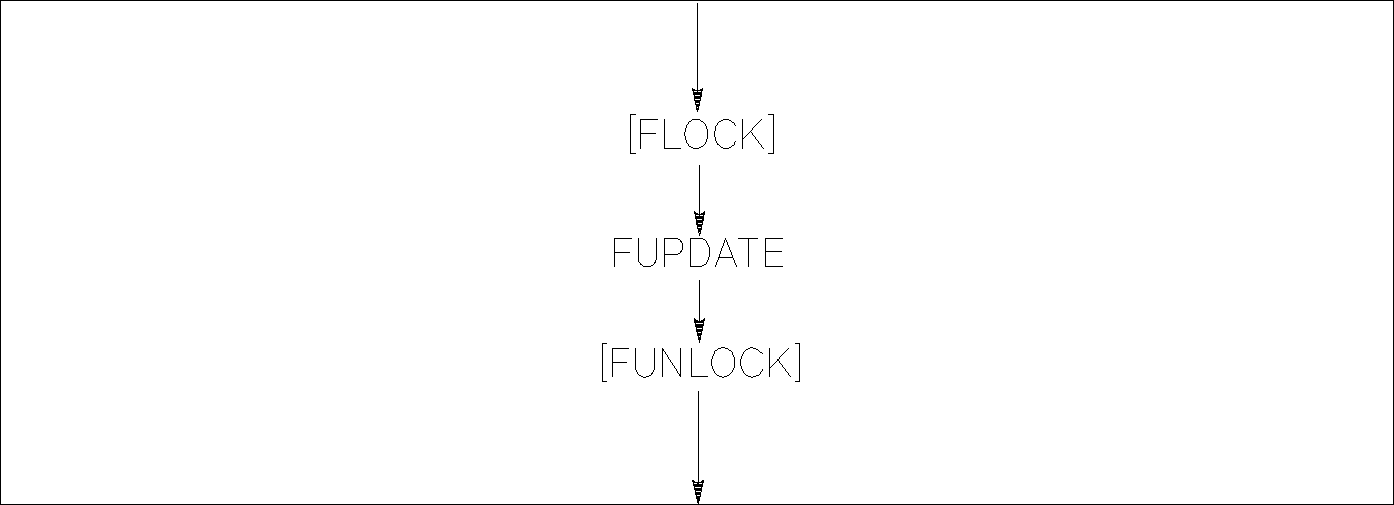

Execution of an UPDATE verb for a KSAM file results in the following:




Execution of an UPDATE verb for an MPE file results in the following:

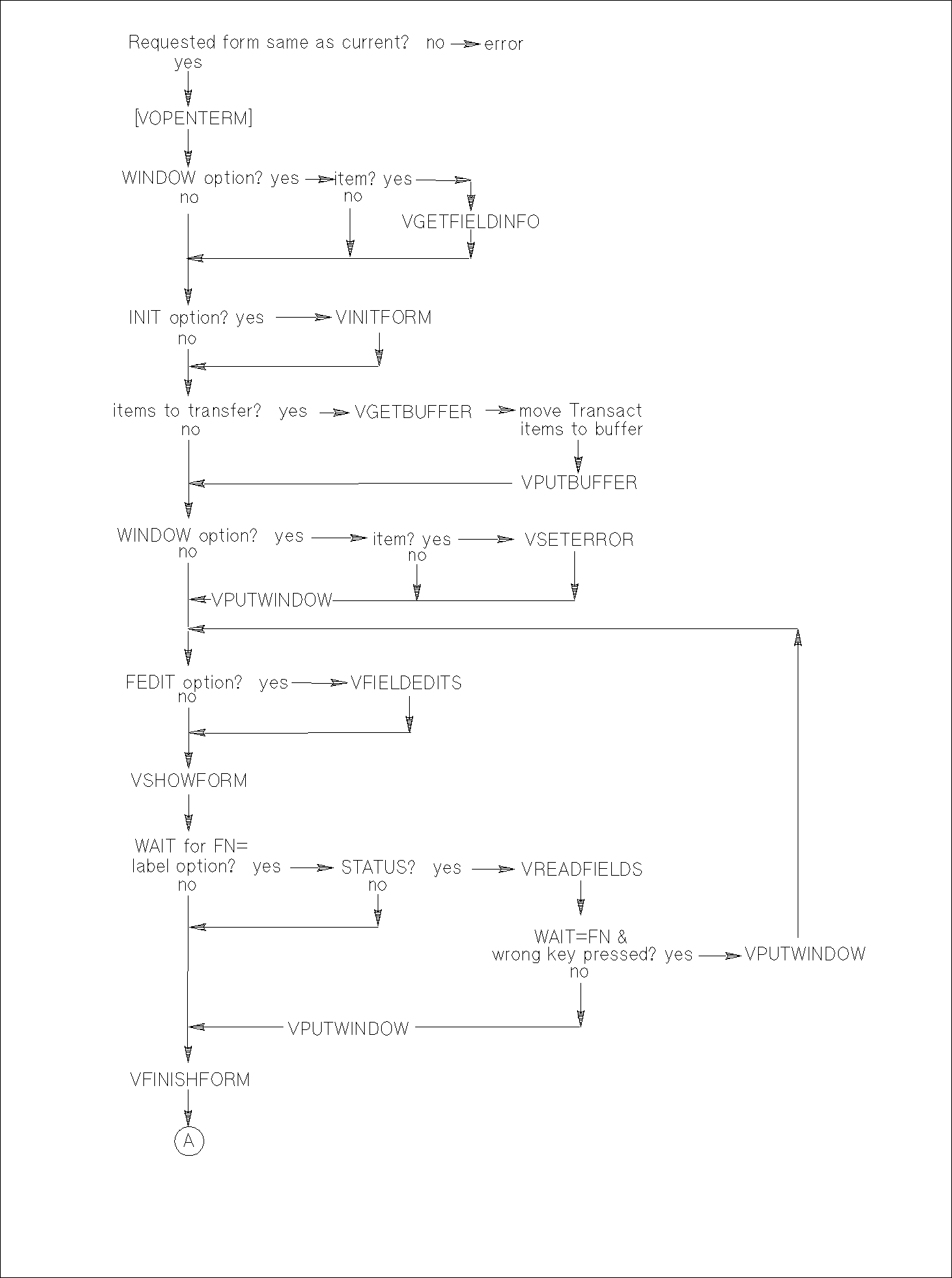

Execution of an UPDATE(FORM) verb for a VPLUS form results in the
following:

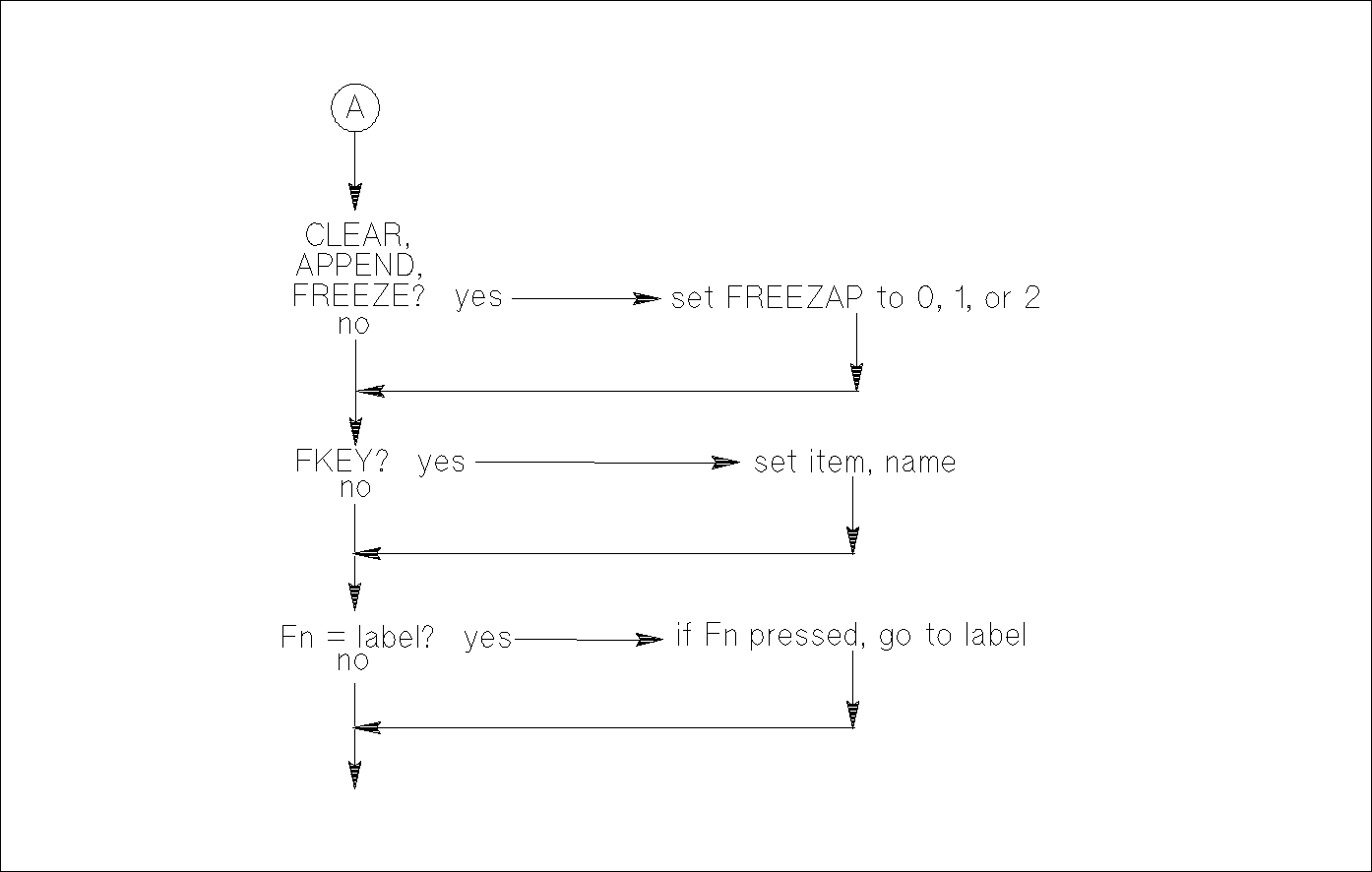

Execution of an UPDATE(FORM) verb for a VPLUS form results in the
following (continued):




MPE/iX 5.0 Documentation
