Using the Node Management Services (NMS) Utilities

Configuration Subtree Copy Screen

The Configuration Subtree Copy screen in figure 4-8 allows you to copy
specified parts of a configuration subtree into either the same
configuration file or a different configuration file. This feature can
save you a lot of time when you are configuring multiple nodes or
subsystems in the same way. Note that the source or target file can be
on a remote node in the network. (You can also use the COPYCONF
maintenance mode command to perform this function. See chapter 5 for
more information on the maintenance mode commands.)

You reach this screen by pressing the [Go To COPY SUB] key at the Utility
screen.

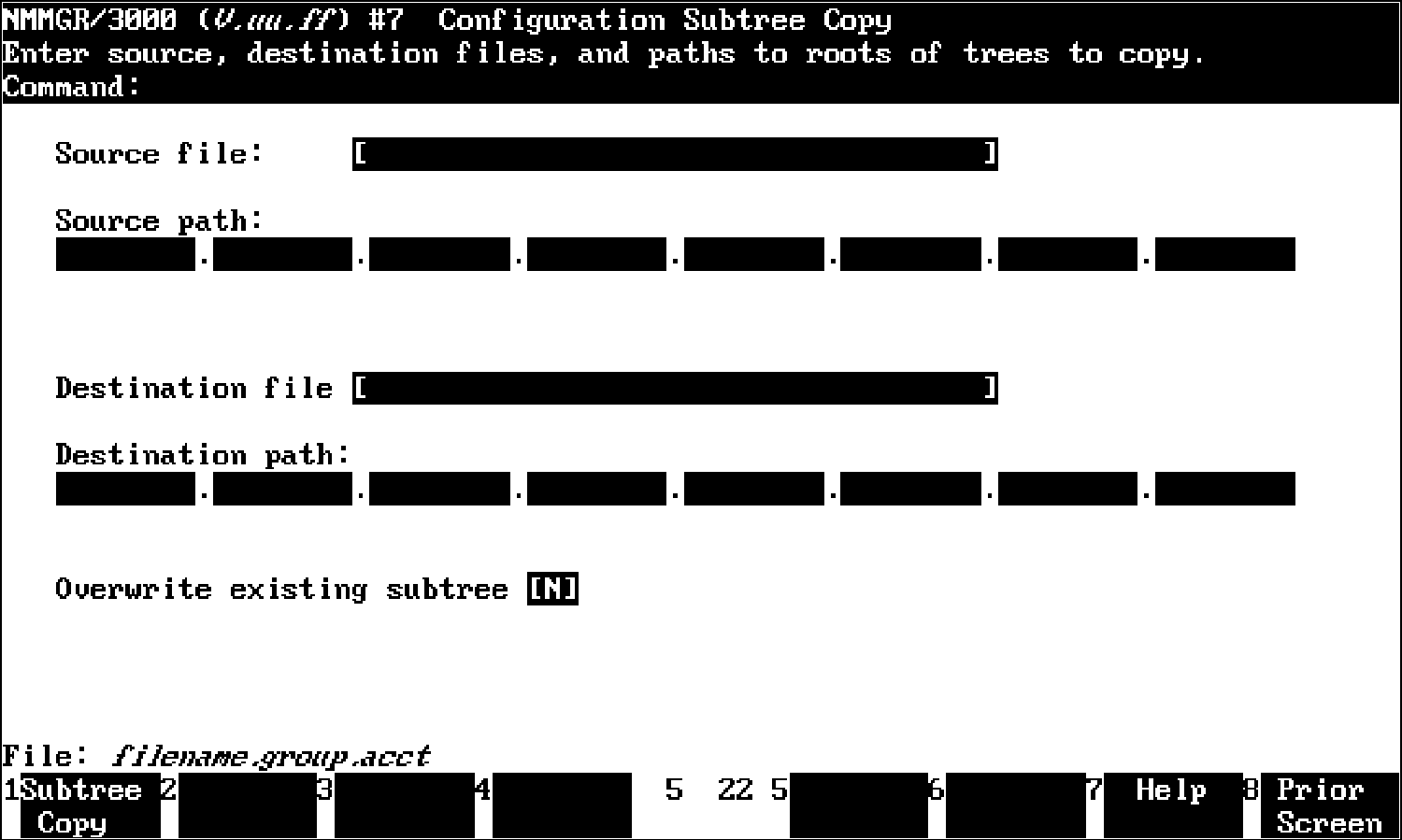

Figure 4-8. Configuration Subtree Copy Screen

Description

You use the Configuration Subtree Copy screen to copy a contiguous set of
screens called a subtree from one configuration file to another or within
the same configuration file. To copy a subtree, enter the name of the
source file and path and the destination file and path in the fields
provided and press the [Subtree Copy] key.

The source file is the name of the file that the data will be copied
from. If you are copying a subtree from the current configuration file
to another location within the same file, you can leave both the Source
file and the Destination file fields blank.

The source path specifies the path name of the topmost screen in the
subtree that you want to copy. All screens below the top screen will be
copied.

The destination file is the name of the file that data will be copied to.
This can be the same file that you are copying from, which provides a
convenient way to configure two links that are very similar. After
configuring the first link, you can simply copy all the screens in the
link's configuration and modify the new link configuration as needed.

The destination path specifies the point in the destination file below
which the copied screens will be added.

Fields

Source file This field contains the name of the file that
configuration data will be copied from. If left
blank, the current configuration file is assumed.

If the file is on a remote node, you must use a file
equation and prefix the file name with an asterisk
(*). You may use an MPE command from the command
window to set a file equation without having to leave
NMMGR.

Source path (Required field.) The source path contains the path
name associated with the topmost screen in the
subtree being copied. The field is composed of eight
NMMGR path identifier slots. Enter one path
identifier in each slot, leaving blanks at the end of
each identifier. Leave any unused identifier
slots empty. For example, the source path
"NETXPORT.NI.LAN1.INTERNET" would be entered as:

NETXPORT.NI______.LAN1____.INTERNET._______._______._______._______

Destination file This field contains the name of the file the
configuration data will be copied to. If this field
is left blank, the current configuration file is
assumed.

If the file is on a remote node, you must use a file
equation and prefix the file name with an asterisk
(*).

Destination path Like the source path, the destination path is
composed of eight path identifiers. You need to
enter only those identifiers that are different from
the source path. To copy data from the source file
to the identical location in the destination file,
leave this field blank. If, for example, you wish to
change the fifth path identifier, then the fifth slot
in the destination path should contain data. Only
those parts of the path name that were designated by
the user can differ among corresponding identifiers
in the source and destination paths. User-selected
types must match. For example, if the source file
includes a direct connect link, the corresponding
identifier in the destination path must also be a
direct connect link.

Overwrite existing (Required field.) This field indicates whether or
subtree not existing data in the destination configuration
file is to be overwritten when the copy is performed.
A Y will purge all the existing data in the
destination subtree and insert the data from the
source subtree; an N will not allow the copy to
continue if data exists where the destination subtree
starts. The default is N.

Example

In this example, a subtree copy is being performed from node A to node B.
Since the copy is being made to a remote node, the user must make a
DSLINE connection to node B and set up a file equation to represent node
B's configuration file. This is done by entering the commands shown
below:

:REMOTE HELLO MGR.PUB.SYS;DSLINE=B
:FILE CONFIG=NMCONFIG.PUB.SYS;B,OLD

The source file and path on node A are entered into the source file and
Source path fields. They appear below:

Source file: [NMCONFIG.PUB.SYS]

Source path: NETXPORT.NI_____.LAN1____.INTERNET._______._______._______._______

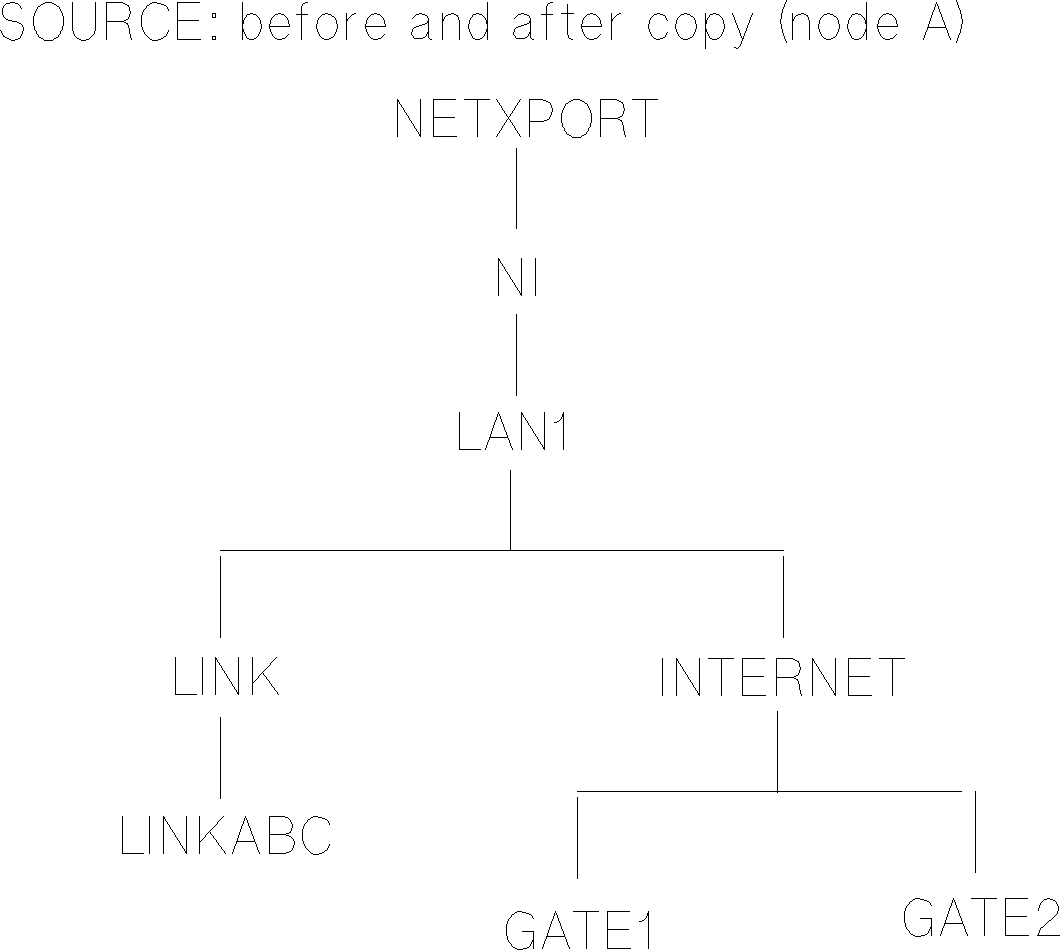

The diagram in figure 4-9 shows the subtree specified by the path above.

Figure 4-9. Source Subtree

For this copy, the destination file and path were specified as:

Destination file: [*CONFIG ]

Destination path:_______._______.LAN2___._____._______._______._______._______

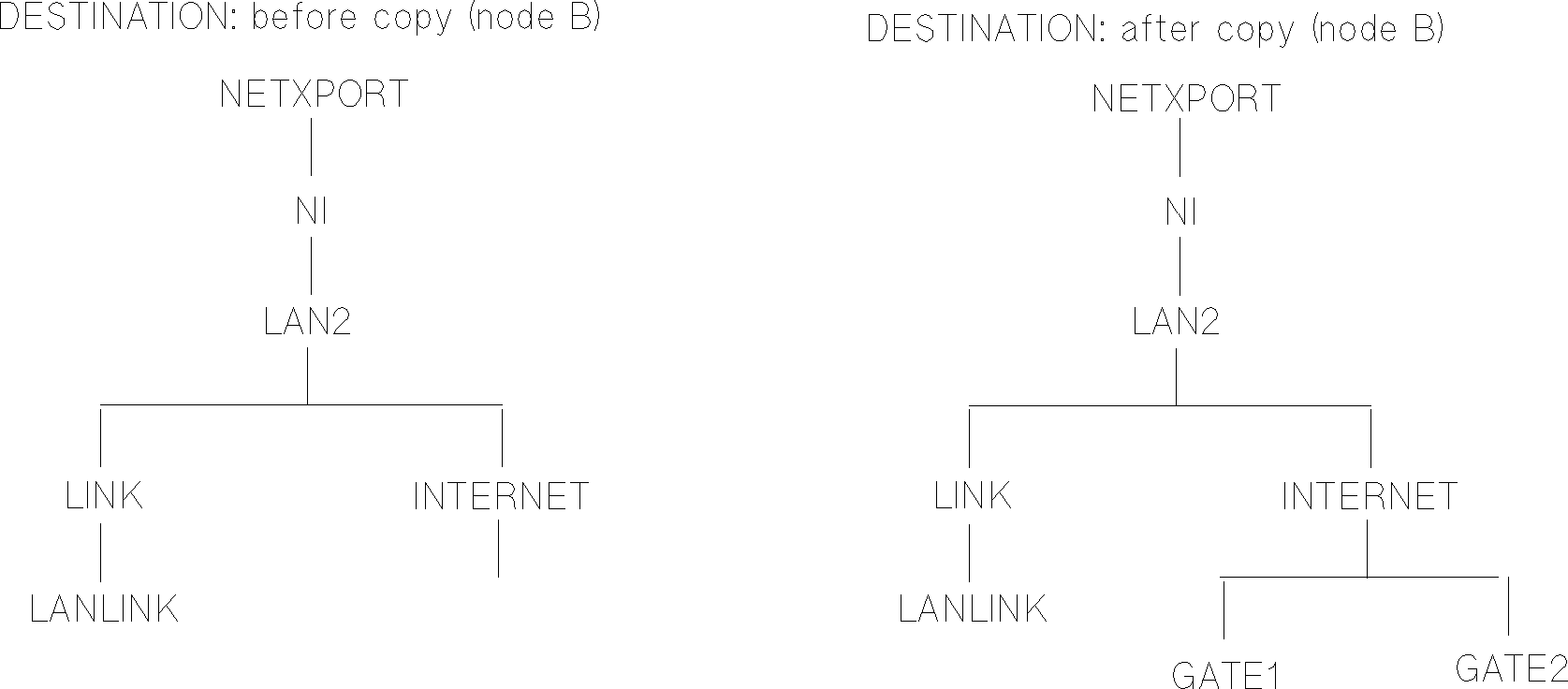

The diagram in figure 4-10 illustrates the results of the copy.

Figure 4-10. Source Subtree

NOTE When subtrees contain several records, copies that occur over
DSLINE connections will take considerably longer than copies
between two local configuration files. It is several times faster
to DSCOPY the configuration file to the destination node, then
perform the subtree copy between two local configuration files.
