Modify the Network Management Configuration File Use NMMGR to enter asynchronous device configuration information into the network management configuration file (NMCONFIG.PUB.SYS). A step-by-step procedure for updating the host's network management configuration file follows.
NOTE Before modifying the NMCONFIG.PUB.SYS file, make a backup copyof it. If the modifications made to the configuration file are successful, purge the backup copy.
Step 1: Begin the Configuration Process Run the NMMGR program.Node manager (NM) and network administrator (NA) capabilities are required to run this program. To run NMMGR, enter the following command at the MPE prompt and then press the [Return] key. NMMGR.PUB.SYS
NOTE You must be logged on to the SYS account to run NMMGR.

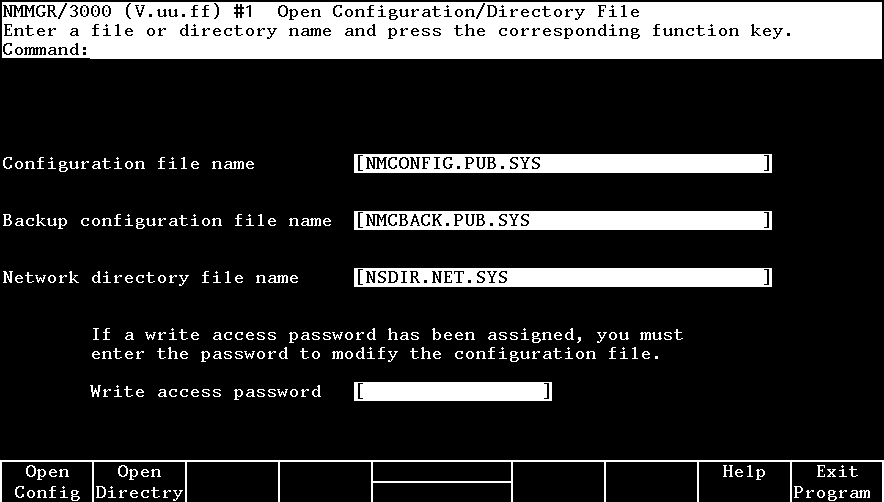

Step 2: Open the Network Management Configuration File The Open Configuration/Directory File screen is displayed (see Figure 5-1 ). This screen lets you specify the configuration and backup file names.Figure 5-1. Open Configuration/Directory Screen Follow the steps listed here to enter data for this screen. Refer to "Fields" subsection on the next page for detailed information about each field on the screen. 1. NMCONFIG.PUB.SYS is the name required by the software. Verify that this name is displayed in the Configuration file name field. 2. Verify that the name of the correct backup configuration file is in the Configuration file name field. The default is NMCBACK.group.account. 3. Press the [Open Config] function key. 4. If the configuration file you are opening does not exist, the following message will appear on the message line at the top of the screen: Config file does not exist; press Open Config again to create it. Press the [Open Config] key again to confirm the creation of the file you specified. Fields Configuration file The only valid configuration file name the system name recognizes for use by the network subsystem is NMCONFIG.PUB.SYS. You can create or modify a configuration file using a different name and save it as an offline configuration file. You can use offline configuration files as a means of creating and storing configurations that you want to use in the future. When you are ready to use an offline configuration file, rename it as NMCONFIG.PUB.SYS, validate within NMMGR (SYSGEN cross-validation is done automatically within NMMGR), and reboot the system or perform a DTS shutdown/restart (see chapter 4 for more information on DTS shutdown/restart). Backup configuration A backup file name must be specified whenever a file name configuration file is opened or created.The default backup configuration file name is NMCBACK.PUB.SYS. The backup file will be automatically updated with the contents of the configuration file each time the configuration file is successfully validated. Network directory The Network directory filemust be configured for file name each new X.25 node (unless you will only be accessing the node using direct level 3 access). This field is only used for X.25 network management. The network directory contains information that one X.25 node needs in order to communicate with other X.25 nodes. The only network directory file name supported by HP is NSDIR.NET.SYS. Write access The passwordis an optional feature. If a password password has been assigned, you must enter it in the password field to update the configuration file. It is possible to open the file without using an assigned password, but the file will be in read only mode and NMMGR will not accept any changes. If a password has not been assigned, you should ignore the password field. If you want to assign a password for the system you are configuring, refer to Using the Node Management Services (32022-90041). Step 3: Configure the Local Node Name The Main screen is displayed after you press the [Open Config] key (see Figure 5-2 ). This screen lets you specify the HP 3000 host's name. It also asks whether you are using the HP 3000 host or an OpenView Windows Workstation (PC) for DTC management, and if you are using X.25 or PAD.Figure 5-2. Main Screen 1. Assign a node name to the HP 3000 host in the "local HP 3000 node name" field. Use the format nodename.domain.organization. If your HP 3000 host is the only computer in your network, you may enter any node name. If you have several computers on your network, you must make sure the node names for each host are unique. Refer to chapter 2 for more information on node name. 2. In the field after the question, "Are you using the OpenView DTC Manager?", enter an N. This means that you will not use the OpenView DTC Manager (that is, use a PC to manage your DTCs). Instead, you will use the HP 3000 host to manage your DTCs. If you specify "Y" for using OpenView DTC Manager refer to chapter 6, "Configuring Serial Devices (for PC-Based Management)." 3. In the field after the question, "Do you have X.25 system-to-system or PAD connections?", enter an N for no. If you have X.25, refer to the Configuring and Managing Host-Based X.25 Links manual. 4. After you enter the information on the screen, press the [Save Data] function key to save your entries. 5. After the data is saved (the Data flag in the upper right-hand corner is Y), press the [DTS] function key. Step 4: Configure the Link The Host Configuration screen is displayed when you press the [DTS] function key at the Main screen (see Figure 5-3 ). This screen is used to configure the Datacommunications and Terminal Subsystem (DTS) on the HP 3000. DTS defines the interaction between the system and any asynchronous devices, such as terminals and printers.Figure 5-3. Host Configuration Screen (Host-Based) 1. "Local HP 3000 node name" is a display-only field. Verify that it is correct. 2. The "Link name" field displays DTSLINK.This is used by the HP 3000 DTS subsystem. Use this default. 3. In the "Physical path of LANIC" field, type the slot number for the LANIC cardin the host. See the list on the next page for commonly used slot numbers. 4. Press the [Save Data] function key. Press the [Go to DTC] function key to proceed to step 5: Select DTC Type. Go to UserPort The [Go To UserPort] key is used to configure the user port (default ldev 21) on the NIO console. Pressing this key takes you to the HP Support Modem Port Screen for configuring the ldev, the line speed, modem type, and parity of the user port. The configuration of user port is only supported for the NIO LAN console card (for example, HP 3000 Series 9X7 and 9X7 LX). Refer to "How Operation Modes Set Functionality" in chapter 9 for more information on the user port. Go to UPS Port The [Go To UPS Port] key takes you to the Uninterruptible Power Supply Port Screen. This screen is used to configure the ldev number, line speed, and parity on a port of the SCSI/Console LAN card (default ldev 22) to support an uninterruptible power supply (UPS) connection. This port is only available and supported on HP 3000 Series 9X8 systems. Refer to "How Operation Modes Set Functionality" in chapter 9 and to Performing System Manager Tasks (32650- 90004) for more information on the UPS. A UPS can also be connected to a DTC port via a configuration process that does NOT use the [Go To UPS Port] key. Refer to "How Operation Modes Set Functionality" in chapter 9 for information on how to connect a UPS to a DTC port.

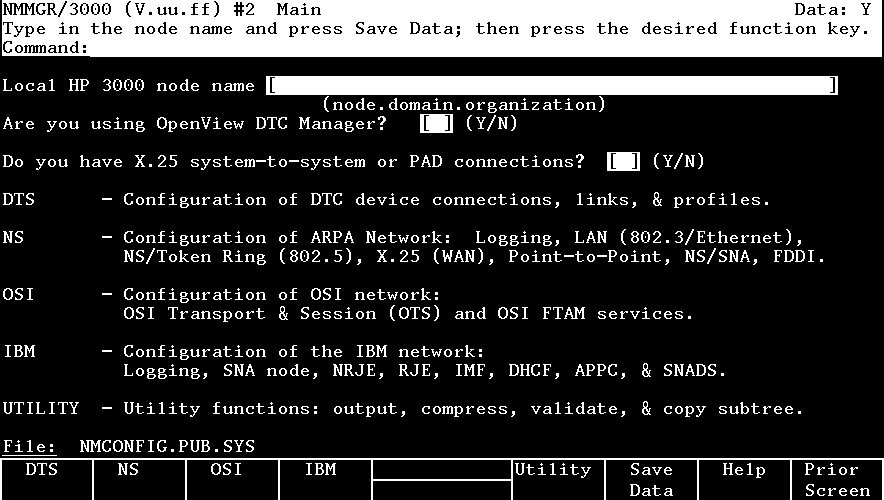

NOTE You can type "help whatsnew" at the command line of this screen for more information on DTS dynamic and automatic configuration capabilities. You can also refer to chapters 3 and 4 for more information on how to perform an automatic and dynamic configuration, respectively.

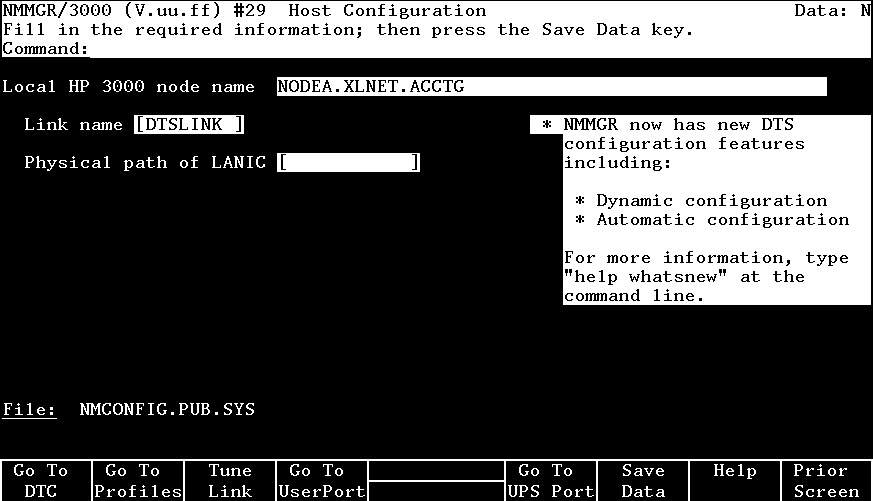

Fields Physical path of This is the location of the DTS LANIC in the LANIC system's backplane. The default physical path (slot numbers) for HP 3000 computers are listed below. These defaults optimize performance and use of the computer's cabinet space. Before moving the LANIC into another slot, consult an HP representative. Table 5-2. ----------------------------------------------------- | | | | HP 3000 Systems | Slot Number | | | | ----------------------------------------------------- | | | | 920, 922, 935, 932, 935, or 949 | 4.3 | | with HPIB | | | | | ----------------------------------------------------- | | | | 920, 925, 935, or 949 with ALINK | 4.2 | | | | ----------------------------------------------------- | | | | 9X7 | 56 | | | | ----------------------------------------------------- | | | | 9X8 | 56/56 | | | | ----------------------------------------------------- | | | | 930 | 8.4 | | | | ----------------------------------------------------- | | | | 950, 955, 960, 980 | 2/4.2 | | | | ----------------------------------------------------- | | | | 990/992, 991/995 | 0/40 | | | | ----------------------------------------------------- Step 5: Select DTC Type The DTC Configuration Selection screen (see Figure 5-4 ) is displayed when you press the [Go To DTC] key at the Host Configuration screen. Here you specify the type of DTC to configure. You can also trigger the process to automaticallyadd and configure a new DTC without needing to specify detailed configuration information. See chapter 3, section entitled "Performing an Automatic Configuration Inside NMMGR" for instructions on triggering the automatic configuration process.Figure 5-4. DTC Configuration Selection Screen 1. Select the DTC type by pressing one of the function keys: [DTC16iX], [DTC16MX/ RX], [DTC16], [DTC48], or [DTC72MX]. NMMGR will take you to the configuration screen for the specified DTC type.

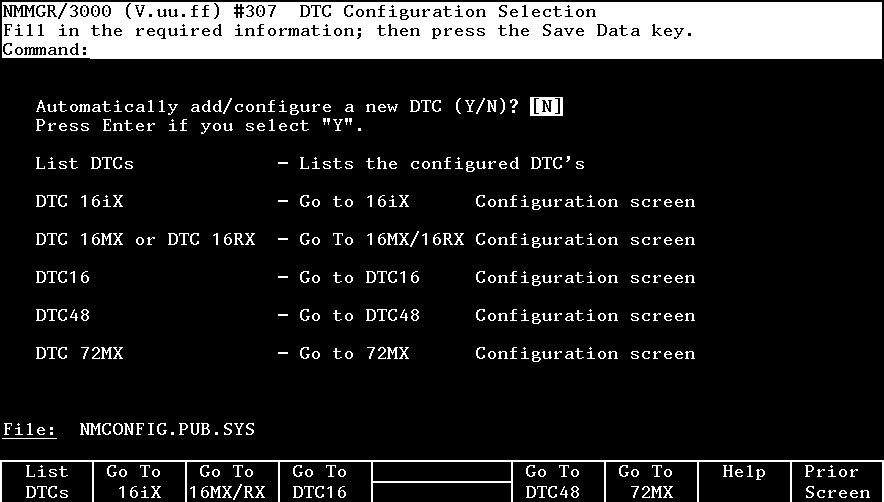

NOTE You may use the [List DTCs] key on the DTC Configuration Selection Screen to see a list of all DTC names configured on your system.

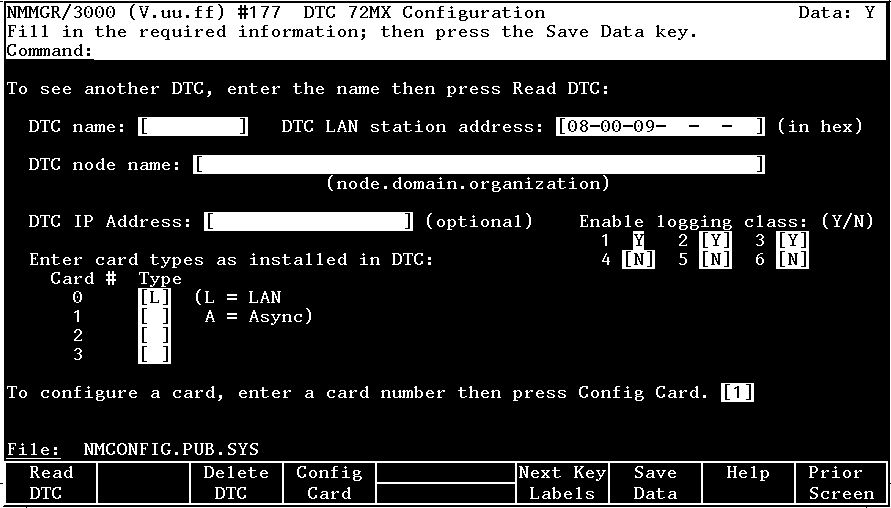

Step 6: specify DTC Configuration The DTC Configuration screen is displayed after you select the DTC type at the DTC Configuration Selection screen. Figure 5-5 shows the DTC Configuration screen for a DTC 72MX. (DTC Configuration screens for DTC 16iX, DTC 16MX/RX, DTC 16, and DTC 48 vary slightly).Figure 5-5. DTC Configuration Screen 1. Enter the DTC's name in the "DTC name" field. The DTC namecan be up to eight alphanumeric characters, beginning with a letter. The DTC name must be unique on the system. It is acceptable (and common) to use the nodename part of the DTC node name as the DTC name. See step 3 below for more information. 2. Enter the DTC's LAN addressin the "DTC LAN station address" field. The LAN address can be found on a label inside the front cover or on the back panel of the actual DTC box. For DTC 16RX access to an HP 3000 in an MPE/iX host-based management environment, use the value 00-00-00-00-00-00 as the DTC 16RX LAN address. Configuration of the DTC 16RX on the HP 9000 host using DTC 16RX Manageruses the DTC's IP address and not its LAN address. 3. Type in the DTC's node namein the "DTC node name" field. Use the format nodename.domain.organization, where nodename identifies the DTC. If there is more than one DTC on the network, the nodename of each DTC must be unique. The following are examples of valid DTC node names on the same network: Table 5-3. ------------------------------------------------ | | | | | ALPHA.ACCTG.TEKLAB | | | | ------------------------------------------------ | | | | | BETA.ACCTG.TEKLAB | | | | ------------------------------------------------ Note that "DTC name" and "DTC node name" are two different fields. However, it is acceptable (and common) to use the nodename part of the "DTC node name" as the "DTC name", such as: Table 5-4. ------------------------------------------------ | | | | | DTC name = ALPHA | | | | ------------------------------------------------ | | | | | DTC node name = ALPHA.ACCTG.TEKLAB | | | | ------------------------------------------------ 4. (Optional) Enter an IP address for the DTC, if you want this DTC to be able to respond to PING/iX requests.Otherwise, leave the "DTC IP Address" field blank. For DTC 16RX access to an HP 3000 in an MPE/iX host-based management environment, the IP address of the DTC 16RX is configured using the DTC 16RX Manageron the HP 9000 host and not on the HP 3000. Any value entered in this field for the DTC 16RX will be ignored. Refer to chapter 2 for more information on IP addresses. 5. Enable the event logging classesthat you want. It is recommended that you enable classes 2 and 3 and disable classes 4 through 6. See "DTC Event Logging" in chapter 2 for information on these event logging classes. Note that logging class 1 is not configurable and is always enabled. Event logging classes do not apply for DTC 16RX access to an HP 3000 in an MPE/iX host-based management environment; any values entered in these fields for the DTC 16RX will be ignored. 6. Verify that the cursor is in the "Type" field under "Enter card types as installed in the DTC." Enter the card type for each card in the DTC The valid card types are listed on the screen. Note that DTC 16iX/16MX/16RX does not have cards since its port connectors are built directly onto the DTC backplane. Refer to chapter 2 for more information on card types for each DTC. 7. Press the [Save Data] function key. 8. To configure a card in the DTC, enter the number of the card you want to configure in the "To configure a card, enter a card number..." field at the bottom of the screen. The desired card number must have a valid card type entered in the "type" field. Press the [Config Card] function key. Proceed to step 7: Configure DTC Cards. To configure the ports on a DTC 16iX/16MX/16RX, simply press the [Config Ports] function key. Proceed to step 7: Configure DTC Cards. 9. Repeat steps 1 through 8 above for every newly-added DTC to be managed by the HP 3000 host. If you want to select a DTC that has already been configured, enter the DTC's name in the DTC name field and press the [Read DTC] function key. Next Key Labels When the [Next Key Labels] key is pressed, another set of key labels are displayed, this allows additional optional information to be configured for the DTC. These keys provide access to the following configuration screens: DNS/IP Routing This key goes to a screen used to configure the DTC to use Domain Name Services for IP address resolution and IP routing configuration. These services are configured when back-to- back connection through routers are used or connections are to be made from DTC ports to HP 9000s or third party ARPA nodes. See chapter 8 for steps to do this. Tune DTC This key goes to a screen to change the AFCP, TCP and management timers for the DTC, if needed. Refer to chapter 8 for steps to do this. DTC U I This key goes to a screen that has information that defines how the DTC user interface behaves. The DTC user interface is used when a DTC port is configured as a switched port. See Introduction (chapter 1) for a description of how switching is used and chapter 7 for a description of how to configure ports to allow switching. Config SNMP You may use the [Config SNMP] key on the DTC Screen to configure the DTC to act as an SNMP agent. This key goes to a screen to configure the DTC to act as an SNMP agent. Refer to appendix C for steps to do this. Refer to the DTC Technical Reference Guide manual for more information on SNMP. Step 7: Configure DTC Cards When you press the [Config Card] key at the DTC Configuration screen, NMMGR will display the corresponding card configuration screen for the specified card in the DTC. Figure 5-6 shows an example of a Card Configuration screen for DTC 72MX for asynchronous connect card. (Screens vary slightly for DTC 16iX/16MX/16RX, DTC 16, and DTC 48). The corresponding screen for a DTC 16iX/16MX/16RX is called a Port Configuration Screen since DTC 16iX/16MX/16RX has port connectors built directly onto the backplane and does not have connector cards. Use this screen to configure the ports in the specified card.On this screen, logical device (ldev) numbers and profile names are associated with individual ports on the card.Figure 5-6. DTC Card Configuration Screen 1. Verify that the DTC name and card number displayed are correct. 2. (Optional) Enter the port group type. The valid types are D for direct connect and M for modem connect.The default is D. 3. Press the [Tab] key to move the cursor to the first port on the card. Enter an ldev numberfor this port in the "Ldev" field. Ldev numbers used for each port on the DTC must be unique. For example, you can use ldev number 100 for port 0 of the first card, and increment the ldev number by 1 for each consecutive port. So a DTC 72MX with 3 asynchronous cards (a total of 72 ports) would be assigned ldev numbers 100 through 123 for the 24 ports on the first card, 124 through 147 for the ports on the second card and 148 through 171 for the ports on the third card. For the second DTC, you would start with an ldev number greater than 171. _________________________________________________________________ NOTE Pressing the [Show Ldevs] key will display a list of all the ldev numbers configured in NMMGR in addition to the DTC name, card type, and profile name. _________________________________________________________________ 4. Enter the profile namefor each port in the "Profile Name" field. A profile for the port defines the characteristics of the device to be connected to that port. For direct terminals ports, the suggested profile to use is TR10D96.For direct printer ports, the suggested profile to use is PR18D96 (or PR22D24 for HP printers with status checking). For a UPS connected to a DTC port, the suggested profile is UP10D12. The tables in chapter 7 list terminal, printer and UPS profiles supplied by the system. You may also create your own profiles. Refer to chapter 7, "Terminal and Printer Profiles," for more information on profiles. 5. Repeat above two steps for every port in this card. _________________________________________________________________ NOTE To reduce typing ldev numbers and profiles on the screen, you can use the [Fill Card] key to automatically assign ldev numbers and profile names. First, enter an ldev number (and profile name if you do not wish to use the default profile name) for port 0, then press [Fill Card]; the system will automatically assign incremental ldev numbers to each subsequent port on the screen and copy the specified profile for each port. The system will automatically save the data it has entered. The [Clear Display] key on your keyboard will clear the part of your screen that is below the cursor position. You may use this key and the [Fill Card] key to quickly modify a screen. _________________________________________________________________ 6. Press the [Save Data] function key to save the data on the screen. _________________________________________________________________ CAUTION Before you exit this screen, make sure you press [Save Data] if you want to keep the data on the screen; otherwise your screen input will be lost. This occurs even if you temporarily exit the screen to read [Help] information. _________________________________________________________________ 7. To configure another card, enter the card number you want to configure in the field "To configure a different card, enter its number,..." . The desired card number must have already been configured in the previous section, "Step 6: Specify DTC Configuration." The card is configured if a valid card type is entered in the "Type" field on the previous DTC configuration screen. 8. Press the [Config Card] function key. The corresponding screen for the card number entered in the last step will be displayed. 9. If all the cards have been configured, press the [Prior Screen] function key to return to the DTC Configuration Selection screen to select another DTC to configure. Otherwise, if every DTC has been configured, press the [Validate DTS/LINK] function key to validate the configuration file. _________________________________________________________________ NOTE NMMGR allows the configuration of up to 4649 terminal I/O devices. The largest valid ldev number allowed is 4679. _________________________________________________________________ Step 8: Validate/Cross-Validate the Configuration File Validation ensures that no conflicts exist in the network configuration file (NMCONFIG.PUB.SYS) between the DTCs and other configuration parameters. After NMMGR validates the network configuration file, it will automatically cross-validate the file with the system I/O devices configured through the SYSGEN utility. This will take place only if the file opened at the start of the NMMGR session is NMCONFIG.PUB.SYS and validation is successful. Additionally, you must have System Manager (SM) capability or the cross- validation will not occur. The commands used for SYSGEN cross-validation are in the file NMGRXVAL.PUB.SYS. If this file does not exist, NMMGR will create the file for you before cross-validating. You can edit this file as appropriate for your environment. Refer to the MPE/iX manual, System Startup, Configuration, and Shutdown Reference Manual (32650-90042), for information on SYSGEN. 1. To validate the configuration file, press the [Validate DTS/LINK] key at the Card Configuration Screen, or type validate at the command line on top of any NMMGR screen and press [Enter]. (Note that the [Enter] key is not the carriage return key.) The DTS validationprocedure starts by displaying the following on the terminal: Table 5-5. -------------------------------------------------------- | | | | | -> Validation of DTS/LINK started. <- | | | | -------------------------------------------------------- | | | | | -> Validation of DTS/LINK finished. <- | | | | -------------------------------------------------------- If errors were encountered in the configuration file, the validation procedure will print out the total number of errors found. Error messages will also be displayed explaining the problems found. Refer to appendix D, "Error Messages," for more information about these error messages. 2. After validation of the network configuration file is complete, the following will appear on the screen as the file is cross-validated with the files created with SYSGEN (warning messages may vary): Table 5-6. --------------------------------------------------------------------------------- | | | NMMGR will now cross-validate the NMCONFIG file with SYSGEN. | | | --------------------------------------------------------------------------------- | | | | --------------------------------------------------------------------------------- | | | SYSGEN version E.00.00:catalog version E.00.00 FRI FEB 4, 1994 3:32 PM | | Copyright 1987 Hewlett-Packard Co. All Rights Reserved. | | | --------------------------------------------------------------------------------- | | | | --------------------------------------------------------------------------------- | | | | | **warning** no NMCONFIG file in this configuration **warning** | | | NMCONFIG.PUB.SYS is now the NMCONFIG file | | | | --------------------------------------------------------------------------------- | | | | --------------------------------------------------------------------------------- | | | | | ** First level command ** | | | | --------------------------------------------------------------------------------- | | | | --------------------------------------------------------------------------------- | | | | | | | | io | log (lo) | misc (mi) | spu (sp) | | | | | | | --------------------------------------------------------------------------------- | | | | | sysfile (sy) | | | | --------------------------------------------------------------------------------- | | | | --------------------------------------------------------------------------------- | | | | | | | | basegroup (ba) | keep (ke) | permyes (pe) | show (sh) | | | | | | | --------------------------------------------------------------------------------- | | | | | tape (ta) | | | | --------------------------------------------------------------------------------- | | | | --------------------------------------------------------------------------------- | | | | | | | | clear (cl) (c) | exit (ex) (e) | help (he) (h) | oclose (oc) | | | | | | | --------------------------------------------------------------------------------- | | | | | redo | | | | --------------------------------------------------------------------------------- | | | | --------------------------------------------------------------------------------- | | | sysgen> PERMYES ON {Automatically reply YES} | | | --------------------------------------------------------------------------------- | | | sysgen> SY {Go to the SYSFILE subsystem} | | | --------------------------------------------------------------------------------- | | | | | ** SYSFILE configurator commands ** | | | | --------------------------------------------------------------------------------- | | | | --------------------------------------------------------------------------------- | | | | | | | | aauto (aa) | aboot (ab) | acmsl (ac) | asprog (as) | | | | | | | --------------------------------------------------------------------------------- | | | | | | | | cmsl (cm) | dauto (da) | dboot (db) | dcmsl (dc) | | | | | | | --------------------------------------------------------------------------------- | | | | | | | | dsprog (ds) | lcmsl (lc) | rauto (ra) | rboot (rb) | | | | | | | --------------------------------------------------------------------------------- | | | | | | | | rcat (rc) | rcmsl (rcm) | rdcc (rd) | ripl (ri) | | | | | | | --------------------------------------------------------------------------------- | | | | | | | | rnmlib (rn) | rsprog (rs) | show (sh) | | | | | | | | --------------------------------------------------------------------------------- | | | | --------------------------------------------------------------------------------- | | | | | | | | clear (cl) (c) | exit (ex) (e) | help (he) (h) | hold (ho) | | | | | | | --------------------------------------------------------------------------------- | | | | --------------------------------------------------------------------------------- | | | sysfile> RDCC {Set configuration file to NMCONFIG.PUB.SYS} | | | --------------------------------------------------------------------------------- | | | sysfile> {HO} {Remove braces to HOLD RDCC command} | | | --------------------------------------------------------------------------------- | | | sysfile> EX {EXit the SYSFILE subsystem} | | | --------------------------------------------------------------------------------- | | | | --------------------------------------------------------------------------------- | | | | | | configuration changes are not kept yet! still want | | | | to exit (yes/no)? Automatic yes | | | | | | --------------------------------------------------------------------------------- | | | sysgen> BA CONFIG {Set BAse group to CONFIG} | | | --------------------------------------------------------------------------------- | | | sysgen> EX {KEep the changed configuration data} | | | --------------------------------------------------------------------------------- | | | | --------------------------------------------------------------------------------- | | | | | keeping to group CONFIG.SYS | | | | --------------------------------------------------------------------------------- | | | | | Purge old configuration (yes/no)? Automatic yes | | | | --------------------------------------------------------------------------------- | | | | | ** configuration files successfully saved ** | | | | --------------------------------------------------------------------------------- | | | sysgen> EX {EXit SYSGEN} | | | --------------------------------------------------------------------------------- | | | | --------------------------------------------------------------------------------- | | | Cross-validation with SYSGEN was successful | | | --------------------------------------------------------------------------------- | | | Copying validated configuration file to backup file, please wait **** | | | --------------------------------------------------------------------------------- 3. After successful validation and cross-validation, and if the file in use is NMCONFIG.PUB.SYS, the following prompt will appear: Table 5-7. --------------------------------------------------------------- | | | Do you want DTS changes to become active now (Y/N)? | | | --------------------------------------------------------------- | | | | --------------------------------------------------------------- | | | | Y = | all changes made take effect now | | | | --------------------------------------------------------------- | | | | N = | all changes made will take effect upon next | | | dynamic configuration or system reboot | | | | --------------------------------------------------------------- | | | | H = | help | | | | --------------------------------------------------------------- | | | | --------------------------------------------------------------- | | | > | | | --------------------------------------------------------------- Answer Y if you want to invoke DTCCNTRL and make DTS changes take effect now, or answer N if you don't want DTS changes to take effect now. Note any messages that describe additional actions needed for changes to become active. After you exit NMMGR you can review any actions needed by viewing the logs at the end of the file LOGDCC.PUB.SYS. If you answer N, the DTS changes will take effect the next time DTCCNTRL is invoked, a DTS shutdown/restart is done, or the system is rebooted. Type H if you need more help to answer the question. See chapter 4 for more information on dynamic configuration. 4. After viewing the messages describing what actions are required, if any, enter [RETURN] when you see the prompt: (Press RETURN when finished viewing screen contents.) You will return to the Validation screen. You may make additional configuration changes or exit NMMGR. Step 9: Ensure DTS Changes Become Active If you answered Y to the question "Do you want DTS changes to become active now (Y/N)?" in step 8, refer to Table 4-1 in chapter 4 for a list of configuration tasks and associated actions for changes to become active. For those tasks indicating "No action; changes take effect dynamically," no additional actions are required for the DTS changes to become active. You will see a message on the screen indicating that no other actions are required. For other tasks requiring additional actions for changes to become active, you will see messages on the screen indicating what actions must be taken first. Refer to the steps below for more information.
NOTE If you answered N to the question in step 8, thus choosing not to call DTCCNTRL, refer to chapter 4 for details on how to invoke DTCCNTRL outside NMMGR.
Performing a DTC Reboot. First, logoff any sessions. To resetthe DTC, turn off the power and then turn on the power again for the DTC. You may also use TermDSM, an online diagnostic program for host-managed DTCs, to reset the DTC. Refer to Troubleshooting Terminal, Printer, and Serial Device Connections (32022-61002) for more information. Performing a DTS Shutdown/Restart. To perform a DTS shutdown and restart, use the DTCCNTRL command. Refer to chapter 4 for more information on how to use this command to perform a DTS shutdown/restart.
