Configuring Systems for Terminals, Printers, and Other Serial Devices

Configuration Worksheets

Before you proceed to NMMGR, it is recommended that you use the
worksheets provided here to gather the necessary configuration
information.Make copies of these worksheets and fill in the parameter
information, then use these worksheets to guide you through configuration
in NMMGR.

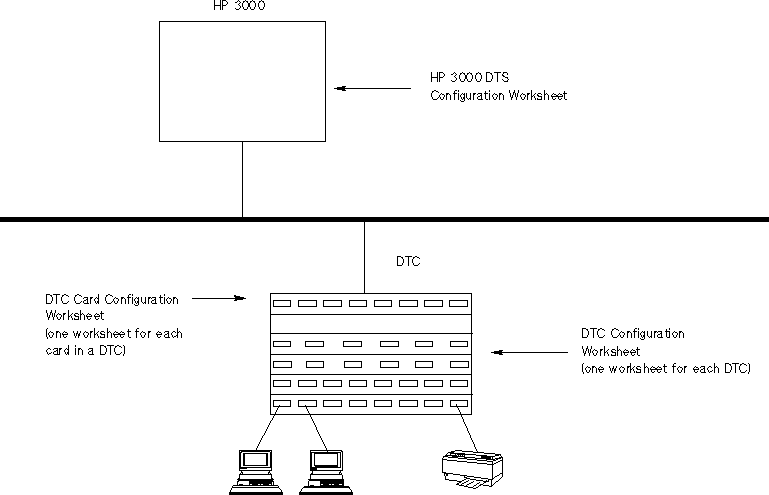

Figure 2-3  shows which part of the configuration is covered by the
worksheets.


          Figure 2-3.  Configuration Worksheets

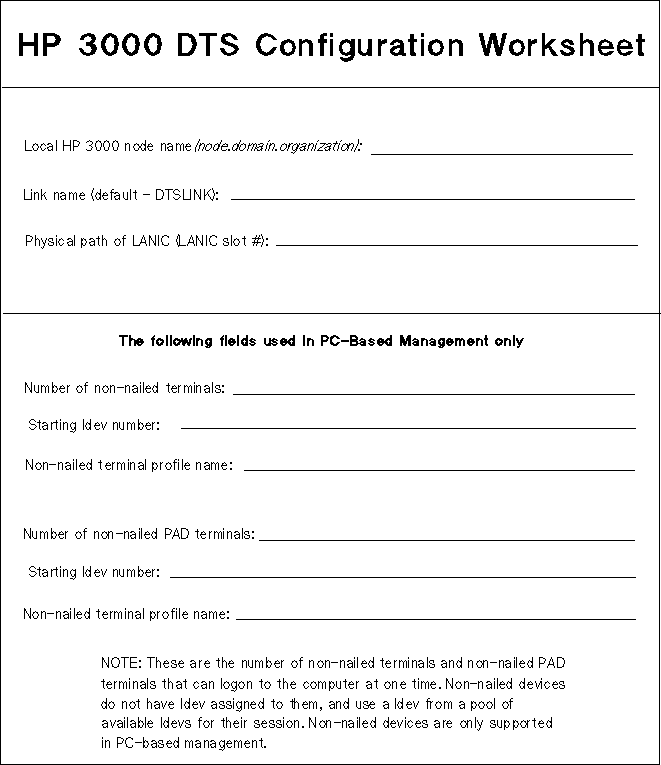

HP 3000 DTC Configuration Worksheet

Fill out worksheet as shown in Figure 2-4  with
configurationinformation as needed.


          Figure 2-4.  DTS Configuration Worksheet

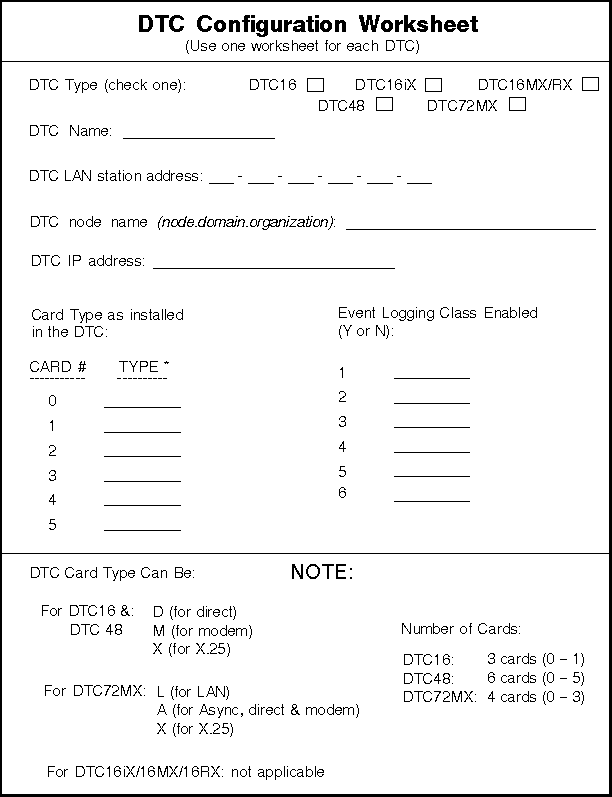

DTC Configuration Worksheet

Fill out worksheet as shown in Figure 2-5  for each DTC you are
configuring.


          Figure 2-5.  DTC Configuration Worksheet

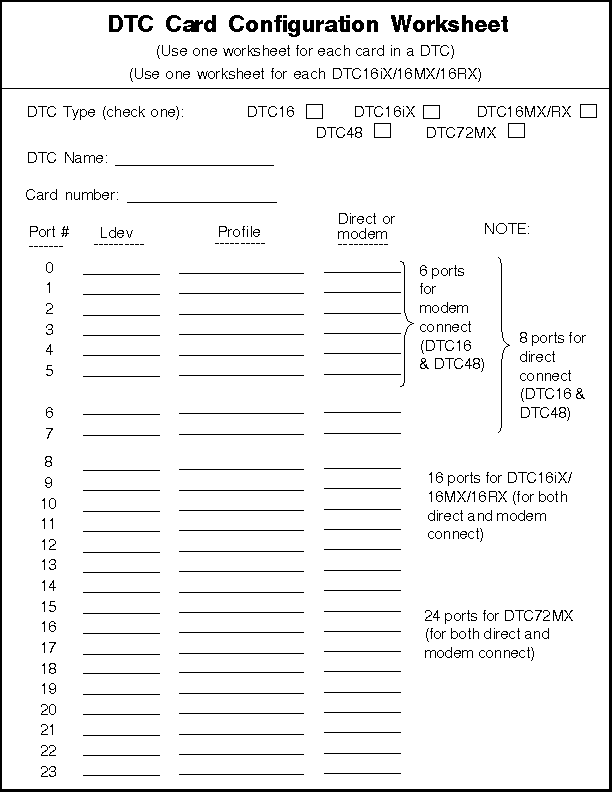

DTC Card Configuration Worksheet

Fill out worksheet as shown in Figure 2-6  for each direct connect
card you are configuring.


          Figure 2-6.  DTC Card Configuration Worksheet
