Distributed Terminal Subsystem (DTS) [ Troubleshooting Terminal, Printer, and Serial Device Connections ] MPE/iX 5.0 Documentation


Troubleshooting Terminal, Printer, and Serial Device Connections

Distributed Terminal Subsystem (DTS)

With the exception of the system console which has its own access port,
all asynchronous serial devices can be connected to 900 Series HP 3000
computers through the Distributed Terminal Subsystem (DTS). DTS is made
up of all of the Datacommunications and Terminal Controllers connected to
the system, a LAN Interface Card, the LAN cable and the host software
that controls all the related DTS hardware.

Datacommunication and Terminal Controller

The Datacommunications and Terminal Controller (DTC) provides the
connection between asynchronous devices and the 900 Series HP 3000 family
of computers.  The DTC is housed in its own box, outside the system
cabinet.  This alleviates system limitations which are based on cabinet
space considerations, and allows flexibility in the layout of terminal
cables.  Figure 1-1 represents the location of the DTCs in relation to
the system, the LAN, and the terminals and printers connected to the
system through the DTCs.

[]

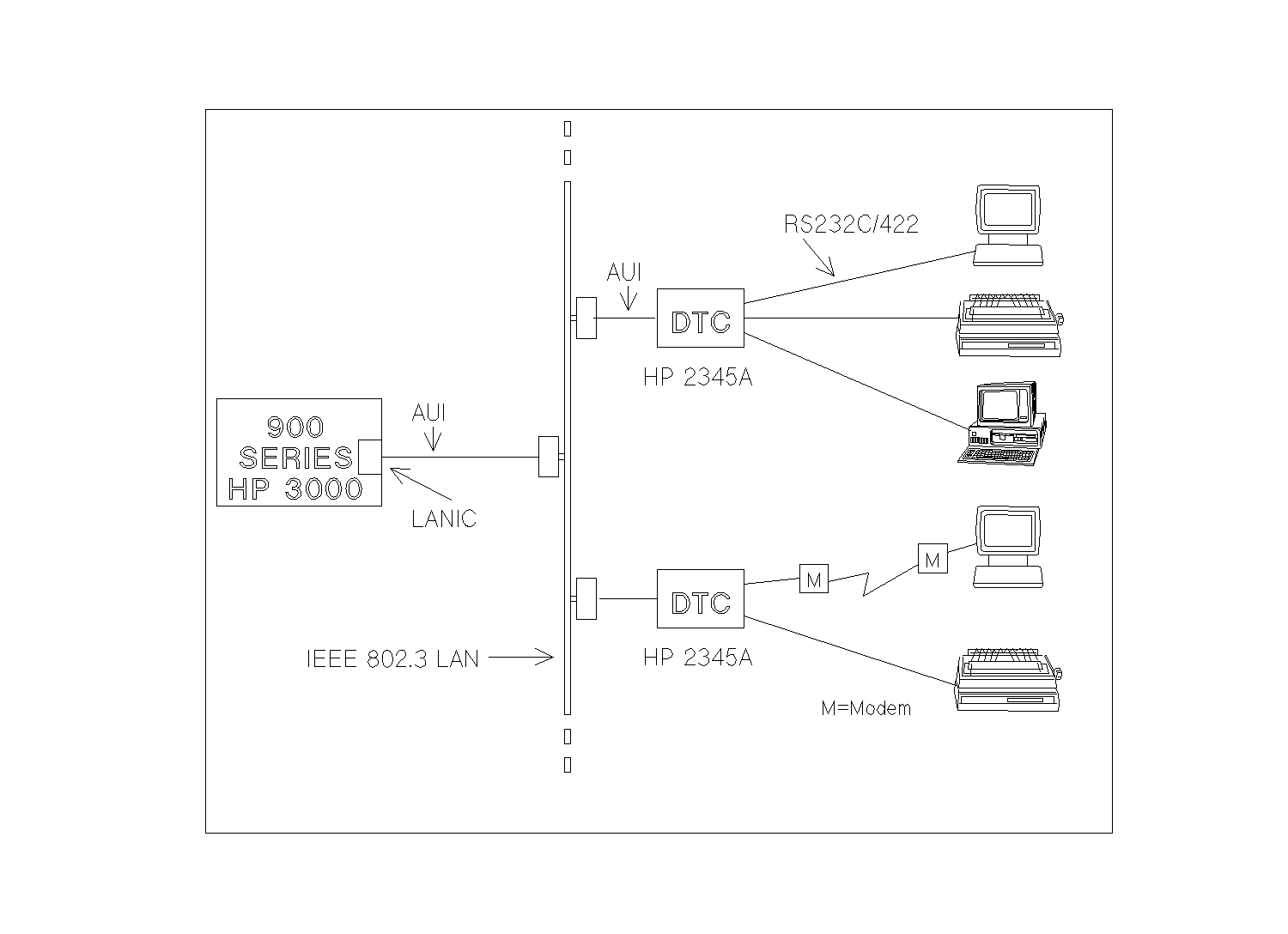

Figure 1-1. Datacommunications and Terminal Controller Each DTC can provide connections for up to 48 local devices, 36 remote devices using modems, or a combination of both. Local and remote connections can be mixed on the same DTC, since its design is modular. Each DTC provides six slots, each of which can contain one of the following connector cards: * Eight 3-pin RS-232-C local connections. * Eight 5-pin RS-422 local connections. * Six 25-pin RS-232-C modem connections. The DTC is controlled by software that is downloaded by its host system at boot time or by the OpenView Windows Workstation, depending on the type of management used. Systems can use either host-based management or PC-based management. Refer to Getting Started with the DTC for more information on host-based management and PC-based management. TermDSM can be used only to troubleshoot connections on systems that use host-based management. The downloaded software includes DTC operating code and configuration information. Once the software is downloaded, the DTC is ready for operation. Devices physically connected to its ports and properly configured can establish communications links with the host computer. LAN Interface Card (LANIC) Every computer in the 900 Series HP 3000 family has a LAN Interface Card (LANIC) as part of its hardware. This card is located in the System Processing Unit (SPU) and enables the system to communicate with asynchronous devices via the LAN by providing the basic connection between the computer and the LAN. Datacommunications and Terminal Controllers are connected to the system by a Local Area Network (LAN), over coaxial cable which conforms to the IEEE 802.3 standard. Hewlett-Packard provides two versions of this cable, ThinLAN and ThickLAN, each provides certain specific advantages to the user. Each DTC has a unique LAN address which is made known to the system during configuration. Also referred to as the node address or the station address, it serves to identify the DTC as a node on the LAN. Keep in mind, however, that while DTCs are treated as nodes for the purpose of configuration, they are not true nodes. DTCs are dedicated communication devices; they are not self-contained, general-purpose computer systems. ThinLAN Connection. LAN cable is available in two versions. The first, ThinLAN (Type 10 BASE 2), is available in connection lengths of up to 185 meters (555 feet), and provides an economical solution where DTCs are located in close proximity to their computer system. ThinLAN is a flexible cable which is easy to install, and can be bent around objects to accommodate its use in confined areas. ThinLAN is connected to the computer through a ThinMau (Medium Attachment Unit), with a small BNC T-connector used to connect each DTC to the LAN. You can connect up to three segments of the cable with two repeaters, thus extending the length of the LAN 555 meters. Figure 1-2 shows a configuration using ThinLAN.
[]

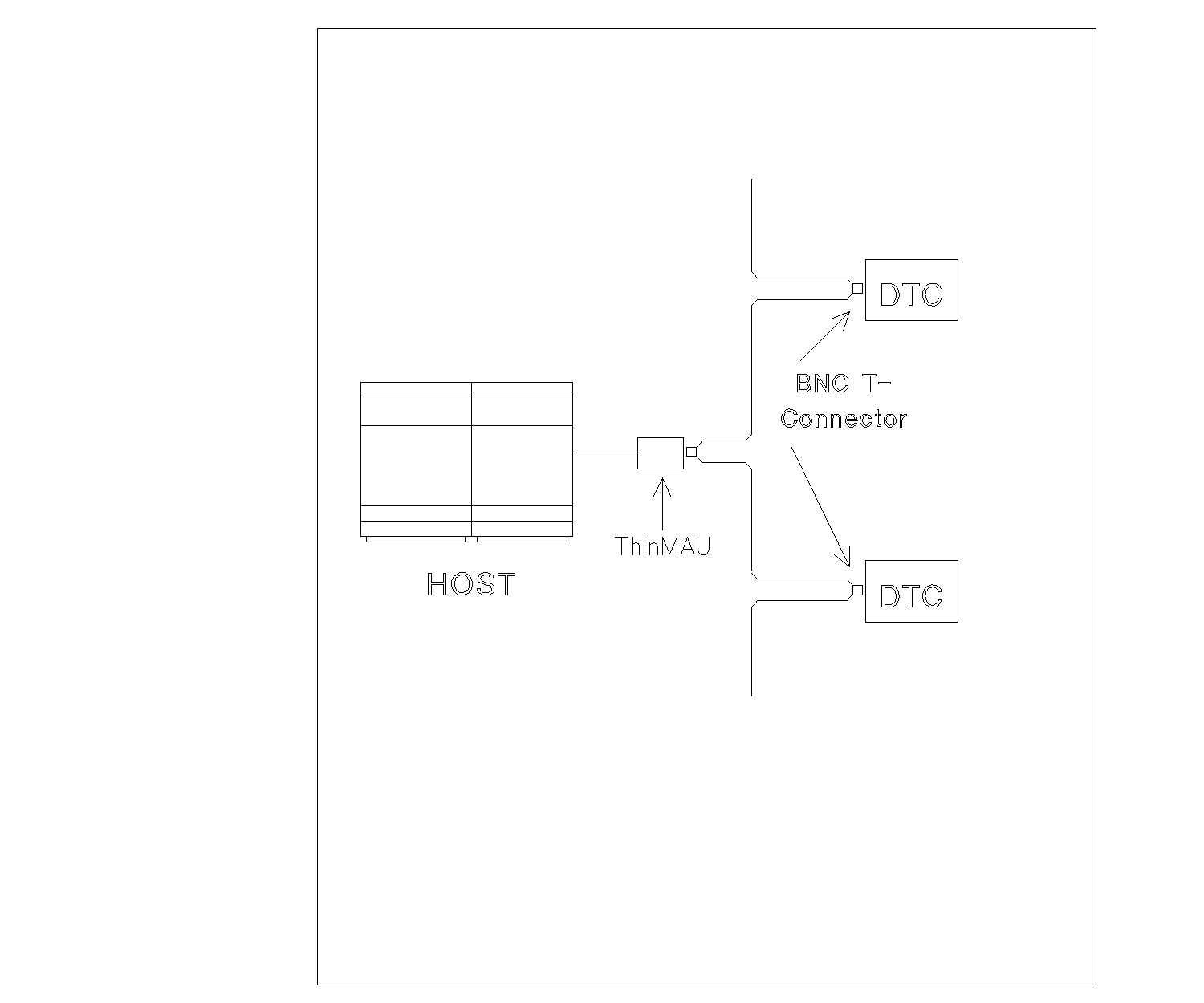

Figure 1-2. ThinLAN Configuration ThickLAN Connection. The second version of the LAN cable, ThickLAN (Type 10 BASE 5), offers maximum connection lengths of up to 500 meters (1600 feet), and supports up to 100 nodes. Each node on the LAN is connected through a Medium Attachment Unit (MAU). An Attachment Unit Interface (AUI) cable runs between each node and its MAU, as well as between the host computer and its MAU. You can connect up to three segments of ThickLAN cable with two repeaters, thus extending the length of the LAN to 1500 meters. Figure 1-2 shows a ThickLAN configuration.
[]

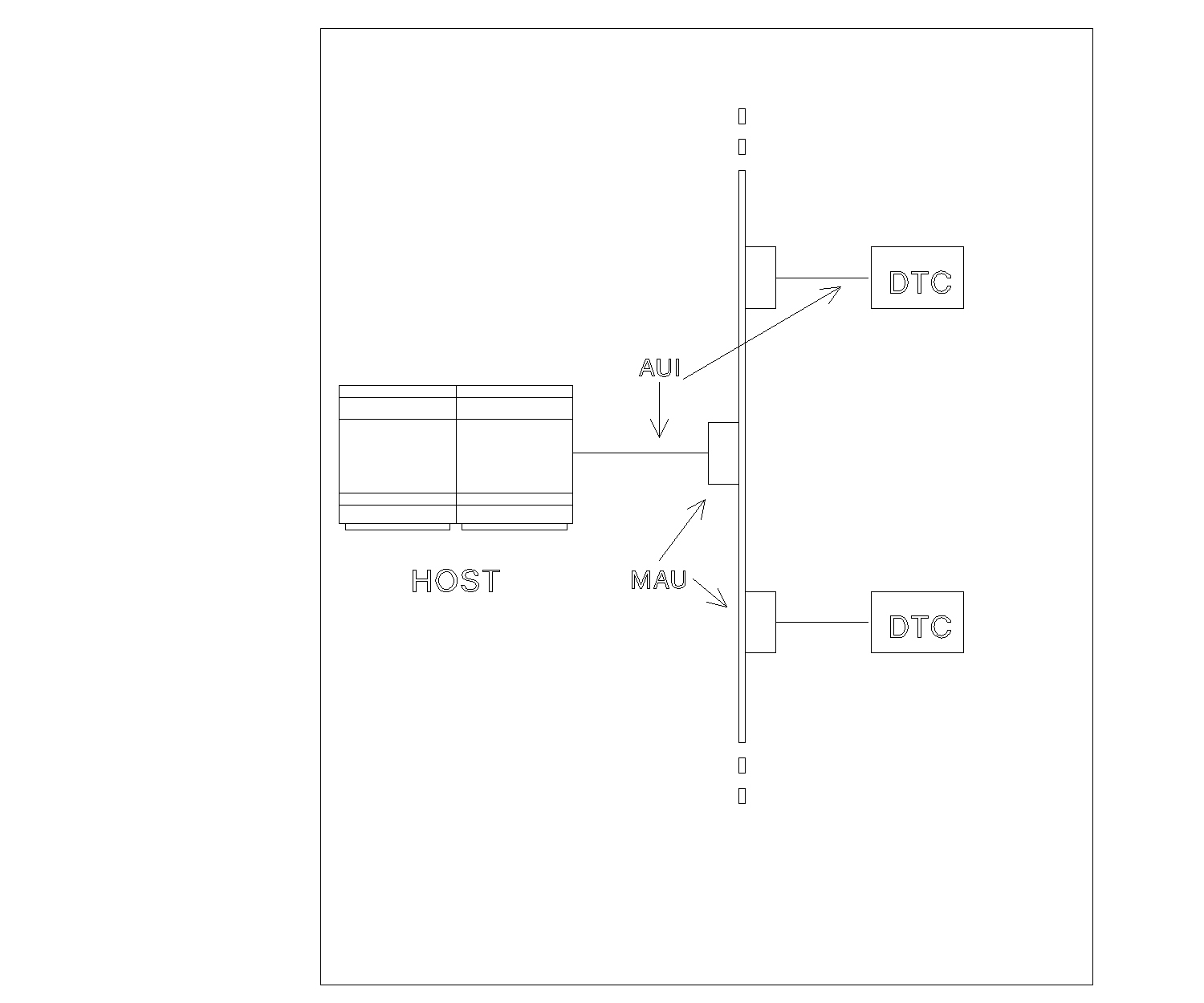

Figure 1-3. ThickLAN Configuration ASC Software The Asynchronous Serial Communications (ASC) software controls the DTS hardware. It provides the interface between the IEEE 802.3 LAN and the MPE XL operating system. The software is included with the MPE XL Fundamental Operating System (FOS). The MPE XL system tracks all of the devices connected to it by means of configuration files. The network configuration information necessary to initialize and control the DTS resides in a special configuration file. This file is created through the Node Management Configuration Manager (NMMGR). Configuring Systems for Terminals, Printers, and Other Serial Devices provides a detailed discussion of the configuration process.
