Netware 3.11 for the HP 3000 Installing and Administering Guide

Add A Volume

2.  Configuration

2.  File Services Configuration

3.  Add A Volume

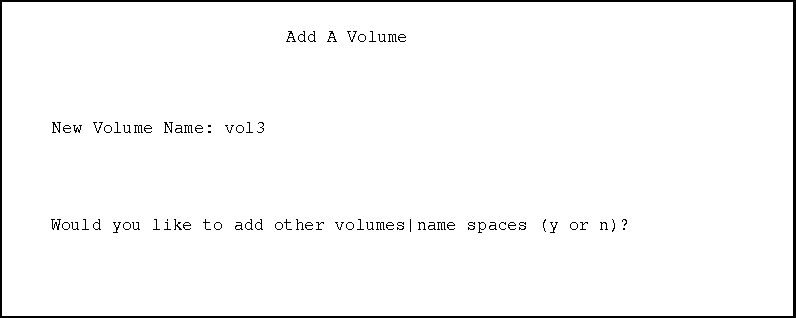

          Figure 10-11.  Add A Volume

New Volume Name

Enter a volume name in lowercase characters.

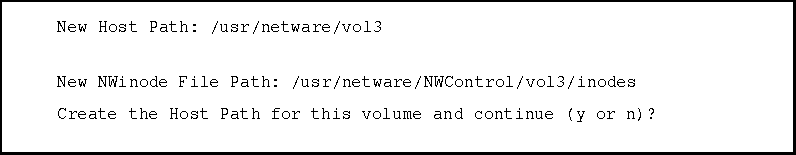

          Figure 10-12.  New Host Path

New Host Path

This parameter is the path of the HFS directory that serves as the root
directory for each logical volume.

The default host path is:

/usr/netware/new_vol

where new_vol is the new volume name in lowercase characters.

New NWinode File

This parameter is the filename and path of the NWinode file for the
volume.  The NWinode file stores the directory structure, file sizes and
locations, and disk utilization information for the volume.

The default NWinode file path is:

/usr/netware/NWControl/new_vol/inodes

where new_vol is the new volume name in lowercase characters.  It is
recommended you use the default.  Type y to accept the default.
