Netware 3.11 for the HP 3000 Installing and Administering Guide

List Volumes

2.  Configuration

2.  File Services Configuration

2.  List Volumes

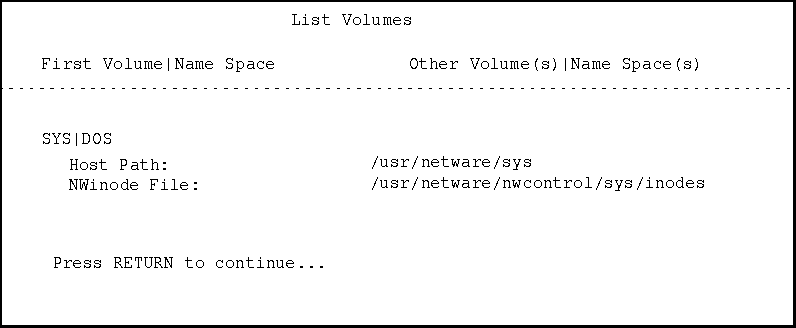

          Figure 10-10.  List Volumes

First Volume|Name Space

The first volume name is the name of the volume.  The name space used
must be DOS. The first volume name is separated from the name space
associated with the volume by a vertical bar.

Host Path

This parameter shows the path of the host system directory that serves as
the root directory for each logical volume.

NWinode File

This parameter shows the filename and path of the NWinode file for the
volume.  The NWinode file stores the directory structure, file sizes and
locations, and disk utilization information for the volume.
