HP FORTRAN 77/iX Reference

REAL Statement (Nonexecutable)

The REAL type specification statement explicitly assigns the REAL*4,
REAL*8, and REAL*16 data types to symbolic names, and optionally assigns
initial values to variables.

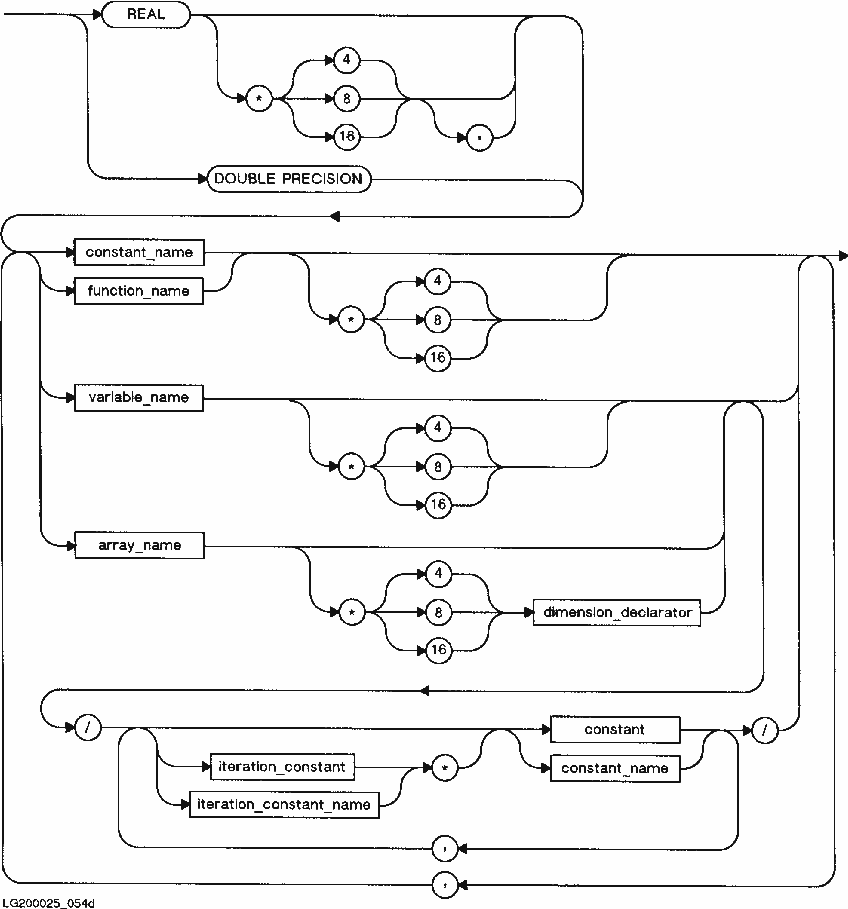

The following syntax includes the REAL, REAL*4, REAL*8, REAL*16, and
DOUBLE PRECISION statements.




Semantics

The REAL and REAL*4 statements are equivalent.  The DOUBLE PRECISION and
REAL*8 statements are equivalent.  The REAL*16 statement has no
equivalent.  The REAL*4, REAL*8, and REAL*16 statements are extensions to
the ANSI 77 standard.

As an extension to the ANSI 77 standard, a length specifier can follow
the item being declared.  This specifier overrides the data length
implied by the type statement.  If the item is an array name with a
dimension declarator, the length specifier precedes the dimension
declarator.

If an array declarator is specified in a type statement, the declarator
for that array must not appear in any other specification statement (such
as DIMENSION). If only the array name is specified, then an array
declarator must appear within a DIMENSION or COMMON statement.

Each symbolic name can appear in a type statement only once.

As an extension to the ANSI 77 standard, you can initialize variables or
arrays in a type declaration statement by enclosing the initialization
values between slashes.  The second example below illustrates this method
of initialization.  See "DATA Statement (Nonexecutable)"  for further
information on initialization.

                 Examples                                      Notes

---------------------------------------------------------------------------------------

  REAL item                                 item is a three-dimensional array
  DIMENSION item(2,3,5)                     containing 30 4-byte real elements.

  DOUBLE PRECISION                          measure is an 8-byte real variable,
+measure/384E-04/,test/2.1/                 initialized to .0384.  test is an 8-byte
                                            real variable, initialized to 2.1.

  REAL*16 accurate(5)                       accurate is an array containing 5 16-byte
                                            real elements.
