HP COBOL II/XL Reference Manual

DISPLAY Statement

The DISPLAY statement can be used to transfer low volume data to the
operator's console, a terminal, or the line printer.  If more than one
name is specified, each data item is listed in the order specified in the
DISPLAY statement.

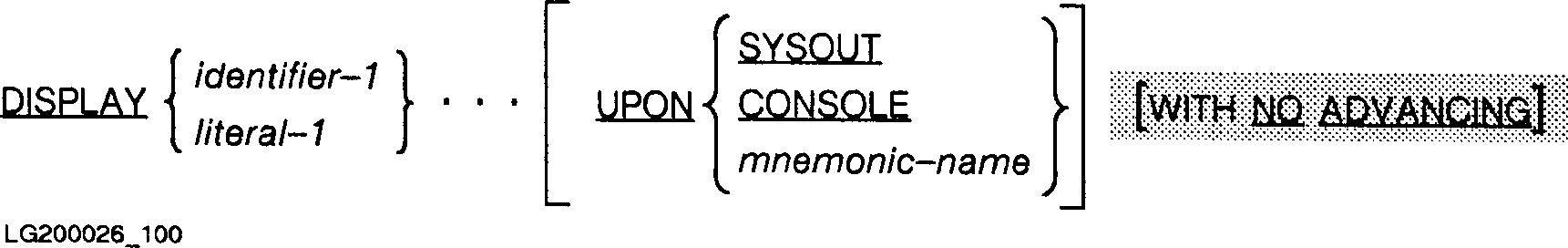

Syntax




Parameters

identifier-1 and  identifiers of data items, unsigned numeric integer
literal-1         literals, the special registers (TALLY, TIME-OF-DAY,
                  CURRENT-DATE, WHEN-COMPILED, LINAGE-COUNTER, and
                  DEBUG-ITEM) and any figurative constant except ALL.

SYSOUT            in batch mode, the line printer.  In session mode, it
                  is the terminal from which the COBOL program was
                  initiated.  This is the default if the UPON phrase is
                  not used.

CONSOLE           the operator's console.

mnemonic-name     the name specified by you, and defined under the
                  SPECIAL-NAMES paragraph of the ENVIRONMENT DIVISION as
                  either SYSOUT or CONSOLE.

Description


NOTE  I-O errors that occur during execution of the DISPLAY statement do
      not produce a "tombstone" since the I-O is not done by the file
      system.


If an item is described as USAGE COMPUTATIONAL,  BINARY, COMPUTATIONAL-3,
or  PACKED-DECIMAL, the compiler translates it into a USAGE DISPLAY item
for purposes of displaying it.

If TIME-OF-DAY is used as an identifier, the time is displayed in edited
form.  That is, in the form, HH:MM:SS where HH is the hour taken from a
24 hour clock, MM is the number of minutes after the hour, and SS is the
number of seconds after the minute.

If a figurative constant is specified as an operand, only one occurrence
of the constant is displayed.  This is true even when the figurative
constant ALL is specified.

When a DISPLAY statement contains more than one operand, the size of the
data to be transmitted is the sum of the sizes of all the operands.  The
values of the operands are transferred in the sequence in which the
operands are listed.

Length of Data Being Displayed.

As with the ACCEPT statement, hardware record sizes determine the display
of the data specified in the DISPLAY statement.  The following methods
are used, depending upon whether the size of the sending item is equal
to, shorter than, or longer than the hardware device designated to
receive the data:

   *   If the sending item is the same length, no problem arises and the
       data is transmitted.

   *   If the sending item is shorter than the device, the transferred
       data is displayed beginning with the leftmost position of the
       device, continuing to the right until all data characters have
       been displayed.

   *   If the sending item is longer than can be displayed on one line of
       the device, the first line of the device is filled with as many
       characters as possible, then the next line is filled, and so forth
       until the entire sending item has been displayed.  The order in
       which the sending data is displayed is the same as the order in
       which it is transmitted.

The WITH NO ADVANCING Phrase.

 The WITH NO ADVANCING phrase of the DISPLAY statement provides
interaction   with a hardware device having vertical positioning.  If the
WITH NO ADVANCING  phrase is specified, the positioning of the hardware
device is not reset to   the next line or changed in any other way
following the display of the last   operand.  If the hardware device can
be set to a specific character position,  it remains set at the character
position immediately following the last   character of the last operand
displayed.  If the hardware device cannot be set  to a specific character
position, only the vertical position, if applicable,   is affected.  This
may cause overprinting if the hardware supports [REV BEG]  overprinting.
If you redirect STDLIST to a file, the file must use carriage   control
(CCTL) or WITH NO ADVANCING has no effect.  [REV END]

If the WITH NO ADVANCING phrase is not specified, the positioning of the
hardware device is reset to the leftmost position of the next line of the
device after the last operand has been transferred to the hardware
device.

If vertical positioning is not applicable on the hardware device, the
operating system ignores the vertical positioning that is specified or
implied.

Example 1

Following is an example DISPLAY statement:

     WORKING-STORAGE SECTION.
     01  BEGIN-MSG      PIC X(21) VALUE "_PROGRAM BEGINNING__".
             :
     PROCEDURE DIVISION.
             :
         DISPLAY CURRENT-DATE, BEGIN-MSG, TIME-OF-DAY UPON SYSOUT.

If the date is Tuesday, July 30, 1991 at exactly 10:45 a.m.  and the
above DISPLAY statement is executed, the following message is displayed
on the terminal where the program was run:

     07/30/91_PROGRAM BEGINNING__10:45:00

Example 2

The following DISPLAY statement illustrates the WITH NO ADVANCING phrase:

     DISPLAY "ENTER CLASS CODE" WITH NO ADVANCING.
     ACCEPT CLASS-CODE.

When the above statement is executed, the cursor is left on the same line
as ENTER CLASS CODE on the screen:

     ENTER CLASS CODE
                     uparrow
                     Position of cursor following the display.
