HP ALLBASE/4GL Developer Reference Manual Vol. 2

Decision Table Header Screen

This screen allows you to name a decision table and enter a description
for documentation purposes.

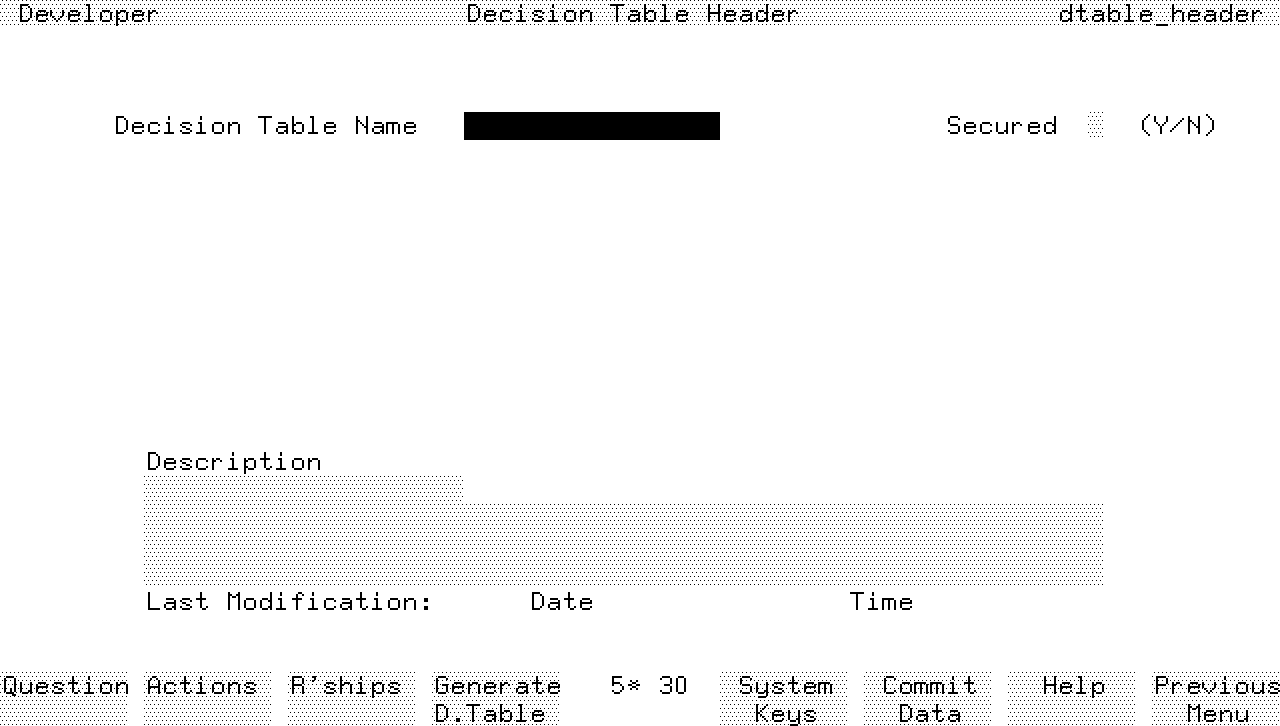

Screen Image




Field Descriptions

Decision Table Name.  Enter the name of the decision table (up to 16
characters).

Secured.  If you wish to protect this decision table from unauthorized
modification, enter Y after you have completed this screen; otherwise
enter N.

If you enter Y, this decision table can only be modified by a developer
who has signed on to the application under the correct development
security code.

Description.  Documentation fields.  Enter a description of the decision
table for documentation purposes.  HP ALLBASE/4GL automatically updates
the date and time fields to show the date and time of the last
modification.

Function Keys

f1       Questions  Cancels the current screen and displays the decision
        table questions screen.

f2       Actions  Cancels the current screen and displays the decision
        table actions screen.

f3       R'ships  Cancels the current screen and displays the decision
        table relationships screen.

f4       Generate D.Table  Generates the decision table.

Additional Information

You must name a new decision table using this screen before you can
specify any other details for the decision table.

MPE/iX 5.0 Documentation
