SQL Logic Block Header Screen

This screen allows you to name an SQL logic block and enter a description
for documentation purposes.

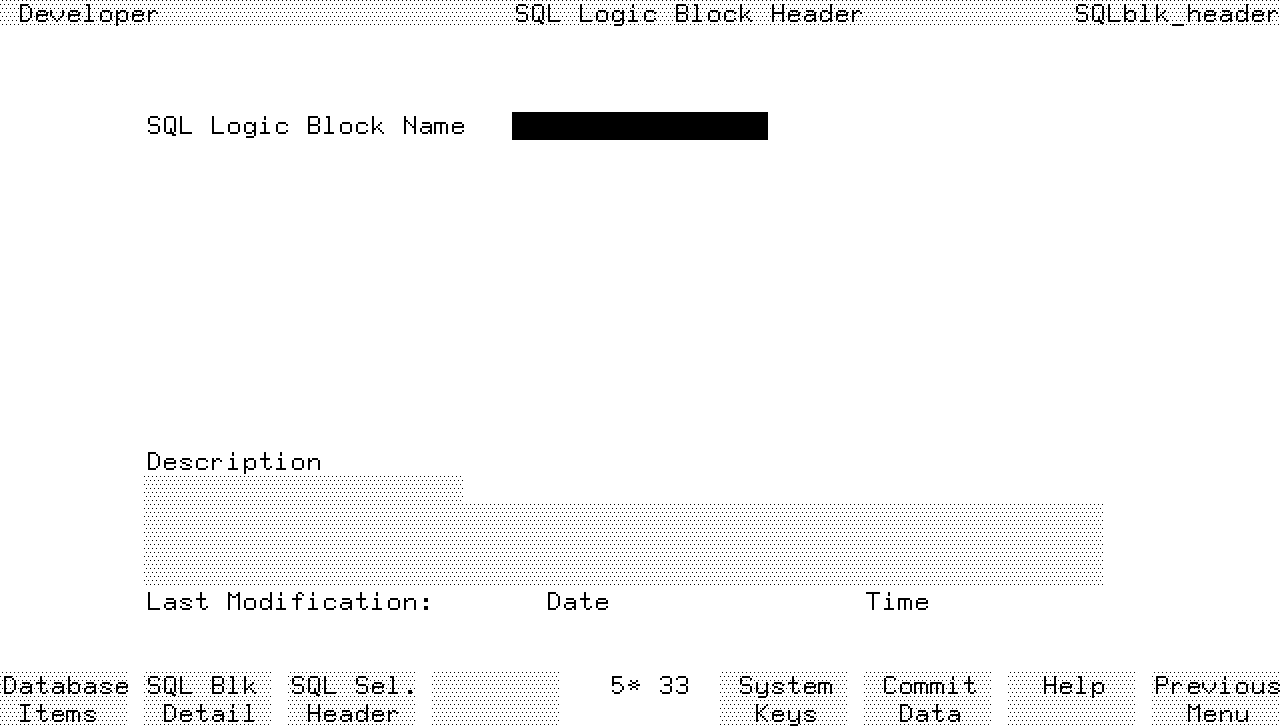

Screen Image




Field Descriptions

SQL Logic Block Name.  Enter the name of the SQL logic block (up to 16
characters).

Description.  Documentation fields.  Enter a description of the SQL logic
block for documentation purposes.  HP ALLBASE/4GL automatically updates
the date and time fields to show the date and time of the last
modification.

Function Keys

f1       Database Items  Cancels the current screen and displays the
        dictionary data base items menu.

f2       SQL Blk Detail  Cancels the current screen and displays the SQL
        logic block details screen.

f3       SQL Sel.  Header  Cancels the current screen and displays the
        SQL select list header screen.
