Task 3 - Painting the Product Report
The following layout shows the report you are about to paint.
1 2 3 4 5 6 7 8
P1.01: Product File Details Page: NNNN
P1.02: Date: AAAAAAAA
C1.01: Product Description Supplier Lead Time
D1.01: AAAAAA
D1.02: AAAAAAAAAAAAAAAAAAAAAAAAAAAAAA NNNNNN NN Days
TF.01: Total Number of Products NNNN
The following pages describe the procedure for creating this report
layout.
Step 1 - Entering Text Items
As with the screen painter, you create text items on a report by simply
positioning the cursor at the beginning of the item, pressing Return and
entering the required text. The painter automatically recognizes the
entered text as a literal.
You must have sufficient space in the window to enter a text item. You
cannot create a text item that is longer than the width of the window,
but you can create two text items that span across two windows for long
report headings.
The first text item you need to enter on this report extends from column
33 to column 52. To create this item, this range of columns must be
visible in the current window. Enter the text items by following these
steps.
To enter the text items for header lines:
Action Explanation
------------------------------------------------------------------------------
Press cursor home and The top left section of the report is displayed in
then press Return the window.
Press Window Keys The window keys function keys are displayed.
Press Right Window This moves the window 10 columns to the right.
This displays the range of columns needed to input
the next text item.
Press cursor right Keep doing this until the cursor is located in
report column 33. (The current cursor position
field contains the number of the column the cursor
is currently positioned at. This field is at the
right hand side of the screen, just below the paint
region. You must press Return to update this
cursor position display field.
Table 6-0. (cont.)
Action Explanation
------------------------------------------------------------------------------
Press Return The painter enters the text input mode. (The
screen shows an underline where you can input
text.)
Type Product File Details
Press Return This terminates the entry of the text item.
Press Shift+cursor home The bottom right section of the report is displayed
and then press Return in the window.
Press cursor up Keep pressing this key until the cursor is located
on line P1.01.
Press cursor left Keep pressing this key until the cursor is located
at column 65.
Press Return This updates the cursor position display. The
painter enters text input mode.
Enter Page:
Move to P1.02 col 65
Press Return
Enter Date:
This completes the entries for the text items that appear on the two
header lines of the report.
Now you can enter the remaining text items for the C1.01, D1.02, and
TF.01 lines.
To enter the text items for the remainder of the
report:
1. Use the cursor keys to move the cursor about the window.
2. Use the window keys to move about the report when you hit the
window edge.
3. Use the cursor positions listed below as a guide.
Line Group Text Cursor Position
----------------------------------------------------------------------
C1.01 Product 003
Description
Supplier 013
Lead Time
045
057
D1.02 Days 061
TF.01 Total Number of Products 003
Step 2 - Defining Data Fields
Next, you need to create the data fields on the report. This can be done
in a number of ways with the field keys.
To create data fields:
1. Position the cursor at line P1.01, column 71.
2. Return to the main function key set and press the Field Keys
function key.
The following function keys are displayed:
![[]](../../pic3k/M012318/FFN583c50.gif)
Field Keys
The Create Field and Dict. Field function keys allow you to
define data fields on the report line. The function keys Enter
Details , Commit Details , and Original Details allow you to
define the data that is printed in the field and any formatting or
totalling that is required for this field.
3. With the cursor still at line P1.01, column 71, complete the
following steps.
Action Explanation
------------------------------------------------------------------------------
Press Create Field An inverse video area extends to the right of the
cursor in the report painter window.
Type NNNN This specifies a numeric field 4 digits long.
Press Return This completes entry to the field. HP ALLBASE/4GL
should display the message:
Item passed validation
The character you use to define the field identifies the type of data
that the field can contain. You can use the following characters:
Character Field Type
A Alphanumeric
N Numeric
Z Zero suppressed numeric
The message that you receive confirms that you have entered a valid field
definition.
Now enter the details for this field using the Enter Details function
key.
1. Position the cursor anywhere on the field (the current field will
be highlighted) and press the Enter Details function key.
The painter moves the cursor to the Field Name/Literal field in
the lower portion of the screen.
2. Now step through the fields and make the necessary entries.
To enter the field details:
Field Entry Explanation
---------------------------------------------------------------------------------------
Field Name/Literal *PAGENO Specifies the source of data for the report
field. In this case, it is the
communication area field *PAGENO. This
field contains the number of the report
page currently being printed.
You will notice that when the current
report field is a literal, this field
contains a message: Literal - see line
format.
Edit Code Accept the default. This field has the same meaning as any
other HP ALLBASE/4GL edit code field. The
value in this field defaults to either N or
X depending on the character you used to
paint the field.
Justification Accept the default. This defaults to a standard justification
code depending on the character used to
paint the field.
Pad Character 0 (zero) This character fills blank spaces in the
field after it has been justified in the
correct direction.
Table 6-0. (cont.)
Field Entry Explanation
---------------------------------------------------------------------------------------
Underline Leave blank. This is similar in meaning to the same
field on the report line header screen.
However, the underlining or overlining
defined here only applies to this report
line field, not to all the fields on the
line.
Print Field Control Accept the default. This entry defines when this field should
be printed. A means always, or each time
the line is printed. C means only when the
value in the field changes.
This feature is useful in the detail lines
(D1 - D9), since printing the information
for a field only when its value changes
makes the report appear less cluttered.
Total Number Leave blank. The automatic totalling facility for
totalling fields down the report. The
number you enter here relates to the
communication area fields *TOTALS(1) to
*TOTALS(16). When left blank it indicates
that no totalling takes place for this
field.
Cross Add Number Leave blank. The automatic totalling facility for use
across the print line. The number you
enter here relates to the communication
area fields *CROSS(1) to *CROSS(5). When
left blank it indicates that no totalling
takes place for this field.
To complete and commit this field:
1. Having entered the details for this report line field, commit them
by pressing the Commit Details function key.
The painter returns the cursor to the report line field. The
details for the field remain displayed.
2. To display the details for a field, press Return while the cursor
is on the field.
In Summary.
* To enter details for a field press the Enter Details function
key while the cursor is on the appropriate report line field.
* To return to the painter mode, press the Commit Details function
key to accept the values you have entered, or press the Original
Details function key to abandon that entry of field details.
* The field's original details will be restored after you press the
Original Details function key.
To create the field that displays the print date:
Now you are ready to create the field that will display the print date
for the report. Position the cursor at line P1.02, column 71 and perform
the following steps:
Action Explanation
------------------------------------------------------------------------------
Press Create Field An inverse video area extends to the right of the
cursor in the painter window.
Type AAAAAAAA This specifies an alphanumeric field 8 characters
long.
Press Return The painter displays the message:
Item passed validation.
Press Enter Details This will move the cursor to the field details
portion of the screen.
Enter *DATE This is a reference to the communications area
field that contains the current formatted date.
Enter D in the edit code This formats the date according to the system wide
field. date format.
Press Commit Details No further details are needed for this field.
Commit the details for this field and return the
cursor to the painter window.
The page heading and column heading lines are now complete. You can now
complete the total line.
1. Position the cursor at line TF.01, column 32 and create a four
digit numeric field that refers to the communication area field
*COUNT(1).
This field maintains a count of the number of times the D1.01 line
is printed.
The fields for the D1 lines will be created by referring to the
dictionary field specifications.
Creating Fields Using Dictionary Field Specifications.
You can create a data field on a report using a dictionary field
specification name. The painter creates a field of the appropriate
length and type. The painter also automatically constructs a data source
field for the report line field. If the source field is not correct, you
can easily correct it.

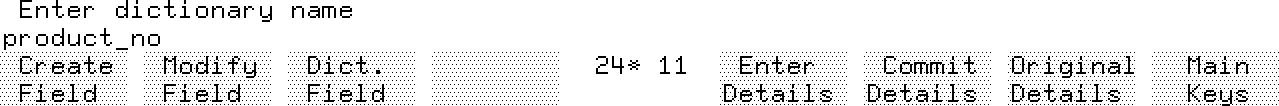

This is the prompt you will see when entering the field specification
name:
![[]](../../pic3k/M012318/FFN593c50.gif)
Dictionary Specifications Window
To enter fields using dictionary specifications
window:
1. Position the cursor at line D1.01, column 3. You will have to
display the window function keys, and use them, to move to this
position.
2. Then perform the following steps from the Field Keys function
key set:
Action Explanation
------------------------------------------------------------------------------
Press Dict Field You are prompted to enter the name of a dictionary
field specification.
Type product_no This is the dictionary field specification name for
this report field.
Press Return The report painter automatically creates a field of
the appropriate length and type on the screen. It
creates a data source in the Field Name/Literal
field.
This field source defaults to the form F-field name.primary file name.
In this case the source created will be F-product_no.product.
This is exactly what you require, so the report line field is complete.
To complete the remaining lines:
1. Position the cursor at line D1.02, column 13 and follow the same
procedure to create a field using the field specification name
description.
2. Position the cursor at line D1.02, column 46 and create a field
using the field specification name supplier_no.
3. Now create the last field on this report. At line D1.02, column
58, create a field using the field specification name lead_time.
This completes the painting of this report.
Step 3 - Saving the Report
To save this report image:
1. Return to the main set of function keys by pressing the Main Keys
function key.
2. Then press the Exit function key.
This automatically saves the report under the name that it was called up
with. You are then returned to the Reports Menu. Now generate this
report as explained in the next lesson.
