HP RJE/BSC Link Configuration Screen

After you have selected RJE link configuration from the HP- IBM
Configuration screen, NMMGR displays the HP RJE/BSC Link Configuration
screen.  (You can go directly to this screen from any screen by typing
@RJE in the command window and pressing the [ENTER] key.)  Here you
specify information about the new RJE/XL link you are configuring or the
existing link you are modifying.

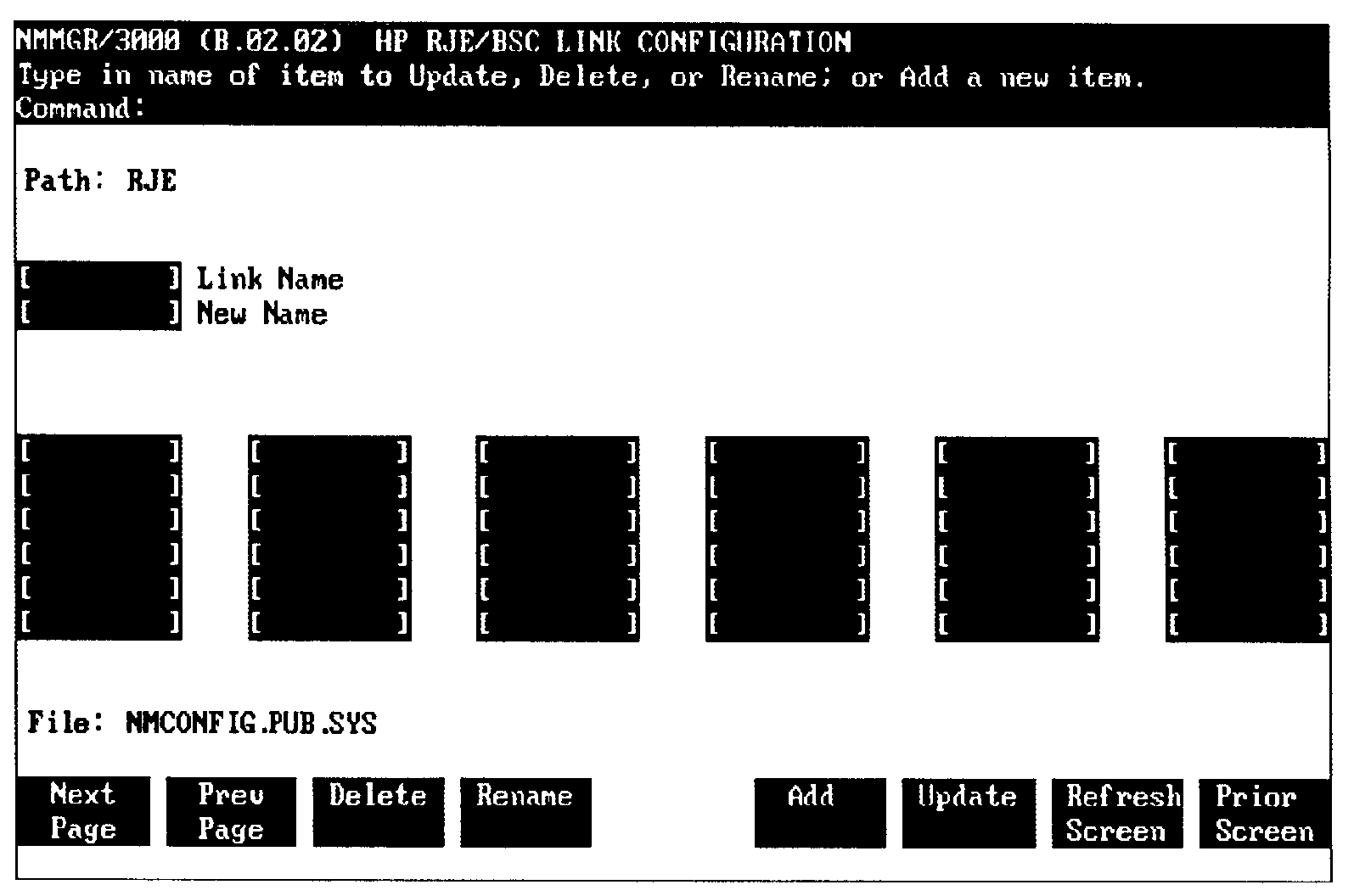

          Figure 4-1.  RJE/BSC Link Configuration Screen

Fields

Path             For display only.  The NMMGR branch you are in.

Link Name        The name of the new RJE/XL link you are configuring, or
                 the existing link whose configuration you are modifying.
                 This link name is specified on the DEV=parameter of the
                 #RJLINE command.  The name can be up to eight
                 alphanumeric characters long; the first character must
                 be alphabetic.  (See Appendix D for naming conventions.)

New Name         Used to change the name of an existing RJE/XL link.  The
                 name can be up to eight alphanumeric characters long;
                 the first character must be alphabetic.  Press the
                 Rename key to make the name change take effect.

Configured RJE   For display only.  The names of the RJE/XL links that
Links            have been configured.  You can configure a maximum of
                 255 links in each configuration file.  Note that a
                 maximum of eight links can be active at a time.

File             For display only.  The name of the configuration file.

                 Once you have entered the name of the link, press [f5],
                 the Add key if this is a new link, or press [f6], the
                 Update key if you are modifying an existing link.  This
                 places you at the RJE Configuration:  Linkdata screen.
