Using SNA IMF Pass Thru

Configuration for SNA IMF/XL

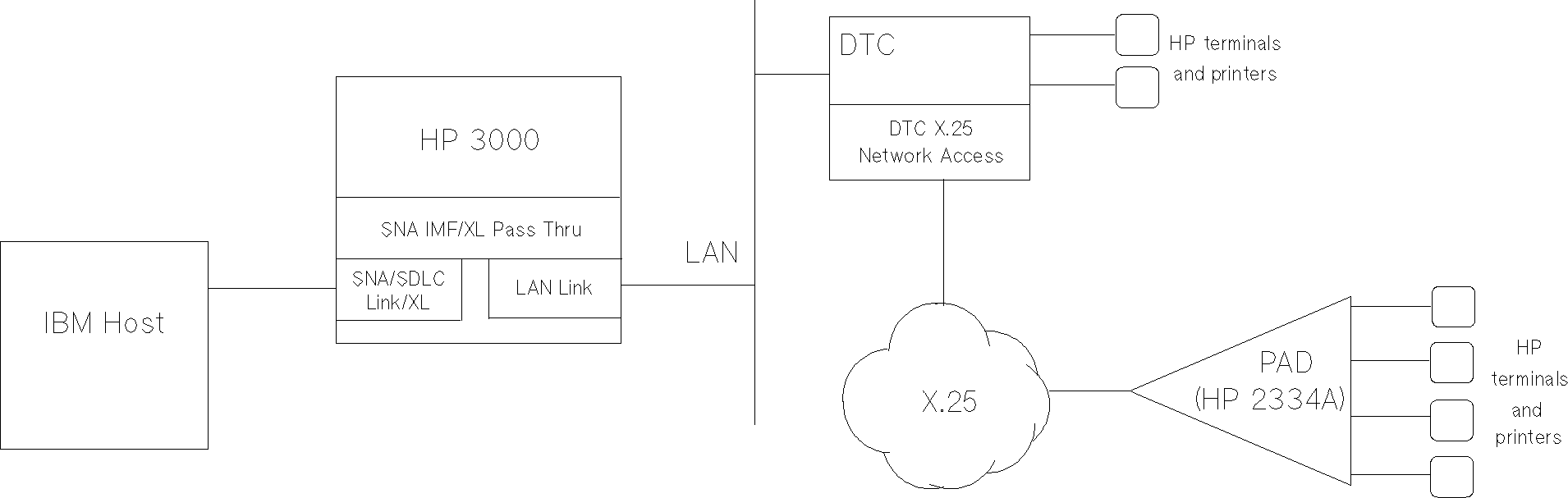

Figure 7-2 illustrates the relationship among devices configured to run
SNA IMF/XL Pass Thru over X.25 and SNA networks.


          Figure 7-2.  SNA IMF/XL Pass Thru over an X.25 Network

No special configuration is required to run Pass Thru over an X.25
network; however, make sure all necessary information is properly
configured in each of the following areas:

   1.  LAN configuration.  Make sure the Datacommunications and Terminal
       Controller (DTC)is a properly configured node on the Local Area
       Network.  See the NS3000/XL Local Area Network Configuration Guide
       (36922-61000) for information on LAN configuration.

   2.  DTC X.25 Network Access configuration.  Make sure that DTC X.25
       Network Accessis properly configured to communicate with the PAD
       devices on the X.25 network.  For information on configuring DTC
       X.25 Network Access, see the X.25 XL System Accesss Configuration
       Guide (36939-61001) and Using OpenView DTC Manager (D2355-90001).

       _________________________________________________________________

       NOTE  You must have the X.25 XL System Accesssoftware installed on
             each MPE XL system that will be connected to the X.25
             network.

       _________________________________________________________________

   3.  PAD Terminal Configuration.  Make sure any PAD terminals that will
       be used to run Pass Thru are configured properly.For information
       on PAD device configuration, see Configuring Systems for
       Terminals, Printers, and Other Serial Devices (32022-61000) and
       Using OpenView DTC Manager (D2355-90001).

For an overview of DTC functionality, and for a list of documentation
related to DTC configuration and operation, see Getting Started with the
DTC: An Overview (32098-61000).
