Using SNA IMF Pass Thru

Configuration for SNA IMF/V

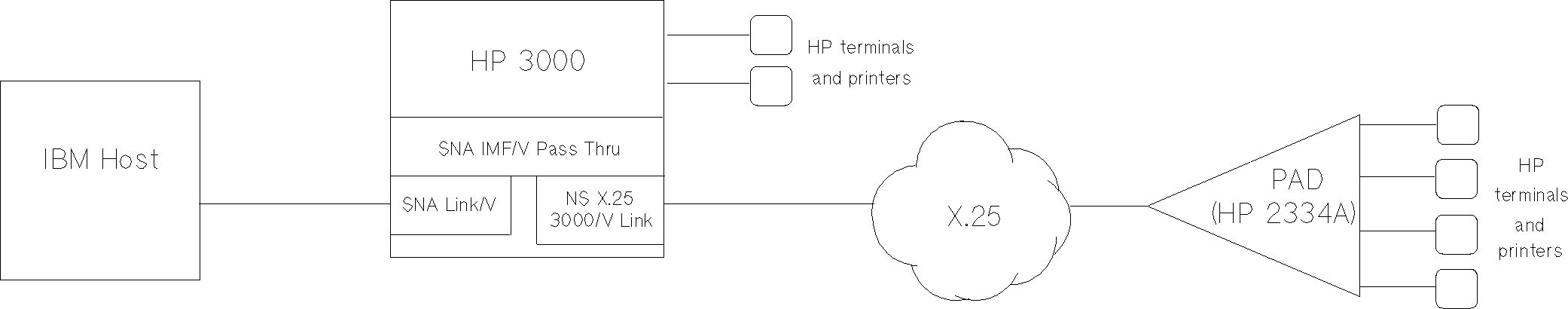

Figure 7-1 illustrates the relationship among devices configured to run
SNA IMF/V Pass Thru over X.25 and SNA networks.


          Figure 7-1.  SNA IMF/V Pass Thru over an X.25 Network


NOTE  To run SNA IMF/V Pass Thru over X.25, you must have the NS X.25
      3000/V Linkproduct, release V _4 or later.


No special configuration is required to run Pass Thru over an X.25
network; however, make sure all necessary information is properly
configured in each of the following areas:

   1.  MPE V I/O Configuration.Use the SYSDUMP utility to verify that all
       PAD terminals and printers are correctly configured for I/O. In
       the NS X.25 3000/V Link Guide (24405-90002), see section 2, "NS
       X.25 Installation and System Configuration," for I/O configuration
       of PAD devices.

   2.  NS X.25 Node Configuration.Use the NMMGR utility to verify that
       all PAD terminals and printers are correctly configured in the
       Network Configuration Fileand the Network Directory.  In the NS
       X.25 3000/V Link Guide (24405-90002), see section 3, "NS X.25 Node
       Configuration," for configuration of PAD devices.

   3.  PAD Terminal Configuration.Make sure any PAD terminals that will
       be used to run Pass Thru are configured properly.  In the NS X.25
       3000/V Link Guide (24405-90002), see section 5, "X.25 PAD
       Support," for proper configuration of PAD terminals.
