By Barbara Dubbert
Commercial Systems Division

Java Servlets for MPE/iX is add-on functionality to the Apache Web Servers for MPE/iX. With this new functionality, Java servlets can be compiled and run on the MPE platform. Java servlets are server-side Java code for creating dynamic web pages and developing web applications. Servlets are similar to java applets except they run on a server instead of in a browser.

Java Servlets for MPE/iX runs with Apache 1.3.9 for MPE/iX and HP WebWise Secure Web Server for MPE/iX.

Servlets vs CGI

Servlets provide a powerful alternative to traditional CGI. Servlets can be used wherever CGI might normally be used yet they allow for session persistence and have faster startup times than traditional CGI . Servlets also have all the advantages of the Java language such as ease of development, platform independence, and a large set of available APIs.

Like CGI, servlets extend the functionality of a web server. For example, a servlet could be written to do any of the following:

Process and/or store data from an HTML form
Provide dynamic content (such as returning the results from a database query)
Manage state information such as for an online shopping cart system

But servlets have several advantages over CGI:

They do not run as a separate process and so do not incur the overhead of creating a new process for every request.
Servlets stays in memory between requests and do not need to be loaded and started as a CGI program would.
Servlets can run as a single instance answering all requests concurrently. With only one instance, memory is better utilized and servlets can easily manage persistent data.
A servlet can run in its own zone (restricted area) for increased security.

Release Information

Java Servlets for MPE/iX is currently available as an individual patch from the HP Response Center. It is not part of the Express 2 release. Java Servlets can be installed on either MPE/iX Release 6.0 or 6.5 and run with either Apache 1.3.9 or WebWise Secure Web Server for MPE/iX. The HPRC can provide you with the correct patch version for your release and web server.

WebWise Secure Web Server is available for ordering. For information on obtaining WebWise, please visit the WebWise site on Jazz at http://jazz.external.hp.com/src/webwise/.

Apache 1.3.9 for MPE/iX is currently available as an individual patch from the HP Response Center. Please refer to the Apache 1.3.9 article in this Communicator for release and installation information about Apache 1.3.9.

Java Servlets do not work with Apache 1.3.4 since this version lacks the necessary DSO capability.

System Requirements

Java Servlets running on MPE/iX require the following software and patches:

MPE/iX 6.0 or 6.5
Apache 1.3.9 or WebWise Secure Web Server for MPE/iX
MPELX44 for 6.0 or 6.5 (for DSO capability)
MPELXC6 for 6.0 or 6.5 (for DSO when Procedure Exits (PEs) are enabled). If the following error message occurs and MPEXL44 is already installed on your system, you will also need to install this patch: "An invalid pointer was detected by VIRTUAL SPACE MANAGEMENT."
Current Java release: JDK 1.1.7B, SDK 1.2, or SDK 1.2.2

Any additional requirements for Apache 1.3.9 or WebWise Secure Web Server should be met before installing and running Java Servlets.

The following are estimates of disk space needs:

1 MB for product files (configuration files, class libraries, startup/shutdown files, example files)
2 MB documentation (API specifications)
Additional space for log files
Additional space for new servlets

Technical Overview

The Java Servlets product on MPE/iX consists of an add-on module to Apache, called "mod_jserv," and a standalone Java application, referred to as the "servlet engine" or JServ. Mod_jserv is implemented as a Dynamic Shared Object (DSO) and the servlet engine runs on top of the MPE's Java Virtual Machine (JVM). Mod_jserv module and the servlet engine are open source software from the Java Apache Project, Apache JServ 1.1

The MPE implementation of Java servlets is referred to as a three-tiered model because it consists of three components. Some implementations of Java servlets are two-tiered with the servlet engine being part of the web server. The three tiers on MPE/iX are:

The web browser
The Apache web server with add-on module, mod_jserv.so
The servlet engine, JServ

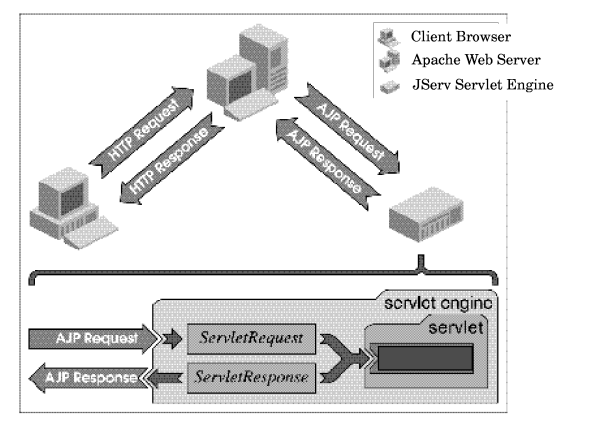

Figure 3-1 Java Servlet model on HP e3000

Apache's mod_jserv and the servlet engine communicate through a special protocol, Apache JServ Protocol (AJP), which runs on top of TCP. The TCP connection is usually through the localhost, 127.0.0.1, but can also be via a remote host. For a remote host, the Apache Web Server and the servlet engine are on separate machines.

A servlet is a body of server-side Java code that is loaded into and runs inside the servlet engine. It receives and responds to requests from clients in a manner similar to CGI.

When making a request, the web browser acts as a client and sends its request to Apache using the HTTP protocol. Apache's mod_jserv translates this HTTP request into AJP and acts as the AJP client by sending the request over the network (local or remote) to the servlet engine. The servlet engine acts as the AJP server and listens on a specific port (8007 by default) for incoming requests. The servlet engine will process a request by executing the requested servlet. When the servlet has completed processing its request, the servlet engine responds back to Apache using AJP. Apache converts the AJP response to HTTP and sends it back to the client browser.

Major Components

Java Servlets for MPE/iX installs and runs under directory /APACHE/PUB for Apache or directory /APACHE/SECURE for WebWise Secure Web Server. Under one of these directories will be the following files and subdirectories:

JSRV - The Apache job stream file for starting the JServ engine. It contains the necessary variables for running the engine as a standalone process. JSRVS is the job file for WebWise.

JSRVOFF - The Apache job stream file for stopping the JServ engine. JSRVSOFF is the job file for WebWise.

libexec - The subdirectory containing mod_jserv.so, the JServ class files (ApacheJServ.jar), and an example file and documentation for creating your own DSOs.

servlets - This subdirectory is the pre-configured repository for servlet files. It contains two simple servlet source files and their corresponding class files. These files are used for testing the installation.

conf/jserv - A subdirectory containing three new configuration files: jserv.conf, jserv.properties, and root.properties.

htdocs/jservdocs - This subdirectory is the root for the Apache JServ documentation including the API specification in javadoc format, a feature list, FAQs, and several in-depth articles on functionality.

htdocs/JSDK2.0/doc/apidoc/ - This subdirectory contains the JSDK2.0 API specification in javadoc format.

lib/jsdk.jar - Class files in jar format of the Java Servlet Development Kit 2.0 (JSDK2.0).

logs/mod_jserv.log - The log file created and used by the Apache module, mod_jserv.so.

logs/jserv.log - The log file created and used by the servlet engine, JServ.

mod_jserv.so

Mod_jserv is the add-on module to Apache that communicates with the servlet engine, JServ. It converts browser HTTP requests to servlet AJP requests then converts servlet AJP responses to HTTP responses and returns them to the client browser. Mod_jserv has a ".so" suffix because it is a Dynamic Shared Object (DSO), an NMXL on MPE. Mod_jserv is written in C and has the same structure as other Apache compiled-in modules. Because it is a DSO, it is loaded and run at Apache startup or restart.

ApacheJServ.jar

This is the "servlet engine," a 100% pure java application that executes servlets. This servlet engine executes like a regular Java application with a static main method in class org.apache.jserv.JServ. This version of the servlet engine, Apache JServ 1.1, executes servlets that are compliant with JavaSoft's Java Servlet APIs, version 2.0. The servlet engine forwards AJP client request data to the requested servlet and then forwards the servlet response back to the AJP client.

Java Servlet Development Kit 2.0

This version of Java Servlets for MPE/iX uses the class definitions from Sun's Java Servlet Development Kit 2.0 (JSDK2.0). JSDK2.0 is a Sun product that can be downloaded for free from Sun's web site. For your convenience, the JSDK2.0 class definitions are installed as part of Java Servlets for MPE/iX in their complete and unmodified form. These servlet classes come packaged by Sun in a Java archive file, jsdk.jar. Any version of the servlet classes other than JSDK 2.0 (past, present, or future version) may not work with this release of Java Servlets for MPE/iX and should not be used.

The jsdk.jar class library file is installed in /APACHE/PUB/lib for standard Apache and in /APACHE/SECURE/lib for WebWise.

All servlets use the class definitions in jsdk.jar. Because the servlet engine is itself a servlet, the jsdk.jar file is also required for the servlet engine to run.

The JSDK2.0 API documentation is also distributed in its complete and unmodified form with your installation at http://yourhost.com/JSDK2.0/doc/apidoc. This includes:

a servlet tutorial
example servlets
class source code
servlet API documentation, Version 2.0

Additional components of the JSDK2.0 are available by downloading the entire package from Sun's site at http://java.sun.com/products/servlet. The JSDK2.0 is not an HP product and is not supported by HP.

jserv.conf

This is the first of three new configuration files. This configuration file contains directives for Apache only and is not read by the servlet engine. It contains directives which, for example, indicate whether mod_jserv.so should be loaded and whether the servlet engine will be run automatically or be manually started. Automatic launching of the servlet engine is not supported on MPE/iX. The ApJServManual directive should always be set to true:

ApJServManual on

The grammar for this file follows the grammar used by other Apache configuartion files:

DirectiveName value

This file is read once at Apache startup or restart.

jserv.properties

This is the second of three new configuration files. This file contains all the properties required by the servlet engine. Some properties are passed to the Java Virtual Machine (JVM) and others include various security preferences, settings for internal communication between the servlet engine and the Apache web server, properties for enabling logging, and a list of all servlet zones and their respective property files.

The grammar for this file follows a grammar similar to Java property files:

property_name=value, value, ...

This file is read by both mod_jserv and by the servlet engine. It is loaded once at startup, so changes are available only after restart of the web server and of the JVM.

root.properties

This is the third of three new configuration files. Each servlet zone requires its own properties file. The installation and configuration processes set up one servlet zone called "root" and its corresponding properties file called "root.properties". A properties file contains a list of servlet repositories for a specific zone. This is the location of the servlet class files for that zone. Any other settings that are specific to a zone must also be in the properties file. It also contains aliases and initialization arguments for the servlets in that zone.

Properties files use the same grammar as the jserv.properties file and are usually named using the zonename.properties syntax.

This file is read once by the servlet engine at startup.

Definitions

Servlet Repository - A servlet repository is a collection of servlets and may be either a directory or archive, such as a zip or jar file.

Servlet Zone - The servlet engine partitions its execution space into secured, separated zones. A servlet zone represents a collection of servlets that represent the same security restrictions. They are similar to a web server's virtual host.

Local Mode - This is when the web server and the servlet engine reside on the same machine. This is the fastest and most common mode of operation because the client (web server) communicates with the servlet engine over a local loopback interface (127.0.0.1) instead of over the network.

Remote Mode - This is when the web server and the servlet engine reside on different machines. This mode might be desirable when load balancing.

Installation

Java Servlets is installed by following the patch installation instructions. Successful installation depends on properly installing and configuring the Apache Web Server, the Apache JServ module (mod_jserv), the Jserv servlet engine and the JVM. To ensure success, the following should be verified before beginning installation of Java Servlets:

The desired version of Java is on your system and can compile and run a Java program
Apache 1.3.9 for MPE/iX or WebWise Secure Web Server for MPE/iX runs successfully

You can check your version of the JVM by invoking the command,

:java -version
or
shell/iX>/usr/local/java/latest/bin/java -version

A simple program like HelloWorld can be used to verify if Java is set up correctly. The program below should be created in HelloWorld.java:

public class HelloWorld


  {
    public static void main(String[] args)
    {
      System.out.println("Hello World!");
    }
  }

To compile HelloWorld.java,

shell/iX>javac HelloWorld.java
or
shell/iX>/usr/local/java/latest/bin/javac HelloWorld.java

To run HelloWorld,

shell/iX>java HelloWorld
or
shell/iX>/usr/local/java/latest/bin/java HelloWorld

For information on installing and running Java, WebWise, or Apache on MPE/iX, please refer to the Additional Resources section at the end of this document.

Configuration

Java Servlets are configured in a few, easy steps.

Copy the sample configuration files to create new ones.
Add one line in httpd.conf to load servlets.
Change the IP address in jserv.conf to view servlet status.
Modify the TZ variable in the job stream files.

Copy the Sample Configuration Files

The servlet installation job creates 3 sample configuration files in the directory conf/jserv. These sample files are derived from their corresponding default files for use on MPE. Copy these sample files to create your own configuration files. Make sure to log on first as MGR.APACHE:


  :HELLO MGR.APACHE
  :xeq sh.hpbin.sys -L
  shell/iX>cd /APACHE/SECURE/conf/jserv


  shell/iX>cd /APACHE/PUB/conf/jserv
  shell/iX>cp jserv.conf.sample jserv.conf
  shell/ix>cp jserv.properties.sample jserv.properties
  shell/iX>cp root.properties.sample root.properties

Modify httpd.conf for Loading Servlets

Modify your conf/httpd.conf file by adding an include directive after the last AddModule directive in the module list. The included file, jserv.conf, contains a LoadModule directive for loading the mod_jserv.so library.

For WebWise Secure Web Server, the include should be added after mod_ssl.c as shown here:


  shell/iX>cd /APACHE/SECURE/conf
  shell/iX>cat httpd.conf
  ...
  AddModule mod_unique_id.c
  AddModule mod_so.c
  AddModule mod_setenvif.c
  <IfDefine>
  AddModule mod_ssl.c
  </IfDefine>

  Include /APACHE/SECURE/conf/jserv/jserv.conf

For Standard Apache, the include should be added after mod_setenvif.c as shown here:


  shell/iX>cd /APACHE/PUB/conf
  shell/iX>cat httpd.conf
  ...
  AddModule mod_unique_id.c
  AddModule mod_so.c
  AddModule mod_setenvif.c

  Include /APACHE/PUB/conf/jserv/jserv.conf
  ...

Edit jserv.conf for Jserv Status

The conf/jserv/jserv.conf file contains configuration directives for viewing servlet status once the servlet engine has started. To enable, replace "your.PC.com" with the IP address of your PC's browser (127.0.0.1 is equivalent to "localhost"). This feature should be enabled for trusted users only (i.e. the system administrator) and probably disabled on production systems. To disable this feature, remove your PC's address from the "allow from" directive.


  shell/iX>cd /APACHE/SECURE/conf/jserv
  or
  shell/iX>cd /APACHE/PUB/conf/jserv
  shell/iX>cat jserv.conf
  ...
  <Location /jserv/>
  SetHandler jserv-status

  order deny, allow
  deny from all
  allow from 127.0.0.1 your.PC.com
  </Location>
  ...

Customize the Job Stream Files

The servlet engine, JServ, is started by streaming JSRV (for standard Apache) or JSRVS (for WebWise Secure Web Server). The servlet engine is stopped by streaming JSRVOFF (for standard Apache) or JSRVSOFF (for WebWise Secure Web Server).

Change the TZ variable for your local timezone in JSRV and JSRVOFF or in JSRVS and JSRVSOFF,


  shell/iX>cd /APACHE/SECURE
  shell/iX>cat ./JSRVS
  !job jsrvs,mgr.apache,secure;pri=cs
  !setvar TZ 'PST8PDT'
  ...
  !eoj

  shell/iX>cd /APACHE/SECURE
  shell/iX>cat JSRVSOFF
  !job jsrvsoff,mgr.apache,secure;pri=cs
  !setvar TZ 'PST8PDT'
  ...
  !eoj

JServ should never be terminated using the POSIX shell's kill command. Terminating it with kill prevents it from cleanly destroying all servlets.

Running the Servlet Engine

Startup

To start WebWise Secure Web Server and the servlet engine,


  :stream jhttpds.secure.apache
  :stream jsrvs.secure.apache

To start standard Apache and the servlet engine,


  :stream jhttpd.pub.apache
  :stream jsrv.pub.apache

Starting the servlet engine also starts up the Java Virtual Machine (JVM) since the servlet engine itself is a servlet. Because the JVM is starting up, there will a short delay before the engine is running.

Verifying Startup

Successful installation and startup of the servlet engine can be verified by

Looking at the content of the log files
Running the servlet status handler to view servlet status
Running the example servlets provided with the servlet package
Accessing the online JServ documentation

For the first startup after installation, it is best to start Apache or WebWise Secure Web Server then check the conf/error_log and conf/mod_jserv.log files. This will verify that the web server has started successfully and was able to load the mod_jserv module. Mod_jserv.log is created at Apache startup, if it doesn't already exist. Next, start the servlet engine. Jserv.log is created when the servlet engine is started.


  shell/iX>cd /APACHE/SECURE/logs
  or
  shell/iX>cd /APACHE/PUB/logs
  shell/iX>tail error_log
  shell/iX>tail mod_jserv.log
  shell/iX>tail jserv.log

Once the servlet engine is running, you can view servlet status by calling the servlet status handler (the trailing slash is required),


  http://your.host.com/jserv/

To run the example servlets,


  http://your.host.com/servlets/Hello
  http://your.host.com/servlets/IsItWorking

To access the Jserv documentation,


  http://your.host.com/jservdocs

Shutdown

To stop WebWise Secure Web Server and the servlet engine,


  :xeq sh.hpbin.sys "-c 'kill `cat /APACHE/SECURE/logs/httpd.pid`'"
  :stream jsrvsoff.secure.apache

To stop standard Apache,


  :xeq sh.hpbin.sys "-c 'kill `cat /APACHE/PUB/logs/httpd.pid`'"
  :stream jsrvoff.pub.apache

Log Files

mod_jserv.log

Mod_jserv.log records messages and errors encountered by Apache's mod_jserv module. This includes messages about communicating via AJP to JServ, the servlet engine. When this log file is disabled, its messages are redirected to Apache's error_log. The number of messages logged to this file can be adjusted by setting the log level. Directives for disabling or changing the log file (ApJServLogFile) and for setting the logging level (ApJServLogLevel) are found in conf/jserv.conf file. Mod_jserv.log is created at Apache startup time, if it doesn't already exist, similar to Apache's other configuration files.

jserv.log

Jserv.log records messages and errors encountered by the servlet engine. Directives to control this log file are found in the jserv.properties file. Jserv.log can be configured to also log servlet exceptions and various internal debugging information. Due to the large number of objects created and managed for logging, logging to jserv.log can cause performance degradation. This effect of logging should be considered when deciding if or how much to log.

Using Java Servlets

Writing Java Servlets

Java servlets on MPE follow the same rules and conventions as Java programs on MPE.

Any HP e3000 editor can be used to create a servlet file but, like Java programs, Java servlets must be in bytestream format. Servlets created with vi or using Samba from a PC will always be in bytestream format. Servlet files created using traditional HP e3000 editors such as EDIT/3000 and HP EDIT must be converted to bytestream using the tobyte utility. For information on tobyte, execute "man tobyte" in the POSIX shell to invoke the POSIX help facility.

The naming conventions for Java servlets follow those of Java programs:

The name should be followed by the extension .java.
The name is case-sensitive. While not a requirement, it is conventional to use mixed case names with an initial capital and with additional capitals used if the class name contains more than one word (for example, HelloWorld.java).

Java Servlet Class Definitions and Documentation

The jsdk.jar servlet classes in the JSDK2.0 are required for proper servlet execution whether you write your own servlets or get them from another source. The jsdk.jar file contains the javax.servlet and javax.servlet.http packages. To view the list of classes in the jsdk.jar file, use the Java Archive Utility:


  shell/iX>/usr/local/java/latest/bin/jar tvf \
    /APACHE/SECURE/lib/jsdk.jar


  shell/iX> /usr/local/java/latest/bin/jar tvf \
    /APACHE/PUB/lib/jsdk.jar

For servlet API documentation and examples, use the following URL on your own server:


  http://yourhost.com/JSDK2.0/doc/apidoc.

An Example Servlet

Servlets can be written to call any of the Java APIs available to Java applications. Servlets use the Java standard extension classes in the packages javax.servlet (the basic Servlet framework) and javax.servlet.http (extensions of the servlet framework for servlets that answer HTTP requests) that are in the jsdk.jar file. Since servlets are written in Java and follow a standard framework, they are portable between operating systems.

Here is an example of a simple servlet.


  File: HelloWorld.java

  import java.io.*;
  import javax.servlet.*;
  import javax.servlet.http.*;
  /** * This is a simple example of an HTTP Servlet.
   * It responds to the GET and HEAD methods of the HTTP protocol.
   */
  public class HelloWorld extends HttpServlet
  {
    public void doGet (HttpServletRequest request,
      HttpServletResponse response)
      throws ServletException, IOException
    {
      PrintWriter out;
      String title = "Hello World Servlet";
    // set content type and other response header fields first
      response.setContentType("text/html");
    // then write the data of the response
      out = response.getWriter();

      out.println("<HTML><HEAD><TITLE>");
      out.println(title);
      out.println("</TITLE></HEAD><BODY bgcolor=\"#FFFFFF\">");
      out.println("<H2><Hello, World!<br>");
      out.println("</BODY></HTML>");
      out.close();
    }
  }

The above is an example of an HTTP servlet since it extends the HttpServlet class. For HTTP servlets, an HTTP method (i.e., GET) is generally handled by a corresponding Java method (i.e. doGet). The method should return a response which contains a body and header field(s) which describe the body. In this example, the doGet method in the HttpServlet base class is overridden. The body is the HTML output and the header field is the Content-Type "text/html." This is an example of a static servlet that returns the same output every time it is called.

Compiling Java Servlets

The class path is where the JVM looks for class definitions. The jsdk.jar file, which contains servlet class definitons, should be specified to the JVM by adding its path to the CLASSPATH environment variable. CLASSPATH can be set at the command line or in a profile file:


  shell/iX>export CLASSPATH=/APACHE/PUB/lib/jsdk.jar:$CLASSPATH


  shell/iX>export CLASSPATH=/APACHE/SECURE/lib/jsdk.jar:$CLASSPATH

Servlets are compiled using the Java compiler, javac. The path to the javac binary can be fully qualified or the PATH variable can be modified to include it. PATH can be set at the command line or in a profile file.


  shell/iX>/usr/local/java/latest/bin/javac HelloWorld.java


  shell/iX>export PATH=/usr/local/java/latest/bin:$PATH
  shell/iX>javac HelloWorld.java

If you are planning to compile multiple servlets, you may want to set the PATH and CLASSPATH variables in the .profile file for MGR.APACHE or in the system-wide /etc/profile.local file. To create a new .profile file with these variables for MGR.APACHE:


  :HELLO MGR.APACHE
  :XEQ SH.HPBIN.SYS -L
  shell/iX>echo export PATH=\
    /usr/local/java/latest/bin:\$PATH > .profile
  shell/iX>echo export CLASSPATH=\
    /APACHE/PUB/lib/jsdk.jar:\$CLASSPATH >> .profile
  shell/iX>. ./.profile

Running Java Servlets

The sample configuration files are set up to execute servlets from the /APACHE/PUB/servlets directory for standard Apache and from /APACHE/SECURE/servlets for WebWise. This is where your servlet .class files must reside. This directory is a servlet repository in the " root" zone and is configured in the root.properties file:


  repositories=/APACHE/SECURE/servlets

To run the servlet HelloWorld from the servlets repository, enter its URL in your web browser:


  http://yourhost.com:port/servlets/HelloWorld


  http://yourhost.com:port/servlet/HelloWorld

"HelloWorld" is the name of the servlet to run and "servlets" and "servlet" are the mount points for the "root" zone. Zone mount points are specified in the jserv.conf file using the ApJServMount directive. Here are the ApJServMount values set in the jserv.conf.sample file:


  ApJServMount /servlets /root

  ApJServMount /servlet /root

Mounting maps a URL to a zone. With the above mounts , requests to a URL starting with /servlets or /servlet will be handled by the servlets in the zone "root."

Servlets can be passed input in a manner similar to CGI. To run the servlet "MyServlet" with an address input value, the URL would be,


  http://yourhost.com:port/servlets/MyServlet?address=foo@bar.com

Additional Resources

The following are additional resources for Java servlets, Java, WebWise Secure Web Server, and Apache. Release documents for Java, WebWise, and Apache are on HP's online documentation site, http://docs.hp.com/mpeix.

Java servlets resources:

http://java.apache.org/ - The Apache JServ official home page. This site contains general information about Apache JServ and related projects.
http://your.host.com/jservdocs - Apache JServ 1.1 API specification. This is installed with the Java Servlets product.
http://your.host.com/JSDK2.0/doc/apidoc - JSDK2.0 API specification. This is installed with the Java Servlets product and servlet classes and is useful when writing new servlets.
http://java.sun.com/products/servlet - Sun's servlet site

Apache Web Server for MPE/iX resources:

Release 6.5 Communicator
Release 6.5 Configuring and Managing Internet Services for MPE/iX manual
Release 6.5 Express 2 Communicator
The home page at http://jazz.external.hp.com/src/apache.

WebWise Secure Web Server for MPE/iX resources:

Release 6.5+ Configuring and Managing Internet Services for MPE/iX manual
The home page at http://jazz.external.hp.com/src/webwise

Java for MPE/iX resources:

Release 6.0 Communicator (Developer's Kit for Java/iX)
Release 6.0 Express 1 Communicator (Java Developers Kit for MPE/iX, Version 1.1.7B Release Notes)
Release 6.5 Communicator (MPE/iX Software Developer's Kit (SDK) for Java, Version 1.2.2)
The home page at http://jazz.external.hp.com

Apache 1.3.9 for MPE/iX

Announcing High Availability FailOver for the SureStore E Disk Array XP256
