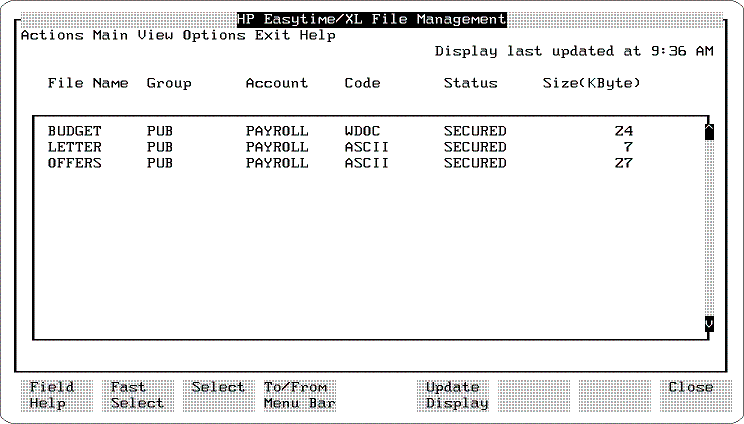

Each area of management in HP Easytime/iX (for example, File or Session Management) is displayed on a screen. Through screens you can access information about the current status of the system and perform system management tasks.
![[Filemgmt]](img/filemgmt.gif)
To identify the parts of a screen | |
Each HP Easytime/iX screen contains the following:
- title bar
A horizontal bar that is located at the top of each screen and contains the name of the screen.
- menu bar
A horizontal bar located directly below the title bar containing the names of the HP Easytime/iX menus.
- status line
The third line on your screen (directly below the menu bar). The status line displays messages from the system that tell you when you need to do something, for example, load a form in the printer. The status line also displays the time the screen was last updated.
- list box
A box listing available choices, for example, a list of available files on the system.
- message line
The bottom line on your screen. Information about what is happening on the system is displayed here.
- function keys
Along the top of the keyboard are eight keys labeled F1 through F8. These function keys correspond to the eight function key labels along the bottom of each HP Easytime/iX screen.
|
