As a part of your new computer, you received at least one box containing a Data Communications and Terminal Controller (DTC). The DTC 16iX allows terminals, PCs, and printers to use the computer and be used by the computer.
Front Panel Display |
 |

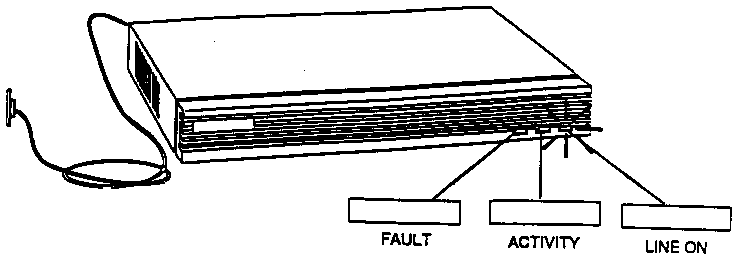

Figure 3-3 DTC 16iX Front Panel
![[DTC 16iX Front Panel]](img/frntview.gif)
- FAULT
only active when there is a problem.
- ACTIVITY
a fixed light when the DTC 16iX is fully operational and running without a problem. A flashing light indicates software uploaded, download or a self-test in progress.
- LINE ON
stays lit when the power is on.
Refer the manual that accompanies the DTC 16iX for more details on hardware operation.
DTC 16iX Back View |
|

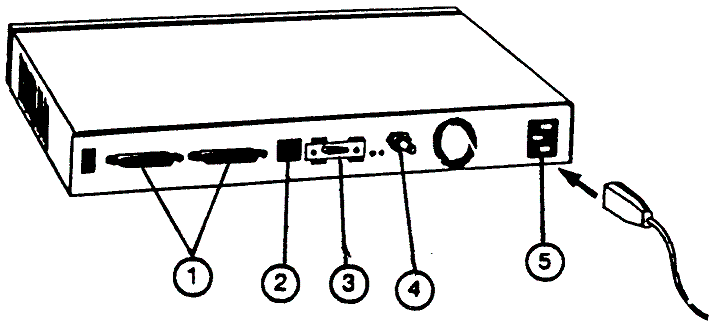

Figure 3-4 DTC 16iX Back View
![[DTC 16iX Back View]](img/backview.gif)
| 1. | Junction Panel Connectors |
4. | ThinLAN Connection |
| 2. | Diagnostics port |
5. | Power Cord Connection |
| 3. | AUI Port | | |
