To familiarize yourself with the console
»

Technical documentation

Complete book in PDF
» Feedback

 » Table of Contents

 » Index

spacerspacerspacer
spacer
spacer



The console is an ordinary terminal that has a special purpose. You can locate the switches, adjusting knobs, and connectors of the console in the following illustration.

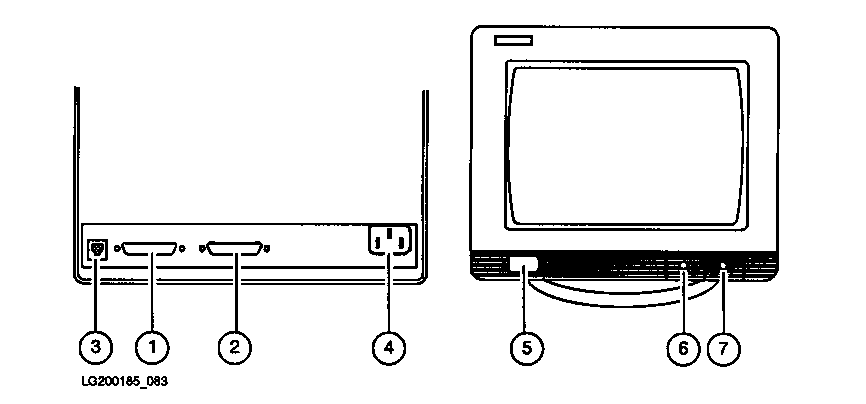

Figure 3-1 Computer Console Back and Front Views

[Computer Console Back and Front Views]

  1. port 1, datacomm connector to the computer (back)

  2. port 2, printer connector (back, not used for this computer system)

  3. keyboard cable connector (back)

  4. power cord connector (back)

  5. power ON/OFF switch (front)

  6. brightness control (front)

  7. contrast control (front)
