Basic Structures

Figure 5-1 shows the basic architecture of the TurboIMAGE system.

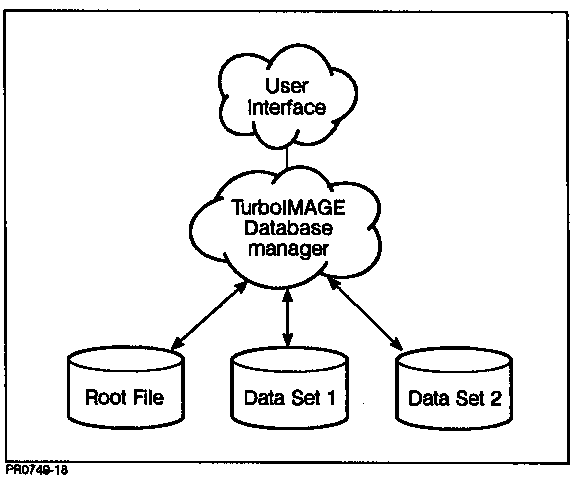

Figure 7-1 TurboIMAGE Architecture

The TurboIMAGE database manager accesses data in each data set as needed, based on information given in the root file.

Figure 5-2 shows the ALLBASE/SQL architecture.

Figure 7-2 ALLBASE/SQL Architecture

ALLBASE/SQL has two components which manage access to databases, SQLCore and DBCore. The data is stored in tables which reside physically in DBEFiles and logically in DBEFileSets, as shown in Figure 5-2. These elements are described further in the next paragraphs.
