Program Using Simple DML Operations

The flow chart shown in Figure 7-1 summarizes the functionality of program pasex7. This program uses the four simple data manipulation commands to operate on the PurchDB.Vendors table. Program pasex7 uses a function menu to determine whether to execute one or more SELECT, UPDATE, DELETE, or INSERT operations. Each execution of a simple data manipulation command is done in a separate transaction.

The runtime dialog for program pasex7 appears in Figure 7-2, and the source code in Figure 7-3.

Function ConnectDBE starts a DBE session 48. This function executes the CONNECT command 2 for the sample DBEnvironment, PartsDBE.

The next operation performed depends on the number entered in response to this menu 49:

The program terminates if 0 is entered.
Procedure Select is executed if 1 is entered.
Procedure Update is executed if 2 is entered.
Procedure Delete is executed if 3 is entered.
Procedure Insert is executed if 4 is entered.

Procedure Select

Procedure Select 9 prompts for a vendor number or a 0 10. If a 0 is entered, the function menu is re-displayed. If a vendor number is entered, procedure BeginTransaction is executed 11 to issue the BEGIN WORK command 4. Then a SELECT command is executed to retrieve all data for the vendor specified from PurchDB.Vendors 12. The SQLCA.SQLCODE returned is examined to determine the next action:

If no rows qualify for the SELECT operation, a message 14 is displayed and the transaction terminated 16. Procedure CommitWork terminates the transaction by executing the COMMIT WORK command 5. The user is then re-prompted for a vendor number or a 0.
If more than one row qualifies for the SELECT operation, a different message is displayed and procedure CommitWork 5 terminates the transaction by executing the COMMIT WORK command. The user is then re-prompted for a vendor number or a zero.
If the SELECT command execution results in an error condition, procedure SqlStatusCheck is executed 15. This procedure executes SQLEXPLAIN 1 to display all error messages. Then the transaction is terminated 16 and the user re-prompted for a vendor number or a 0.
If the SELECT command can be successfully executed, procedure DisplayRow 13 is executed to display the row. This procedure examines the null indicators for each of the three potentially null columns (ContactName, PhoneNumber, and VendorRemarks). If any null indicator contains a value less than 0 8, a message indicating that the value is null is displayed. After the row is completely displayed, the transaction is terminated 16 and the user re-prompted for a vendor number or a 0.

Procedure Update

Procedure Update 22 lets the user UPDATE the value of a column only if it contains a null value. The procedure prompts for a vendor number or a 0 23. If a 0 is entered, the function menu is re-displayed. If a vendor number is entered, procedure BeginTransaction is executed 24. Then a SELECT command is executed to retrieve data from PurchDB.Vendors for the vendor specified 25. The SQLCA.SQLCODE returned is examined to determine the next action:

If no rows qualify for the SELECT operation, a message 27 is displayed and the transaction is terminated 29. The user is then re-prompted for a vendor number or a 0.
If more than one row qualifies for the SELECT operation, a different message is displayed and procedure CommitWork 5 terminates the transaction by executing the COMMIT WORK command. The user is then re-prompted for a vendor number or a zero.
If the SELECT command execution results in an error condition, procedure SqlStatusCheck is executed 28. Then the transaction is terminated 29 and the user re-prompted for a vendor number or a 0.
If the SELECT command can be successfully executed, procedure DisplayUpdate 26 is executed. This procedure executes procedure DisplayRow to display the row retrieved 17. Function AnyNulls is then executed to determine whether the row contains any null values. This boolean function evaluates to TRUE if the indicator variable for any of the three potentially null columns contains a non-zero value 6.
If function AnyNulls evaluates to FALSE, a message is displayed 7 and the transaction is terminated 29; the user is then re-prompted for a vendor number or a 0.
If function AnyNulls evaluates to TRUE, the null indicators are examined to determine which of them contain a negative value 18. A negative null indicator means the column contains a null value, and the user is prompted for a new value 19. If the user enters a 0, the program assigns a -1 to the null indicator 20 so that when the UPDATE command 21 is executed, a null value is assigned to that column. If a non-zero value is entered, the program assigns a 0 to the null indicator so that the value specified is assigned to that column. After the UPDATE 21 command is executed, the transaction is terminated 29 and the user re-prompted for a vendor number or a 0.

Procedure Delete

Procedure Delete 33 lets the user DELETE one row. The procedure prompts for a vendor number or a 0 34. If a 0 is entered, the function menu is re-displayed. If a vendor number is entered, procedure BeginTransaction is executed 35. Then a SELECT command is executed to retrieve all data for the vendor specified from PurchDB.Vendors 36. The SQLCA.SQLCODE returned is examined to determine the next action:

If no rows qualify for the SELECT operation, a message 38 is displayed and the transaction is terminated 40. The user is then re-prompted for a vendor number or a 0.
If more than one row qualifies for the SELECT operation, a different message is displayed and procedure CommitWork 5 terminates the transaction by executing the COMMIT WORK command. The user is then re-prompted for a vendor number or a zero.
If the SELECT command execution results in an error condition, procedure SqlStatusCheck is executed 39. Then the transaction is terminated 40 and the user re-prompted for a vendor number or a 0.
If the SELECT command can be successfully executed, procedure DisplayDelete 37 is executed. This procedure executes procedure DisplayRow to display the row retrieved 30. Then the user is asked whether she wants to actually delete the row 31. If not, the transaction is terminated 40 and the user re-prompted for a vendor number or a 0. If so, the DELETE command 32 is executed before the transaction is terminated 40 and the user re-prompted.

Procedure Insert

Procedure Insert 41 lets the user INSERT one row. The procedure prompts for a vendor number or a 0 42. If a 0 is entered, the function menu is re-displayed. If a vendor number is entered, the user is prompted for values for each column. The user can enter a 0 to specify a null value for potentially null columns 43; to assign a null value, the program assigns a -1 to the appropriate null indicator 44. After a transaction is started 45, an INSERT command 46 is used to insert a row containing the specified values. After the INSERT operation, the transaction is terminated 47, and the user re-prompted for a vendor number or a 0.

When the user enters a 0 in response to the function menu display, the program terminates by executing procedure TerminateProgram 50. This procedure executes the RELEASE command 3.

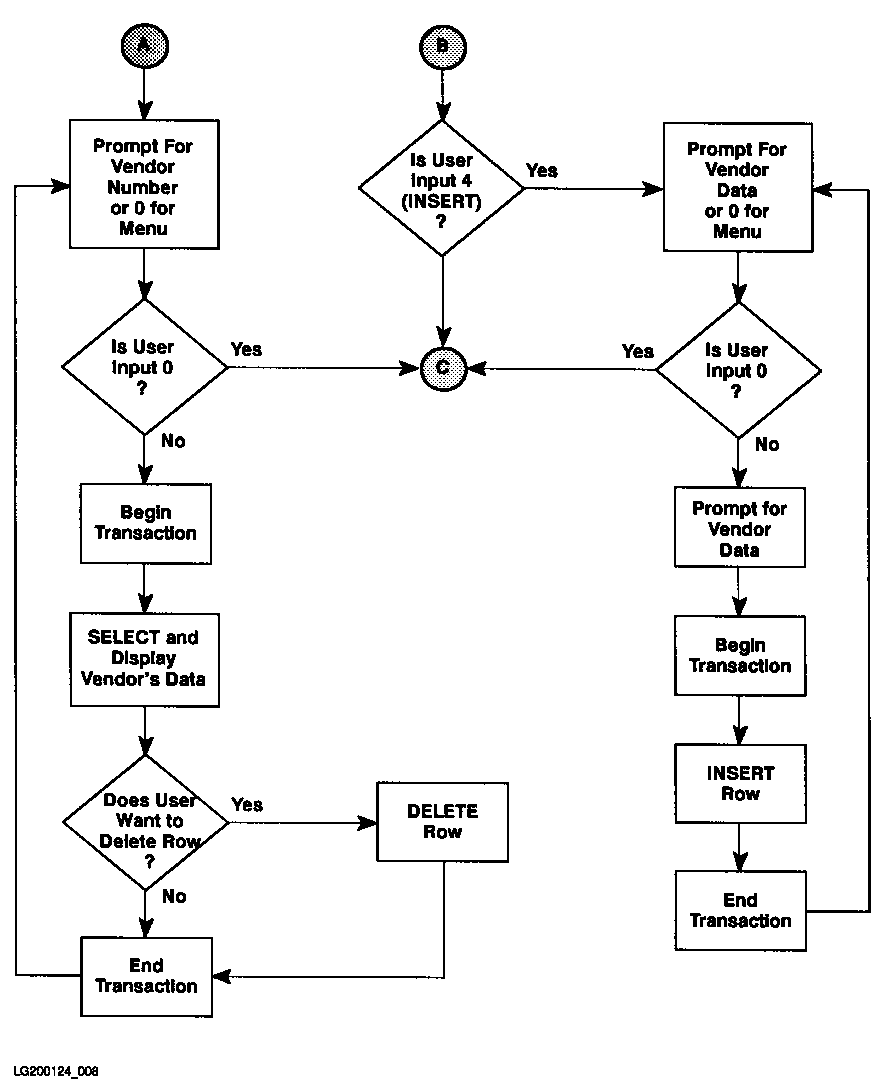

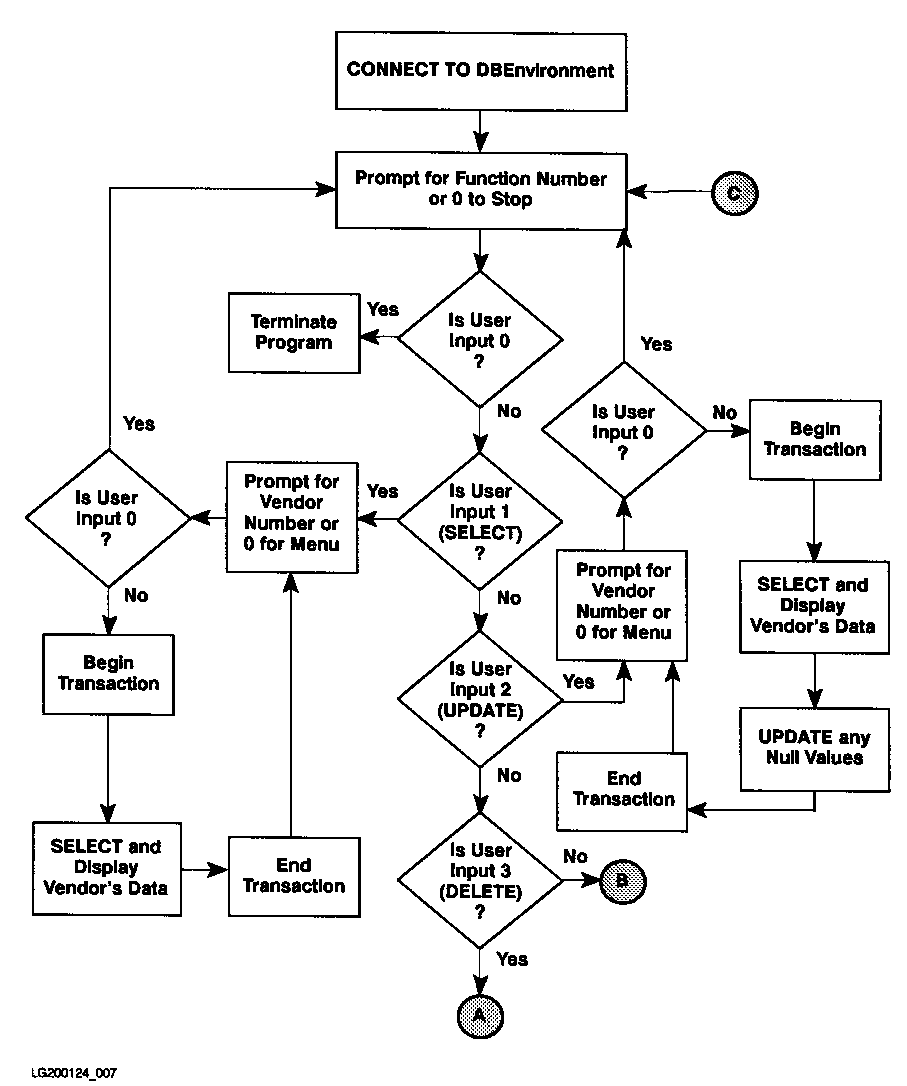

Figure 7-1 Flow Chart of Program pasex7

Figure 7-2 Runtime Dialog of Program pasex7



Program for Simple Data Manipulation of Vendors Table - pasex7



Connect to PartsDBE



   1 . . . . SELECT rows from PurchDB.Vendors table

   2 . . . . UPDATE rows with null values in PurchDB.Vendors table

   3 . . . . DELETE rows from PuchDB.Vendors table

   4 . . . . INSERT rows into PurchDB.Vendors table



Enter choice or 0 to stop> 4



  *** Procedure to INSERT rows into PurchDB.Vendors ***



Enter Vendor Number or 0 for MENU> 9016



Enter Vendor Name> Wolfe Works



Enter Contact Name (0 for null)> Stanley Wolfe



Enter Phone Number (0 for null)> 408 975 6061



Enter Vendor Street> 7614 Canine Way



Enter Vendor City> San Jose



Enter Vendor State> CA



Enter Vendor Zip Code> 90016



Enter Vendor Remarks (0 for null)> 0



Begin Work

INSERT row into PurchDB.Vendors

Commit Work



Enter Vendor Number or 0 for MENU> 0



   1 . . . SELECT rows from PurchDB.Vendors table

   2 . . . UPDATE rows with null values in PurchDB.Vendors table

   3 . . . DELETE rows from PurchDB.Vendors table

   4 . . . INSERT rows into PurchDB.Vendors table



Enter choice or 0 to STOP> 1






  *** Procedure to SELECT rows from PurchDB.Vendors ***



Enter Vendor Number or 0 for MENU> 9016



Begin Work

SELECT * from PurchDB.Vendors



  VendorNumber:           9016

  VendorName:     Wolfe Works

  ContactName:    Stanley Wolfe

  PhoneNumber:    408 975 6061

  VendorStreet:   7614 Canine Way

  VendorCity:     San Jose

  VendorState:    CA

  VendorZipCode:  90016

  VendorRemarks is NULL



Commit Work



Enter Vendor Number or 0 for MENU> 0



   1 . . . SELECT rows from PurchDB.Vendors table

   2 . . . UPDATE rows with null values in PurchDB.Vendors table

   3 . . . DELETE rows from PurchDB.Vendors table

   4 . . . INSERT rows into PurchDB.Vendors table



Enter choice or 0 to STOP> 2



  *** Procedure to UPDATE rows in PurchDB.Vendors ***



Enter Vendor Number or 0 for MENU> 9016



Begin Work

SELECT * from PurchDB.Vendors



  VendorNumber:           9016

  VendorName:     Wolfe Works

  ContactName:    Stanley Wolfe

  PhoneNumber:    408 975 6061

  VendorStreet:   7614 Canine Way

  VendorCity:     San Jose

  VendorState:    CA

  VendorZipCode:  90016

  VendorRemarks is NULL



Enter new VendorRemarks (0 for null)> can expedite shipments

Commit Work






Enter Vendor Number or 0 for MENU> 0



   1 . . . SELECT rows from PurchDB.Vendors table

   2 . . . UPDATE rows with null values in PurchDB.Vendors table

   3 . . . DELETE rows from PurchDB.Vendors table

   4 . . . INSERT rows into PurchDB.Vendors table



Enter choice or 0 to STOP> 3



  *** Procedure to DELETE rows from PurchDB.Vendors ***



Enter Vendor Number or 0 for MENU> 9016



Begin Work

SELECT * from PurchDB.Vendors



  VendorNumber:           9016

  VendorName:     Wolfe Works

  ContactName:    Stanley Wolfe

  PhoneNumber:    408 975 6061

  VendorStreet:   7614 Canine Way

  VendorCity:     San Jose

  VendorState:    CA

  VendorZipCode:  90016

  VendorRemarks:  can expedite shipments



Is it OK to DELETE this row (N/Y)? > Y



DELETE row from PurchDB.Vendors

Commit Work



Enter Vendor Number or 0 for MENU> 0



   1 . . . SELECT rows from PurchDB.Vendors table

   2 . . . UPDATE rows with null values in PurchDB.Vendors table

   3 . . . DELETE rows from PurchDB.Vendors table

   4 . . . INSERT rows into PurchDB.Vendors table



Enter choice or 0 to STOP> 0

Figure 7-3 Program pasex7: Using SELECT, UPDATE, DELETE, and INSERT

(* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *)
(* This program illustrates simple data manipulation.  It uses the *)
(* UPDATE command with indicator variables to update any row in    *)
(* Vendors Table that contains null values.  It also uses          *)
(* indicator variables in conjunction with SELECT and INSERT.  The *)
(* DELETE command is also illustrated.                             *)
(* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *)

Program pasex7(input,output);

const
    OK           =      0;
    NotFound     =    100;
    MultipleRows = -10002;
    DeadLock     = -14024;

var
          (* Begin Host Variable Declarations *)
    EXEC SQL BEGIN DECLARE SECTION;
    VendorNumber     : integer;
    VendorName       : packed array[1..30] of char;
    ContactName      : packed array[1..30] of char;
    ContactNameInd   : SqlInd;
    PhoneNumber      : packed array[1..15] of char;
    PhoneNumberInd   : SqlInd;
    VendorStreet     : packed array[1..30] of char;
    VendorCity       : packed array[1..20] of char;
    VendorState      : packed array[1..2]  of char;
    VendorZipCode    : packed array[1..10] of char;
    VendorRemarks    : string[60];
    VendorRemarksInd : SqlInd;
    SQLMessage       : packed array[1..132] of char;
    EXEC SQL END DECLARE SECTION;
          (* End Host Variable Declarations *)

    SQLCA : SQLCA_type;   (* SQL Communication Area *)

    Abort             : boolean;
    Response          : integer;
    Response1         : packed array[1..3] of char;

procedure TerminateProgram; forward;


procedure SQLStatusCheck; (* Procedure to Display Error Messages *)
begin
  Abort := FALSE;
  if SQLCA.SQLCODE < DeadLock then Abort := TRUE;

  repeat
    EXEC SQL SQLEXPLAIN :SQLMessage;                              1
    writeln(SQLMessage);
  until SQLCA.SQLCODE = 0;

  if Abort then TerminateProgram;
end;  (* End SQLStatusCheck Procedure *)


function ConnectDBE: boolean;  (* Function to Connect to PartsDBE *)
begin
  writeln('Connect to PartsDBE');
  EXEC SQL CONNECT TO '../sampledb/PartsDBE';                   2

  ConnectDBE := TRUE;
  if SQLCA.SQLCODE <> OK then
  begin
    ConnectDBE := FALSE;
    SQLStatusCheck;
  end;  (* End if *)
end;  (* End of ConnectDBE Function *)


procedure TerminateProgram;   (* Procedure to Release from PartsDBE *)
begin

  EXEC SQL RELEASE;                                             3

end;                  (* End of TerminateProgramProcedure *)


procedure BeginTransaction;  (* procedure to BEGIN WORK *)
begin
  writeln('Begin Work');

  EXEC SQL BEGIN WORK;                                          4

  if SQLCA.SQLCODE <> OK then
  begin
    SQLStatusCheck;
    TerminateProgram;
  end;
end;  (* End BeginTransaction procedure *)


procedure CommitWork;   (* Procedure to Commit Work *)
begin
  writeln('Commit Work');

  EXEC SQL COMMIT WORK;                                                   5

  if SQLCA.SQLCODE <> OK then
  begin
    SQLStatusCheck;
    TerminateProgram;
  end;
end;  (* End CommitWork Procedure *)


function AnyNulls: boolean; (* Function to test row for null values *)
begin
  AnyNulls := TRUE;

  if (ContactNameInd = 0) and                                             6
     (PhoneNumberInd = 0) and
     (VendorRemarksInd = 0)
  then   (* all columns that might be null contain non-null values *)
  begin
    writeln(' No null values exist for this vendor');                   7
    AnyNulls := FALSE;
  end;
end; (* End of Null Function *)


procedure DisplayRow;   (* Procedure to Display Vendors Table Rows *)
begin
  writeln;
  writeln('  VendorNumber:   ', VendorNumber);
  writeln('  VendorName:     ', VendorName);
  if ContactNameInd <0 then                                            8
    writeln('  ContactName is NULL')
  else
    writeln('  ContactName:    ', ContactName);

  if PhoneNumberInd <0 then
    writeln('  PhoneNumber is NULL')
  else
    writeln('  PhoneNumber:    ', PhoneNumber);

  writeln('  VendorStreet:   ', VendorStreet);
  writeln('  VendorCity:     ', VendorCity);
  writeln('  VendorState:    ', VendorState);
  writeln('  VendorZipCode:  ', VendorZipCode);
  if VendorRemarksInd <0 then
    writeln('  VendorRemarks is NULL')
  else
    writeln('  VendorRemarks:  ', VendorRemarks);
  writeln;
end;  (* End of DisplayRow *)


procedure Select; (* procedure to select row from Vendors Table *)      9
begin
  writeln;
  writeln('  *** Procedure to SELECT rows from PurchDB.Vendors ***  ');
  writeln;

  repeat
    writeln;
    prompt('Enter Vendor Number or 0 for MENU>  ');                         10
    readln(VendorNumber);
    writeln;

    if VendorNumber <> 0 then
    begin
      BeginTransaction;                                                       11
      writeln('SELECT * from PurchDB.Vendors');

EXEC SQL SELECT VendorNumber,                                           12
                VendorName,
                ContactName,
                PhoneNumber,
                VendorStreet,
                VendorCity,
                VendorState,
                VendorZipCode,
                VendorRemarks
          INTO :VendorNumber,
               :VendorName,
               :ContactName :ContactNameInd,
               :PhoneNumber :PhoneNumberInd,
               :VendorStreet,
               :VendorCity,
               :VendorState,
               :VendorZipCode,
               :VendorRemarks :VendorRemarksInd
          FROM  PurchDB.Vendors
         WHERE  VendorNumber = :VendorNumber;

      case SQLCA.SQLCODE of
      OK           : DisplayRow;                                              13
      NotFound     : begin
                       writeln;
                       writeln('Row not found!');                              14
                     end;
      MultipleRows:  begin
                       writeln;
                       writeln('WARNING: More than one row qualifies.');        15
                     end;
      otherwise      begin
                       SQLStatusCheck;                                        16
                     end;
      end;        (* end case *)

CommitWork;                                                             17

    end;        (* end if response *)
  until VendorNumber = 0;
end;        (* end Select Procedure *)


procedure DisplayUpdate; (* procedure to display and update row *)
begin
  DisplayRow;                                                             18
  if AnyNulls then
  begin

if ContactNameInd < 0 then                                           19
  begin
    writeln;
    prompt('Enter new ContactName (0 for NULL)> ');                     20
    readln(ContactName);
  end;


if PhoneNumberInd < 0 then
  begin
    writeln;
    prompt('Enter new PhoneNumber (0 for NULL)> ');
    readln(PhoneNumber);
  end;

if VendorRemarksInd < 0 then
  begin
    writeln;
    prompt('Enter new VendorRemarks (0 for NULL)> ');
    readln(VendorRemarks);
  end;

if ContactName = '0' then                                               21
  ContactNameInd := -1
else
  ContactNameInd := 0;

if PhoneNumber = '0' then
  PhoneNumberInd := -1
else
  PhoneNumberInd := 0;

if VendorRemarks = '0' then
  VendorRemarksInd := -1
else
  VendorRemarksInd := 0;

EXEC SQL UPDATE PurchDB.Vendors                                         22
            SET ContactName = :ContactName :ContactNameInd,
                PhoneNumber = :PhoneNumber :PhoneNumberInd,
                VendorRemarks = :VendorRemarks :VendorRemarksInd
          WHERE VendorNumber = :VendorNumber;

if SQLCA.SQLCODE <> OK then SQLStatusCheck;

end;    (* end if AnyNulls *)
end;    (* end of DisplayUpdate procedure *)


procedure Update;  (* Update a row within the Vendors Table *)          23
begin
writeln;
writeln('  *** Procedure to UPDATE rows in PurchDB.Vendors ***  ');
writeln;
repeat
writeln;
prompt('Enter Vendor Number or 0 for MENU>  ');                         24
readln(VendorNumber);
writeln;

if VendorNumber <> 0 then
begin
  BeginTransaction;                                                     25
  writeln ('SELECT * from PurchDB.Vendors');
  EXEC SQL SELECT  VendorNumber,                                        26
                   VendorName,
                   ContactName,
                   PhoneNumber,
                   VendorStreet,
                   VendorCity,
                   VendorState,
                   VendorZipCode,
                   VendorRemarks
             INTO :VendorNumber,
                  :VendorName,
                  :ContactName  :ContactNameInd,
                  :PhoneNumber  :PhoneNumberInd,
                  :VendorStreet,
                  :VendorCity,
                  :VendorState,
                  :VendorZipCode,
                  :VendorRemarks  :VendorRemarksInd
             FROM  PurchDB.Vendors
            WHERE  VendorNumber = :VendorNumber;

  case SQLCA.SQLCODE of
  OK           : begin
                   DisplayUpdate;                                       27
                 end;
  NotFound     : begin
                   writeln;
                   writeln('Row not found!');                           28
                 end;
  MultipleRows : begin
                   writeln;
                   writeln('WARNING: More than one row qualifies.');         29
                 end;
  otherwise      begin
                   SQLStatusCheck;                                      30
                 end;
  end;  (* case *)

CommitWork;                                                             31

end;  (* end if response *)
until VendorNumber = 0;
end;  (* End of Update Procedure *)


procedure DisplayDelete; (* procedure to display and delete a row *)
begin
  DisplayRow;                                                             32
  prompt('Is it OK to DELETE this row (N/Y)? >  ');                       33
readln(Response1);
writeln;
if response1[1] in ['Y','y'] then
  begin
    writeln;
    writeln('DELETE row from PurchDB.Vendors');
    EXEC SQL DELETE FROM PurchDB.Vendors                                34
                   WHERE VendorNumber = :VendorNumber;
    if SQLCA.SQLCODE <> OK then SQLStatusCheck;
  end;
end;   (* end procedure DisplayDelete *)


procedure Delete;                                                       35
(* procedure to delete a row from PurchDB.Vendors *)
begin
writeln;
writeln('  *** Procedure to DELETE rows from PurchDB.Vendors ***  ');
writeln;
repeat
writeln;
prompt('Enter Vendor Number or 0 for MENU>  ');                         36
readln(VendorNumber);
writeln;

if VendorNumber <> 0 then
begin
BeginTransaction;                                                       37
writeln('SELECT * from PurchDB.Vendors');
EXEC SQL SELECT VendorNumber,                                           38
                VendorName,
                ContactName,
                PhoneNumber,
                VendorStreet,
                VendorCity,
                VendorState,
                VendorZipCode,
                VendorRemarks
          INTO :VendorNumber,
               :VendorName,
               :ContactName :ContactNameInd,
               :PhoneNumber :PhoneNumberInd,
               :VendorStreet,
               :VendorCity,
               :VendorState,
               :VendorZipCode,
               :VendorRemarks :VendorRemarksInd
          FROM  PurchDB.Vendors
         WHERE  VendorNumber = :VendorNumber;

case SQLCA.SQLCODE of
OK           : DisplayDelete;                                           39
NotFound     : begin
                 writeln;
                 writeln('Row not found!');                             40
               end;
MultipleRows:  begin
              writeln('WARNING: More than one row qualifies.');         41
               end;
otherwise      begin
                 SQLStatusCheck;                                        42
               end;
end;  (* end case *)

CommitWork;                                                             43

  end;  (* end if response *)
  until VendorNumber = 0;
end;  (* end Delete procedure *)


procedure Insert;                                                       44
(* procedure to insert a row into PurchDB.Vendors *)
begin
writeln;
writeln('  *** Procedure to INSERT rows into PurchDB.Vendors ***  ');
writeln;
repeat
writeln;
prompt('Enter Vendor Number or 0 for MENU>  ');                         45
readln(VendorNumber);
writeln;

if VendorNumber <> 0 then
begin
writeln;
prompt('Enter Vendor Name>  ');
readln(VendorName);
writeln;
writeln;
prompt('Enter Contact Name (0 for null)>  ');                           46
readln(ContactName);
if ContactName = '0' then
   ContactNameInd := -1                                                 47
else
   ContactNameInd :=  0;
writeln;

prompt('Enter Phone Number (0 for null)>  ');
readln(PhoneNumber);
if PhoneNumber = '0' then
   PhoneNumberInd := -1
else
   PhoneNumberInd :=  0;
writeln;

prompt('Enter Vendor Street>  ');
readln(VendorStreet);
writeln;

prompt('Enter Vendor City>  ');
readln(VendorCity);
writeln;

prompt('Enter Vendor State>  ');
readln(VendorState);
writeln;

prompt('Enter Vendor Zip Code>  ');
readln(VendorZipCode);
writeln;
prompt('Enter Vendor Remarks (0 for null)>  ');
readln(VendorRemarks);
if VendorRemarks = '0' then
   VendorRemarksInd := -1
else
   VendorRemarksInd := 0;
BeginTransaction;                                                       48
writeln('INSERT row into PurchDB.Vendors');
EXEC SQL INSERT                                                         49
           INTO  PurchDB.Vendors
                (VendorNumber,
                 VendorName,
                 ContactName,
                 PhoneNumber,
                 VendorStreet,
                 VendorCity,
                 VendorState,
                 VendorZipCode,
                 VendorRemarks)
        VALUES (:VendorNumber,
                :VendorName,
                :ContactName :ContactNameInd,
                :PhoneNumber :PhoneNumberInd,
                :VendorStreet,
                :VendorCity,
                :VendorState,
                :VendorZipCode,
                :VendorRemarks :VendorRemarksInd);

if SQLCA.SQLCODE <> OK then SQLStatusCheck;

CommitWork;                                                             50

end; (* end if response *)
until VendorNumber = 0;
end;    (* end of insert procedure *)


begin  (* Beginning of Program *)
  writeln('Program for Simple Data Manipulation of Vendors Table');
  writeln;
  if ConnectDBE then                                                      51
  begin
    repeat

  writeln;
  writeln('  1 . . . SELECT rows from PurchDB.Vendors table');
  writeln('  2 . . . UPDATE rows with null values in PurchDB.Vendors table
  writeln('  3 . . . DELETE rows from PurchDB.Vendors table');
  writeln('  4 . . . INSERT rows into PurchDB.Vendors table');
  writeln;
  prompt('Enter choice or 0 to STOP>  ');
  readln(Response);
  writeln;

  if Response <> 0 then
  begin
      case Response of                                        52
      1  :  Select;
      2  :  Update;
      3  :  Delete;
      4  :  Insert;
      otherwise   writeln('Enter 0-4 only, please');

    end;   (* end case *)
    end;   (* end if Response *)
  until Response = 0;
  TerminateProgram;                                           53
end   (* end if connect *)
else
  writeln('Cannot connect to PartsDBE');
end.    (* end of program *)

Program Using Simple DML Operations

Technical documentation

» Table of Contents

» Index

Procedure Select

Procedure Update

Procedure Delete

Procedure Insert
