- REFRESH
The screen refresh rate, in seconds.
- SESSIONS
The number of DBEnvironment sessions.
- SORTIODATA
An indicator of how the programs are sorted.
The programs are sorted in descending order by the value
in the column marked with the asterisk.

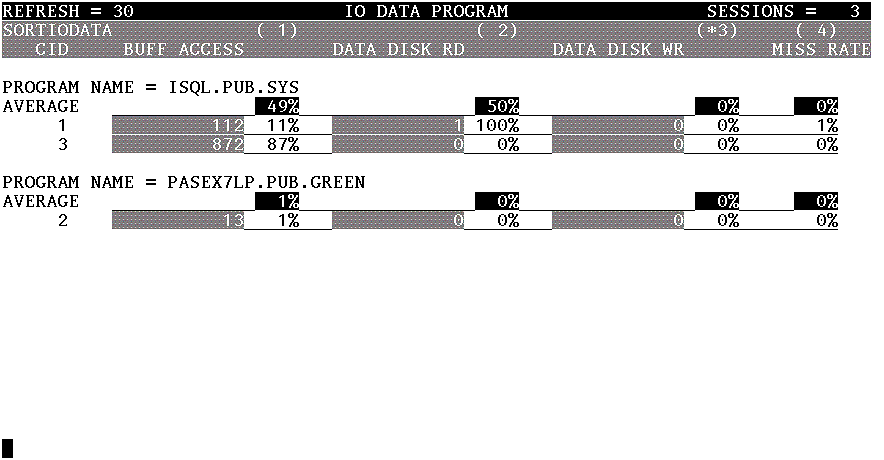

In the example above, the programs are sorted by the DATA DISK WR values.
For more information, see the SET SORTIODATA command.
- CID
The DBEnvironment connection identification number.
- BUFF ACCESS
The number of page requests
the session has issued to the data buffer pool.
- DATA DISK RD
The number of pages
that are not in the data buffer pool at request time.
The operating system must fetch these pages,
either from the operating system buffer pool or
by a physical disk read.
- DATA DISK WR
The number of dirty pages
from the data buffer pool
that have been logically written to disk.
- MISS RATE
The percentage of pages
that are not in the data buffer pool, calculated
as follows:
MISS RATE = (DATA DISK RD / BUFF ACCESS) * 100
|
- PROGRAM NAME
The name of the program being
run.
All of the sessions running a program are listed beneath the PROGRAM NAME.
- AVERAGE
For a given column, the average amount of work
performed by the processes in the list.
Each program has a list of processes beneath it.
Each process has a line of information, which shows
percentages in each column.
The line shows the exact percentages
of work each process performs, in each column.
The AVERAGE field, however, shows the average amount
of work each process performs.
For example, in the above screen, process 1 is responsible
for 11% of the BUFF ACCESS activity in the DBEnvironment,
and process 3 is responsible for 87%.
On average, each process is responsible for 49% of the
BUFF ACCESS activity.
