Regardless of the mode you use, the following files must be
available when you invoke the COBOL preprocessor, as shown in
Figure 2-2: source file: a file containing the source code
for the COBOL ALLBASE/SQL program or subprogram with embedded
SQL commands for a DBEnvironment. The formal file designator
for this input file is: ALLBASE/SQL message catalog: a file containing
preprocessor messages and ALLBASE/SQL error and warning
messages. The formal file designator for the message catalog is
as follows, with xxx being the numeric representation of the
current native language:
When you run the preprocessor in full preprocessing mode,
also ensure that the DBEnvironment accessed by the program or
subprogram is available. As Figure 2-2 points out, the COBOL preprocessor creates the
following temporary output files: modified source file: a file containing a
modified version of the source code in SQLIN. The formal file
designator for this file is: After you use the preprocessor in full preprocessing mode,
you use SQLOUT and the following two include files as input
files for the COBOL compiler, as shown in Figure 2-4. include files: files containing definitions of
variables and constants used by COBOL statements the
preprocessor inserts into SQLOUT. The formal file designators
for these files are: ALLBASE/SQL message file: a file containing the
preprocessor banner, error and warning messages, and other
messages. The formal file designator for this file is: installable module file: a file containing a
copy of the module created by the preprocessor. The formal file
designator for this file is:
When you run the preprocessor in full preprocessing mode,
the preprocessor also stores a module in the
DBEnvironment accessed by your program. The module is used at
run time to execute DBEnvironment operations. If you want to preprocess several ALLBASE/SQL application
programs in the same group and account and compile and link the
programs later, or you plan to compile a preprocessed program
during a future session, you should do the following for each
program: Before running the preprocessor, equate SQLIN to the name of the
file containing the application you want to preprocess: After running the preprocessor, save and rename the output files
if you do not want them overwritten. For example:
:SAVE SQLOUT
:RENAME SQLOUT, OutFile
:SAVE SQLMOD
:RENAME SQLMOD, ModFile
:SAVE SQLVAR
:RENAME SQLVAR, VarFile
:SAVE SQLCONST
:RENAME SQLCONST, ConstFile
|
When you are ready to compile the program, you must equate the
include file names to their standard ALLBASE/SQL names. See
"Preprocessor Generated Include Files" in this chapter for more
information.
Figure 2-2 COBOL Preprocessor Input and Output
![[COBOL Preprocessor Input and Output]](img/127_006b.gif)

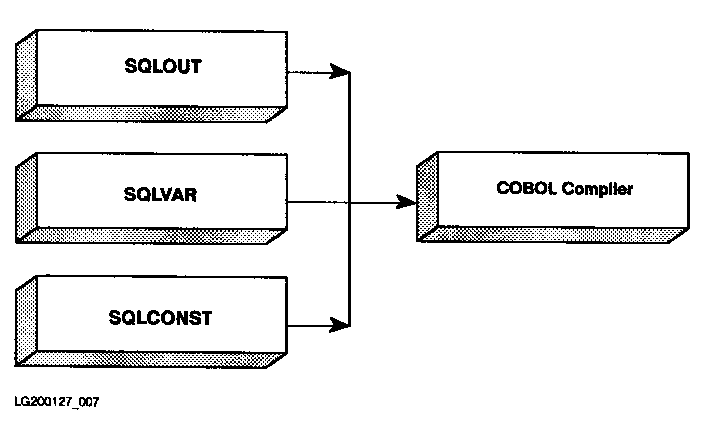

Figure 2-3 Compiling Preprocessor Output
![[Compiling Preprocessor Output]](img/bl0204.gif)
Source File | |
The source file (SQLIN) must be an ASCII file (numbered or
unnumbered) that contains at a minimum the following statements:
IDENTIFICATION DIVISION.
PROGRAM-ID ProgramName.
AnyStatement.
|
When parsing SQLIN, the COBOL preprocessor ignores COBOL
statements and COBOL compiler directives in SQLIN except $SET,
$IF, and $INCLUDE. Only the following information is parsed by
the COBOL preprocessor: The PROGRAM-ID. Unless you specify a module name in the
preprocessor invocation line, the preprocessor uses the
PROGRAM-ID to name the module it stores. A module name can
contain as many as 20 characters and must follow the rules
governing ALLBASE/SQL basic names (given in the ALLBASE/SQL
Reference Manual). Statements found between the prefix EXEC SQL and the suffix
END-EXEC. These statements follow the rules given in Chapter 3
for how and where to embed SQL statements. Statements found between the BEGIN DECLARE SECTION and END
DECLARE SECTION commands. These commands delimit a declare
section which contains COBOL data description entries for the
host variables used in the program. Host variables are
described in Chapter 4.
Figure 2-5 illustrates an SQLIN file containing a sample program
using the following SQL commands highlighted by
shading in the figure:
INCLUDE SQLCA
BEGIN DECLARE SECTION
END DECLARE SECTION
WHENEVER
CONNECT
BEGIN WORK
COMMIT WORK
SELECT
SQLEXPLAIN
|
As the runtime dialog in Figure 2-4 illustrates, the program
begins a DBE session for PartsDBE, the sample DBEnvironment. It
prompts the user for a part number, then displays information
about the part from the table PURCHDB.PARTS. Warning and error
conditions are handled with WHENEVER and SQLEXPLAIN commands
with the exception of explicit error checking after the SELECT
command. The program continues to prompt for a part number
until a serious error is encountered or until the user enters a
slash (/). Figure 2-4 Runtime Dialog of Program COBEX2
:RUN COBEX2P
Program to SELECT specified rows from the Parts Table - COBEX2
Event List:
Connect to PartsDBE
Begin Work
SELECT specified Part Number from Parts Table until user enters "/"
Commit Work
Disconnect from PartsDBE
Connect to PartsDBE
Enter Part Number within Parts Table or "/" to STOP> 1243-P-01
SELECT PartNumber, PartName, SalesPrice
Begin Work
Part Number not found!
Commit Work
Enter Part Number within Parts Table or "/" to STOP> 1323-D-01
SELECT PartNumber, PartName, SalesPrice
Begin Work
Commit Work
Part Number: 1323-D-01
Part Name: Floppy Diskette Drive
Sales Price: $200.00
Enter Part Number within Parts Table or "/" to STOP> 1823-PT-01
SELECT PartNumber, PartName, SalesPrice
Begin Work
Commit Work
Part Number: 1823-PT-01
Part Name: Graphics Printer
Sales Price: $450.00
Enter Part Number within Parts Table or "/" to STOP> /
END OF PROGRAM
|
Figure 2-5 Program COBEX2
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
* Program COBEX2: *
* This program illustrates the use of SQL's SELECT command to *
* retrieve one row at a time. *
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
IDENTIFICATION DIVISION.
PROGRAM-ID. COBEX2.
AUTHOR. HP TRAINING
INSTALLATION. HP.
DATE-WRITTEN. 17 JULY 1987.
DATE-COMPILED. 17 JULY 1987.
REMARKS. SQL'S SELECT WITH WHENEVER COMMAND.
ENVIRONMENT DIVISION.
CONFIGURATION SECTION.
SOURCE-COMPUTER. HP-3000.
OBJECT-COMPUTER. HP-3000.
SPECIAL-NAMES. CONSOLE IS TERMINAL-INPUT.
INPUT-OUTPUT SECTION.
FILE-CONTROL.
SELECT CRT ASSIGN TO "$STDLIST".
DATA DIVISION.
FILE SECTION.
FD CRT.
01 PROMPT PIC X(34).
$PAGE
WORKING-STORAGE SECTION.
EXEC SQL INCLUDE SQLCA END-EXEC.
* * * * * * BEGIN HOST VARIABLE DECLARATIONS * * * * * * *
EXEC SQL BEGIN DECLARE SECTION END-EXEC.
01 PARTNUMBER PIC X(16).
01 PARTNAME PIC X(30).
01 SALESPRICE PIC S9(8)V99 COMP-3.
01 SALESPRICEIND SQLIND.
01 SQLMESSAGE PIC X(132).
EXEC SQL END DECLARE SECTION END-EXEC.
* * * * * * END OF HOST VARIABLE DECLARATIONS * * * * * * *
77 DONE-FLAG PIC X(01) VALUE 'N'.
88 NOT-DONE VALUE 'N'.
88 DONE VALUE 'Y'.
77 ABORT-FLAG PIC X(01) VALUE 'N'.
88 NOT-STOP VALUE 'N'.
88 ABORT VALUE 'Y'.
01 DEADLOCK PIC S9(9) COMP VALUE -14024.
01 RESPONSE.
05 RESPONSE-PREFIX PIC X(01) VALUE SPACE.
05 FILLER PIC X(15) VALUE SPACES.
01 DOLLARS PIC $$$,$$$,$$$.99.
$PAGE
PROCEDURE DIVISION.
A100-MAIN.
DISPLAY "Program to SELECT specified rows from "
"the Parts Table - COBEX2".
DISPLAY " ".
DISPLAY "Event List:".
DISPLAY " Connect to PartsDBE".
DISPLAY " Begin Work".
DISPLAY " SELECT specified Part Number from the "
"Parts Table until user enters '/' ".
DISPLAY " Commit Work".
DISPLAY " Disconnect from PartsDBE".
DISPLAY " ".
OPEN OUTPUT CRT.
PERFORM A200-CONNECT-DBENVIRONMENT THRU A200-EXIT.
PERFORM B100-SELECT-DATA THRU B100-EXIT
UNTIL DONE.
PERFORM A500-TERMINATE-PROGRAM THRU A500-EXIT.
A100-EXIT.
EXIT.
A200-CONNECT-DBENVIRONMENT.
EXEC SQL
WHENEVER SQLERROR
GO TO S300-SERIOUS-ERROR
END-EXEC.
DISPLAY "Connect to PartsDBE".
EXEC SQL CONNECT TO 'PartsDBE' END-EXEC.
A200-EXIT.
EXIT.
A300-BEGIN-TRANSACTION.
DISPLAY "Begin Work".
EXEC SQL
BEGIN WORK
END-EXEC.
A300-EXIT.
EXIT.
A400-END-TRANSACTION.
DISPLAY "Commit Work".
EXEC SQL
COMMIT WORK
END-EXEC.
A400-EXIT.
EXIT.
A500-TERMINATE-PROGRAM.
EXEC SQL
RELEASE
END-EXEC.
STOP RUN.
A500-EXIT.
EXIT.
$PAGE
B100-SELECT-DATA.
MOVE SPACES TO RESPONSE.
MOVE "Enter Part Number or '/' to STOP> "
TO PROMPT.
WRITE PROMPT AFTER ADVANCING 1 LINE.
ACCEPT RESPONSE.
IF RESPONSE-PREFIX = "/"
MOVE "Y" TO DONE-FLAG
GO TO B100-EXIT
ELSE
MOVE RESPONSE TO PARTNUMBER.
EXEC SQL
WHENEVER SQLERROR
GO TO S400-SQL-ERROR
END-EXEC.
EXEC SQL
WHENEVER SQLWARNING
GO TO S500-SQL-WARNING
END-EXEC.
EXEC SQL
WHENEVER NOT FOUND
GO TO S600-NOT-FOUND
END-EXEC.
DISPLAY "SELECT PartNumber, PartName and SalesPrice".
PERFORM A300-BEGIN-TRANSACTION THRU A300-EXIT.
EXEC SQL
SELECT PARTNUMBER, PARTNAME, SALESPRICE
INTO :PARTNUMBER,
:PARTNAME,
:SALESPRICE :SALESPRICEIND
FROM PURCHDB.PARTS
WHERE PARTNUMBER = :PARTNUMBER
END-EXEC.
PERFORM A400-END-TRANSACTION THRU A400-EXIT.
PERFORM B200-DISPLAY-ROW THRU B200-EXIT.
B100-EXIT.
EXIT.
B200-DISPLAY-ROW.
DISPLAY " ".
DISPLAY " Part Number: " PARTNUMBER.
DISPLAY " Part Name: " PARTNAME.
IF SALESPRICEIND < 0
DISPLAY " Sales Price is NULL"
ELSE
MOVE SALESPRICE TO DOLLARS
DISPLAY " Sales Price: " DOLLARS.
B200-EXIT.
EXIT.
$PAGE
S100-STATUS-CHECK.
IF SQLCODE < DEADLOCK
MOVE 'Y' TO ABORT-FLAG.
PERFORM S200-SQL-EXPLAIN THRU S200-EXIT
UNTIL SQLCODE = 0.
S100-EXIT.
EXIT.
S200-SQL-EXPLAIN.
EXEC SQL
SQLEXPLAIN :SQLMESSAGE
END-EXEC.
DISPLAY SQLMESSAGE.
S200-EXIT.
EXIT.
S300-SERIOUS-ERROR.
PERFORM S100-STATUS-CHECK THRU S100-EXIT.
PERFORM A500-TERMINATE-PROGRAM THRU A500-EXIT.
S300-EXIT.
EXIT.
S400-SQL-ERROR.
PERFORM S100-STATUS-CHECK THRU S100-EXIT.
IF ABORT-FLAG = 'Y'
PERFORM A500-TERMINATE-PROGRAM
ELSE
PERFORM A400-END-TRANSACTION THRU A400-EXIT
GO TO B100-EXIT.
S400-EXIT.
EXIT.
S500-SQL-WARNING.
DISPLAY "SQL WARNING has occurred. The following row "
"of data may not be valid:".
PERFORM B200-DISPLAY-ROW THRU B200-EXIT.
PERFORM A400-END-TRANSACTION THRU A400-EXIT.
GO TO B100-EXIT.
S500-EXIT.
EXIT.
S600-NOT-FOUND.
DISPLAY " ".
DISPLAY "Part Number not found!".
PERFORM A400-END-TRANSACTION THRU A400-EXIT.
GO TO B100-EXIT.
S600-EXIT.
EXIT.
|
Output File Attributes | |
The COBOL preprocessor output files are temporary files. When
the SQLIN illustrated in Figure 2-5 is preprocessed, the
attributes of the output files created are as follows:
:listftemp,2
TEMPORARY FILES FOR SOMEUSER.SOMEACCT,SOMEGRP
ACCOUNT= SOMEACCT GROUP= SOMEGRP
FILENAME CODE ------------LOGICAL RECORD----------- ----SPACE----
SIZE TYP EOF LIMIT R/B SECTORS #X MX
SQLCONST 80B FA 39 2048 1 128 8 10 (TEMP)
SQLMOD 250W FB 3 1023 1 208 2 10 (TEMP)
SQLMSG 80B FA 14 1023 1 96 6 8 (TEMP)
SQLOUT 80B FA 417 10000 1 320 11 10 (TEMP)
SQLVAR 80B FA 11 2048 1 128 7 10 (TEMP)
|
Modified Source File | |
As the COBOL preprocessor parses SQLIN, it copies lines from
SQLIN and any file(s) included from SQLIN into SQLOUT, comments
out embedded SQL commands, and inserts information around each
embedded SQL command. Figure 2-6 illustrates the SQLOUT
generated for the SQLIN pictured in Figure 2-5. In both
preprocessing modes, the COBOL preprocessor: Inserts an * in column 7 on each line containing an
embedded SQL command to comment out the SQL command for the
COBOL compiler. Places any punctuation you place after an embedded command on
the line following the last line generated for the embedded
command. Note, that the period following the INCLUDE SQLCA
command in SQLIN is in the same column, but on a different line
in SQLOUT. In SQLOUT the period is on the line following the
last line generated by the preprocessor for the INCLUDE SQLCA
command.
Inserts two $INCLUDE COBOL compiler directives after the
WORKING-STORAGE SECTION label. During compilation, the
directives reference the include files: SQLCONST and SQLVAR. Inserts a "Start SQL Preprocessor" comment before and an End SQL
Preprocessor comment after code it modifies.
In full preprocessing mode, the preprocessor also: Generates a COBOL declaration of the SQLCA following the INCLUDE
SQLCA command. Generates COBOL sentences providing conditional instructions
following SQL commands encountered after one of the following
SQL commands: WHENEVER SQLERROR, WHENEVER SQLWARNING, and
WHENEVER NOT FOUND. Generates COBOL sentences that call ALLBASE/SQL external
procedures at run time. These calls reference the module stored
by the preprocessor in the DBEnvironment for execution at run
time. Parameters used by these external calls are defined in
SQLVAR and SQLCONST. Inserts a "Start Inserted Statements" comment before generated
information.
| | | |  | CAUTION: Although you can access SQLOUT, SQLVAR, and SQLCONST with an
editor, you should never change the information generated by
the COBOL preprocessor. Your DBEnvironment could be damaged at
run time if preprocessor generated statements are altered.
| | | | |
If you need to change statements in SQLOUT, make the changes to
SQLIN, re-preprocess SQLIN, and re-compile the output files
before putting the application program into production. Figure 2-6 Modified Source File for Program COBEX2
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
* Program COBEX2: *
* This program illustrates the use of SQL's SELECT command to *
* retrieve one row at a time. *
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
IDENTIFICATION DIVISION.
PROGRAM-ID. COBEX2.
AUTHOR. HP TRAINING
INSTALLATION. HP.
DATE-WRITTEN. 17 JULY 1987.
DATE-COMPILED. 17 JULY 1987.
REMARKS. SQL'S SELECT WITH WHENEVER COMMAND.
ENVIRONMENT DIVISION.
CONFIGURATION SECTION.
SOURCE-COMPUTER. HP-3000.
OBJECT-COMPUTER. HP-3000.
SPECIAL-NAMES. CONSOLE IS TERMINAL-INPUT.
INPUT-OUTPUT SECTION.
FILE-CONTROL.
SELECT CRT ASSIGN TO "$STDLIST".
DATA DIVISION.
FILE SECTION.
FD CRT.
01 PROMPT PIC X(34).
$PAGE
WORKING-STORAGE SECTION.
{{**** Start SQL Preprocessor ****\
$INCLUDE SQLCONST\
$INCLUDE SQLVAR\
**** End SQL Preprocessor ****}}
{{**** Start SQL Preprocessor ****\
*EXEC SQL INCLUDE SQLCA END-EXEC.\
**** Start Inserted Statements ****\
01 SQLCA.\
05 SQLCAID PIC X(8).\
05 SQLCABC PIC S9(9) COMP SYNC.\
05 SQLCODE PIC S9(9) COMP SYNC.\
05 SQLERRM.\
49 SQLERRML PIC S9(9) COMP SYNC.\
49 SQLERRMC PIC X(256).}}
{{ 05 SQLERRP PIC X(8).\
05 SQLERRD OCCURS 6 TIMES\
PIC S9(9) COMP SYNC.\
05 SQLWARN.\
10 SQLWARN0 PIC X(1).\
10 SQLWARN1 PIC X(1).\
10 SQLWARN2 PIC X(1).\
10 SQLWARN3 PIC X(1).\
10 SQLWARN4 PIC X(1).\
10 SQLWARN5 PIC X(1).\
10 SQLWARN6 PIC X(1).\
10 SQLWARN7 PIC X(1).\
05 SQLEXT1 PIC X(4).\
05 SQLEXT2 PIC X(4).\
**** End SQL Preprocessor ****}}
* * * * * * BEGIN HOST VARIABLE DECLARATIONS * * * * * * *
{{**** Start SQL Preprocessor ****\
*EXEC SQL BEGIN DECLARE SECTION END-EXEC.\
**** End SQL Preprocessor ****}}
01 PARTNUMBER PIC X(16).
01 PARTNAME PIC X(30).
01 SALESPRICE PIC S9(8)V99 COMP-3.
01 SALESPRICEIND PIC S9(4) COMP.
01 SQLMESSAGE PIC X(132).
{{**** Start SQL Preprocessor ****\
*EXEC SQL END DECLARE SECTION END-EXEC.\
**** End SQL Preprocessor ****}}
* * * * * * END OF HOST VARIABLE DECLARATIONS * * * * * * *
77 DONE-FLAG PIC X(01) VALUE 'N'.
88 NOT-DONE VALUE 'N'.
88 DONE VALUE 'Y'.
77 ABORT-FLAG PIC X(01) VALUE 'N'.
88 NOT-STOP VALUE 'N'.
88 ABORT VALUE 'Y'.
01 DEADLOCK PIC S9(9) COMP VALUE -14024.
01 RESPONSE.
05 RESPONSE-PREFIX PIC X(01) VALUE SPACE.
05 FILLER PIC X(15) VALUE SPACES.
01 DOLLARS PIC $$$,$$$,$$$.99.
$PAGE
PROCEDURE DIVISION.
A100-MAIN.
DISPLAY "Program to SELECT specified rows from "
"the Parts Table - COBEX2".
DISPLAY " ".
DISPLAY "Event List:".
DISPLAY " Connect to PartsDBE".
DISPLAY " Begin Work".
DISPLAY " SELECT specified Part Number from the "
"Parts Table until user enters '/' ".
DISPLAY " Commit Work".
DISPLAY " Disconnect from PartsDBE".
DISPLAY " ".
OPEN OUTPUT CRT.
PERFORM A200-CONNECT-DBENVIRONMENT THRU A200-EXIT.
PERFORM B100-SELECT-DATA THRU B100-EXIT
UNTIL DONE.
PERFORM A500-TERMINATE-PROGRAM THRU A500-EXIT.
A100-EXIT.
EXIT.
A200-CONNECT-DBENVIRONMENT.
{{**** Start SQL Preprocessor ****\
* EXEC SQL\
* WHENEVER SQLERROR\
* GO TO S300-SERIOUS-ERROR\
* END-EXEC\
**** Start Inserted Statements ****\
CONTINUE\
**** End SQL Preprocessor ****}}
.
DISPLAY "Connect to PartsDBE".
{{**** Start SQL Preprocessor ****\
* EXEC SQL CONNECT TO 'PartsDBE' END-EXEC\
**** Start Inserted Statements ****}}
{{MOVE 264 TO SQLCONLEN\
CALL "SQLXCONO" USING SQLCA, SQLCONLEN, SQLCONST1\
IF SQLCODE IS NEGATIVE\
GO TO S300-SERIOUS-ERROR\
END-IF\
**** End SQL Preprocessor ****}}
.
A200-EXIT.
EXIT.
A300-BEGIN-TRANSACTION.
DISPLAY "Begin Work".
{{**** Start SQL Preprocessor ****\
* EXEC SQL\
* BEGIN WORK\
* END-EXEC\
**** Start Inserted Statements ****\
MOVE 16 TO SQLCONLEN\
CALL "SQLXCONO" USING SQLCA, SQLCONLEN, SQLCONST2\
IF SQLCODE IS NEGATIVE\
GO TO S300-SERIOUS-ERROR\
END-IF\
**** End SQL Preprocessor ****}}
.
A300-EXIT.
EXIT.
A400-END-TRANSACTION.
DISPLAY "Commit Work".
{{**** Start SQL Preprocessor ****\
* EXEC SQL\
* COMMIT WORK\
* END-EXEC\
**** Start Inserted Statements ****\
MOVE 8 TO SQLCONLEN\
CALL "SQLXCONO" USING SQLCA, SQLCONLEN, SQLCONST3\
IF SQLCODE IS NEGATIVE\
GO TO S300-SERIOUS-ERROR\
END-IF\
**** End SQL Preprocessor ****}}
A400-EXIT.
EXIT.
A500-TERMINATE-PROGRAM.
{{**** Start SQL Preprocessor ****\
* EXEC SQL\
* RELEASE\
* END-EXEC\
**** Start Inserted Statements ****\
MOVE 56 TO SQLCONLEN\
CALL "SQLXCONO" USING SQLCA, SQLCONLEN, SQLCONST4\
IF SQLCODE IS NEGATIVE\
GO TO S300-SERIOUS-ERROR\
END-IF\
**** End SQL Preprocessor ****}}
.
STOP RUN.
A500-EXIT.
EXIT.
$PAGE
B100-SELECT-DATA.
MOVE SPACES TO RESPONSE.
MOVE "Enter Part Number or '/' to STOP> "
TO PROMPT.
WRITE PROMPT AFTER ADVANCING 1 LINE.
ACCEPT RESPONSE.
IF RESPONSE-PREFIX = "/"
MOVE "Y" TO DONE-FLAG
GO TO B100-EXIT
ELSE
MOVE RESPONSE TO PARTNUMBER.
{{**** Start SQL Preprocessor ****\
* EXEC SQL\
* WHENEVER SQLERROR\
* GO TO S400-SQL-ERROR\
* END-EXEC\
**** Start Inserted Statements ****\
CONTINUE\
**** End SQL Preprocessor ****}}
{{**** Start SQL Preprocessor ****\
* EXEC SQL\
* WHENEVER SQLWARNING\
* GO TO S500-SQL-WARNING\
* END-EXEC\
**** Start Inserted Statements ****\
CONTINUE\
**** End SQL Preprocessor ****}}
{{**** Start SQL Preprocessor ****\
* EXEC SQL\
* WHENEVER NOT FOUND\
* GO TO S600-NOT-FOUND\
* END-EXEC\
**** Start Inserted Statements ****\
CONTINUE\
**** End SQL Preprocessor ****}}
DISPLAY "SELECT PartNumber, PartName and SalesPrice".
PERFORM A300-BEGIN-TRANSACTION THRU A300-EXIT.
{{**** Start SQL Preprocessor ****\
* EXEC SQL\
* SELECT PARTNUMBER, PARTNAME, SALESPRICE\
* INTO :PARTNUMBER,\
* :PARTNAME,\
* :SALESPRICE :SALESPRICEIND\
* FROM PURCHDB.PARTS\
* WHERE PARTNUMBER = :PARTNUMBER\
* END-EXEC\
**** Start Inserted Statements ****\
MOVE PARTNUMBER\
TO SQLREC1-FIELD1}}
{{MOVE 1 TO SQLSECNUM\
MOVE 16 TO SQLINLEN\
MOVE 54 TO SQLOUTLEN\
CALL "SQLXFETO" USING SQLCA, SQLOWNER, SQLMODNAME,\
SQLSECNUM, SQLTEMPV, SQLINLEN, SQLOUTLEN, SQLTRUE\
IF SQLCODE IS ZERO\
MOVE SQLREC2-FIELD1\
TO PARTNUMBER\
MOVE SQLREC2-FIELD2\
TO PARTNAME\
MOVE SQLREC2-FIELD3-IND\
TO SALESPRICEIND\
IF SQLREC2-FIELD3-IND IS NOT NEGATIVE\
MOVE SQLREC2-FIELD3\
TO SALESPRICE\
END-IF\
IF SQLWARN0 IS EQUAL TO "W"\
GO TO S500-SQL-WARNING\
END-IF\
ELSE\
IF SQLCODE IS EQUAL TO 100\
GO TO S600-NOT-FOUND\
END-IF\
IF SQLCODE IS NEGATIVE\
GO TO S400-SQL-ERROR\
END-IF\
CONTINUE\
END-IF\
**** End SQL Preprocessor ****}}
PERFORM A400-END-TRANSACTION THRU A400-EXIT.
PERFORM B200-DISPLAY-ROW THRU B200-EXIT.
B100-EXIT.
EXIT.
B200-DISPLAY-ROW.
DISPLAY " ".
DISPLAY " Part Number: " PARTNUMBER.
DISPLAY " Part Name: " PARTNAME.
IF SALESPRICEIND < 0
DISPLAY " Sales Price is NULL"
ELSE
MOVE SALESPRICE TO DOLLARS
DISPLAY " Sales Price: " DOLLARS.
B200-EXIT.
EXIT.
$PAGE
S100-STATUS-CHECK.
IF SQLCODE < DEADLOCK
MOVE 'Y' TO ABORT-FLAG.
PERFORM S200-SQL-EXPLAIN THRU S200-EXIT
UNTIL SQLCODE = 0.
S100-EXIT.
EXIT.
S200-SQL-EXPLAIN.
{{**** Start SQL Preprocessor ****\
* EXEC SQL\
* SQLEXPLAIN :SQLMESSAGE\
* END-EXEC\
**** Start Inserted Statements ****\
MOVE SPACES TO SQLREC4\
MOVE 132 TO SQLINLEN\
CALL "SQLXPLNO" USING SQLCA, SQLTEMPV, SQLINLEN,\
SQLFALSE\
MOVE SQLREC4-FIELD1\
TO SQLMESSAGE\
**** End SQL Preprocessor ****}}
.
DISPLAY SQLMESSAGE.
S200-EXIT.
EXIT.
S300-SERIOUS-ERROR.
PERFORM S100-STATUS-CHECK THRU S100-EXIT.
PERFORM A500-TERMINATE-PROGRAM THRU A500-EXIT.
S300-EXIT.
EXIT.
S400-SQL-ERROR.
PERFORM S100-STATUS-CHECK THRU S100-EXIT.
IF ABORT-FLAG = 'Y'
PERFORM A500-TERMINATE-PROGRAM
ELSE
PERFORM A400-END-TRANSACTION THRU A400-EXIT
GO TO B100-EXIT.
S400-EXIT.
EXIT.
S500-SQL-WARNING.
DISPLAY "SQL WARNING has occurred. The following row "
"of data may not be valid:".
PERFORM B200-DISPLAY-ROW THRU B200-EXIT.
PERFORM A400-END-TRANSACTION THRU A400-EXIT.
GO TO B100-EXIT.
S500-EXIT.
EXIT.
S600-NOT-FOUND.
DISPLAY " ".
DISPLAY "Part Number not found!".
PERFORM A400-END-TRANSACTION THRU A400-EXIT.
GO TO B100-EXIT.
S600-EXIT.
EXIT.
|
Preprocessor Generated Include Files | |
SQLCONST and SQLVAR are preprocessor generated include files
which contain declarations for variables and constants
referenced in preprocessor generated sentences in SQLOUT.
Figure 2-7 and Figure 2-8 illustrate, respectively, the SQLCONST
and SQLVAR files that correspond to the SQLOUT file in Figure
2-6. Note that the preprocessor inserts the following two COBOL
compiler directives to reference SQLCONST and SQLVAR:
$INCLUDE SQLCONST
$INCLUDE SQLVAR
|
These two directives are always inserted into the
WORKING-STORAGE SECTION. Even if you use file equations to redirect the include files,
the preprocessor still inserts the same $INCLUDE directives.
Therefore when you compile preprocessor output, ensure that the
preprocess-time file equations are in effect so the correct
include files are compiled:
:FILE SQLCONST=MYCONST
:FILE SQLVAR=MYVAR
:FILE SQLIN=MYPROG
:FILE SQLOUT=MYSQLPRG
. Then the COBOL preprocessor is invoked in full preprocessing mode.
. Later, when then COBOL compiler is invoked, the following
. file equations must be in effect:
:FILE SQLCONST=MYCONST
:FILE SQLVAR=MYVAR
:COB85XL MYSQLPRG, $NEWPASS, $NULL
|
Figure 2-7 Sample Constant Include File
01 SQLCONST PIC X.
01 SQLCONST1.
05 SQL0 PIC X(36) VALUE "(4)5061727473444245202020202020".
05 SQL1 PIC X(36) VALUE "202020202020202020202020202020202020".
05 SQL2 PIC X(36) VALUE "202020202020202020202020202020202020".
05 SQL3 PIC X(36) VALUE "202020202020202020202020202020202020".
05 SQL4 PIC X(36) VALUE "202020202020202020202020202020202020".
05 SQL5 PIC X(36) VALUE "202020202020202020202020202020202020".
05 SQL6 PIC X(36) VALUE "202020202020202020202020202020202020".
05 SQL7 PIC X(12) VALUE "202020202020".
01 SQLCONST2.
05 SQL0 PIC X(16) VALUE "00A6007F00110061".
e SQLCONST3.
05 SQL0 PIC X(8) VALUE "00A10000".
01 SQLCONST4.
05 SQL0 PIC X(36) VALUE 00AF00002020202020202020202020202020".
05 SQL1 PIC X(12) VALUE "202020202020".
01 SQLTEMPV PIC X(132) VALUE " ".
|
Figure 2-8 Sample Variable Include File
01 SQLREC1 REDEFINES SQLTEMPV.
05 SQLREC1-FIELD1 PIC X(16).
01 SQLREC2 REDEFINES SQLTEMPV.
05 SQLREC2-FIELD1 PIC X(16).
05 SQLREC2-FIELD2 PIC X(30).
05 SQLREC2-FIELD3 PIC S9(8)V9(2) COMP-3.
05 SQLREC2-FIELD3-IND PIC S9(4) COMP.
01 SQLREC3 REDEFINES SQLTEMPV.
05 FILLER PIC X(108).
01 SQLREC4 REDEFINES SQLTEMPV.
05 SQLREC4-FIELD1 PIC X(132).
|
COBOL COPY Statement Support | |
ALLBASE/SQL now supports the COBOL COPY statement. The preprocessor
scans your source code and inserts the indicated
copylib modules into the preprocessed code.
The REPLACING clause, if specified, is expanded during
compilation (not during preprocessing).
Two new compiler directives are used in your source code to set and unset
the COPY statement feature. These are shown in the table below. Table 2-1 Compiler Directives for Implementing the COBOL COPY Statement | Directive | How Used |
|---|
| $SQL COPY | Turns on ALLBASE/SQL COPY statement processing. | | $SQL NOCOPY | Turns off ALLBASE/SQL COPY statement processing.
|
You can use the directives at any point in your source code.
Perhaps your application has many COPY statements,
some of which reference modules containing ALLBASE/SQL commands.
If you want only ALLBASE/SQL copy code expanded in your preprocessor
listing,
delimit the appropriate COPY statements with the $SQL COPY and $SQL NOCOPY
directives.
If you want all copy code expanded at preprocessing time, put the $SQL COPY
statement at the beginning of your file.
When you do not use these compiler directives, COPY statements are
processed at compile time. This is appropriate when your copy code
modules do not contain ALLBASE/SQL commands. | | | |  | NOTE:
Insertion of copy text into the preprocessor output file may cause the
current file limit for SQLOUT to be exceeded.
| | | | |
The following sections are presented in this section:
Using the COPY Statement with ALLBASE/SQL.
COPY Statement Code Example.
Using the COPY Statement with ALLBASE/SQLCOPY statement syntax and a complete explanation of its use in COBOL
is found in chapter 13 of the HP COBOL II/XL Reference Manual. No syntactical differences exist between COBOL and ALLBASE/SQL
implementation
of the COPY statement.
However, you should be aware of the following specifics: The reserved word NOLIST can be used to suppress printing the contents
of the copylib module in the compiler listing.
Any ALLBASE/SQL commands within a copy file will be preprocessed, but
the REPLACING phrase will have no effect on them.
The COPY statement cannot be used within an ALLBASE/SQL command.
COPY Statement Code ExampleSuppose you want to copy a generic error checking routine into your
application. The routine is located in a module named ERRORCPY
in the errorlib library.
You embed the following COBOL COPY statement in your source code:
$SQL COPY
COPY ERRORCPY OF ERRORLIB
$SQL NOCOPY
|
The preprocessed output file will be as follows. (Note that ALLBASE/SQL
commands within the copy file have been expanded just as they would
have been if the code had been a part of the main source file.)
**** Start SQL Preprocessor ****
*SQL COPY
**** End SQL Preprocessor ****
**** Start SQL Preprocessor ****
*copy ERRORCPY.
**** Start insertion of text from: ERRORCPY
S100-STATUS-CHECK. ERRORCPY
ERRORCPY
IF SQLCODE < DEADLOCK ERRORCPY
MOVE 'Y' TO ABORT-FLAG. ERRORCPY
ERRORCPY
PERFORM S200-SQL-EXPLAIN THRU S200-EXIT ERRORCPY
UNTIL SQLCODE = 0. ERRORCPY
ERRORCPY
S100-EXIT. ERRORCPY
EXIT. ERRORCPY
ERRORCPY
S200-SQL-EXPLAIN. ERRORCPY
ERRORCPY
ERRORCPY
|
**** Start SQL Preprocessor ****
* EXEC SQL
* SQLEXPLAIN :SQLMESSAGE
* END-EXEC
**** Start Inserted Statements ****
MOVE SPACES TO SQLREC2
MOVE 2 TO SQLINLEN
CALL SQLXCBL USING SQLXPLN, SQLCA, SQLTEMPV, SQLINLEN,
SQLFALSE
MOVE SQLREC2-FIELD1
TO SQLMESSAGE
**** End SQL Preprocessor ****
. ERRORCPY
ERRORCPY
DISPLAY SQLMESSAGE. ERRORCPY
ERRORCPY
S200-EXIT. ERRORCPY
EXIT. ERRORCPY
**** End insertion of text from: ERRORCPY
**** End SQL Preprocessor ****
**** Start SQL Preprocessor ****
*SQL NOCOPY
**** End SQL Preprocessor ****
|
$SET and $IF Statement Support | |
ALLBASE/SQL supports the COBOL SET and IF compiler directives.
If you want to preprocess only certain parts of your source code to
send to the COBOL compiler, you can set up to ten switches
to either ON or OFF. You can then test a flag for ON by testing whether
it evaluates to a boolean value of true. If the switch evaluates to
true, source records are sent to the compiler, beginning with the first
one following the IF statement, and continuing until another IF
statement evaluates to false. The SET statement is used to turn a switch off and on. Up to ten
named software switches of the form Xn are available, where n is an
integer in the range of 0 through 9. The SET statement has the following syntax:
$SET [Xn={ ON OFF } [,Xr={ ON OFF }] ...] Initially, all compilation switches are set to OFF. A SET statement can appear anywhere in the source text. IF the SET statement
is used without parameters in the form of SET, all switches are set to OFF. The IF statement interrogates any of the ten compilations switches. If the
condition specified in the IF statement evaluates to true, source records
are sent to the compiler. An appearance of an IF statement always
terminates the influence of any previous IF statement. An IF statement that
appears without parameters has the same effect as
an IF satement that evaluates to true. When an IF statement evaluates to false, no source records are
sent to the compiler until an IF statement evaluates to true is encountered. Suppose you want to conditionally preprocess some parts of your source
code and send it to the compiler, and not preprocess other parts of your
source code, you could use SET and IF statements
in your source code, as follows:
$SET X1=ON,X3=ON
.
.
.
$IF X1=ON
$COMMENT Since X1 is ON, continue sending records to the compiler.
.
.
.
$IF X3=OFF
$COMMENT This $IF statement cancels the preceding one. Since X3 is &
$ set to ON, do not send the following records to the compiler.
$SET X2=ON
$CONTROL NOLIST.
$COMMENT Note that the SET and $CONTROL statements are ignored, &
$ since the previous IF statement was false.
.
.
.
$IF
$COMMENT Previous IF statement conditions are terminated, and &
$ preprocessing and compilation resume.
|
Considerations When Using $SET and $IFSET and IF statement syntax and a complete explanation of their use in COBOL
is found in chapter 13 of the HP COBOL II/XL Reference Manual. No syntactical differences exist between COBOL and ALLBASE/SQL
implementation of the SET and IF statements.
However, you should be aware of the following specifics:
If any other SET or CONTROL statements are encountered in the source records
that are being passed over as a result of the IF, they are ignored by the
preprocessor and are not sent to the compiler.
EDIT, PAGE, and TITLE statements within a range of source
statements being ignored by the preprocessor are executed. The operations of merging of a text and master source file, and copying of a merged
file to a new file are unaffected by IF statements. Use the CONTROL preprocessor statement specifying the NOMIXED parameter
when you do not want to list source records not sent to the compiler.
ALLBASE/SQL Message File | |
Messages placed in the ALLBASE/SQL message file (SQLMSG) come
from the ALLBASE/SQL message catalog. The formal file
designator for the message catalog is: where xxx is the numerical value for the current language.
If this catalog cannot be opened, ALLBASE/SQL looks for the
default NATIVE-3000 message catalog: If the default catalog cannot be opened, ALLBASE/SQL returns an
error message saying that the catalog file is not available. If
the NATIVE-3000 catalog is available, the user sees a warning
message indicating that the default catalog is being used.
SQLMSG messages contain four parts: A banner:
WED, OCT 25, 1991, 1:38 PM
HP36216-E1.02 COBOL Preprocessor/3000 ALLBASE/SQL
(C) COPYRIGHT HEWLETT-PACKARD CO. 1982,1983,1984,1985,1986,1987,1988,
1989,1990,1991. ALL RIGHTS RESERVED.
|
A summary of the preprocessor invocation conditions:
SQLIN = COBEX2.SOMEGRP.SOMEACCT
DBEnvironment = partsdbe
Module Name = COBEX2
|
Warnings and errors encountered during preprocessing:
39 01 PARTNUMBER PIC X(16) COMP.
|
****** Syntax error in host variable declaration. (DBERR 10932)
.
.
.
There are errors. No sections stored.
|
A summary of the results of preprocessing:
2 ERRORS 0 WARNINGS
END OF PREPROCESSING.
|
When you equate SQLMSG to $STDLIST, all these messages appear at
the terminal during your session or in the job stream listing.
When SQLMSG is not equated to $STDLIST, parts 1 and 4 are still
sent to $STDLIST, and all parts appear in the file equated to
SQLMSG:
:FILE SQLMSG=MyMsg;Rec=-80,16,f,Ascii
:FILE SQLIN=COBEX2
:RUN PSQLCOB.PUB.SYS;INFO="PartsDBE (DROP)"
WED, OCT 25, 1991, 1:38 PM
HP36216-02A.E1.02 COBOL Preprocessor/3000 ALLBASE/SQL
(C) COPYRIGHT HEWLETT-PACKARD CO. 1982,1983,1984,1985,1986,1987,1988,
1989,1990,1991. ALL RIGHTS RESERVED.
1 ERRORS 0 WARNINGS
END OF PREPROCESSING.
PROGRAM TERMINATED IN AN ERROR STATE. (CIERR 976)
|
If you want to keep the message file, you should save the file
you equate to SQLMSG. It is created as a temporary file. As illustrated in Figure 2-9, a line number is often
provided in SQLMSG. This line number references the line in
SQLIN containing the command in question. A message accompanied
by a number may also appear. You can refer to the ALLBASE/SQL
Message Manual for additional information on the exception
condition when these numbered messages appear. Figure 2-9 Sample SQLMSG Showing Error
:EDITOR
HP32501A.07.20 EDIT/3000 FRI, OCT 27, 1991, 10:20 AM
(C) HEWLETT-PACKARD CO. 1990
/T SQLMSG;L ALL UNN
FILE UNNUMBERED
.
.
SQLIN = COBEX2.SOMEGRP.SOMEACCT
DBEnvironment = partsdbe
Module Name = COBEX2
SELCT PARTNUMBER, PARTNAME, SALESPRICE INTO :PARTNUMBER, :PARTNAME,
:SALESPRICE :SALESPRICEIND FROM PURCHDB.PARTS WHERE PARTNUMBER =
:PARTNUMBER ;
****** ALLBASE/SQL errors (DBERR 10977)
****** in SQL statement ending in line 176
*** <1001> Syntax error. (DBERR 1001)
There are errors. No sections stored.
1 ERRORS 0 WARNINGS
END OF PREPROCESSING.
|
As Figure 2-11 illustrates, the preprocessor can terminate with
a warning message. Although a section is stored for the
semantically incorrect command, the section is marked as
invalid and will not execute at run time if it cannot be
validated. Figure 2-10 Sample SQLMSG Showing Warning
:EDITOR
HP32501A.07.20 EDIT/3000 FRI, OCT 27 1991, 10:20 AM
(C) HEWLETT-PACKARD CO. 1990
/T SQLMSG;L ALL UNN
FILE UNNUMBERED
.
.
.
SQLIN = COBEX2.SOMEGRP.SOMEACCT
DBEnvironment = partsdbe
Module Name = COBEX2
SELECT PARNUMBER, PARTNAME, SALESPRICE INTO :PARTNUMBER, :PARTNAME,
:SALESPRICE :SALESPRICEIND FROM PURCHDB.PARTS WHERE PARTNUMBER =
:PARTNUMBER ;
****** ALLBASE/SQL warnings (DBWARN 10602)
****** in SQL statement ending in line 176
*** Column PARNUMBER not found. (DBERR 2211)
1 Sections stored in DBEnvironment.
0 ERRORS 1 WARNINGS
END OF PREPROCESSING
|
Installable Module File | |
When the COBOL preprocessor stores a module in the system
catalog of a DBEnvironment at preprocessing time, it places a
copy of the module in an installable module file. By default
the installable module file is named SQLMOD. The module in this
file can be installed into a DBEnvironment different from
the DBEnvironment accessed at preprocessing time by using the
INSTALL command in ISQL. For example:
:RUN PSQLCBL.PUB.SYS;INFO="DBEnvironmentName&
(MODULE(InstalledModuleName)DROP)"
If you want to preserve SQLMOD after preprocessing,
you must keep it as a permanent file. Rename SQLMOD
after making it permanent:
:SAVE SQLMOD
:RENAME SQLMOD,MYMOD
Before invoking ISQL to install this module file,
you may have to transport it and its related
program file to the machine containing the target
DBEnvironment. After all the files are restored on the
target machine, you invoke ISQL on the machine containing
the target DBEnvironment:
:ISQL
In order to install the module, you need CONNECT
or DBA authority in the target DBEnvironment:
isql=> CONNECT TO 'PARTSDBE.SomeGrp.SomeAcct';
isql=> INSTALL;
File name> MYMOD.SOMEGRP.SOMEACCT;
Name of module in this file: JOANN@SOMEACCT.COBEX2
Number of sections installed: 1
COMMIT WORK to save to DBEnvironment.
isql=> COMMIT WORK;
isql=>
|
Stored Sections | |
In full preprocessing mode, the preprocessor stores a section
for each embedded command except:
BEGIN DECLARE SECTION INCLUDE
BEGIN WORK OPEN
CLOSE PREPARE
COMMIT WORK RELEASE
CONNECT ROLLBACK WORK
DECLARE CURSOR SAVEPOINT
DELETE WHERE CURRENT START DBE
DESCRIBE STOP DBE
END DECLARE SECTION SQLEXPLAIN
EXECUTE TERMINATE USER
EXECUTE IMMEDIATE UPDATE WHERE CURRENT
FETCH WHENEVER
|
The commands listed above either require no authorization to
execute or are executed based on information contained in the
compilable preprocessor output files. When the preprocessor stores a section, it actually stores what
is known as an input tree and a run tree. The input tree
consists of an uncompiled command. The run tree is the
compiled, executable form of the command. If a section is valid at run time, ALLBASE/SQL executes the
appropriate run tree when the SQL command is encountered in the
application program. If a section is invalid, ALLBASE/SQL
determines whether the objects referenced in the sections exist
and whether current authorization criteria are satisfied. When
an invalid section can be validated, ALLBASE/SQL dynamically
recompiles the input tree to create an executable run tree and
executes the command. When a section cannot be validated, the
command is not executed, and an error condition is returned to
the program. There are three types of sections: Sections for executing the SELECT command associated with
a DECLARE CURSOR command. Sections for executing the SELECT command associated with
a CREATE VIEW command. Sections for all other commands for which the preprocessor
stores a section.
Figure 2-11 illustrates the kinds of information in the system
catalog that describe each type of stored section. The query
result illustrated was extracted from the system view named
SYSTEM.SECTION by using ISQL. The columns in Figure 2-11 have
the following meanings: NAME: This column contains the name of the module to which a
section belongs. You specify a module name when you invoke the
preprocessor; the module name is by default the PROGRAM-ID. OWNER: This column identifies the owner of the
module. You specify an owner name when you invoke the
preprocessor; the owner name is by default the log-on
UserName@AccountName associated with the preprocessing
session. DBEFILESET: This column indicates the DBEFileSet with which
DBEFiles housing the section are associated. SECTION: This column gives the section number. Each section
associated with a module is assigned a number by the
preprocessor as it parses the related SQL command at
preprocessing time. TYPE: This column identifies the type of section:
1 = SELECT associated with a cursor
2 = SELECT defining a view
0 = All other sections
|
VALID: This column identifies whether a section is valid or
invalid:
Figure 2-11 Information in SYSTEM.SECTION on Stored Sections
isql=>SELECT NAME,OWNER,DBEFILESET,SECTION,TYPE,VALID FROM SYSTEM.SECTION;
SELECT NAME,OWNER,DBEFILESET,SECTION,TYPE,VALID FROM SYSTEM.SECTION;
----------------------------------------------------------------------
NAME |OWNER |DBEFILESET |SECTION |TYPE |VALID
----------------------------------------------------------------------
TABLE |SYSTEM |SYSTEM | 0| 2| 0
COLUMN |SYSTEM |SYSTEM | 0| 2| 0
INDEX |SYSTEM |SYSTEM | 0| 2| 0
SECTION |SYSTEM |SYSTEM | 0| 2| 0
DBEFILESET |SYSTEM |SYSTEM | 0| 2| 0
DBEFILE |SYSTEM |SYSTEM | 0| 2| 0
SPECAUTH |SYSTEM |SYSTEM | 0| 2| 0
TABAUTH |SYSTEM |SYSTEM | 0| 2| 0
COLAUTH |SYSTEM |SYSTEM | 0| 2| 0
MODAUTH |SYSTEM |SYSTEM | 0| 2| 0
GROUP |SYSTEM |SYSTEM | 0| 2| 0
VIEWDEF |SYSTEM |SYSTEM | 0| 2| 0
HASH |SYSTEM |SYSTEM | 0| 2| 0
CONSTRAINT |SYSTEM |SYSTEM | 0| 2| 0
CONSTRAINTCOL |SYSTEM |SYSTEM | 0| 2| 0
CONSTRAINTINDEX |SYSTEM |SYSTEM | 0| 2| 0
COLDEFAULT |SYSTEM |SYSTEM | 0| 2| 0
TEMPSPACE |SYSTEM |SYSTEM | 0| 2| 0
PARTINFO |PURCHDB |SYSTEM | 0| 2| 0
VENDORSTATISTICS |PURCHDB |SYSTEM | 0| 2| 0
COBEX2 |KAREN@THOMAS |SYSTEM | 1| 0| 1
EXP11 |KAREN@THOMAS |SYSTEM | 1| 1| 1
EXP11 |KAREN@THOMAS |SYSTEM | 2| 0| 1
----------------------------------------------------------------------
Number of rows selected is 16.
U[p], d[own], l[eft], r[ight], t[op], b[ottom], pr[int] <n>,or e[nd]>
|
The first eleven rows in this query result describe the sections
stored for the system views. The next two rows describe the two
views in the sample database: PURCHDB.PARTINFO and
PURCHDB.VENDORSTATISTICS. Views are always stored as invalid
sections, because the run tree is always generated at run time. The remaining rows describe sections associated with two
preprocessed programs. COBEX2 contains only one section, for
executing the SELECT command in the program illustrated in
Figure 2-6. EXP11 contains two sections, one for executing the
SELECT command associated with a DECLARE CURSOR command and one
for executing a FETCH command. Stored sections remain in the system catalog until they are
deleted with the DROP MODULE command or by invoking the
preprocessor with the DROP option:
isql=> DROP MODULE COBEX2;
or
:RUN PSQLCOB.PUB.SYS;INFO="PartsDBE (MODULE(COBEX2) DROP)"
|
Stored sections are marked invalid when: The UPDATE STATISTICS command is executed. Tables accessed in the program are dropped, altered, or assigned
new owners. Indexes or DBEFileSets related to tables accessed in the program
are changed. Module owner authorization changes occur that affect the
execution of embedded commands.
When an invalid section is validated at run time, the validated
section is committed when the program issues a COMMIT WORK
command. If a COMMIT WORK command is not executed, ALLBASE/SQL
must revalidate the section again the next time the program is
executed. For this reason, you should embed COMMIT WORK
commands even following SELECT commands, since the COMMIT WORK
command may be needed even when data is not changed by a
program. |
