Lesson 3 Creating and Streaming a Job File

Introduction

Lesson 3 presents the following MPE/iX job-related tasks:

Up to this point you have worked with existing job files, examining them and modifying them. You will now create your own job files to perform specific tasks. Later in this lesson, you will actually stream the job files that you created and look at the results.

Teaching exercise 3-3: creating a job file

You've had the chance to examine and modify a job file. Now, you will step through an exercise that shows you how to create job files.

As you follow along, make sure that you are logged on as USERx.ACCTx in the CLASS group, where X = your student number.

You will be creating two job files according to specifications. These jobs will be streamed at a later time.

1. The job files will reside in the CLASS group and ACCTx account. You must replace the X to specify your account, user, and group passwords in the job files.

   Each job has the name specified in capital letters. The disk file name and the name of the job (specified in the JOB command) are the same.

   Example:

   File name = JOB1 Job line in file = !JOB JOB1

2. Both jobs have the same general function:

   • Run the editor to modify a file called MYFILE, and keep it under a new name, MYFILEM.

   • List the contents of the modified file offline (for deferred printing).

   • Exit the editor and print a message telling the user the that job is done.

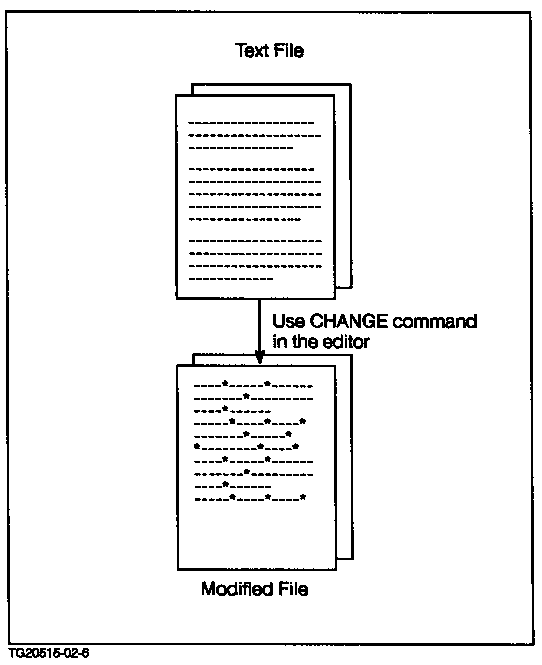

   Figure 4-2 Modifying a File



3. Both jobs assume that the current jobfence is 7 and the outfence is 7. Any job with an output priority of 3 to 5, inclusive, will print after hours, when most of the employees have gone home.

4. Create JOB1 according to the following "skeletal" job file so that it performs the specified functions.

   	NOTE: Each letter refers to a function listed below the "skeletal" job file. The first three lines are the editor comments. They do not belong in any job file you create.


      <<**************************>>
      <<*FILE JOB1                >>
      <<**************************>>
       a,b !
           !COMMENT JOB1 MODIFIES AND PRINTS MYFILE
           !CONTINUE
       c   !EDITOR
       d   T MYFILE.CLASS.ACCTx
       e   C "a" to "*A*" IN 1/4000
           C "b" to "*B*" IN 1/4000
           C "c" to "*C*" IN 1/4000
           C "d" to "*D*" IN 1/4000
           C "e" to "*E*" IN 1/4000
           C "f" to "*F*" IN 1/4000
           C "g" to "*G*" IN 1/4000
           C "h" to "*H*" IN 1/4000
       f   KEEP MYFILEM.CLASS.ACCTx;YES
       g   L ALL,OFFLINE
       h   EXIT
       i   !
       j   !



5. In your JOB1 file, complete lines a, b, d, e, f, g, h, i, and j of JOB1 to do the following:

   1. Specify an input priority high enough to guarantee that the job runs immediately. This means that the input priority must be above the current JOBFENCE (7).

   2. Suppress the printing of the job listing on the printer (LP). This means that the OUTCLASS priority (1) is less than the current OUTFENCE (7). Ensure that the job will restart in the event of a system halt.

   3. Start the editor.

   4. Text in a file called MYFILE.

   5. Use the CHANGE command to change the letters: a through h to *A* through *H* in lines 1 to 4000 of the file.

   6. Keep the modified file under the name MYFILEM.

   7. List the modified file offline.

   8. Exit the editor.

   9. Tell the user that the job is done.

   10. End the job.

6. You should now have a job file that looks like the JOB1 file in the following illustration.

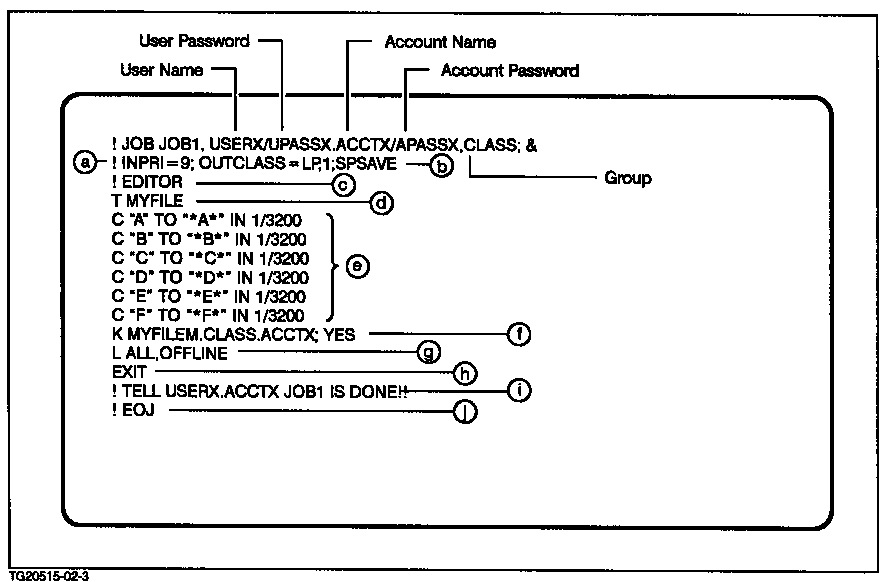

   Figure 4-3 JOB1 File



7. Using your JOB2 file, create JOB2 according to the "skeletal" job file below so that it performs the specified functions.

   	NOTE: Each letter refers to a function listed below the "skeletal" job file. The first three lines beginning with << are the editor comments. They do not belong in any job file you create.


      <<**************************>>
      <<*FILE JOB2                >>
      <<**************************>>
        a,b !
            !COMMENT JOB2 MODIFIES AND PRINTS MYFILEM
            !CONTINUE
        c   !
        d   T MYFILEM.CLASS.ACCTx
        e   C "*A*" TO "a" in 1/4000
            C "*B*" TO "b" in 1/4000
            C "*C*" TO "c" in 1/4000
            C "*D*" TO "d" in 1/4000
            C "*E*" TO "e" in 1/4000
            C "*F*" TO "f" in 1/4000
            C "*G*" TO "g" in 1/4000
            C "*H*" TO "h" in 1/4000
        f   K MYFILE.CLASS.ACCTx;YES
        g   L ALL,OFFLINE
        h   EXIT
        i   !
        j   !



8. Complete lines a, b, c, d, e, g, h, i, and j of JOB2 to do the following:

   1. Specify an input priority that guarantees that the job runs now. This means that the input priority (9) is above the current JOBFENCE (7).

   2. Suppress the printing of the error/job listing on the printer (LP). This means that the OUTCLASS priority (5) is less than the current OUTFENCE (7). Ensure that the job will restart in the event of a system halt.

   3. Run the editor.

   4. Text in a file called MYFILEM.

   5. Use the CHANGE command to change the letters: *A* through *H* to a through h in lines 1 to 4000 of the file.

   6. Keep the modified file under the name MYFILE.

   7. List the modified file offline.

   8. Exit the editor.

   9. Tell the user that the job is done.

   10. End the job.

9. You should now have a job file that looks like this:

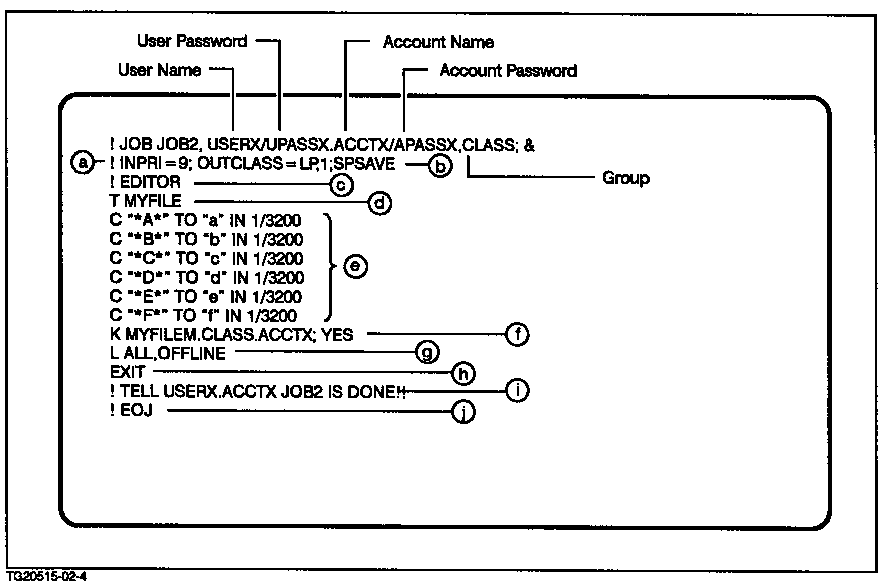

Figure 4-4 JOB2 File

********** End of Exercise 3-3 **********

Streaming a job

Now that you have had the chance to create job files on your own, let's learn what you can do to get those jobs to execute. The process of doing this is called streaming a job. This is accomplished with the STREAM command. The STREAM command has options that allow you to actually specify the time and date that you wish a job to run.

	NOTE: Before you stream a job, check the job file to make sure that the user and account passwords are correct. You can use the LISTUSER ...;PASS or LISTACCT...;PASS commands to do so. (You must have SM capability.)

Type this simple version of the STREAM command using the JOB1 file:

   STREAM JOB1

You will notice that the job number (#Jxxx) appears on the screen. Note this number.

JOB1 immediately enters the job queue and executes when system resources are available. It will execute exactly as specified in the job file, as if you were entering the commands contained within it at the terminal.

Now suppose that you wish the job to execute late at night at a particular time when system resources are more available.

Please enter the following STREAM command to specify an exact time for your job to run after hours (specify a time at least one hour later than the current time):

   STREAM JOB1; AT=03:00

In the example above, the job will run at 3:00 A.M. It will print several copies of a previous lesson later in the early morning.

There are several other options that you can specify with the STREAM command:

See the following figure for examples of the various options. These options are explained in depth in the MPE/iX Commands Reference Manual Volumes 1 and 2 (32650-90003 and 32650-90364) and in the Help facility, under the STREAM command.

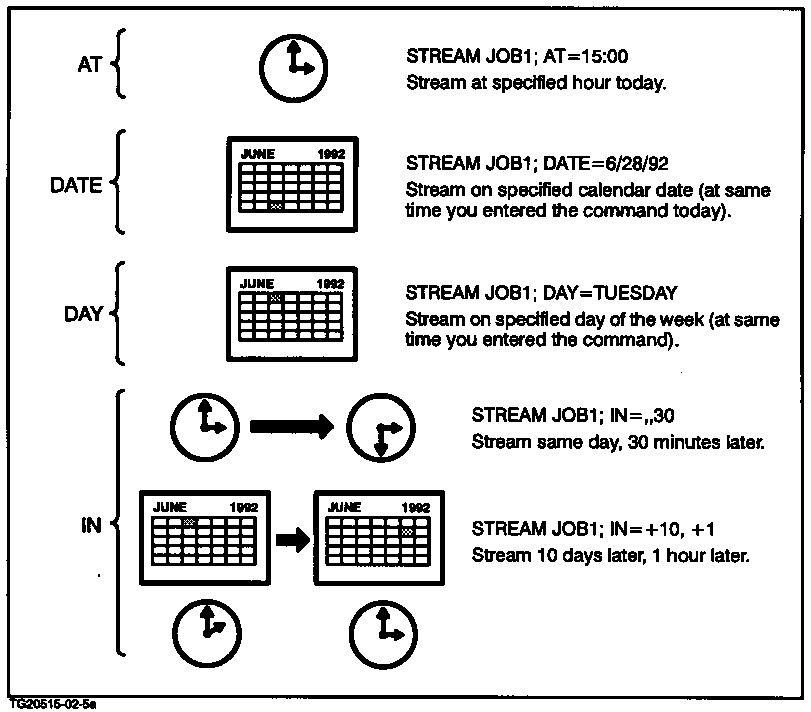

Figure 4-5 STREAM Command Options

If you specify a job start at 3:00 PM (15:00) and it is now 3:01 PM, your job will start at 3:00 PM the next day.

For a greater understanding of these options, study the following examples:

Match the descriptions in the following table with the correct STREAM command. (Assume it is Sunday, August 1, 1989, at 6:00 A.M., and jobs are currently executing on the system.)

Aborting a job

After you enter the STREAM command, you may decide that you do not wish the job to execute. This may happen if you discover a text error in a file that you were planning to format, or in a program you were planning to run. In this case, you should abort the job. The following command does this:

   ABORTJOB #J[jobnumber]

	NOTE: You can abort a job only if it is your job, and if the system operator has set JOBSECURITY to LOW (or the operator issues the ALLOW command so that you can issue ABORTJOB.) Be aware that if you have several logons to the same account, a job submitted by one logon cannot be aborted when using another logon.

Determine whether JOB1 has finished executing.

If it has not, use ABORTJOB #Jjobnumber.

The job number should be the one you noted earlier. If the job has already completed, enter the following command.

   STREAM JOB1

Note the resulting job number that displays after you enter the command.

Verify that the job is processing by entering the following command (note the job number):

   SHOWJOB

Now abort the job using the job number and do a SHOWJOB again to verify that the job no longer exists.

	NOTE: Sometimes ABORTJOB takes a few seconds to abort a job. Consequently, you may have time to execute a SHOWJOB and see your job still listed. Do not be surprised if that happens. ABORTJOB will abort your job.

The processed part of the job still prints out (whatever part of it was processed) even if you use ABORTJOB. In the next lesson you will learn how to prevent this from happening.

   STREAM JOB1;AT=00:00

Suspending a job

Occasionally, after streaming a job, you may decide that the system resources are such that it will take too long to run the job (perhaps many other jobs are also running simultaneously and the CPU has to swap between them all). Rather than aborting your job and then restreaming it later, you can suspend it with the BREAKJOB command and resume it with the RESUMEJOB command:

   BREAKJOB #Jjobnumber

   RESUMEJOB #Jjobnumber

Take Care. A job may involve accessing databases or files that become locked during access. If you do a BREAKJOB while executing such a job, you run the risk of preventing others from accessing those databases or files. This is due to the fact that while your job is suspended, the locks remain on the databases or files that were previously being accessed. This can have detrimental effects on other users. Please be aware of the function of a job before you suspend or abort it.

By doing this, you do not lose any of the job processing you have accomplished. Plus, you do not lose your place in the job processing queue. All that happens is that system resources are freed to process other jobs ahead of you (so that less "swapping" has to occur). Once you see that those jobs are done, you can resume your job with the RESUMEJOB command. Jobs that are suspended are listed as being in the SUSP state when you do a SHOWJOB.

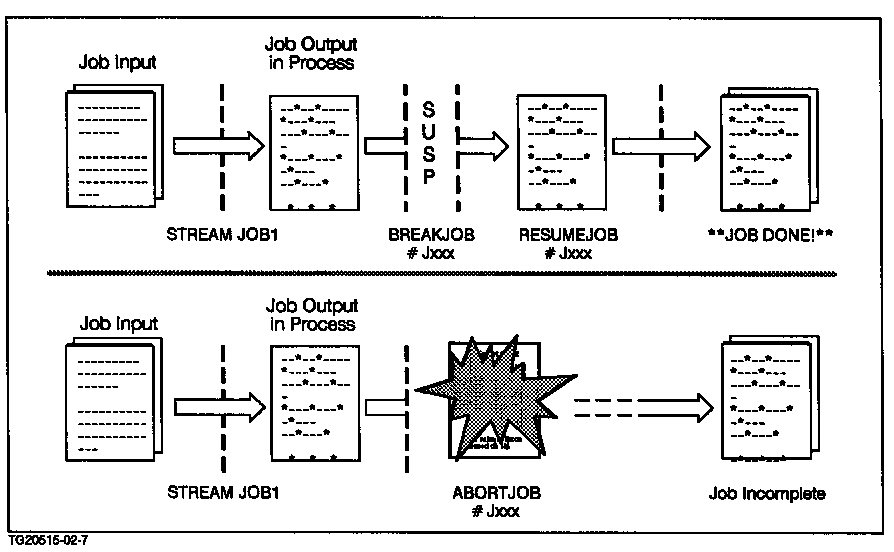

Figure 4-6 Resuming or Aborting Jobs

	NOTE: You can suspend a job only if it is your job and the system operator has set JOBSECURITY to LOW (or the operator issues the ALLOW command so that you can issue BREAKJOB).

Altering a job

If a job is in INTRO, WAIT or SCHED state (has not run yet), you can alter its input priority or output device with the ALTJOB command:

   ALTJOB #Jjobnumber [;INPRI=input_priority][;OUTDEV=device_name]

Make sure that JOB1 has completed. If it is still running, abort it. Now, test the ALTJOB command by restreamingJOB1:

   STREAM JOB1

Note the job number. Try to change the input priority to 13. What happens? You'll find that you cannot ALTJOB because the job is currently in the EXEC state. You must be in the INTRO, WAIT, or SCHED state.

To terminate JOB1, abort it:

   ABORTJOB #Jxxx

Now, return to the editor and modify the JOB1 file so that the input priority is reduced to 1. Keep the file and restream JOB1:

   STREAM JOB1

	NOTE: You can alter a job only if it is your job and the system operator has set JOBSECURITY to ALLOW command so that you can ALTJOB).

Finally, abort the job so that it neither continues processing, nor prints (remember, it only has an output priority of 5, which defers printing).

   ABORTJOB #Jxxx

Using ALTJOB is a good way to ensure that a job runs, even if initially you set the input priority to a very low number. Also, suspending the job prevents it from continuing and from printing. In the next lesson, you'll learn how to purge the spool files that remain from suspended jobs that you no longer wish to resume.

	NOTE: Make sure to use the editor once more to modify JOB1. Change the input priority in the INPRI line to a value that is high enough to guarantee that the job runs.
