This section contains a tested AS/400 configuration for communicating
with an HP 3000 over a token ring network. Figure F-7 illustrates
the configuration described in this section.

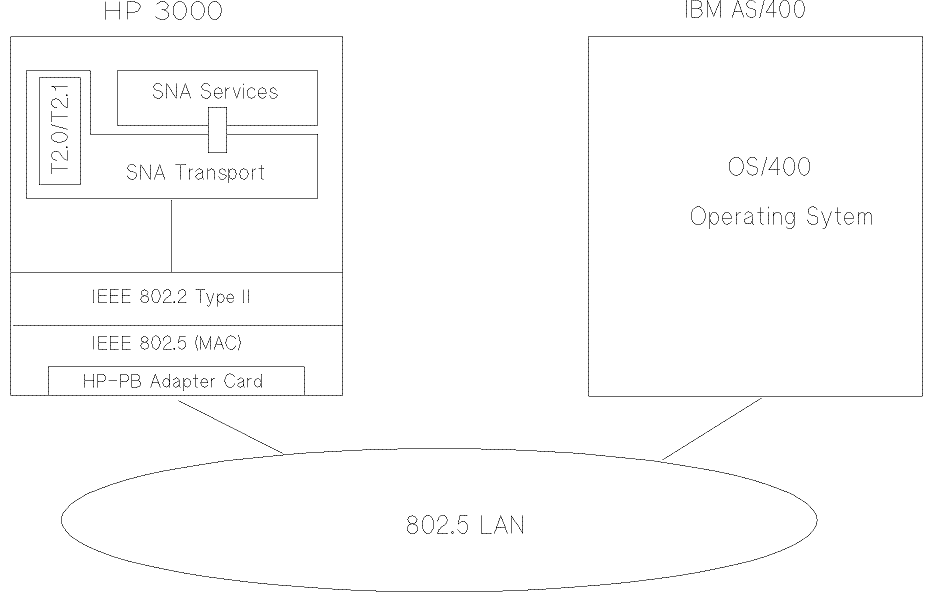

Figure F-7 SNA/Token Ring/iX Example Network
Display Line Description - Token Ring
Line description . . . . . . . . . .: LIND TRLINE
Resource name. . . . . . . . . . . .: RSRCNAME LIN012
Online at IPL. . . . . . . . . . . .: ONLINE *YES
Vary on wait . . . . . . . . . . . .: VRYWAIT..........*NOWAIT
Network Controller . .. . . . . . . : NETCTL
Maximum controllers. . . . . . . . .: MAXCTL 10
Maximum frame size . . . . . . . . .: MAXFRAME 1994
TRLAN Manager logging level. . . . .: TRNLOGLVL *MAX
Current logging level. . . . . . .: *MAX
Local adapter address. . . . . . . .: ADPTADR 10005A040EED
Exchange identifier. . . . . . . . .: EXCHID 05631408
Source service access points . . . .: SSAP
04 06 AA 08 0C 10 14 18 1C
Error threshold level. . . . . . . .: THRESHOLD *OFF
Link speed . . . . . . . . . . . . .: LINKSPEED 4M
Cost/connect time. . . . . . . . . .: COSTCNN 0
Cost/byte. . . . . . . . . . . . . .: COSTBYTE 0
Security for line. . . . . . . . . .: SECURITY *NONSECURE
Propagation delay. . . . . . . . . .: PRPDLY *LAN
User-defined 1 . . . . . . . . . . .: USRDFN1 128
User-defined 2 . . . . . . . . . . .: USRDFN2 128
User-defined 3 . . . . . . . . . . .: USRDFN3 128
Recovery limits. . . . . . . . . . .: CMNRCYLMT
Count limit. . . . . . . . . . . .: 2
Time interval. . . . . . . . . . .: 5
Text . . . . . . . . . . . . . . . .: TEXT Token Ring
Network
Display Controller Description - APPC
Controller description . . . . . . .: CTLD CTLIRMA
Controller type. . . . . . . . . . .: TYPE 3174
Controller model . . . . . . . . . .: MODEL 0
Link type. . . . . . . . . . . . . .: LINKTYPE *TRLAN
Online at IPL. . . . . . . . . . . .: ONLINE *YES
Switched line. . . . . . . . . . . .: SWITCHED
Short hold mode. . . . . . . . . . .: SHM
Switched Network backup. . . . . . .: SNBU
Activate swt network backup. . . . .: ACTSNBU
Attached nonswitched line. . . . . .: LINE
Switched line list . . . . . . . . .: SWTLINST
TRNLINE
Attached devices . . . . . . . . . .: DEV
HPLU01 HPLU02
Character code . . . . . . . . . . .: CODE *EBCDIC
Device wait timer. . . . . . . . . .: DEVWAITTMR 120
Maximum frame size . . . . . . . . .: MAXFRAME 1994
Exchange identifier. . . . . . . . .: EXCHID
Remote control point name. . . . . .: RMTCPNAME IXCP
SSCP identifier. . . . . . . . . . .: SSCPID 050000000000
Initial connection . . . . . . . . .: INLCNN *DIAL
Connection number. . . . . . . . . .: CNNNBR
Predial delay. . . . . . . . . . . .: PREDIALDLY
Redial delay . . . . . . . . . . . .: REDIALDLY
Dial retry . . . . . . . . . . . . .: DIALRTY
Remote autoanswer. . . . . . . . . .: RMTAUTOANS
SHM disconnect limit . . . . . . . .: SHMDSCLMT
SHM disconnect timer . . . . . . . .: SHMDSCTMR
TRNLAN remote adapter address. . . .: ADPTADR 10005A0011AB
TRLAN DSAP . . . . . . . . . . . . .: DSAP 04
TRLAN SSAP . . . . . . . . . . . . .: SSAP 0C
TRLAN frame retry. . . . . . . . . .: TRNFRMRTY 10
TRLAN connect retry. . . . . . . . .: TRNCNNRTY 10
TRLAN response timer . . . . . . . .: TRNRSPTMR 10
TRLAN connection timer . . . . . . .: TRNCNNTMR 70
TRLAN acknowledgement timer. . . . .: TRNACKTMR 1
TRLAN inactivity timer . . . . . . .: TRNINACTMR 100
TRLAN ack frequency. . . . . . . . .: TRNACKFRQ 1
TRLAN max outstanding frames . . . .: TRNMAXOUT 2
TRLAN access priority. . . . . . . .: TRNACCPTY 0
Recovery limits. . . . . . . . . . .: CMNRCYLMT
Count limit. . . . . . . . . . . .: *SYSVAL
Time interval. . . . . . . . . . .:
Text . . . . . . . . . . . . . . . .: TEXT 3270 connection
to irma
Display Device Description - Display
Device description . . . . . . . . .: DEVD HPLU01
Device class . . . . . . . . . . . .: DEVCLS *RMT
Device type. . . . . . . . . . . . .: TYPE 3277
Device model . . . . . . . . . . . .: MODEL 0
Port number. . . . . . . . . . . . .: PORT
Switch setting . . . . . . . . . . .: SWTSET
Local location address . . . . . . .: LOCADR 02
Online at IPL. . . . . . . . . . . .: ONLINE *YES
Attached controller. . . . . . . . .: CTL CTLIRM
Keyboard language type . . . . . . .: KBDTYPE
Drop line at signoff . . . . . . . .: DROP *YES
Character identifier . . . . . . . .: CHRID
Allow blinking cursor. . . . . . . .: ALWBLN
Auxiliary devices. . . . . . . . . .: AUXDEV
Printer. . . . . . . . . . . . . . .: PRINTER
Print file . . . . . . . . . . . . .: PRTFILE QSYSPRT
Library. . . . . . . . . . . . . .: *LIBL
Maximum length of request unit . . .: MAXLENRU *CALC
Text . . . . . . . . . . . . . . . .: TEXT
Display Device Description - Display
Device description . . . . . . . . .: DEVD HPLU02
Device class . . . . . . . . . . . .: DEVCLS *RMT
Device type. . . . . . . . . . . . .: TYPE 3277
Device model . . . . . . . . . . . .: MODEL 0
Port number. . . . . . . . . . . . .: PORT
Switch setting . . . . . . . . . . .: SWTSET
Local location address . . . . . . .: LOCADR 01
Online at IPL. . . . . . . . . . . .: ONLINE *YES
Attached controller. . . . . . . . .: CTL CTLIRMA
Keyboard language type . . . . . . .: KBDTYPE
Drop line at signoff . . . . . . . .: DROP *YES
Character identifier . . . . . . . .: CHRID
Allow blinking cursor. . . . . . . .: ALWBLN
Auxiliary devices. . . . . . . . . .: AUXDEV
Printer. . . . . . . . . . . . . . .: PRINTER
Print file . . . . . . . . . . . . .: PRTFILE QSYSPRT
Library. . . . . . . . . . . . . .: *LIBL
Maximum length of request unit . . .: MAXLENRU *CALC
Text . . . . . . . . . . . . . . . .: TEXT
|
