This section contains a tested configuration for an AS/400 that acts
as a Network Node and performs routing services for an HP 3000 configured
as a LEN node. The AS/400 and the HP 3000 use LU 6.2 API/iX
to communicate over an APPN network. Figure F-6 illustrates the configuration
described in this section.

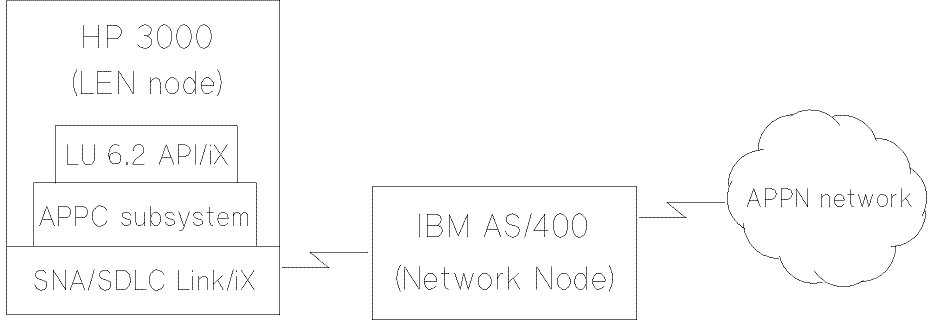

Figure F-6 LU 6.2 API/iX Example Network
Display Network Attributes
Current system name. . . . . . . . . . . . . . : ASLAN
Pending system name. . . . . . . . . . . . . :
Local network ID . . . . . . . . . . . . . . . : APPN
Local control point name . . . . . . . . . . . : ASLAN
Default local location . . . . . . . . . . . . : ASLAN
Default mode . . . . . . . . . . . . . . . . . : BLANK
Maximum number of conversations for a remote
location. . . . . . . . . . . . . . . . . . : 512
APPN node type . . . . . . . . . . . . . . . . : *NETNODE
Maximum number of intermediate sessions. . . . : 200
Route addition resistance. . . . . . . . . . . : 128
Server network ID/control point name . . . . . : *LCLNETID *ANY
Alert status . . . . . . . . . . . . . . . . . : *OFF
Alert primary focal point. . . . . . . . . . . : *NO
Alert default focal point. . . . . . . . . . . : *NO
Alert logging status . . . . . . . . . . . . . : *NONE
Alert controller description . . . . . . . . . : *NONE
Message queue. . . . . . . . . . . . . . . . . : QSYSOPR
Library. . . . . . . . . . . . . . . . . . . : QSYS
Output queue . . . . . . . . . . . . . . . . . : QPRINT
Library. . . . . . . . . . . . . . . . . . . : QGPL
Job action . . . . . . . . . . . . . . . . . . : *FILE
Maximum hop count. . . . . . . . . . . . . . . : 16
DDM request access . . . . . . . . . . . . . . : *OBJAUT
PC Support request access. . . . . . . . . . . : *OBJAUT
Display Mode Description
Mode description name. . . . . . . . . . . . . : MODD DW
Class-of-service . . . . . . . . . . . . . . . : COS #CONNECT
Maximum number of sessions . . . . . . . . . . : MAXSSN 255
Maximum conversations. . . . . . . . . . . . . : MAXCNV 256
Locally controlled sessions. . . . . . . . . . : LCLCTLSSN 0
Pre-established sessions . . . . . . . . . . . : PREESTSSN 0
Inbound pacing value . . . . . . . . . . . . . : INPACING 7
Outbound pacing value. . . . . . . . . . . . . : OUTPACING 7
Max length of request unit . . . . . . . . . . : MAXLENRU 256
Text . . . . . . . . . . . . . . . . . . . . . : TEXT `LU6.2
mode description
Define APPN Remote Locations page 1
Remote Remote Local Control Control
Location Network Location Point Point Location Secure
Name ID Name Name Net ID Password Loc
APPC001 APPN AS40001 HPAPPC APPN *NO
APPC002 APPN AS40002 HPAPPC APPN *NO
APPC003 APPN AS40003 HPAPPC APPN *NO
Define APPN Remote Locations page 2
Remote Remote Local
Location Network Location Single Local Preest Entry
Name ID Name Session Control Ssn Description
APPC001 APPN AS40001 *YES *NO *NO
APPC002 APPN AS40002 *NO *NO *NO
APPC003 APPN AS40003 *NO *NO *NO
Define APPN Local Locations
Local Local
Location Entry Location Entry
Name Description Name Description
AS40001
AS40002
AS40003
Display Line Description - SDLC
Line description . . . . . . . . . .: LIND HP21L02
Resource names . . . . . . . . . . .: RSRCNAME LIN012
Online at IPL. . . . . . . . . . . .: ONLINE *NO
Data link role . . . . . . . . . . .: ROLE *PRI
Physical interface . . . . . . . . .: INTERFACE *RS232V24
Connection type. . . . . . . . . . .: CNN *NONSWTPP
Switched network backup. . . . . . .: SNBU *NO
Activate swt network backup. . . . .: ACTSNBU
SHM node type. . . . . . . . . . . .: SHMNODE
Vary on wait . . . . . . . . . . . .: VRYWAIT
Autocall unit. . . . . . . . . . . .: AUTOCALL
Attached nonswitched ctl . . . . . .: CTL HP21C01
Exchange identifier. . . . . . . . .: EXCHID 05600000
NRZI data encoding . . . . . . . . .: NRZI *NO
Maximum controllers. . . . . . . . .: MAXCTL 1
Clocking . . . . . . . . . . . . . .: CLOCK *MODEM
Line speed . . . . . . . . . . . . .: LINESPEED 9600
Modem type supported . . . . . . . .: MODEM *NORMAL
Modem data rate select . . . . . . .: MODEMRATE *FULL
Maximum frame size . . . . . . . . .: MAXFRAME 265
Duplex . . . . . . . . . . . . . . .: DUPLEX *FULL
Inactivity timer . . . . . . . . . .: INACTTMR 300
Poll response delay. . . . . . . . .: POLLRSPDLY 0
Nonproductive receive timer. . . . .: NPRDRCVTMR 320
Idle timer . . . . . . . . . . . . .: IDLTMR 30
Connect poll timer . . . . . . . . .: CNNPOLLTMR 300
Poll cycle pause . . . . . . . . . .: POLLPAUSE 0
Frame retry. . . . . . . . . . . . .: FRAMERTY 7
Text . . . . . . . . . . . . . . . .: TEXT APPC Line 2
Display Controller Description - APPC
Controller description . . . . . . . : CTLD HP21C01
Link type. . . . . . . . . . . . . . : LINKTYPE *SDLC
Online at IPL. . . . . . . . . . . . : ONLINE *YES
Switched line. . . . . . . . . . . . : SWITCHED *NO
Short hold mode. . . . . . . . . . . : SHM
Switched network backup. . . . . . . : SNBU *NO
Activate swt network backup. . . . . : ACTSNBU
APPN-capable . . . . . . . . . . . . : APPN *YES
Attached nonswitched line. . . . . . : LINE HP21L02
Switched line list . . . . . . . . . : SWTLINLST
Attached devices . . . . . . . . . . : DEV
HP21D01 HP21D02
Character code . . . . . . . . . . . : CODE *EBCDIC
Maximum frame size . . . . . . . . . : MAXFRAME 265
Remote network identifier. . . . . . : RMTNETID *NETATTR
Remote control point name. . . . . . : RMTCPNAME HPAPPC
Exchange identifier. . . . . . . . . : EXCHID 05600000
Initial connection . . . . . . . . . : INLCNN
Connection number. . . . . . . . . . : CNNNBR
Predial delay. . . . . . . . . . . . : PREDIALDLY
Redial delay . . . . . . . . . . . . : REDIALDLY
Dial retry . . . . . . . . . . . . . : DIALRTY
Remote autoanswer. . . . . . . . . . : RMTAUTOANS
Switched disconnect. . . . . . . . . : SWTDSC
Disconnect timer . . . . . . . . . . : DSCTMR
Data link role . . . . . . . . . . . : ROLE *SEC
SHM disconnect limit . . . . . . . . : SHMDSCLMT
SHM disconnect timer . . . . . . . . : SHMDSCTMR
Station address. . . . . . . . . . . : STNADR C1
SDLC poll priority . . . . . . . . . : POLLPTY *NO
SDLC poll limit. . . . . . . . . . . : POLLLMT 0
SDLC connect poll retry. . . . . . . : CNNPOLLRTY *NOMAX
SDLC NRM poll timer. . . . . . . . . : NRMPOLLTMR 3
SDLC NDM poll timer. . . . . . . . . : NDMPOLLTMR *CALC
APPN CP session support. . . . . . . : CPSSN *NO
APPN node type . . . . . . . . . . . : NODETYPE *LENNODE
APPN transmission grp number . . . . : TMSGRPNBR 1
Recovery limits. . . . . . . . . . . : CMNRCYLMT
Count limit. . . . . . . . . . . . : 2
Time interval. . . . . . . . . . . : 5
Text . . . . . . . . . . . . . . . . : TEXT HP3000 LEN node
description
Display Device Description - APPC
Device description . . . . . . . . . : DEVD HP21D01
Remote location name . . . . . . . . : RMTLOCNAME APPC001
Online at IPL. . . . . . . . . . . . : ONLINE *YES
Attached controller. . . . . . . . . : CTL HP21C01
Local location name. . . . . . . . . : LCLLOCNAME AS40001
Remote network identifier. . . . . . : RMTNETID *NETATR
Mode . . . . . . . . . . . . . . . . : MODE DW
Message queue. . . . . . . . . . . . : MSGQ QSYSOPR
Library. . . . . . . . . . . . . . : *LIBL
APPN-capable . . . . . . . . . . . . : APPN *YES
Single session . . . . . . . . . . . : SNGSSN *YES
Locally controlled session . . . . . : LCLCTLSSN *NO
Pre-established session. . . . . . . : PREESTSSN
Secure location. . . . . . . . . . . : SECURELOC *NO
Local location address . . . . . . . : LOCADR 00
Text . . . . . . . . . . . . . . . . : TEXT Single-session device
Display Device Description - APPC
Device description . . . . . . . . . : DEVD HP21D02
Remote location name . . . . . . . . : RMTLOCNAME APPC002
Online at IPL. . . . . . . . . . . . : ONLINE *YES
Attached controller. . . . . . . . . : CTL HP21C01
Local location name. . . . . . . . . : LCLLOCNAME AS40002
Remote network identifier. . . . . . : RMTNETID APPN
Mode . . . . . . . . . . . . . . . . : MODE DW
Message queue. . . . . . . . . . . . : MSGQ QSYSOPR
Library. . . . . . . . . . . . . . : *LIBL
APPN-capable . . . . . . . . . . . . : APPN *YES
Single session . . . . . . . . . . . : SNGSSN *NO
Locally controlled session . . . . . : LCLCTLSSN
Pre-established session. . . . . . . : PREESTSSN
Secure location. . . . . . . . . . . : SECURELOC *NO
Local location address . . . . . . . : LOCADR 00
Text . . . . . . . . . . . . . . . . : TEXT Parallel-session device
|
