This section contains a tested AS/400 configuration for communicating
with SNA IMF/iX over an X.25 network. Figure F-2 illustrates the
configuration described in this section.

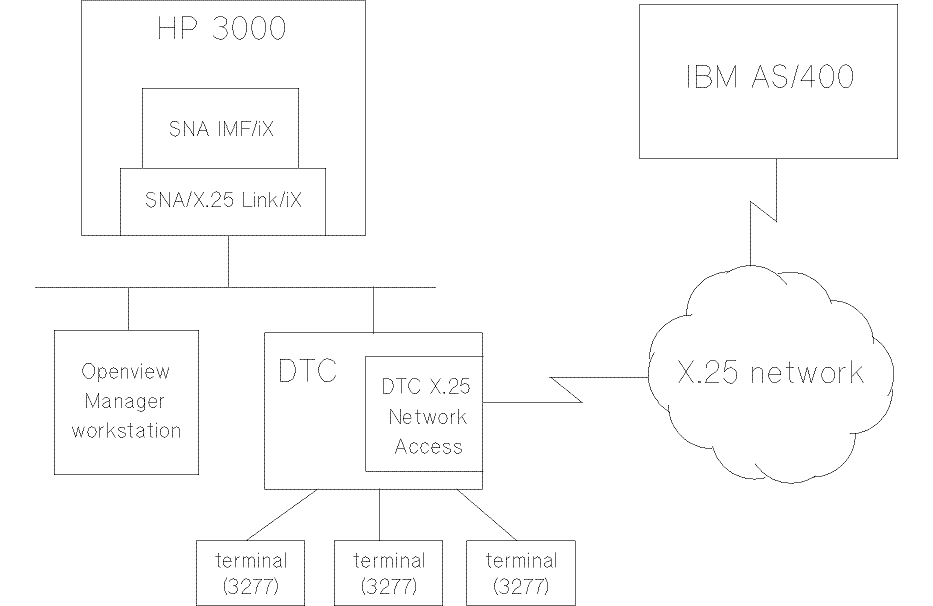

Figure F-2 SNA IMF/iX over X.25 Example Network
Display Line Description - X.25
Line description . . . . . . . . . .: LIND X25L01
Resource name. . . . . . . . . . . .: RSRCNAME LIN011
Logical channel entries. . . . . . .: LGLCHLE
Logical Channel Logical Channel Active SVC or
Identifier Type Attached PVC Controller
004 *SVCIN
005 *SVCIN
006 *SVCBOTH
007 *SVCBOTH
008 *SVCBOTH
Local network address . . . . . . . : NETADDR 399969876545
Connection initiation . . . . . . . : CNNINIT *REMOTE
Online at IPL . . . . . . . . . . . : ONLINE *YES
Physical interface . . . . . . . . .: INTERFACE *X21BISV24
Vary on wait . . . . . . . . . . . .: VRYWAIT *NOWAIT
Line speed . . . . . . . . . . . . .: LINESPEED 9600
Exchange identifier. . . . . . . . .: EXCHID 05600000
Default packet size. . . . . . . . .: DFTPKTSIZE 128
Maximum packet size. . . . . . . . .: MAXPKTSIZE 128
Modulus. . . . . . . . . . . . . . .: MODULUS 8
Default window size. . . . . . . . .: DFTWDWSIZE 2
Switched controller list . . . . . .: SWTCTLLIST *NONE
Idle timer . . . . . . . . . . . . .: IDLTMR 30
Frame retry. . . . . . . . . . . . .: FRAMERTY 7
Insert net address in packets. . . .: ADRINSERT *NO
X.25 DCE support . . . . . . . . . .: X25DCE *NO
Error threshold level. . . . . . . .: THRESHOLD *OFF
Link speed . . . . . . . . . . . . .: LINKSPEED 9600
Cost/connect time. . . . . . . . . .: COSTCNN 128
Cost/byte. . . . . . . . . . . . . .: COSTBYTE 128
Security for line. . . . . . . . . .: SECURITY *PKTSWTNET
Propagation delay. . . . . . . . . .: PRPDLY *PKTSWTNET
User-defined 1 . . . . . . . . . . .: USRDFN1 128
User-defined 2 . . . . . . . . . . .: USRDFN2 128
User-defined 3 . . . . . . . . . . .: USRDFN3 128
Recovery limits. . . . . . . . . . .: CMNRCYLMT
Count limit. . . . . . . . . . . .: 2
Time interval. . . . . . . . . . .: 0
Text . . . . . . . . . . . . . . . .: TEXT *BLANK
Display Controller Description - Remote WS
Controller description . . . . . . .: CTLD X25SVC
Controller type. . . . . . . . . . .: TYPE 3274
Controller model . . . . . . . . . .: MODEL 0
Link type. . . . . . . . . . . . . .: LINKTYPE *X25
Online at IPL. . . . . . . . . . . .: ONLINE *YES
Switched line. . . . . . . . . . . .: SWITCHED *YES
Short hold mode. . . . . . . . . . .: SHM
Switched Network backup. . . . . . .: SNBU
Activate swt network backup. . . . .: ACTSNBU
Attached nonswitched line. . . . . .: LINE
Switched line list . . . . . . . . .: SWTLINLST X25L01
Attached devices . . . . . . . . . .: DEV
X25LU2 X25LU3 X25LU4
Character code . . . . . . . . . . .: CODE *EBCDIC
Device wait timer. . . . . . . . . .: DEVWAITTMR 120
Maximum frame size . . . . . . . . .: MAXFRAME
Exchange identifier. . . . . . . . .: EXCHID 017ABCDE
SSCP identifier. . . . . . . . . . .: SSCPID 050000000000
Initial connection . . . . . . . . .: INLCNN *ANS
Connection number. . . . . . . . . .: CNNNBR 399969876545
Predial delay. . . . . . . . . . . .: PREDIALDLY
Redial delay . . . . . . . . . . . .: REDIALDLY
Dial retry . . . . . . . . . . . . .: DIALRTY
Remote autoanswer. . . . . . . . . .: RMTAUTOANS
SHM disconnect limit . . . . . . . .: SHMDSCLMT
SHM disconnect timer . . . . . . . .: SHMDSCTMR
X.25 network level . . . . . . . . .: NETLVL 1984
X.25 link level protocol . . . . . .: LINKPCL *QLLC
X.25 logical channel ID. . . . . . .: LGLCHLID
X.25 connection password . . . . . .: CNNPWD
X.25 default packet size . . . . . .: DFTPKTSIZE *LIND
Negotiated packet size . . . . . .:
X.25 default window size . . . . . .: DFTWDWSIZE *LIND
Negotiated window size . . . . . .:
X.25 user group identifier . . . . .: USRGRPID
X.25 reverse charging. . . . . . . .: RVSCRG *NONE
X.25 frame retry . . . . . . . . . .: X25FRMRTY 7
X.25 connect retry . . . . . . . . .: X25CNNRTY 7
X.25 response timer. . . . . . . . .: X25RSPTMR 100
X.25 connection timer. . . . . . . .: X25CNNTMR 100
X.25 delayed connection timer. . . .: X25DLYTMR
X.25 acknowledgement timer . . . . .: X25ACKTMR
X.25 inactivity timer. . . . . . . .: X25INACTMR
User facilities. . . . . . . . . . .: USRFCL
Recovery limits. . . . . . . . . . .: CMNRCYLMT
Count limit. . . . . . . . . . . .: 2
Time interval. . . . . . . . . . .: 0
Text . . . . . . . . . . . . . . . .: TEXT *BLANK
Display Device Description - Display
Device description . . . . . . . . .: DEVD X25LU2
Device class . . . . . . . . . . . .: DEVCLS *RMT
Device type. . . . . . . . . . . . .: TYPE 3277
Device model . . . . . . . . . . . .: MODEL 0
Port number. . . . . . . . . . . . .: PORT
Switch setting . . . . . . . . . . .: SWTSET
Local location address . . . . . . .: LOCADR 02
Online at IPL. . . . . . . . . . . .: ONLINE *YES
Attached controller. . . . . . . . .: CTL X25SVC
Keyboard language type . . . . . . .: KBDTYPE
Drop line at signoff . . . . . . . .: DROP *YES
Character identifier . . . . . . . .: CHRID
Allow blinking cursor. . . . . . . .: ALWBLN
Auxiliary devices. . . . . . . . . .: AUXDEV
Printer. . . . . . . . . . . . . . .: PRINTER
Print file . . . . . . . . . . . . .: PRTFILE QSYSPRT
Library. . . . . . . . . . . . . .: *LIBL
Maximum length of request unit . . .: MAXLENRU *CALC
Text . . . . . . . . . . . . . . . .: TEXT *BLANK
Display Device Description - Display
Device description . . . . . . . . .: DEVD X25LU3
Device class . . . . . . . . . . . .: DEVCLS *RMT
Device type. . . . . . . . . . . . .: TYPE 3277
Device model . . . . . . . . . . . .: MODEL 0
Port number. . . . . . . . . . . . .: PORT
Switch setting . . . . . . . . . . .: SWTSET
Local location address . . . . . . .: LOCADR 03
Online at IPL. . . . . . . . . . . .: ONLINE *YES
Attached controller. . . . . . . . .: CTL X25SVC
Keyboard language type . . . . . . .: KBDTYPE
Drop line at signoff . . . . . . . .: DROP *YES
Character identifier . . . . . . . .: CHRID
Allow blinking cursor. . . . . . . .: ALWBLN
Auxiliary devices. . . . . . . . . .: AUXDEV
Printer. . . . . . . . . . . . . . .: PRINTER
Print file . . . . . . . . . . . . .: PRTFILE QSYSPRT
Library. . . . . . . . . . . . . .: *LIBL
Maximum length of request unit . . .: MAXLENRU *CALC
Text . . . . . . . . . . . . . . . .: TEXT *BLANK
Display Device Description - Display
Device description . . . . . . . . .: DEVD X25LU4
Device class . . . . . . . . . . . .: DEVCLS *RMT
Device type. . . . . . . . . . . . .: TYPE 3277
Device model . . . . . . . . . . . .: MODEL 0
Port number. . . . . . . . . . . . .: PORT
Switch setting . . . . . . . . . . .: SWTSET
Local location address . . . . . . .: LOCADR 04
Online at IPL. . . . . . . . . . . .: ONLINE *YES
Attached controller. . . . . . . . .: CTL X25SVC
Keyboard language type . . . . . . .: KBDTYPE
Drop line at signoff . . . . . . . .: DROP *YES
Character identifier . . . . . . . .: CHRID
Allow blinking cursor. . . . . . . .: ALWBLN
Auxiliary devices. . . . . . . . . .: AUXDEV
Printer. . . . . . . . . . . . . . .: PRINTER
Print file . . . . . . . . . . . . .: PRTFILE QSYSPRT
Library. . . . . . . . . . . . . .: *LIBL
Maximum length of request unit . . .: MAXLENRU *CALC
Text . . . . . . . . . . . . . . . .: TEXT *BLANK
|
