This example defines a network with LU 6.2 API, SNA IMF, and SNA

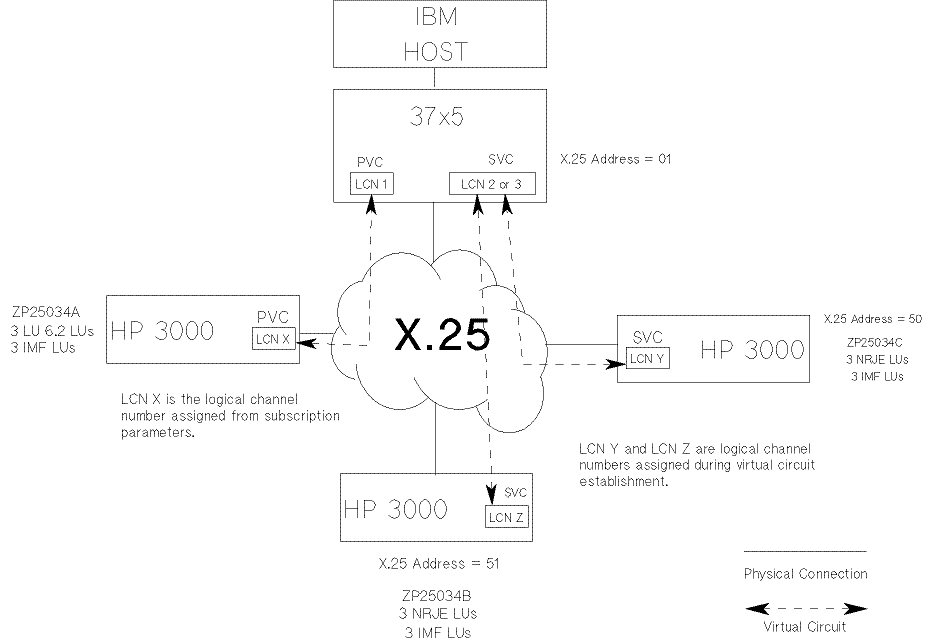

NRJE using SNA/X.25 as shown in figure A-7. Figure A-7 SNA/X.25 Link/iX Example Network
******************************************************************
********* BUILD STATEMENT ******************
*
*The following lines from the BUILD statement are required by
*X.25 NPSI. They do not represent a complete BUILD statement.
*
******************************************************************
P38X25 BUILD X25.MAXPIU=1296,
X25.MCHCNT=1,
X25.MWINDOW=7,
X25.PREFIX=Z,
X25.SNAP=YES,
X25.USGTIER=3
******************************************************************
********* X.25 NETWORK ******************
*
*The following code defines an X.25 Network to X.25 NPSI.
*in SYS1.VTAMLST, the parameter library for VTAM.
*
******************************************************************
*
X25.NET CPHINDX=2,
OUHINDX=2
*
X25.VCCPT INDEX=1,
MAXPKL=128,
INSLOW=(25,0),
VWINDOW=7
X25.VCCPT INDEX=2,
MAXPKL=128,
INSLOW=(25,0),
VWINDOW=7
*
X25.OUFT INDEX=1,
OPTFACL=420707430202,
X25.OUFT INDEX=2,
OPTFACL=420707430707
*
X25.MCH ADDRESS=034,
FRMLGTH=131,
LCGDEF=0(9),
MWINDOW=7,
ANS=CONT,
GATE=NO,
LCN0=NOTUSED,
LLCLIST=LLC3,
PKTMODL=8,
SPEED=9600,
STATION=DTE,
TDTIMER=1,
TPTIMER=1.0,
TRAN=NO
*
X25.LCG LCGN=0
*
ZL25034A X25.LINE LCN=1,
VCCINDX=1,
LLC=LLC3,
TYPE=PERMANENT,
DSTNODE=BNN
*
ZP25034A X25.PU PUTYPE=2,
ADDR=01,
ISTATUS=ACTIVE,
MODETAB=HPMODTAB,
IRETRY=YES,
MAXDATA=521,
MAXOUT=7,
PASSLIM=7
*
ZU2534A1 X25.LU LOCADDR=2,
DLOGMOD=MODE62
*
ZU2534A2 X25.LU LOCADDR=3,
DLOGMOD=MODE62
*
ZU2534A3 X25.LU LOCADDR=4,
DLOGMOD=MODE62
*
ZU2534A4 X25.LU LOCADDR=5,
DLOGMOD=MODEIMF
*
ZU2534A5 X25.LU LOCADDR=6,
DLOGMOD=MODEIMF
*
ZU2534A6 X25.LU LOCADDR=7,
DLOGMOD=MODEIMF
****************************************************
* The following section defines an SVC using the *
* X25.LINE and X25.PU macros. *
****************************************************
ZL25034B X25.LINE LCN=2,
VCCINDX=2,
TYPE=SWITCHED,
CALL=IN,
OUFINDX=1,
DSTNODE=BNN
*
ZP25034B X25.PU PUTYPE=2,
MAXLU=16
****************************************************
* The following section defines an SVC using the *
* X25.VC macro. *
****************************************************
ZL25034C X25.VC LCN=3,
VCCINDX=2,
TYPE=SWITCHED,
CALL=IN,
OUFINDX=2
|
Switched Major Node | |
The following is an example of the PU and LU definitions in a
switched major node that could use the switched (dial) line LN046
defined under group LG06.
SW3000D VBUILD TYPE=SWNET THIS MEMBER DEFINES A SWITCHED MAJOR
NODE
*
*
ZP25034B PU IDBLK=023,
IDNUM=01234,
MAXLU=7,
PUTYPE=2,
BATCH=NO,
ISTATUS=ACTIVE,
MODTAB=HPMODTAB,
PACING=(3,1),
VPACING=(2,1)
*
XPATHB PATH USE=NO,
GRPNM=S0
PID=3
*
*
ZU2534B1 LU LOCADDR=2,
SSCPFM=FSS,
DLOGMOD=MODENRJE
ZU2534B2 LU LOCADDR=3,
SSCPFM=FSS,
DLOGMOD=MODENRJE
ZU2534B3 LU LOCADDR=4,
SSCPFM=FSS,
DLOGMOD=MODENRJE
ZU2534B4 LU LOCADDR=5,
SSCPFM=USSSCS,
DLOGMOD=MODE62
ZU2534B5 LU LOCADDR=6,
SSCPFM=USSSCS,
DLOGMOD=MODE62
ZU2534B6 LU LOCADDR=7,
SSCPFM=USSSCS,
DLOGMOD=MODE62
*
*
ZP25034C PU IDBLK=023,
IDNUM=12345,
MAXLU=7,
PUTYPE=2,
BATCH=NO,
ISTATUS=ACTIVE,
MODTAB=HPMODTAB,
PACING=(3,1),
VPACING=(2,1)
*
XPATHC PATH USE=NO,
DIALNO=51*0130001,
GRPNM=S0
PID=3
*
*
ZU2534C1 LU LOCADDR=2,
SSCPFM=FSS,
DLOGMOD=MODENRJE
ZU2534C2 LU LOCADDR=3,
SSCPFM=FSS,
DLOGMOD=MODENRJE
ZU2534C3 LU LOCADDR=4,
SSCPFM=FSS,
DLOGMOD=MODENRJE
ZU2534C4 LU LOCADDR=5,
SSCPFM=USSSCS,
DLOGMOD=MODEIMF
ZU2534C5 LU LOCADDR=6,
SSCPFM=USSSCS,
DLOGMOD=MODEIMF
ZU2534C6 LU LOCADDR=7,
SSCPFM=USSSCS,
DLOGMOD=MODEIMF
|
|
![[SNA/X.25 Link/iX Example Network]](img/figa-10.gif)
