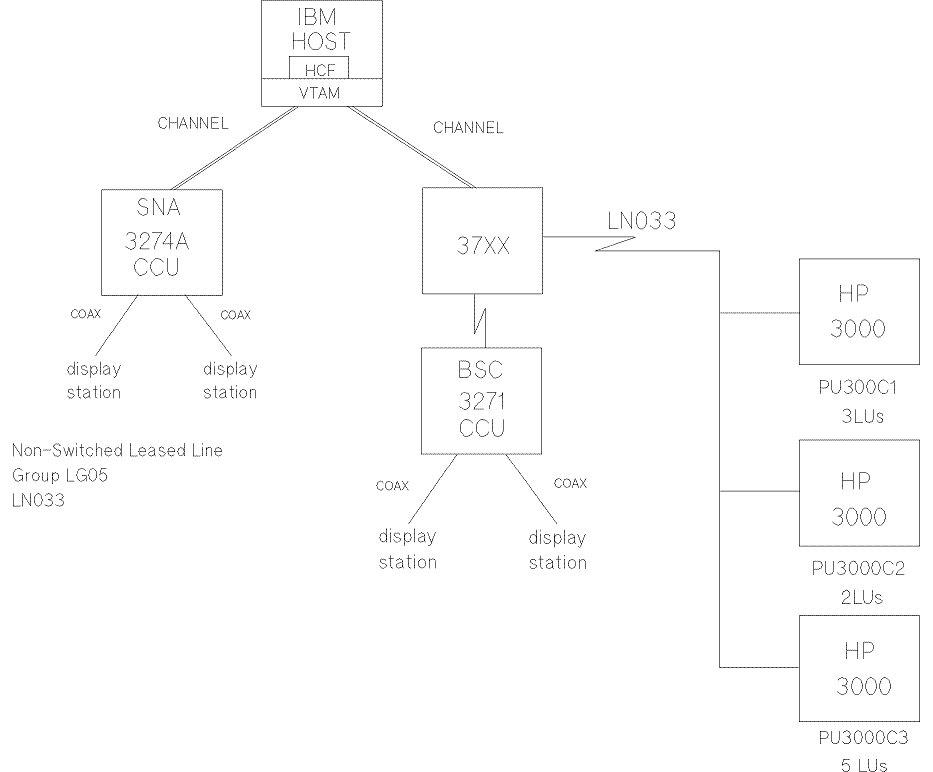

This example defines a network with DHCF/iX as shown in figure A-6.
The network illustration and the example host gen reflect the
connections between SNA and BSC devices, and HCF. For cluster
control unit configuration information, refer to the IBM manuals for
the control unit being configured. Figure A-6 SNA DHCF/iX Example Network
Host Configuration for HP 3000 | |
This example shows the portion of the NCP gen defining the HP 3000s.
*******************************************************************
LG05 GROUP DIAL=NO,
LNCTL=SDLC,
REPLYTO=1.0,
TEXTTO=1.0,
TYPE=NCP,
********************************************************************
* LINE OPERANDS MOVED UP TO THE GROUP MACRO
********************************************************************
CLOCKNG=EXT,
DATRATE=HIGH,
ETRATIO=30,
HDXSP=NO,
INTPRI=1,
LPDATS=NO,
NRZI=NO,
POLLED=YES,
SPDSEL=NO,
TRANSFR=12,
********************************************************************
* PU OPERANDS MOVED UP TO THE GROUP MACRO
********************************************************************
IRETRY=NO,
MAXDATA=265,
MAXOUT=3,
PASSLIM=7,
PUTYPE=2,
SRT=(32768,32768),
********************************************************************
* LU OPERANDS MOVED UP TO THE GROUP MACRO
********************************************************************
BATCH=NO,
ISTATUS=ACTIVE,
PACING=(3,1),
SSCPFM=FSS,
VPACING=2
* Multi-drop line with three drops
*
LN033 LINE ADDRESS=033,
SPEED=9600,
DUPLEX=FULL,
MAXPU=3
*
*SERV300C SERVICE ORDER=(PU3000C1,PU3000C2,PU3000C3)
*
PU3000C1 PU ADDR=C1
*
LU30C102 LU LOCADDR=2
*
LU30C103 LU LOCADDR=3
*
LU30C104 LU LOCADDR=4
*
*
PU3000C2 PU ADDR=C2
*
LU30C202 LU LOCADDR=2
*
LU30C203 LU LOCADDR=3
*
PU3000C3 PU ADDR=C3
*
LU30C302 LU LOCADDR=2
*
LU30C303 LU LOCADDR=3
*
LU30C304 LU LOCADDR=4
*
LU30C305 LU LOCADDR=5
*
LU30C306 LU LOCADDR=6
|
| | | |  | NOTE: The POLLED=YES parameter is required by a PU type 2 for
ACF/NCP version 1, releases 1 and 2. This parameter is invalid for
an SDLC line for ACF/NCP version 1 release 3 and later versions.
| | | | |
Host Configuration for IBM 3270 Terminals | |
This example shows a portion of the VBUILD table definition for two
locally attached SNA display stations. Note that a standard IBM
logmode entry is used for the IBM 3270 Model 2 display station.
********************************************************************
*
* IBM 3274A Cluster Controller attached terminals
*
SNAPU PU ............
*
* THE STANDARD IBM LOGMODE ENTRY CAN BE USED FOR 3270 MODEL 2
TERMINALS
*
SNALU24 LU LOCADDR=2,
DLOGMODE=D4A32782
*
* THE STANDARD IBM LOGMODE ENTRIES FOR IBM 3270 MODEL 4 TERMINALS
* WILL NOT WORK BECAUSE HCF USES THE PRIMARY SCREEN SIZE AND
* NOT THE ALTERNATE. THIS MODIFIED LOGMODE ENTRY CHANGES THE
* PRIMARY SCREEN SIZE IN THE PSERVIC FIELD TO 43 X 80
*
SNALU43 LU LOCADDR=3,
DLOGMODE=DHCF3440
*
|
This example shows a portion of the NCP gen defining a remote
attached BSC display station. Note that a standard IBM logmode entry
is used.
********************************************************************
*
* IBM 3271 Cluster Controller attached terminals
*
BSCCTLR CLUSTER CUTYPE=3271, GPOLL=40407F7F
*
* THE STANDARD IBM LOGMODE ENTRY CAN BE USED FOR ALL SUPPORTED
* BSC ATTACHED TERMINALS
*
BSCTERMI TERM TERM=3277,ADDR=60604040,POLL40404040,
DLOGMODE=D4B32782,FEATUR2=MODEL2
|
|
