SNA NRJE Configuration Example

This example defines a network with SNA NRJE as shown in figure A-1. Each of these HP 3000s is defined as an NRJE workstation.

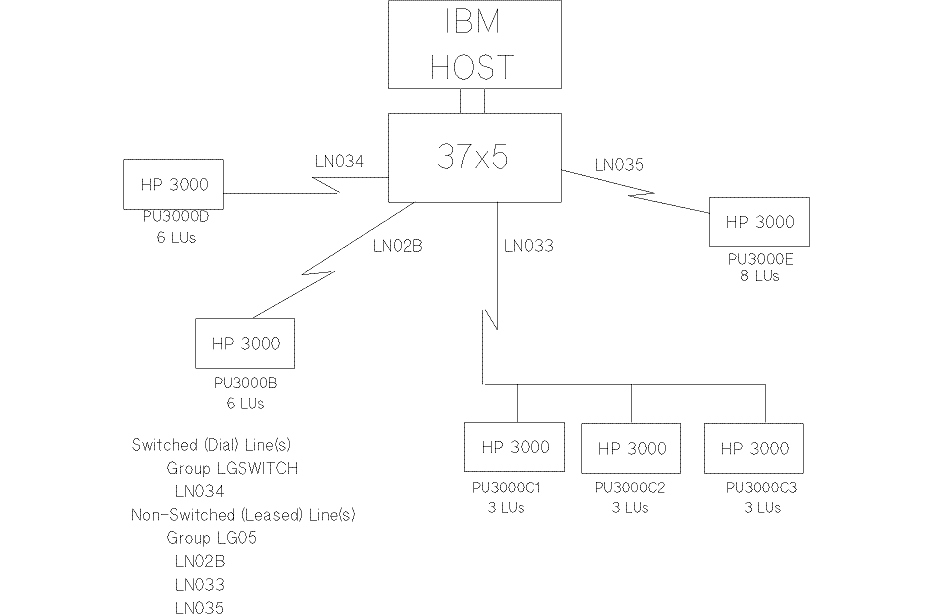

Figure A-1 SNA NRJE Example Network

*******************************************************************

*

LG05      GROUP DIAL=NO,

                LNCTL=SDLC,

                REPLYTO=1.0,

                TEXTTO=1.0,

                TYPE=NCP,

********************************************************************

* LINE OPERANDS MOVED UP TO THE GROUP MACRO

********************************************************************

               CLOCKNG=EXT,

               DATRATE=HIGH,

               ETRATIO=30,

               HDXSP=NO,

               INTPRI=1,

               LPDATS=NO,

               NRZI=NO,

               POLLED=YES,

               SPDSEL=NO,

               TRANSFR=12,

********************************************************************

* PU OPERANDS MOVED UP TO THE GROUP MACRO

********************************************************************

               IRETRY=NO,

               MAXDATA=265,

               MAXOUT=3,

               PASSLIM=7,

               PUTYPE=2,

               SRT=(32768,32768),

********************************************************************

* LU OPERANDS MOVED UP TO THE GROUP MACRO

********************************************************************

               BATCH=NO,

               DLOGMOD=MODENRJE,

               ISTATUS=ACTIVE,

               MODETAB=HPMODTAB,

               PACING=(3,1),

               SSCPFM=FSS,

               VPACING=2

*    Point to point (leased) low speed line.

*

*

LN02B   LINE ADDRESS= 02B,

             SPEED=4800,

             DUPLEX=HALF,

             MAXPU=1

*

SERV300B SERVICE ORDER=(PU3000B)

*

PU3000B PU ADDR=C1

*

LU30002B LU LOCADDR=2

*

LU30003B LU LOCADDR=3

*

LU30004B LU LOCADDR=4

*

LU30005B LU LOCADDR=5

*

LU30006B LU LOCADDR=6

*

LU30007B LU LOCADDR=7

*

*   Multi-drop line with three drops

*

LN033   LINE  ADDRESS=033,

              SPEED=9600,

              DUPLEX=FULL,

              MAXPU=3

*

*

SERV300C SERVICE ORDER=(PU3000C1,PU3000C2,PU3000C3)

*

PU3000C1 PU ADDR=C1

*

LU30C102 LU LOCADDR=2

*

LU30C103 LU LOCADDR=3

*

LU30C104 LU LOCADDR=4

*

*

*

PU3000C2 PU ADDR=C2

*

LU30C202 LU LOCADDR=2

*

LU30C203 LU LOCADDR=3

*

LU30C204 LU LOCADDR=4

*

*

*

PU3000C3 PU ADDR=C3

*

LU30C302 LU LOCADDR=2

*

LU30C303 LU LOCADDR=3

*

LU30C304 LU LOCADDR=4

*

* Point to point line.

*

LN035   LINE  ADDRESS=035,

              SPEED=9600,

              DUPLEX=FULL,

              MAXPU=1

*

*

SERV300E SERVICE ORDER=(PU3000E)

*

*

PU3000E PU ADDR=C1

*

LU30002E LU LOCADDR=2

*

LU30003E LU LOCADDR=3

*

LU30004E LU LOCADDR=4

*

LU30005E LU LOCADDR=5

*

LU30006E LU LOCADDR=6

*

LU30007E LU LOCADDR=7

*

LU30008E LU LOCADDR=8

*

LU30009E LU LOCADDR=9




	NOTE: The POLLED=YES parameter is required by a PU type 2 for ACF/NCP version 1, releases 1 and 2. This parameter is invalid for an SDLC line for ACF/NCP version 1, release 3 and later versions.

******************************************************************

************************ HP3000 DIAL UP **************************

*

*The following example shows a line GROUP that defines a switched

*line. The VTAM operands of the PU macros, and the LU macros, are

*defined under a VBUILD macro, which is kept as a separate member

*in SYS1.VTAMLST, the parameter library for VTAM.

*

******************************************************************

LUDRPOOL NUMTYPE2=6

LGSWITCH GROUP DIAL=YES,

               LNCTL=SDLC,

               REPLYTO=1.0,

               TEXTTO=1.0,

               TYPE=NCP

********************************************************************

* LINE MACRO DEFINITION FOR SWITCHED SDLC LINE

********************************************************************

LN034    LINE ADDRESS=034,

              SPEED=9600,

              ANSWER=ON,

              CALL=IN,

              CLOCKNG=EXT,

              DATRATE=HIGH,

              DUPLEX=HALF,

              ETRATIO=30,

              HDXSP=NO,

              INTPRI=1,

              LPDATS=NO,

              MAXPU=1,

              NRZI=NO,

              POLLED=YES,

              SPDSEL,

              TRANSFR=12

*

*

*     No SERVICE macro because it is not allowed on switched lines.

*

*****************************************************************

* PU MACRO DEFINITION FOR SWITCHED SDLC LINE

******************************************************************

*

*

PU3000D  PU   MAXLU=6,

              PUTYPE=2

* All other PU parameters and LU parameters are defined in the

* VBUILD member for this PU.

*

NCPEND        GENEND SCANCTL=(2,,,,1100)

              END




	NOTE: The POLLED=YES parameter is required by a PU type 2 for ACF/NCP version 1, releases 1 and 2. This parameter is invalid for an SDLC line for ACF/NCP version 1, release 3 and later versions.

Switched Major Node

The following is an example of the PU and LU definitions in a switched major node that could use the switched (dial) line LN034 under group LGSWITCH.

   SW3000D   VBUILD TYPE=SWNET  THIS MEMBER DEFINES A SWITCHED    MAJOR

   NODE

   *

   *

   PU3000D  PU        ADDR=C4

                 IDBLK=023,

                 IDNUM=01234,

                 MAXLU=6,

                 PUTYPE=2,

                 SRT=(32768,32768),

                 BATCH=YES,

                 DLOGMOD=MODENRJE,

                 ISTATUS=INACTIVE,

                 MODTAB=HPMODTAB,

                 PACING=(3,1),

                 SSCPFM=FSS,

                 VPACING=(2,1)

   *

   LU30002D LU LOCADDR=2

   *

   LU30003D LU LOCADDR=3

   *

   LU30004D LU LOCADDR=4

   *

   LU30005D LU LOCADDR=5

   *

   LU30006D LU LOCADDR=6

   *

   LU30007D LU LOCADDR=7
