Here's photographic documentation of a DS1287 chip rework suitable
for the clearance available in DECstation 5000 series machines.
Bill of materials:
- DS1287 Real Time Clock, Dallas Semiconductor,
- S8411-45R SMT Coin Cell Holder, Harwin,
- CR1220 Lithium Coin, generic,
- W28-6A Slit-N-Wrap Wire, Vector Electronics & Technology,
- UniBond Epoxy Repair: Plastic, Henkel,
- solder, flux, etc.,
- various tools and time.
Enjoy!
Maciej

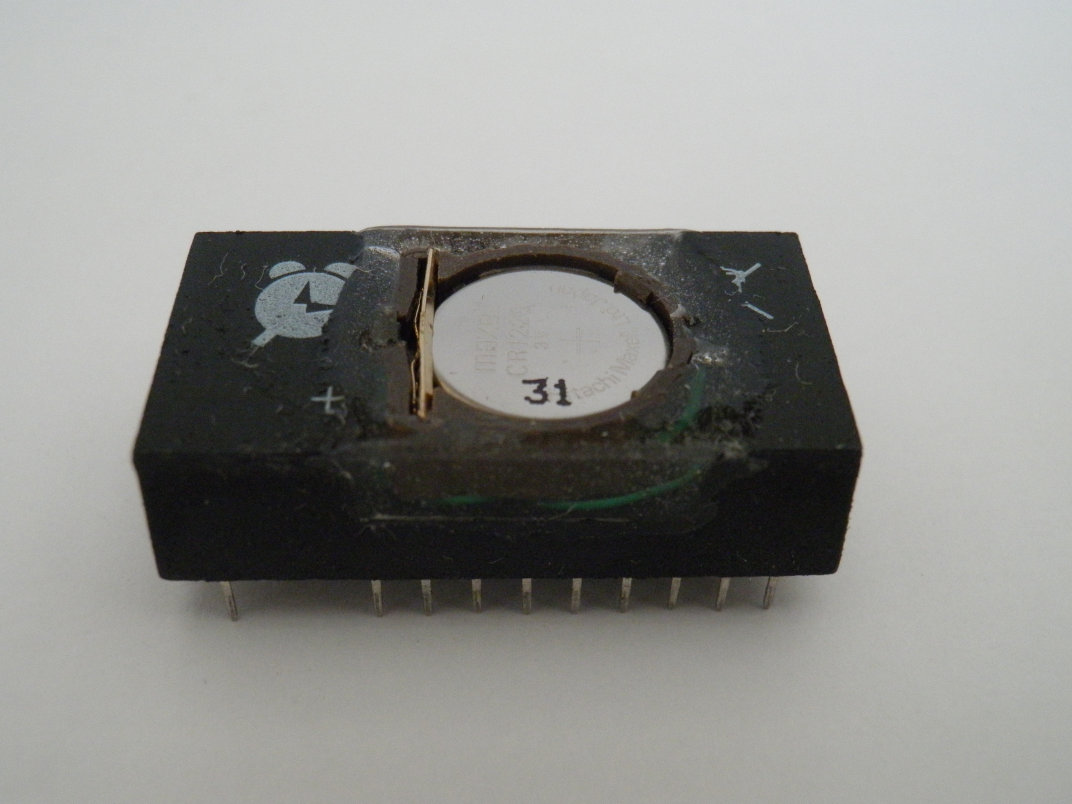

Picture 1

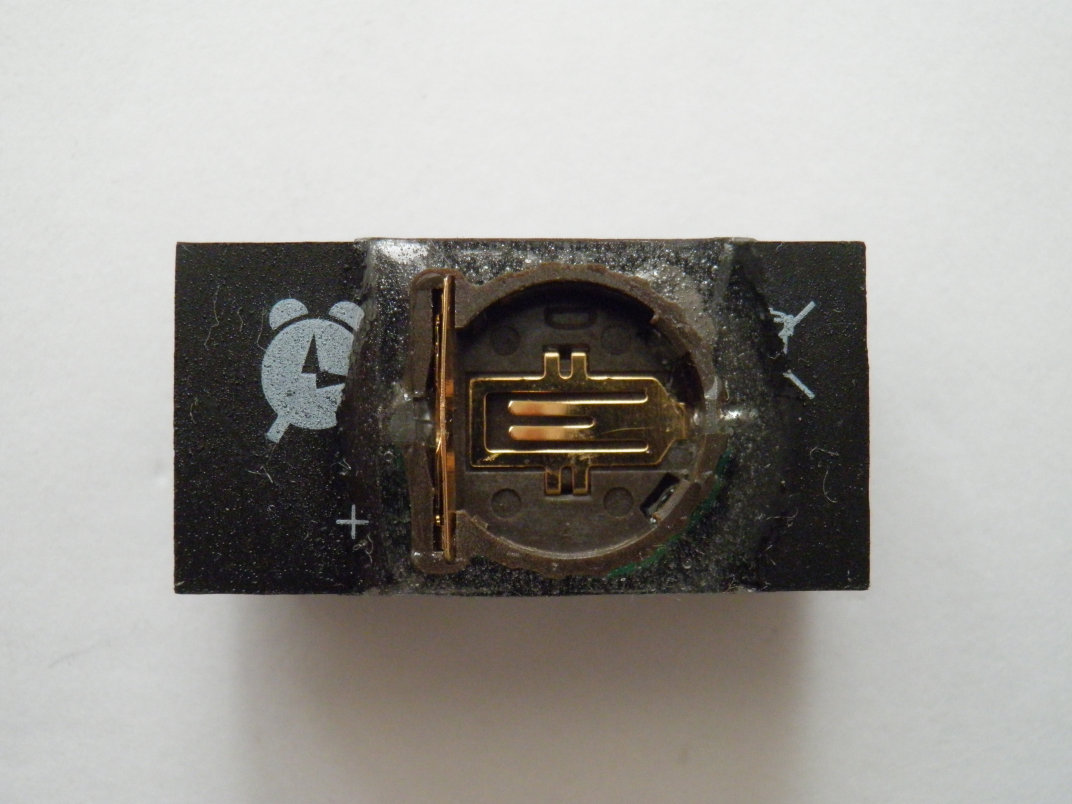

Picture 2

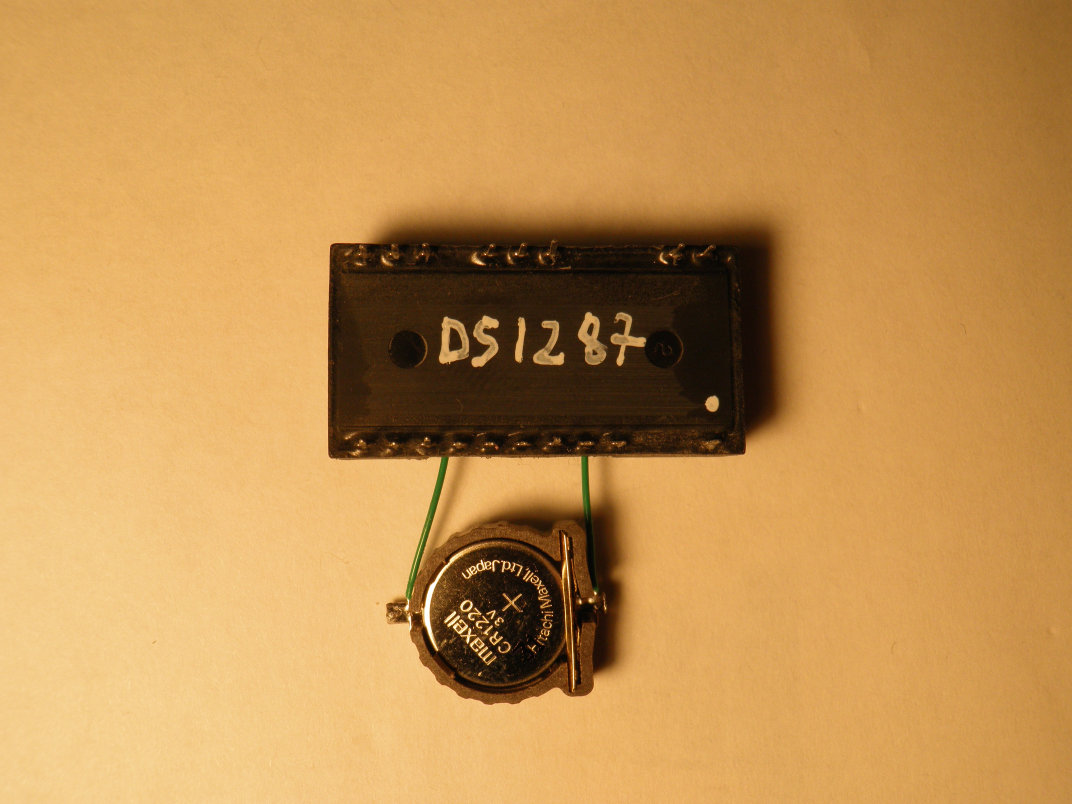

Picture 3

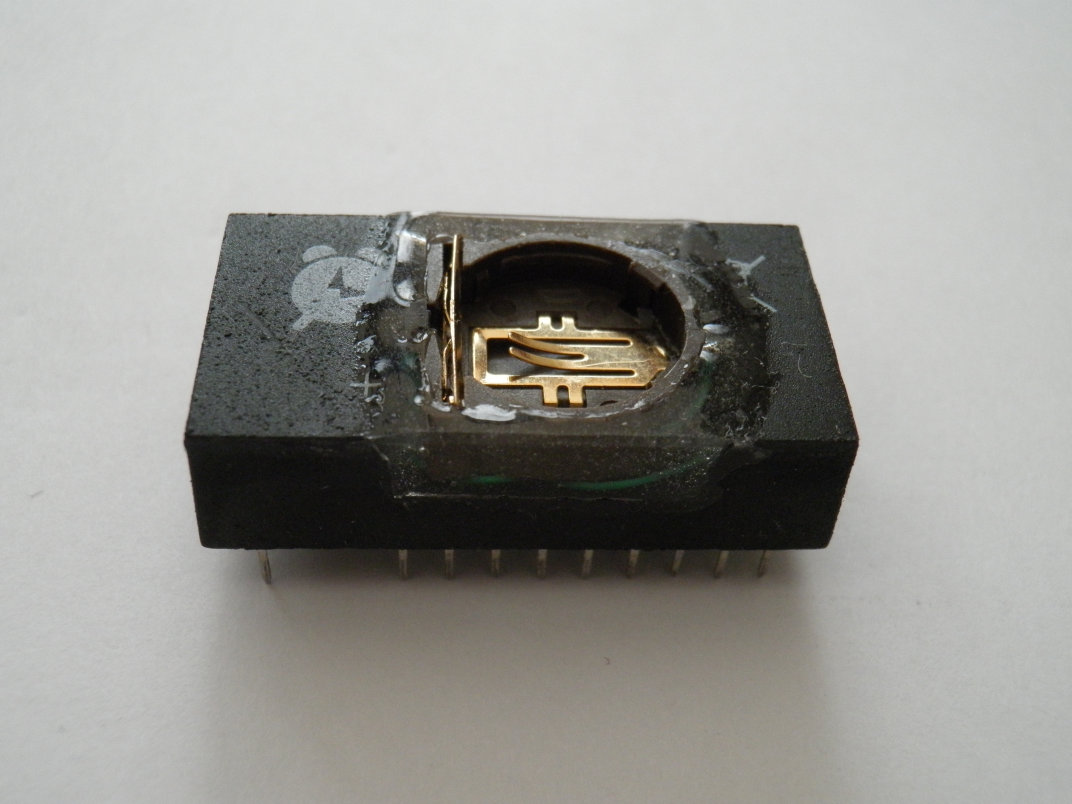

Picture 4

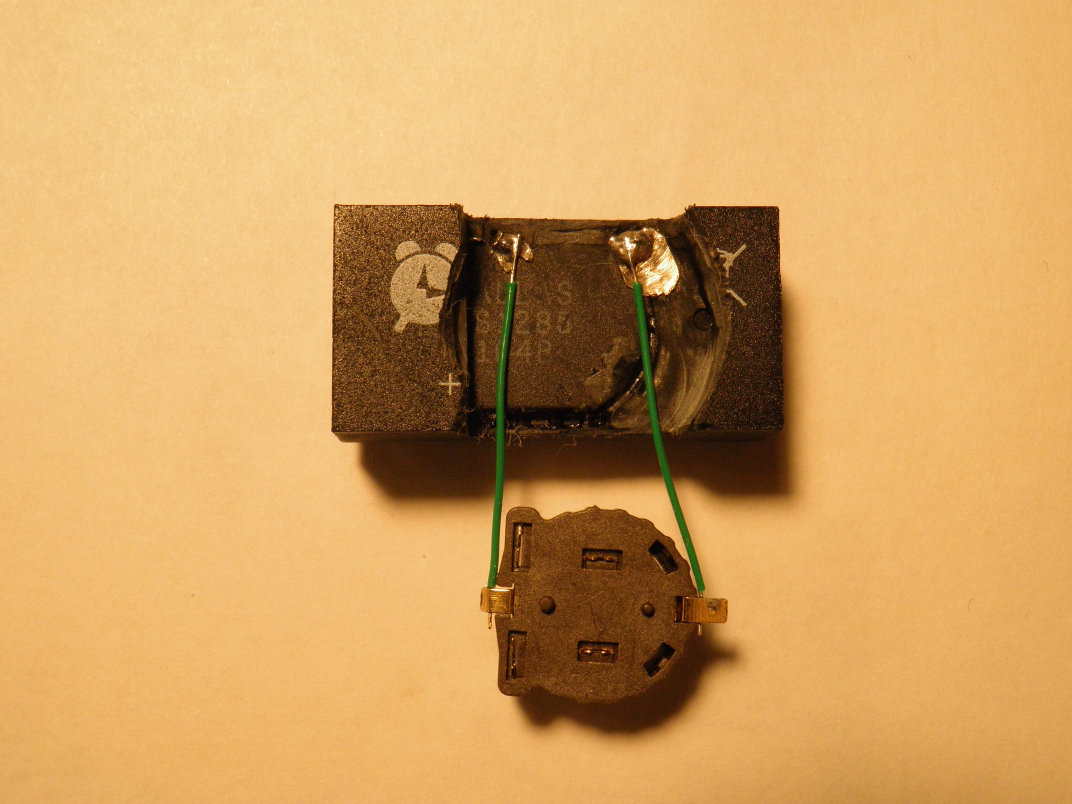

Picture 5

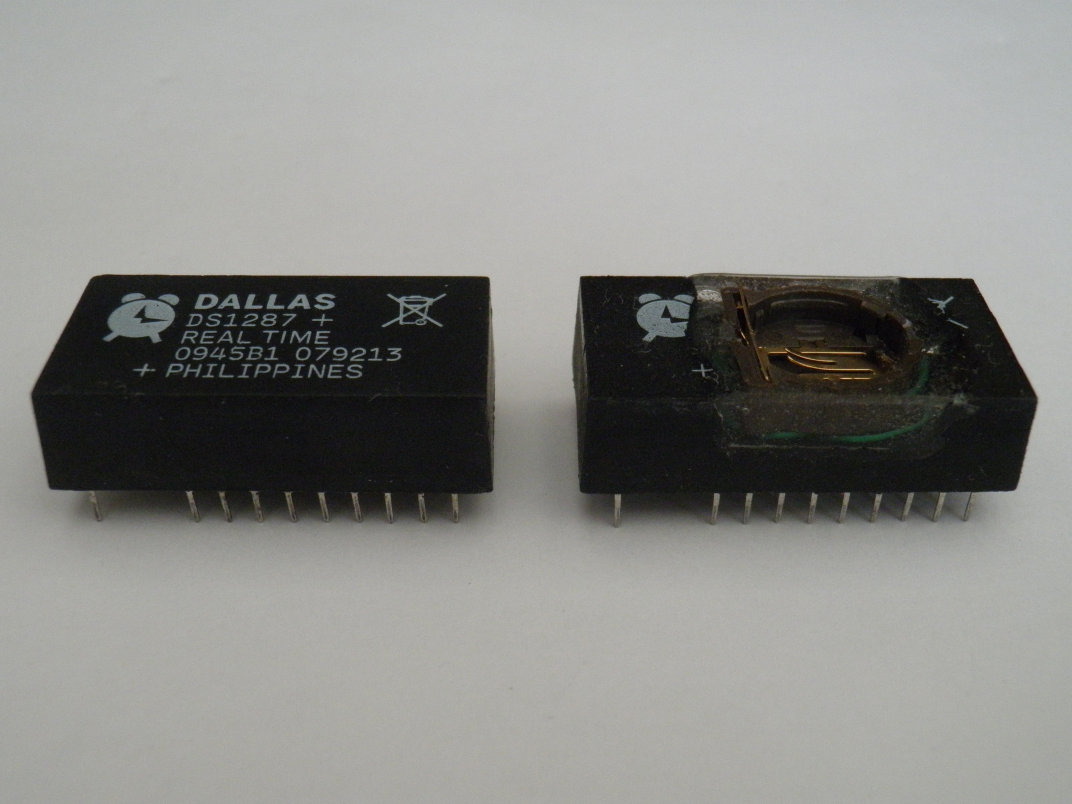

Picture 6

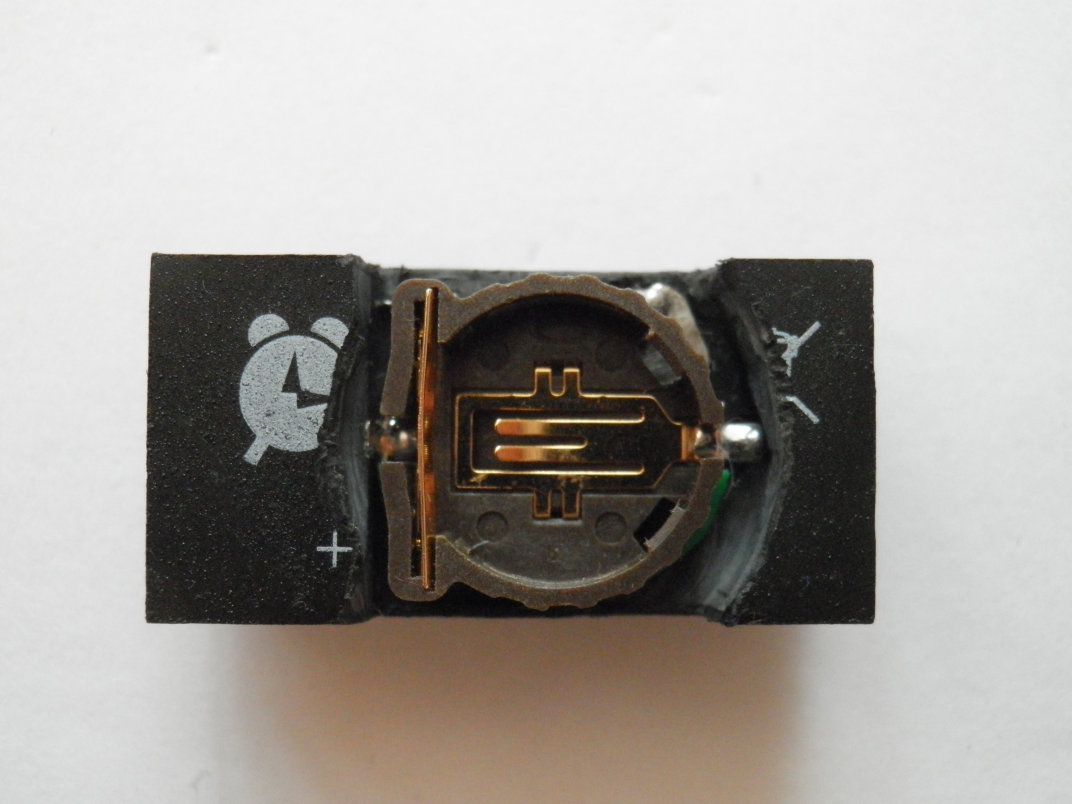

Picture 7
|
