The procedure calling convention specifies that the first four words of the
argument list and the function return value will be passed in registers:
floating-point registers for floating-point values, general registers
otherwise. However, some programming languages do not require type checking of
parameters, which can lead to situations where the caller and the callee do not
agree on the location of the parameters. Problems such as this occur frequently
in the C language where, for example, formal and actual parameter types may be
unmatched, due to the fact that no type checking occurs.
A parameter relocation mechanism alleviates this problem. The solution involves
a short code sequence, called a relocation stub, which is inserted between the
caller and the callee. When executed, the relocation stub moves any incorrectly
located parameters to their expected location. If a procedure is called with
more than one calling sequence, a relocation stub is needed for each
non-matching calling sequence.
The compiler or assembler must communicate the location of the first four words
of the parameter list and the location of the function return value to the
linker and loader. To accomplish this, ten bits of argument location
information have been added to the definitions of a symbol and a fix-up

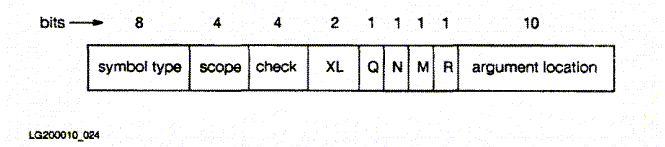

request. The following diagram shows the first word of a symbol definition
record in the object file.
The argument location information is further broken down into five location
values, corresponding to the first four argument words and the function return
value, as shown below:
Bits 22-23 : define the location of parameter list word 0
Bits 24-25 : define the location of parameter list word 1
Bits 26-27 : define the location of parameter list word 2
Bits 28-29 : define the location of parameter list word 3
Bits 30-31 : define the location of the function value return
The value of an argument location is interpreted as follows:
00
Do not relocate
01 arg
Argument register
10 fr
Floating-point register (bits 0..31) *
11 frupper
Floating-point register (bits 32..63) *
* For return values, '10' means a single precision floating-point value,
and '11' means double precision floating-point value.
When the linker resolves a procedure call, it will generate a relocation stub
if the argument location bits of the fixup request do not exactly match the
relocation bits of the exported symbol. One exception is where either the
caller or callee specifies "do not relocate". The relocation stub will
essentially be part of the called procedure, and the linker can optionally add
a symbol record for the stub so that it can be reused. The symbol record will
be the same as the original export symbol record, except that the relocation
bits will reflect the input of the stub. The type will be STUB and the symbol
value will be the location of the relocation stub.

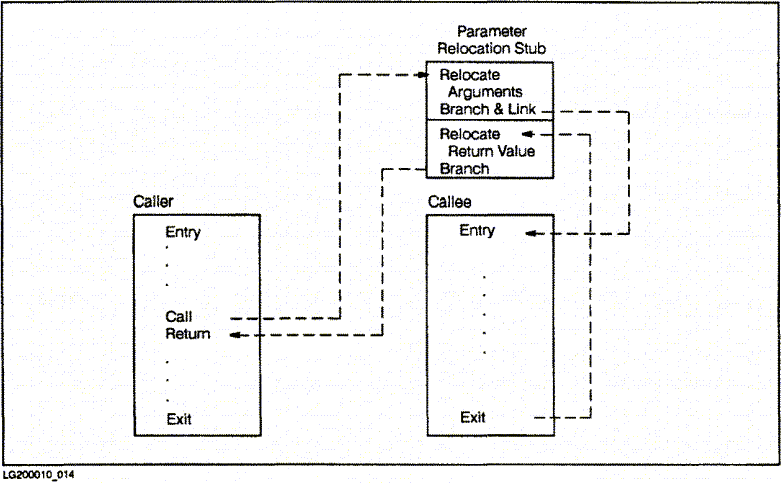

The execution of a relocation stub can be separated into the call path and the
return path. During the call path, only the first four words of the parameter
list will be relocated, while only the function return will be relocated during
the return path. The control flow is shown in Figure 3-3.
Figure 3-3 Parameter Relocation Stub
If the function return does not need to be relocated, the return path can be
omitted and the branch and link will be changed to a branch. The call path must
always be executed, but if the first four words of the parameter list do not
need to be relocated, it can be reduced to the code required to establish the
return path (i.e save RP and branch and link to the callee).
When multiple stubs occur during a single call (e.g. calling stub and
relocation stub), the stubs can be cascaded (i.e. used sequentially); in such a
case, both RP' and RP" would be used. (The relocation stub uses RP".)
When the linker makes a load module executable, it will generate stubs for each
procedure that can be called from another load module (i.e. called dynamically).
In addition, a stub will be required for each possible calling sequence. Each
of these stubs will contain the code for both relocation and external return,
and will be required to contain a symbol definition record.
Both calling and called stubs use a standard interface: calling stubs always
relocate arguments to general registers, and called stubs always assume general
registers.
In order to optimize stub generation, the compilers should maximize the use of
the argument location value 00 (do not relocate). A linker option may be
provided, which will allow the user to turn stub generation on or off,
depending on known conditions. Also, a linker option is provided to allow the
user to inhibit the generation of stubs for run-time linking. In this case, if
a mismatch occurs, it will be treated as a parameter type checking error
(which is totally independent of parameter relocation).
Assembly programmers can specify argument relocation information in the
.CALL and .EXPORT assembler directives.
