Micro Focus COBOL for UNIX, Getting Started

Some More Features

You have now learned how to perform the main task which COBOL Toolbox
facilitates - create, test, and run a program.

This part of the sample session examines some other commonly used
features of COBOL Toolbox which will improve your productivity.

Compiler Directives

You're going to see how to change the syntax allowed by the Compiler, and
the output it produces, by setting some directives.

   1.  Make sure you have the file tictac.cbl loaded into the COBOL
       Editor.

   2.  Press F2 to enter the COBOL menu.

   3.  Press F2=compile/animate until "Compile" appears on the
       information line.

   4.  Press F4=list to change the listing toggle.

       Press it until "List-Con" appears on the information line.  This
       causes the source code to be listed on the screen, with any error
       messages.

   5.  Press F10=directives.

   6.  Type the following words at the prompt:

            osvs flag(osvs) list ( )

       Ensure that the bottom part of your display looks like Figure 4-6
       .

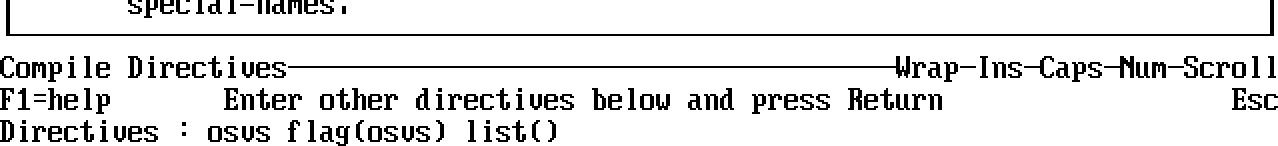

          Figure 4-6.  The Directive Menu

   7.  Press Enter to return to the COBOL menu.

   8.  Press F9=directives to enable the directives you have just
       entered.

   9.  Press Enter to start compiling the program.

Some messages are displayed, too quickly for you to read.  With this
indication that there could be something wrong, you can load the listing
file you have created (tictac.lst ) into the COBOL Editor at some future
time to see what they are.  In fact, the messages are indicating the
lines of code that do not conform to OSVS syntax.  These are not errors
that prevent the creation of usable code, so you can go on to animate the
code again.

You entered several directives.  The first two describe the language you
want to test for:  the OSVS directive means you want the OSVS reserved
word list used, and the FLAG(OSVS) directive means you want any syntax
that is not OSVS compatible to be indicated.

The final directive, LIST, specifies that you want the source listing
that the Compiler produces sent to a file.  The parentheses mean you want
to use the default name, which is your program name with an extension of
of .lst, so this creates tictac.lst.

There are many different directives available, and this is just one way
of setting them.  Look in your COBOL System Reference for more
information about setting directives.

Structure Animation

Structure Animator extends the Animator display and functions to allow
you to see your program executing as a diagram.  You can also print this
diagram as part of your program documentation.

Preparing for Structure animation.

You have to compile the program with special toggles set to make the
Compiler create the extra files that Animator needs.  The first few steps
in this section prepare the program both for structure animation and for
the Analyzer, described in the next section.

   1.  Make sure you have the file tictac.cbl loaded into the COBOL
       Editor.

   2.  Press F2=COBOL to get the COBOL menu.

   3.  Press F2=compile/animate until "Cmp+Anim" appears on the
       information line.

   4.  Press F5=strc/anlz until "Strc+Anlz" appears on the information
       line.

   5.  Press Enter to start compiling the program.

When compiling has finished, Animator will be loaded.

Using Structure Animation.

In Animator, Alt+F3 =structure/code is a toggle that turns structure
animation on or off.  If structure animation is on, there is an extra
window on the Animator listing, as shown in Figure 4-7 .

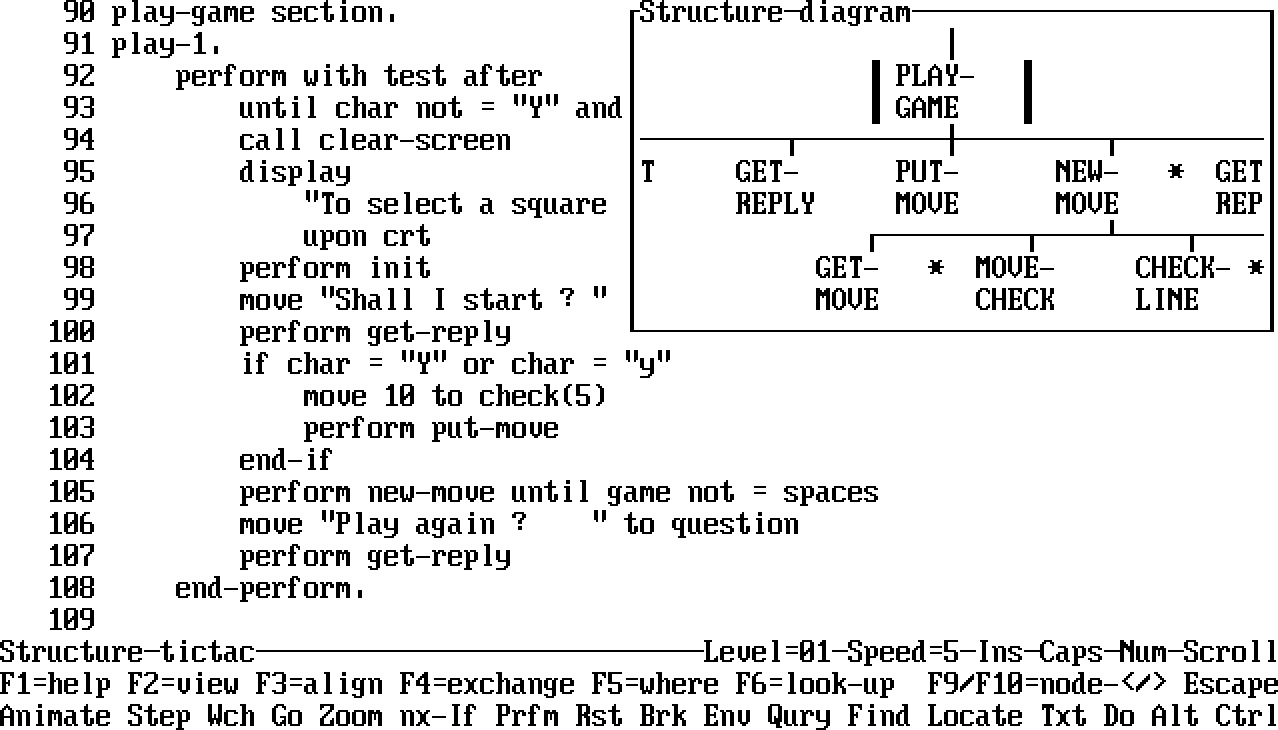

          Figure 4-7.  The Structure Animation Screen

   1.  If this window is not there, Press Alt+F3=structure/code to turn
       structure animation on.

       The extra window shows the structure of your program.  Your cursor
       is positioned in this window.  You can execute your program using
       the structure diagram instead of the source code.

   2.  Press Step several times.

       You will see that each step executes one block of the structure
       diagram.

   3.  When the program displays "Shall I start?", reply Y.

   4.  Press Alt+F3.

This moves you back to the code.  If you keep pressing Alt+F3, you switch
between code and structure - when you are in the structure the cursor is
positioned there and the border of the structure window is highlighted.

Turning structure animation off.

   1.  If your cursor is in the code, press Alt+F3 to move it to the
       structure diagram.

   2.  Press Query

       and

   3.  Press Monitor-off

Analyzer

The first few steps of the section Structure Animation prepared your
program both for structure animation and for the Analyzer.  This section
assumes you have just completed that section.

Analyzer performs a coverage analysis of your program.

   1.  Press Alt+F2=analyzer on/off to turn the Analyzer on.

       Numbers appear on the right-hand side of the text area.  They
       represent the number of times each line of code has been executed.

   2.  If you now press Alt+F6 you can change the way that the Analyzer
       information is presented to you.  Explore some of the options on
       the menu if you wish.

   3.  Press Esc
