The EXIT Statement

Function.

The EXIT statement provides a common end point for a series of
procedures.

For MF only:    The EXIT statement can also exit an inline PERFORM, a
paragraph or a section.

The EXIT PROGRAM statement marks the logical end of a called program.

For MF only:    You can also return values to calling programs written in
any language.

General Formats.

Format 1.




Format 2 (MF).




Format 3 (MF).

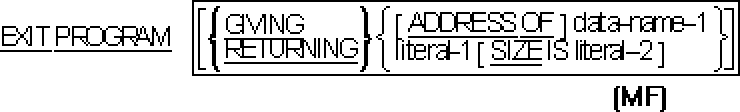

Format 4.




Syntax Rules.

Format 1.

   1.  The EXIT statement should appear in a sentence by itself.

       For MF and VSC2 only:    This rule is not enforced.

   2.  The EXIT sentence should be the only sentence in the paragraph.

       For MF and VSC2 only:    This rule is not .enforced.

For MF only:  Format 2.

3.      A Format 2 EXIT statement can be used only within an inline
        PERFORM.

Format 4.

4.      If an EXIT PROGRAM statement appears in a consecutive sequence of
        imperative statements within a sentence, it must not appear as
        the last statement in that sequence.

        For MF and VSC2 only:    This rule is not enforced .

5.      There must be no sentence other than the EXIT PROGRAM sentence in
        the paragraph.

        For MF, ANS85 and VSC2 only:    This rule is not enforced .

6.      For MF only:    Integer-1 may be signed.

7.      For MF only:    GIVING and RETURNING are equivalent.

8.      For MF only:    If the ADDRESS OF clause is not specified,
        identifier-1 must be no larger than 8 bytes in size.

General Rules.

Format 1.

   1.  An EXIT statement serves only to enable the user to assign a
       procedure-name to a given point in a program.  Such an EXIT
       statement has no other effect on the compilation or execution of
       the program.

For MF only:  Format 2.

2.      The execution of an EXIT PERFORM statement without a CYCLE phrase
        causes control to be passed to an implicit CONTINUE statement,
        immediately following the END-PERFORM associated with the nearest
        inline PERFORM statement.

3.      The execution of an EXIT PERFORM statement with a CYCLE phrase
        causes control to be passed to an implicit CONTINUE statement,
        immediately preceding the END-PERFORM associated with the nearest
        inline PERFORM statement.

For MF only:  Format 3.

4.      The execution of a Format 3 EXIT statement with the PARAGRAPH
        phrase causes control to pass to an implicit CONTINUE statement
        immediately preceding:

           a.  The next paragraph or section header, whichever comes
               first.

           b.  The end of the source program if no paragraph or section
               header appears between this EXIT statement and the end of
               the source program.

5.      The execution of a Format 3 EXIT statement with the SECTION
        phrase causes control to pass to an implicit CONTINUE statement
        immediately preceding:

           a.  The next section header.

           b.  Or immediately before the end of the source program if no
               section header appears between this EXIT statement and the
               end of the source program.

For ANS85 only:  Format 4.

6.      If the EXIT PROGRAM statement is executed in a program which is
        not under the control of a calling program, the EXIT PROGRAM
        statement causes execution of the program to continue with the
        next executable statement.

7.      The execution of an EXIT PROGRAM statement in a called program
        which does not possess the initial attribute causes execution to
        continue with the next executable statement following the CALL
        statement in the calling program.  The program state of the
        calling program is not altered and is identical to that which
        existed at the time it executed the CALL statement except that
        the contents of data items and the contents of data files shared
        between the calling and called program may have been changed.
        The program state of the called program is not altered except
        that the ends of the ranges of all PERFORM statements executed by
        that called program are considered to have been reached.

8.      Besides the actions specified in General Rule 7, the execution of
        an EXIT PROGRAM statement in a called program which possesses the
        initial attribute is equivalent to also executing a CANCEL
        statement referencing that program except that the statement will
        not free any memory.  See the section The CANCEL Statement
        earlier in this chapter.

9.      An EXIT PROGRAM statement must not be executed while executing a
        declarative procedure in which the GLOBAL phrase is specified
        except in a program called while executing that declarative
        procedure.

10.     For MF only:    Execution of an EXIT PROGRAM statement in a
        program that is under the control of a calling program, causes a
        return value to be set in the system area generally available for
        non-COBOL programs to return a value.  This system area is never
        smaller than 4 bytes in size but may be larger in some
        environments (see your COBOL System Reference for details)

        If the GIVING phrase is not specified and the calling convention
        specifies updating the RETURN-CODE special-register (see the CALL
        CONVENTION clause in the earlier section The Special-Names
        Paragraph) then the object program operates as if the system area
        were declared as a COBOL numeric data item with USAGE COMP-5 and
        with a size determined by the operating environment external to
        the COBOL system (see your COBOL System Reference) and as if a
        MOVE statement had been executed with the RETURN-CODE as the
        sending item and the system area as the receiving item.  (See the
        section Special Registers in the chapter Concepts of the COBOL
        Language for details of RETURN-CODE.)

        If the GIVING ADDRESS OF phrase is specified, the object program
        operates as if the system area were declared as a COBOL data item
        with USAGE POINTER and as if a SET statement had been executed
        with TO ADDRESS OF identifier-1 as the first operand and the
        system area as the second operand.  The ADDRESS OF phrase may be
        used to indirectly pass a value that is larger than the system
        area.

        If the GIVING identifier-1 phrase is specified, identifier-1 must
        describe the same number of character positions as is required to
        hold the return value in the system area and must be of the type
        and usage that is expected by the calling program.  The object
        program operates as if a MOVE statement had been executed with
        identifier-1 as the sending item and the system area as the
        receiving item.

        If the GIVING integer-1 phrase is specified, integer-1 must not
        be larger than the value that can be held in the system area.
        The object program operates as if the system area were declared
        as a COBOL numeric data item with USAGE COMP-5 and with a size
        determined by the operating environment external to the COBOL
        system (see your COBOL System Reference) and as if a MOVE
        statement had been executed with integer-1 as the sending item
        and the system area as the receiving item.

For OSVS, VSC2 and MF only:  The GOBACK Statement

Function.

The GOBACK statement marks the logical end of a called program.

For MF only:    You can also return values to calling programs written in
any language or to the operating system environment .

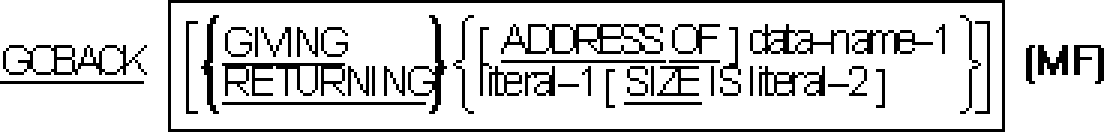

General Format.




Syntax Rules.

   1.  If a GOBACK statement appears in a consecutive sequence of
       imperative statements within a sentence, it must appear as the
       last statement in that sequence.

       This rule is not enforced, although any statements in the sentence
       that follow the GOBACK statement will not be executed.

   2.  For MF only:    GIVING and RETURNING are equivalent.

   3.  For MF only:    If thte ADDRESS OF clause is not specified,
       identifier-1 must be no larger than 8 bytes in size.

   4.  Integer-1 may be signed.

General Rules.

   1.  If a GOBACK statement is executed in a program which is under the
       control of a calling program, the object program operates as if
       executing an EXIT PROGRAM statement that has the same clauses as
       the GOBABCK statement.  See the section The EXIT Statement.

   2.  If a GOBACK statement without the ADDRESS OF clause is executed in
       a program which is not under the control of a calling program, the
       object program operates as if executing a STOP RUN statement that
       has the same clauses as the GOBACK statement.

   3.  If a GOBACK statement with the ADDRESS OF clause is executed in a
       program which is not under the control of a calling program, the
       object program operates as if executing a STOP RUN statement
       except that an arbitrary returned value is set in the system area.
       The GOBACK statement may result in more compact code than the
       equivalent EXIT PROGRAM and STOP RUN statement.

   4.  A GOBACK statement must not be executed while executing a
       declarative procedure in which the GLOBAL phrase is specified
       except in a program called while executing that declarative
       procedure.

The GO TO Statement

Function.

The GO TO statement causes control to be transferred from one part of the
Procedure Division to another.

For ANS85 only:  The option of omitting procedure-name-1 in a Format 1 GO
TO statement is classed as an obsolete element in the ANSI'85 standard
and is scheduled to be deleted from the next full revision of the ANSI
Standard .

For MF only:    All dialects in this COBOL implementation fully support
this syntax.  Refer to your COBOL System Reference for details on using
the FLAGSTD directive to detect all occurrences of this syntax.

For XOPEN only:  Although it is a part of the standard COBOL definition,
omitting the procedure-name in Format 1 is explicitly excluded from the
X/Open COBOL language definitions and should not be used in an X/Open
COBOL conforming source program.

General Formats.

Format 1.




Format 2.




Syntax Rules.

All Formats.

   1.  Identifier is the name of a numeric elementary item which is an
       integer.

   2.  When a paragraph is referenced by an ALTER statement, that
       paragraph can consist only of a paragraph header followed by a
       Format 1 GO TO statement.

Format 1.

3.      A Format 1 GO TO statement, without procedure-name-1, can only
        appear in a single statement paragraph.

        For MF only:    This restriction is not enforced.

4.      If a GO TO statement represented by Format 1 appears in a
        consecutive sequence of imperative statements within a sentence,
        it must appear as the last statement in that sequence.

Format 2.

5.      In Format 2, at least two procedure-names should be specified.

        For ANS85 only:  A Format 2 statement can be written with only
        one procedure name.

General Rules.

All Formats.

   1.  If procedure-name-1 is not specified in Format 1, an ALTER
       statement, referring to this GO TO statement, must be executed
       prior to the execution of this GO TO statement.

       For MF and VSC2 only:    If an ALTER statement referring to the
       paragraph containing this GO TO statement has not been executed
       before this GO TO statement is executed, this GO TO statement is
       treated like a CONTINUE .

Format 1.

2.      When a GO TO statement represented by Format 1 is executed,
        control is transferred to procedure-name-1 or to another
        procedure-name if the GO TO statement has been modified by an
        ALTER statement.

Format 2.

3.      When a GO TO statement represented by Format 2 is executed,
        control is transferred to procedure-name-1, procedure-name-2, and
        so on, depending on the value of the identifier being 1, 2,...,
        n.  If the value of the identifier is anything other than the
        positive or unsigned integers 1, 2,..., n, then no transfer
        occurs and control passes to the next statement in the normal
        sequence for execution.

The IF Statement

Function.

The IF statement causes a condition to be evaluated (see the section
Conditional Expressions earlier in this chapter).  The subsequent action
of the object program depends on whether the value of the condition is
true or false.

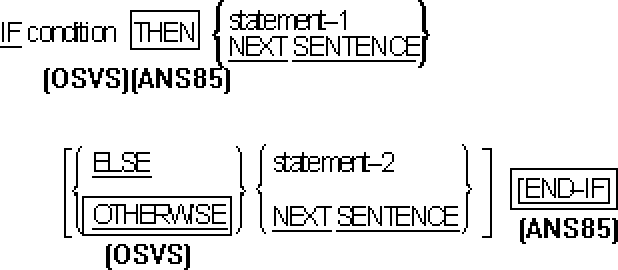

General Format.




Syntax Rules.

   1.  Statement-1 and statement-2 represent either an imperative
       statement or a conditional statement optionally preceded by an
       imperative statement.

   2.  If the END-IF phrase is specified, the NEXT SENTENCE phrase must
       not be specified (ANS85).

       NEXT SENTENCE can be specified with END-IF (VSC2)(MF).

       If the NEXT SENTENCE phrase is executed, control will not pass to
       the next statement following the END-IF, but instead will pass to
       the statement after the closest following period.

General Rules.

   1.  The scope of an IF statement can be terminated by any of the
       following:

          a.  For ANS85 only:  An END-IF phrase at the same level of
              nesting.

          b.  A separator period.

          c.  If nested, by an ELSE phrase associated with an IF
              statement at a higher level of nesting.

   2.  When an IF statement is executed, the following transfers of
       control occur:

          a.  If the condition is true, statement-1 is executed if
              specified.  If statement-1 contains a procedure branching
              or conditional statement, control is explicitly transferred
              in accordance with the rules of that statement.  If
              statement-1 does not contain a procedure branching or
              conditional statement, the ELSE phrase, if specified, is
              ignored and control passes to the end of the IF statement.

          b.  If the condition is true and the NEXT SENTENCE phrase is
              specified instead of statement-1, the ELSE phrase, if
              specified, is ignored and control passes to the next
              executable sentence.

          c.  If the condition is false, statement-1 or its surrogate
              NEXT SENTENCE is ignored, and statement-2, if specified, is
              executed.  If statement-2 contains a procedure branching or
              conditional statement, control is explicitly transferred in
              accordance with the rules of that statement.  If
              statement-2 does not contain a procedure branching or
              conditional statement, control passes to the end of the IF
              statement.  If the ELSE statement-2 phrase is not
              specified, statement-1 is ignored and control passes to the
              end of the IF statement.

          d.  If the condition is false, and the ELSE NEXT SENTENCE
              phrase is specified, statement-1 is ignored, if specified,
              and control passes to the next executable sentence.

   3.  Statement-1 and/or statement-2 can contain an IF statement.  In
       this case the IF statement is said to be nested.

       For ANS85 only:  IF statements within IF statements are considered
       matched IF, ELSE, and END-IF ordered combinations, proceeding from
       left to right.  Thus, any ELSE encountered is matched with the
       nearest preceding IF that has not been already matched with an
       ELSE or has not been implicitly or explicitly terminated.  Any
       END-IF encountered is matched with the nearest preceding IF that
       has not been implicitly or explicitly terminated.

For ANS85 only:  The INITIALIZE Statement

Function.

The INITIALIZE statement provides the ability to set selected types of
data fields to predetermined values; for example, numeric data to zeros
or alphanumeric data to spaces.

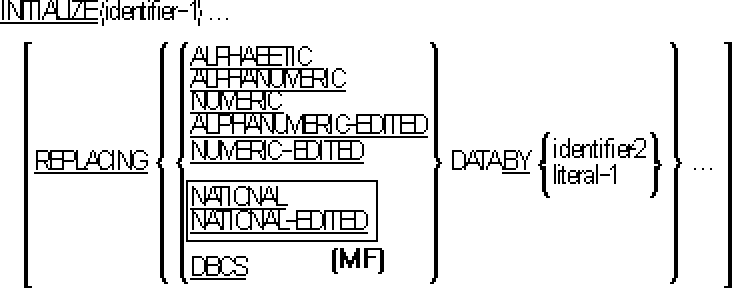

General Format.




Syntax Rules.

   1.  Literal-1 and the data item referenced by identifier-2 represent
       the sending area; the data item referenced by identifier-1
       represents the receiving area.

   2.  Each category stated in the REPLACING phrase must be a permissible
       category as a receiving operand in a MOVE statement where the
       corresponding data item referenced by identifier-2 or literal-1 is
       used as the sending operand.  (See the section The MOVE Statement
       later in this chapter.)

   3.  The same category cannot be repeated in a REPLACING phrase.

   4.  The description of the data item referenced by identifier-1 or any
       items subordinate to identifier-1 can not contain the DEPENDING
       phrase of the OCCURS clause.

       For VSC2 only:  The data item referenced by identifier-1 can not
       be variably located, that is, can not follow in the same record
       description an item containing the DEPENDING phrase of the OCCURS
       clause unless identifier-1 is subordinate to that item with the
       OCCURS clause.

       For MF only:    The data item referenced by identifier-1 can be
       variably located.

   5.  An index data item can not appear as an operand of an INITIALIZE
       statement.

   6.  The data description entry for the data item referenced by
       identifier-1 must not contain a RENAMES clause.

   7.  For VSC2 and MF only:  A floating-point data item or literal can
       be used anywhere a numeric identifier or literal is specified.

   8.  For MF only:    NATIONAL and NATIONAL-EDITED fields can only be
       initialized with national character values.

General Rules.

   1.  The key word following the word REPLACING corresponds to a
       category of data as defined elsewhere in this document.  (See the
       section Concepts Of Classes Of Data in the chapter Concepts of the
       COBOL Language.)

   2.  Whether identifier-1 references an elementary item or a group
       item, all operations are performed as if a series of MOVE
       statements had been written, each of which has an elementary item
       as its receiving field, subject to the following rules:

       If the REPLACING phrase is specified:

          a.  If identifier-1 references a group item, any elementary
              item in the data item referenced by identifier-1 is
              initialized only if it belongs to the category specified in
              the REPLACING phrase.

          b.  If identifier-1 references an elementary item, that item is
              initialized only if it belongs to the category specified in
              the REPLACING phrase.

       This initialization takes place as follows:  the data item
       referenced by identifier-2 or literal-1 acts as the sending
       operand in an implicit MOVE statement to the identified item.

       All such elementary receiving fields, including all occurrences of
       table items in the group, are affected; the only exceptions are
       those fields specified in General Rules 3 and 4.

   3.  Index and pointer (MF and VSC2 only) data items and elementary
       FILLER data items are not affected by the execution of an
       INITIALIZE statement

   4.  Any item that is subordinate to a receiving area identifier and
       which contains the REDEFINES clause or any item that is
       subordinate to such an item is excluded from this operation.
       However, a receiving area identifier can itself have a REDEFINES
       clause or be subordinate to a data item with a REDEFINES clause.

   5.  When the statement is written without the REPLACING phrase, data
       items of the categories alphabetic, alphanumeric, and alphanumeric
       edited are set to spaces; data items of the categories numeric ,
       external floating-point (MF and VSC2 only) and numeric edited are
       set to zeros ; data items of the categories national and
       national-edited are set to national-edited spaces (MF only).  In
       this case, the operation is as if each affected data item is the
       receiving area in an elementary MOVE statement with the indicated
       source literal (that is, spaces or zeros).

   6.  In all cases, the content of the data item referenced by
       identifier-1 is set to the indicated value in the order (left to
       right) of the appearance of identifier-1 in the INITIALIZE
       statement.  Within this sequence, where identifier-1 references a
       group item, affected elementary items are initialized in the
       sequence of their definition in the group.

   7.  If identifier-1 occupies the same storage area as identifier-2,
       the result of the execution of this statement is undefined, even
       if they are defined by the same data description entry.  (See the
       section Overlapping Operands earlier in this chapter).

   8.  For MF only:    NATIONAL and NATIONAL-EDITED fields can be
       initialized with national character values.

MPE/iX 5.0 Documentation
