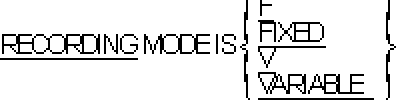

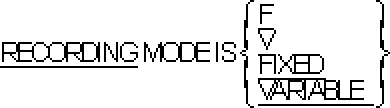

File Section (Cont.) For OSVS, MF and VSC2 only: The RECORDING MODE Clause Function. The RECORDING MODE clause specifies the format of the logical records in the file. General Formats. Format 1 (Record Sequential Files).For MF only: Format 2 (Line Sequential Files).For MF only: Format 3 (Relative and Indexed Files).For MF only: Syntax Rules. 1. F and FIXED are synonyms. 2. V and VARIABLE are synonyms. General Rules. All Formats (All Files). 1. Specifying RECORDING MODE IS F causes all the records in the file to be the same length. For MF only: Format 1 (Record Sequential Files). 2. The "U" and "S" options are documentary only. For OSVS, MF and VSC2 only: Formats 1 and 3 (Record Sequential, Relative. and Indexed Files) 3. When RECORDING MODE IS V is specified, the records in the file can be either fixed or variable in length. Each data record includes a record length field. These fields are not part of the record description. For MF only: Format 2. 4. Line sequential files are neither truly fixed nor truly variable format files: the presence or absence of any RECORDING MODE, RECORD CONTAINS or RECORD VARYING IN SIZE clause does not, therefore, impact their performance. The REDEFINES Clause Function. The REDEFINES clause allows the same computer storage area to be described by different data description entries. General Format.Note that level-number and data-name-1 or FILLER (ANS85) are shown in the above format to improve clarity. Level-number, and data-name-1 and FILLER (ANS85) are not part of the REDEFINES clause. Syntax Rules. 1. The REDEFINES clause, when specified, must immediately follow data-name-1 or FILLER (ANS85), or it can follow the PICTURE or USAGE clause (MF). 2. The level-numbers of data-name-1 and data-name-2 must be identical but must not be 66, 78 (MF) or 88. 3. This clause must not be used in level 01 entries in the File Section, since multiple level 01 entries subordinate to an FD or SD indicator represent implicit redefinitions of the same areas. (See General Rule 2 of the section The DATA RECORDS Clause in this chapter.) For MF only: This clause can be used on level 01 entries in the File Section. 4. This clause must not be used in level 01 entries in the Communication Section since multiple level 01 entries subordinate to a CD indicator represent implicit redefinition of the same area. 5. The data description for data-name-2 can contain a REDEFINES clause (OSVS)(VSC2) and data-name-2 can be subordinate to an entry which contains a REDEFINES clause. Its data description cannot contain an OCCURS clause. However, data-name-2 can be subordinate to an item whose data description entry contains an OCCURS clause. In this case, the reference to data-name-2 in the REDEFINES clause cannot be subscripted or indexed. Neither the original definition nor the redefinition can include an item whose size is variable as defined in the OCCURS clause. (See the section The OCCURS Clause in this chapter.) For MF and OSVS only: The data description for data-name-2 can contain an OCCURS clause. For MF only: Either or both of the original definition and the redefinition can include an item whose size is variable as defined in the OCCURS clause. 6. No entry having a level-number numerically lower than the level-number of data-name-2 and data-name-1 can occur between the data description entries of data-name-2 and data-name-1. 7. For OSVS, MF and VSC2 only: An external or internal floating-point data item can be the subject or object of a REDEFINES clause. 8. For ANS85 only: Data-name-2 must not be qualified even if it is not unique since no ambiguity of reference exists in this case because of the required placement of the REDIFINES clause within the source program. For OSVS only: Data-name-2 may be qualified but any qualification specified is ignored. General Rules. 1. Redefinition starts at data-name-2 and ends when a level-number less than or equal to that of data-name-2 is encountered. 2. When the level-number of data-name-1 is other than 01, it must specify the same number of character positions that the data item referenced by data-name-2 contains except that the data-name-1 area can be either smaller than the data-name-2 area (OSVS, ANS85) For MF only: or be larger than the data- name-2 area. In this case, extra storage is reserved to provide sufficient storage for the number of character positions in the largest of the redefining or redefined items. It is important to observe that the REDEFINES clause specifies the redefinition of a storage area, not of the data items occupying the area. 3. Multiple redefinitions of the same character positions are permitted. The entries giving the new descriptions of the character positions must follow the entries defining the area being redefined, without intervening entries that define new character positions. Multiple redefinitions of the same character positions must all use the data-name of the entry that originally defined the area or the data-name of any other preceding redefinition of that entry (VSC2, OSVS). 4. The entries giving the new description of the character positions must not contain any VALUE clauses except in condition-name entries. 5. Multiple level 01 entries subordinate to any given level indicator (FD, CD or SD) represent implicit redefinitions of the same area. The RENAMES Clause Function. The RENAMES clause permits alternative, possibly overlapping, groupings of elementary items. General Format.Level-number 66 and data-name-1 are shown in the above format to improve clarity. Level-number and data-name-1 are not part of the RENAMES clause. Syntax Rules. 1. Any number of RENAMES entries can be written for a logical record. 2. All RENAMES entries referring to data items within a given logical record must immediately follow the last data description entry of the associated record description entry. 3. Data-name-2 and data-name-3 must be names of elementary items or groups of elementary items in the same logical record, and cannot be the same data-name. A 66 level entry cannot rename another 66 level entry, nor can it rename a 77, 78 (MF), 88, or 01 entry. 4. Data-name-1 cannot be used as a qualifier, and can be qualified only by the names of the associated level 01, FD, CD or SD entries. Neither data-name-2 nor data-name-3 can have an OCCURS clause in its data description entry, nor be subordinate to an item that has an OCCURS clause in its data description entry. (See the section The OCCURS Clause.) 5. The beginning of the area described by data-name-3 must not be to the left of the beginning of the area described by data-name-2. The end of the area described by data-name-3 must be to the right of the end of the area described by data-name-2. Data-name-3, therefore, cannot be subordinate to data-name-2. 6. Data-name-2 and data-name-3 can be qualified. 7. The words THRU and THROUGH are equivalent. 8. None of the items within the range, including data-name-2 and data-name-3, if specified, can be an item whose size is variable as defined in the section The OCCURS Clause in this chapter. General Rules. 1. When data-name-3 is specified, data-name-1 is a group item which includes all elementary items starting with data-name-2 (if data-name-2 is an elementary item) or the first elementary item in data-name-2 (if data-name-2 is a group item), and concluding with data-name-3 (if data-name-3 is an elementary item) or the last elementary item in data-name-3 (if data-name-3 is a group item). 2. When data-name-3 is not specified, all of the attributes of data-name-2 become the data attributes for data-name-1. 3. For OSVS and VSC2 only: When data-name-2 and data-name-3 are not explicitly qualified and when no ambiguity of reference exists, implied qualification of the 01 level item is used. The SIGN Clause Function. The SIGN clause specifies the position and the mode of representation of the operational sign when it is necessary to describe these properties explicitly. General Format.Syntax Rules. 1. The SIGN clause can be specified only for a numeric data description entry whose PICTURE contains the character "S" , or a group item containing at least one such numeric data description entry. 2. The numeric data description entries to which the SIGN clause applies must be described, implicitly or explicitly, as USAGE IS DISPLAY. 3. At most one SIGN clause can apply to any given numeric data description entry. For ANS85 only: This rule is removed. 4. If the CODE-SET clause is specified, any signed numeric data description entries associated with that file description entry must be described with the SIGN IS SEPARATE clause. For MF only: This restriction is not enforced. See the section The CODE-SET Clause in this chapter. General Rules. 1. The optional SIGN clause, if present, specifies the position and the mode of representation of the operational sign for the numeric data description entry to which it applies, or for each numeric data description entry subordinate to the group to which it applies. The SIGN clause applies only to numeric data description entries whose PICTURE contains the character "S"; the "S" indicates the presence of, but neither the representation nor, necessarily, the position of the operational sign. 2. A numeric data description entry whose PICTURE contains the character "S", but to which no optional SIGN clause applies, has an operational sign, but neither the representation nor, necessarily, the position of the operational sign is specified by the character "S". In this (default) case, General Rules 3 through 5 do not apply to such signed numeric data items. The representation of the default operational sign is defined in the section Selection Of Character Representation And Radix in the chapter Concepts of the COBOL Language. 3. If the optional SEPARATE CHARACTER phrase is not present, then: a. the operational sign will be presumed to be associated with the leading (or, respectively, trailing) digit position of the elementary numeric data item in a manner defined in the section Selection Of Character Representation And Radix in the chapter Concepts of the COBOL Language. b. the letter "S" in a PICTURE character-string is not counted in determining the size of the item (in terms of standard data format characters). 4. If the optional SEPARATE CHARACTER phrase is present, then: a. the operational sign will be presumed to be the leading (or, respectively, trailing) character position of the elementary numeric data item; this character position is not a digit position. b. the letter "S" in a PICTURE character-string is counted in determining the size of the item (in terms of standard data format characters). c. the operational signs for positive and negative are the standard data format characters "+" and "-", respectively. 5. Every numeric data description entry whose PICTURE contains the character "S" is a signed numeric data description entry. If a SIGN clause applies to such an entry and conversion is necessary for purposes of computation or comparisons, conversion takes place automatically. 6. For ANS85 only: If a SIGN clause is specified for an item (either an elementary numeric data description entry or a group item) which is subordinate to a group item for which a SIGN clause is also specified, then the SIGN clause specified in the subordinate item takes precedence. 7. For OSVS, MF and VSC2 only: The SIGN clause is treated as documentary for external floating-point items. For internal floating-point items, the SIGN clause is invalid and will result in a diagnostic message. The SYNCHRONIZED Clause Function. The SYNCHRONIZEDclause specifies the alignment of an elementary item on the natural boundaries of the computer memory. For XOPEN only: Although it is a part of the standard COBOL definition, this feature is explicitly excluded from the X/Open COBOL language definitions and should not be used in a conforming X/Open COBOL source program. General Format.Directives. 1. In addition to system directives which provide flagging and modify the reserved word list, the following directive may impact either the syntax or semantics described in this section. See your COBOl System Reference for details. * IBMCOMP - When NOIBMCOMP is specified, the SYNCHRONIZED clause is treated as documentary only. Syntax Rules. 1. This clause should appear only with an elementary item. 2. SYNCis an abbreviation for SYNCHRONIZED. 3. For OSVS and VSC2 only: The SYNCHRONIZED clause can appear with a non-elementary item. General Rules. 1. SYNCHRONIZED RIGHT specifies that the elementary item is to be positioned so that it will terminate on the right character position of the natural boundary in which the elementary item is placed. It takes effect only if the IBMCOMPdirectiveis set. See your COBOL System Reference for details. 2. Specification of the LEFT phrase in the SYNCHRONIZED clause will have no effect. 3. The effect of the SYNCHRONIZED clause is, by definition, implementation-dependent. 4. This clause specifies that the subject data item is to be aligned in the computer so that no other data item occupies any of the character positions between the leftmost and rightmost natural boundaries of the computer memory which delimits this data item. If the number of character positions required to store this data item is less than the number of character positions between those natural boundaries, the unused character positions (or portions thereof) must not be used for any other data item. Such unused character positions are, however, included in: a. the size of any group item(s) to which the elementary item belongs, and: b. the character positions redefined when this data item is the object of a REDEFINES clause. Thus the size of an elementary item is unchanged by the SYNCHRONIZED clause, but extra character positions are assigned by the use of the clause. 5. SYNCHRONIZED not followed by either RIGHT or LEFT specifies that the elementary item is to be positioned between natural boundaries so that it uses the elementary data item efficiently. 6. Whenever a SYNCHRONIZED item is referenced in the source program, the original size of the item, as shown in the PICTURE clause, is used in determining any action that depends on size, such as justification, truncation or overflow. 7. If the data description of an item contains the SYNCHRONIZED clause and an operational sign, the sign of the item appears in the normal operational sign position, regardless of whether the item is SYNCHRONIZED LEFT or SYNCHRONIZED RIGHT. 8. When the SYNCHRONIZED clause is specified in a data description entry of a data item that also contains an OCCURS clause, or in a data description entry of a data item subordinate to a data description entry that contains an OCCURS clause, then: a. each occurrence of the data item is SYNCHRONIZED. b. any implicit FILLER generated for other data items within that same table is generated for each occurrence of those data items. 9. For OSVS and VSC2 only: If the SYNCHRONIZED clause is specified with a non-elementary item, then the clause applies to all the items subordinate to that non-elementary item. 10. The effect of using the SYNCHRONIZED clause is discussed in the section Selection Of Character Representation And Radix in the chapter Concepts of the COBOL Language. For MF only: The TYPEDEF Clause Function. The TYPEDEF clause defines a record as a programmer-defined structure or usage. General Format. IS TYPEDEF Syntax Rules. 1. The TYPEDEF clause can be specified only in data description entries whose level-number is 01. 2. If TYPEDEF is specified, the following clauses cannot be specified: * EXTERNAL * GLOBAL * OCCURS * REDEFINES * SYNCHRONIZED/SYNC * VALUE If the TYPEDEF clause is specified for a group item, then subordinate items can be specified with OCCURS or REDEFINES clauses. The VALUE clause cannot be specified either in the data descriptions specifying the TYPEDEF clause or in any subordinate item except for condition-names (88 level entries) within the TYPEDEF structure. 3. If the TYPEDEF clause is specified for a data description, then that same data description must include a data-name, that is, it must not be specified with either an implicit or explicit FILLER clause. 4. If a TYPEDEF clause is specified in an EXTERNAL program (call prototype) then that TYPEDEF can be referenced in any subsequent source line of the compilation group. General Rules. 1. The purpose of using the TYPEDEF clause is to create a programmer-defined usage or structure that can subsequently be referenced in the USAGE clause. 2. A record declared with the TYPEDEF clause does not allocate any storage, but declares that data-name-1 can be specified in a subsequent data description entry as typedef-name-1.
![[]](../../pic3k/M015064/FFN783c50.gif)
![[]](../../pic3k/M015064/FFN793c50.gif)
![[]](../../pic3k/M015064/FFN803c50.gif)
![[]](../../pic3k/M015064/FFN813c50.gif)
![[]](../../pic3k/M015064/FFN823c50.gif)
![[]](../../pic3k/M015064/FFN833c50.gif)
![[]](../../pic3k/M015064/FFN843c50.gif)
