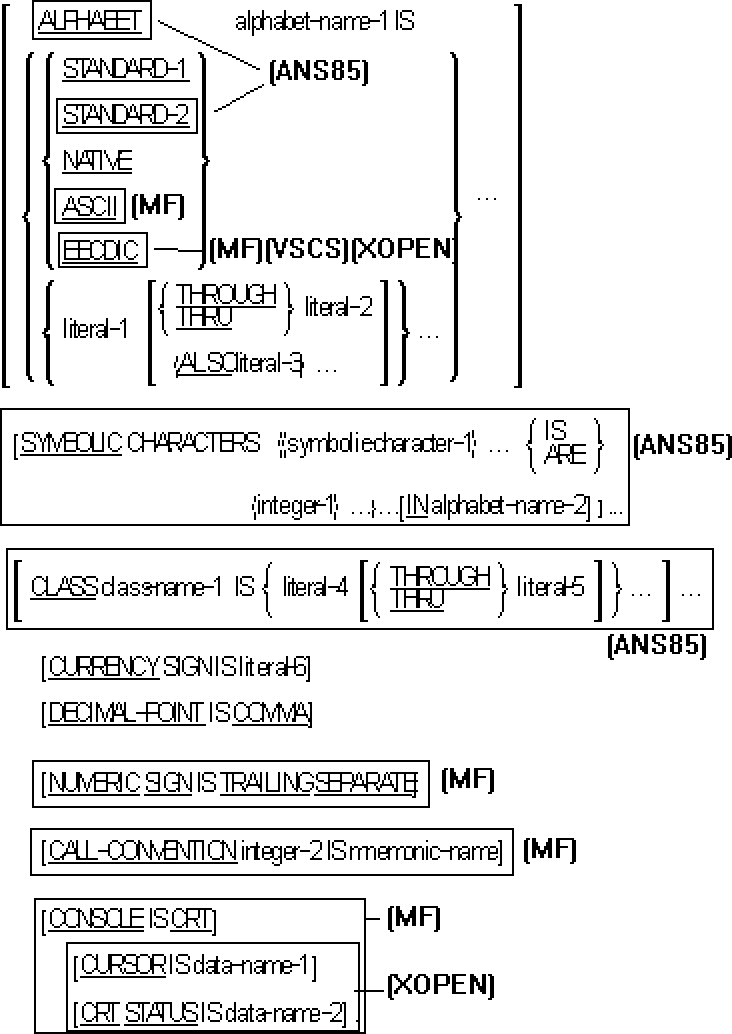

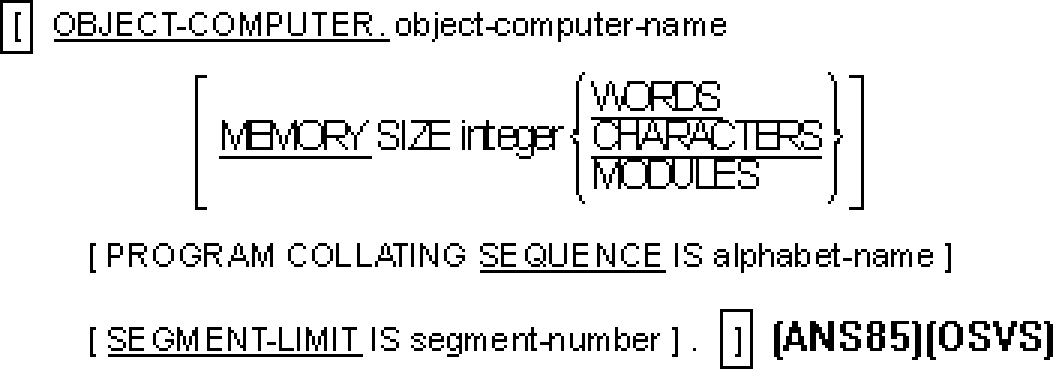

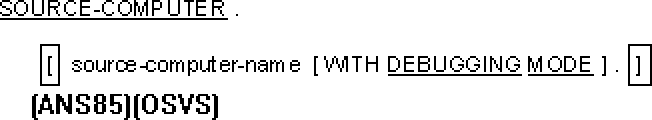

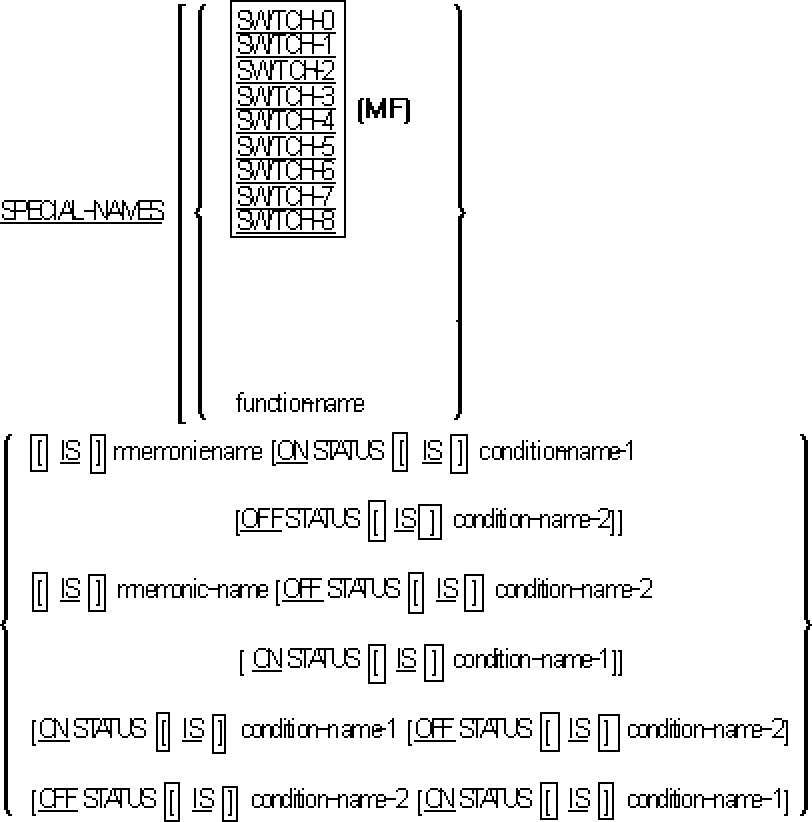

Configuration Section The Configuration Section is located in the Environment Division of a source program. The Configuration Section deals with the characteristics of the source computer and the object computer. This section also provides a means for specifying the currency sign, choosing the decimal point, relating implementor-names to user-specified mnemonic-names, relating alphabet-names to character sets or collating sequences, and relating class-names to sets of characters. For ANS85 and OSVS only: The Configuration Section is optional in the Environment Division of a COBOL source program. For MF only: The CONFIGURATION SECTION header is optional only if it is the first statement in the program. For ANS85 only: The Configuration Section must not be stated in a program which is directly or indirectly contained within another program. For ANS85 only: The entries explicitly or implicitly stated in the Configuration Section of a program which contains other programs apply to each contained program. General FormatThe Source-Computer Paragraph Function. The SOURCE-COMPUTER paragraph identifies the computer on which the program is to be compiled. It is optional. (ANS85 and OSVS) General Format.Syntax Rules. 1. Source-computer-name must be one COBOL word defined by the user. 2. For OSVS and ANS85 only: The SOURCE-COMPUTER paragraph can consist of only the SOURCE-COMPUTER header General Rules. 1. The source-computer-name provides a means for identifying equipment configuration, in which case the computer-name and its implied configuration are specified by the user. The SOURCE-COMPUTER paragraph is documentary only. 2. The WITH DEBUGGINGMODEphrase is used to enable debugging code, in accordance with Standard ANSI COBOL Debug. (See the section Environment Division in COBOL Debug in the chapter Debug Module in your Language Reference - Additional Topics.) The Object-Computer Paragraph Function. The OBJECT-COMPUTER paragraph identifies the computer on which the program is to be executed. It is optional. (ANS85 and OSVS) For ANS85 only: The MEMORY SIZE clause and the SEGMENT-LIMIT clause are classed as obsolete elements in the ANSI'85 standard and is scheduled to be deleted from the next full revision of the ANSI Standard. For MF only: All dialects within this COBOL implementation support the MEMORY SIZE clause for documentary purposes only. Refer to your COBOL System Reference for details on using the FLAGSTD directive to detect occurrences of this syntax. For XOPEN only: Although they are a part of the standard COBOL definition, the Memory Size clause and SEGMENT-LIMIT clause are explicitly excluded from the X/Open COBOL language definitions and should not be used in a conforming X/Open COBOL source program. General Format.Syntax Rules. 1. Object-computer-name must be one COBOL word defined by the user. 2. For ANS85 and OSVS only: The OBJECT-COMPUTER paragraph can consist of only the OBJECT-COMPUTER header. General Rules. 1. The computer-name provides a means for identifying equipment configuration, in which case the computer-name and its implied configurations are specified by the user. The configuration definition contains specific information concerning the memory size. The computer-name and the MEMORY SIZEclause are documentary only. 2. If the PROGRAM COLLATING SEQUENCE clause is not specified, the NATIVE collating sequence is used. The appendix Character Sets and Collating Sequences lists both the full ASCII and EBCDIC collating sequences. Either can be chosen as the NATIVE collating-sequence by use of the COBOL directive, NATIVE. (See your COBOL System Reference for details.) 3. If the PROGRAM COLLATING SEQUENCEclause is specified, the program collating sequence is the collating sequence associated with the alphabet-name specified in that clause. 4. The program collating sequence established in the OBJECT-COMPUTER paragraph is used to determine the truth value of any nonnumeric comparisons: a. explicitly specified in relation conditions (see the section Relation Condition later in this chapter). b. explicitly specified in condition-name conditions; see the section Condition-Name Condition (Conditional Variable) later in this chapter. 5. The PROGRAM COLLATING SEQUENCE clause is also applied to any nonnumeric merge or sort keys unless the COLLATING SEQUENCE phrase of the respective SORT or MERGE statement is specified. 6. The PROGRAM COLLATING SEQUENCE clause has no effect on the ordering of indexed files. 7. The PROGRAM COLLATING SEQUENCE clause applies only to the program in which it is specified. 8. The SEGMENT-LIMITclause is documentary only. (See the chapter Segmentation in your Language Reference - Additional Topics.) The Special-Names Paragraph Function. The SPECIAL-NAMES paragraph provides a means for specifying the currency sign, choosing the decimal point, specifying symbolic-characters (ANS85), relating implementor-names to user-specified mnemonic-names, relating alphabet-names to character sets or collating sequences, and relating class-names to sets of characters. For MF only: You can select one of several pre-defined parameter passing conventions. Enhancements to the CALLstatement and the PROCEDURE DIVISION header allow these parameter passing conventions to be used in inter-program communication. Examples:. An example of using the CRT status key fields is provided in the Examples chapter in your Additional Topics. General Format.Boxed brackets are (ANS85) Directives. 1. In addition to system directives which provide flagging and modify the reserved word list, the following directives may impact either the syntax or semantics described in this section. See yourCOBOL System Reference for details. * ALPHASTART - determines whether valid numeric literals used in the ALPHABET clause can begin with 0 or with 1. * CHARSET - impacts which alphabet is considered the native character set. * NATIVE - impacts which alphabet is considered the native character set. * SYMBSTART - determines whether valid numeric literals used in the SYMBOLIC CHARACTERS clause can begin with 0 or with 1. Syntax Rules. 1. Mnemonic-names can be any COBOL user-defined word. At least one constituent character must be alphabetic. 2. Function-name refers to a system device or function used by your COBOL system. For OSVS, VSC2 and MF only: Function-name refers to an externalswitchif its name is one of UPSI-0 through UPSI-7 3. If function-name references an external switch or the SWITCH-n or SWITCH (MF) option is used, the associated mnemonic-name cannot be specified anywhere except in the SET statement (ANS85). At least one condition-name should be associated with it. No condition-name is required.(ANS85) 4. If function-name does not reference an external switch, the associated mnemonic-name can be specified only in the ACCEPT, DISPLAY, SEND or WRITE statements. A condition-name cannot be associated with such an implementor-name. 5. The literals specified in the literal phrase of the alphabet- name-1 clause: a. if numeric, must be unsigned integers and must have a value within the range of one (1) through the maximum number of characters in the native character set. The lowest valid values for numeric literals in the ALPHABETclause are sensitive to the ALPHASTART directive. See your COBOL System Reference for details. b. if nonnumeric and associated with a THROUGH or ALSO phrase, must each be one character in length. c. For MF and VSC2 only: cannot be specified as floating-point literals or DBCS literals. 6. If the literal phrase of the alphabet-name-1 clause is specified, a given character must not be specified more than once in an alphabet-name clause. 7. The words THRU and THROUGH are equivalent. 8. For MF only: The words STANDARD-1 and ASCII are equivalent. 9. For ANS85 only: The reserved word IS is never required in the SPECIAL-NAMES paragraph. 10. For ANS85 only: The literals specified in the literal-4 phrase : a. if numeric, must be unsigned integers and must have a value within the range of one (1) through the maximum number of characters in the native character set. b. if nonnumeric and associated with a THROUGH phrase, must each be one character in length. c. For MF and VSC2 only: cannot be specified as floating-point or DBCS literals. 11. For ANS85 only: Literal-1,...literal-5 must not specify a symbolic-character figurative constant. 12. For ANS85 only: The same symbolic-character-1 must appear only once in a SYMBOLIC CHARACTERSclause. 13. For ANS85 only: The relationship between each symbolic-character-1 and the corresponding integer-1 is by position in the SYMBOLIC CHARACTERS clause. The first symbolic-character-1 is paired with the first integer-1, the second symbolic- character-1 is paired with the second integer-1; and so on throughout the SYMBOLIC CHARACTERS clause; the division into IS or ARE phrases is documentary only. The lowest valid value for integer-1 is sensitive to the SYMBSTARTdirective. See your COBOL System Reference for details. 14. For ANS85 only: There must be a one-to-one correspondence between occurrences of symbolic-character-1 and occurrences of integer-1, both within each IS or ARE phrase and within the entire SYMBOLIC CHARACTERS clause. 15. For ANS85 only: The ordinal position specified by integer-1 must exist in the native character set. If the IN phrase is specified, the ordinal position must exist in the character set named by alphabet-name-2; alphabet-name-2 must be described in an ALPHABET clause. 16. Literal-6 must not be a figurative constant. 17. For OSVS and VSC2 only: The clauses in the SPECIAL-NAMES paragraph can appear in any order. 18. For MF only: Integer-2 must be an unsigned integer in the range 0 to 65535. 19. For MF only: Data-name-1 of the CURSOR IS clause must be declared in the Working-Storage section of the program. 20. For MF only: The CRT STATUS clause specifies a data item into which a status value is moved after each Format 4 or 5 ACCEPT statement. In some environments, it can be defined only in the first 64K of Working-Storage. 21. For MF only: Data-name-2 must be described in the Working-Storage section and must be three bytes long. 22. For MF only: The CURSOR IS clause specifies the data item to contain the cursor address as used by the ACCEPT statement. General Rules. 1. Externalswitchesare set at run time by the operator, and the setting can be determined in the program by testing the associated condition-names. 2. If mnemonic-name is associated with an external switch, the status of that switch can be altered by execution of a Format 1 SET statement (see the section The SET Statement in this chapter). 3. The alphabet-name-1 clause provides a means for relating a name to a specified character code set and/or collating sequence. When alphabet-name-1 is referenced in the PROGRAM COLLATING SEQUENCE clause (see the section The OBJECT-COMPUTER Paragraph) or the COLLATING SEQUENCE phrase of a SORT or MERGE statement (see the sections The SORT Statement or The MERGE Statement), the alphabet-name-1 clause specifies a collating sequence. When alphabet-name-1 is referenced in a CODE-SET clause in a file description entry (see the section The File Description-1 - Complete Entry Skeleton), the alphabet-name clause specifies a character code set. a. If the STANDARD-1 or ASCII(MF) phrase is specified, the character code set or collating sequence identified is the American Standard Code for Information Interchange, as defined in American National Standard X3.4-1968. For ANS85 only: If the STANDARD-2 phrase is specified, the character code set identified is the International Reference Version of the ISO 7-bit code, as defined in International Standard 646, 7-bit Coded Character Set for Information Processing Interchange. b. If the NATIVE phrase is specified, the native character code set or native collating sequence is used. The native code set is ASCII, as defined in ANSI publication X3.4-1968. The native collating sequence is either ASCII or EBCDIC, as specified by the COBOL directive, NATIVE. (See your COBOL System Reference for details.) See the appendix Character Sets and Collating Sequences for details of the ASCII code-set and the ASCII and EBCDIC collating sequences and their correspondence. c. For MF and VSC2 only: If the EBCDIC phrase is specified, the character code set or collating sequence identified is EBCDIC. d. If the literal phrase is specified, alphabet-name-1 cannot be referenced in a CODE-SET clause (see the section The CODE-SET Clause). The character code set and/or collating sequence identified is that defined according to the following rules: i. The value of each literal specifies: A. The ordinal number of a character within the native character set, if the literal is numeric. This value must not exceed the value which represents the number of characters in the native character set. B. The actual character within the native character set, if the literal is nonnumeric. If the value of the nonnumeric literal contains multiple characters, each character in the literal, starting with the leftmost character, is assigned successive ascending positions in the collating sequence being specified. ii. The order in which the literals appear in the ALPHABETclause specifies, in ascending sequence, the ordinal number of the character within the collating sequence being specified. iii. Any characters within the native collating sequence which are not explicitly specified in the literal phrase, assume a position, in the collating sequence being specified, greater than any of the explicitly specified characters. The relative order within the set of these unspecified characters is unchanged from the native collating sequence. iv. If a character code-set is being specified, for each character within the native character set that is not specified by the literal-1 phrase, the implementor defines the ordinal number within the character code-set being specified. v. If the THROUGH phrase is specified, the set of contiguous characters in the native character set, beginning with the character specified by the value of literal-1, and ending with the character specified by the value of literal-2, is assigned a successive ascending position in the collating sequence being specified. In addition, the set of contiguous characters specified by a given THROUGH phrase can specify characters of the native character set in either ascending or descending sequence. vi. If the ALSO phrase is specified, the characters of the native character set specified by the value of literal-1, and literal-3 are assigned to the same position in the collating sequence being specified , or in the character code set that is used to represent the data. (ANS85) 4. The character that has the highest ordinal position in the program collating sequence is associated with the figurative constant HIGH-VALUE except when this figurative constant is specified as a literal in the SPECIAL-NAMES paragraph.(ANS85) If more than one character has the highest position in the program collating sequence, the last character specified is associated with the figurative constant HIGH-VALUE 5. The character that has the lowest ordinal position in the program collating sequence is associated with the figurative constant LOW-VALUE except when this figurative constant is specified as a literal in the SPECIAL-NAMES paragraph. (ANS85) If more than one character has the lowest position in the program collating sequence, the first character specified is associated with the figurative constant LOW-VALUE. 6. For MF, OSVS, and VSC2 only: Floating-point literals cannot be used in a user-specified collating sequence. 7. For ANS85 only: When specified as literals in the SPECIAL-NAMES paragraph, the figurative constants HIGH-VALUEand LOW-VALUEare associated with those characters having the highest and lowest positions, respectively, in the native collating sequence. 8. For ANS85 only: The SYMBOLIC CHARACTERS clause is used to define user- defined words that can be used like figurative constants. If the IN phrase is not specified, symbolic-character-1 represents the character whose ordinal position in the native character set is specified by integer-1. If the IN phrase is specified, integer-1 specifies the ordinal position of the character that is represented in the character set named by alphabet-name-2. 9. For ANS85 only: The internal representation of symbolic-character-1 is the internal representation of the character that is represented in the native character set. 10. Literal-6, which appears in the CURRENCY SIGN IS literal clause, is used in the PICTURE clause to represent the currency symbol. The literal is limited to a single character and must not be one of the following characters: * digits 0 thru 9; * uppercase alphabetic characters A, B, C, D, L, P, R, S, V, X, Z, or the space; For MF only: C and R are allowed For ANS85 only: L is allowed For OSVS, MF, VSC2 only: E cannot be used in programs that include external floating-point data items For VSC2 and MF only: G cannot be used in programs with DBCS data items or literals For ANS85 only: lowercase alphabetic characters a through z, For MF only: (except e, f, g, h, i, j, k, m, n, o, q, t, u, w, y); * special characters *, +, -, ", ., ;, (, ), / or =. If this clause is not present, only the currency sign defined in the COBOL character set is used in the PICTURE clause. See the section Character Set in the chapter Concepts of the COBOL Language. 11. The DECIMAL-POINT IS COMMAclause means that the function of comma and period are exchanged in the character-string of the PICTURE clause and in numeric literals. 12. For MF only: If the NUMERIC SIGNclause is specified, the default for signed numeric items is for the sign to be stored as a trailing separate character. 13. If function-name does not reference an external switch, it can be selected from the following list:
![[]](../../pic3k/M015064/FFN323c50.gif)
![[]](../../pic3k/M015064/FFN333c50.gif)
![[]](../../pic3k/M015064/FFN343c50.gif)
![[]](../../pic3k/M015064/FFN353c50.gif)
![[]](../../pic3k/M015064/FFN363c50.gif)
