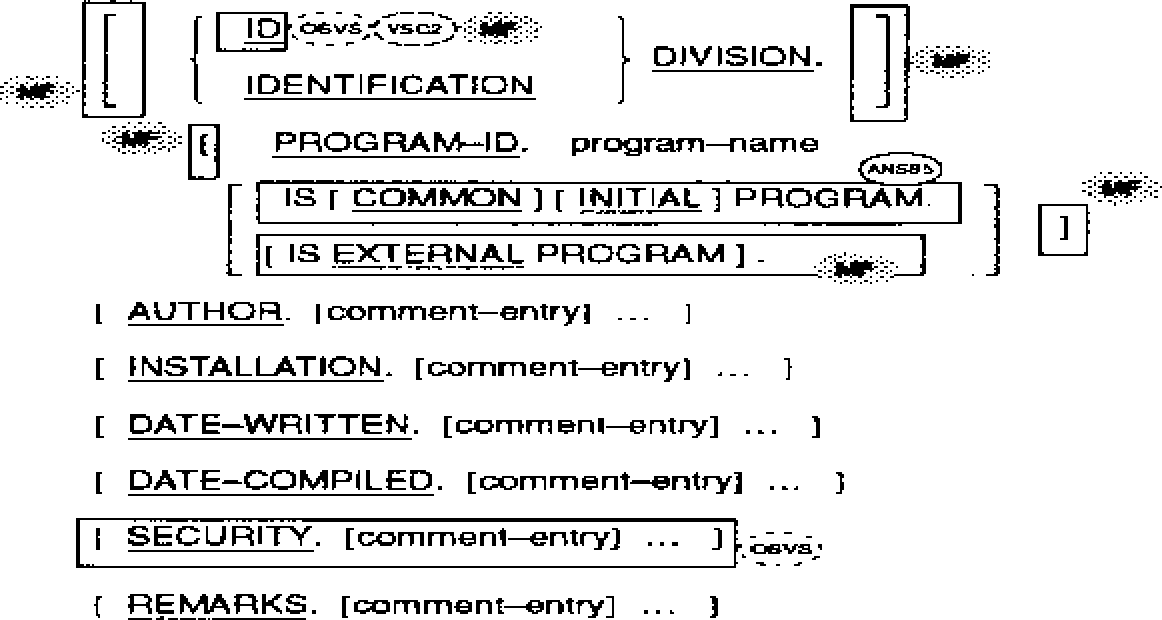

Structure For OSVS and VSC2 only: The General Format of the paragraphs in the Identification Division is given below. Paragraphs can appear in any order. General FormatSyntax Rules 1. For OSVS and VSC2 only: The paragraphs can appear in any order. 2. For OSVS and VSC2 only: The periods following the paragraph-names in the Identification Division are optional as is the period following the program-name. 3. The comment-entrycan be any combination of the characters from the computer's character set. The continuation of the comment-entry by the use of a hyphen in the continuation area is not permitted. If the system directive SOURCEFORMTAT is specified as or defaulted to FIXED, the comment-entry can be contained on one or more lines but is restricted to area B of those lines; the next line commencing in area A will begin the next non-comment entry. For MF only: If the system directive SOURCEFORMAT is specified as FREE, the comment-entry cannot be continued; the next line will beginthe next non-comment entry. For VSC2 only: The comment-entry can contain the SKIP1, SKIP2, SKIP3, EJECT or TITLE statements anywhere on the line. These statements will be actioned if they are alone on a line in the comment-entry, and will not terminate the comment-entry. For OSVS only: The comment-entry can contain the SKIP1, SKIP2, SKIP3, or EJECT statements anywhere in the B margin. These statements will be actioned if they are alone on a line in the comment-entry, and will not terminate the comment-entry. For OSVS only: The comment-entry can be contained in either area A or area B of the comment-entry lines. However, the next occurrence in area A of any one of the following COBOL words or phrases will terminate the comment-entry and begin the next paragraph or division: PROGRAM-ID AUTHOR INSTALLATION DATE-WRITTEN DATE-COMPILED SECURITY ENVIRONMENT DATA PROCEDURE 4. For MF only: The EXTERNAL clause establishes that a program is intended as a call prototype and not as executable object code. When the EXTERNAL clause is specified in the PROGRAM-NAME paragraph, then no other IDENTIFICATION DIVISION paragraphs should be specified, no ENVIRONMENT DIVISION should be specified, only the LINKAGE SECTION should be specified in the DATA DIVISION, and only the PROCEDURE DIVISION header and ENTRY statements should appear in the PROCEDURE DIVISION. The PROGRAM-ID Paragraph and Nested Source Programs (ANS85) Function. The PROGRAM-ID paragraph gives the name by which a program is identified, and assigns selected program attributes to that program. General Formats. Format 1. PROGRAM-ID program-name [ comment-entry ] (MF) For ANS85 only: Format 2. PROGRAM-ID program-name [IS [COMMON] [INITIAL] PROGRAM]. Directives. 1. In addition to system directives which provide flagging and modify the reserved word list, the following directives may impact either the syntax or semantics described in this section. See your COBOL System Reference for details. * CASE - determines whether upper-case and lower-case letters are considered equivalent. * DEFAULT-BYTE - sets the value for data items defined in Working-Storage Section without a VALUE clause. * MAPNAME - impacts the handling of non-alphabetic characters in the program-name. * PROGID-COMMENT - allows comments after the program-name. Syntax Rules. 1. The program-namemust conform to the rules for formation of a user-defined word. 2. For VSC2 and OSVS only: The first eight characters of program-name of the outermost program should be unique in the system. The first character must be alphabetic. If the first character is not alphabetic, it is converted as follows: 1 through 9 are changed to A through I respectively. Anything else is changed to J. If a hyphen is used in characters 2 through 8 of the program-name of the outermost program, it is changed to zero (0). For VSC2 only: For programs that are contained in another program, program-name can be any valid user-defined COBOL word, up to 30 characters long. The first eight characters need not be unique, and they will not be converted as described above. Lowercase letters are valid, but such program-names will be handled in a case-insensitive manner. 3. For VSC2 and OSVS only: The program-name can be a nonnumeric literal. The content of the literal must follow the rules for formation of program-names. 4. For OSVS only: The program-name can be the same as another user-defined word. The program-name cannot be the same as another user-defined word. 5. For ANS85 only: The program-name of a nested program must be unique within the separately compiled program containing it. 6. For ANS85 only: The optional COMMON clause can be used only if the program is contained within another program. 7. For ANS85 only: If the IS PROGRAM phrase is present, either COMMON, INITIAL or both must be specified. When both are specified, the order is irrelevant. General Rules. 1. The program-name is associated with the object code file pertaining to this COBOL program. 2. The COMMONclause specifies that the program is common. A common program is contained within another program but can be called from programs other than that containing it. (ANS85) 3. The INITIALclause specifies that the program is initial. When an initial program is called, it and any programs contained within it are placed in their initial state. See the section Initial State Of A Program earlier in this chapter. (ANS85) For ANS85 only: Common Programs and Initial Programs A common program is one which, despite being directly contained in another program, can be called by any program directly or indirectly contained in that other progam. The common attribute is attained by specifying the COMMON clause in a program's Identification Division. The COMMON clause facilitates the writing of subprograms which are to be used by all the programs contained in a program. An initial program is one whose program state is initialized when the program is called. Thus, whenever an initial program is called, its program state is the same as when the program was first called in that run unit. During the process of initializing an initial program, that program's internal Working-Storage data is initialized; thus an item of the program's internal data whose description contains a VALUE clause is initialized to that defined value, For MF only: but an item whose description does not contain a VALUE clause is initialized to a value depending on the DEFAULTBYTEdirective(see your COBOL System Reference). Files with internal file connectors associated with the program are not in the open mode. The control mechanisms for all PERFORM statements contained in the program are set to their initial state. A GOTO statement referred to by an ALTER statement contained in the same program is set to its intial state. The initial attribute is attained by specifying the INITIAL clause in the program's Identification Division. Sharing Data. Two programs in a run unit can reference common data in the following circumstances: * The data content of an external data record can be referenced from any program provided that program has described that data record. * If a program is contained in another program, both programs can refer to data possessing the global attribute either in the containing program or in any program which directly or indirectly contains the containing program. * The mechanism whereby a parameter value is passed by reference from a calling program to a called program establishes a common data item; the called program, which can use a different identifier, can refer to a data item in the calling program. For ANS85 only: Sharing File Connectors. Two programs in a run unit can reference common file connectors in the following circumstances: * An external file connector can be referenced from any program which describes that file connector. * If a program is contained in another program, both programs can refer to a common file connector by referring to an associated global file-name either in the containing program or in any program which directly or indirectly contains the containing program. The DATE-COMPILED Paragraph Function. The DATE-COMPILED paragraph provides the date the intermediate code was produced in the Identification Division source program listing. General Format. DATE-COMPILED [comment-entry] ... Directives. 1. In addition to system directives which provide flagging and modify the reserved word list, the following directives may impact either the syntax or semantics described in this section. See your COBOL System Reference for details. * DATE - impacts the format in which the date is printed in this paragraph. Syntax Rule. The comment-entry can be any combination of the characters from the computer's character set. The continuation of the comment entry by use of the hyphen is not permitted; however, the comment entry can be contained on one or more lines. The comment-entry lines must be contained in area B. The next line commencing in area A will begin the next non-comment paragraph. General Rule. The paragraph-name DATE-COMPILED causes your COBOL system to insert a date comment-entry as the executable code is created. If a DATE-COMPILED paragraph is present (with or without a comment-entry), the paragraph is replaced in the program listing with one of the form: DATE-COMPILED. current-date-and-time . where the date and time format is ''DD-MMM-YY hh:mm''. For MF only: See your COBOL System Reference for details of the DATEdirectivewhich can impact the comment-entry replacement string for your COBOL implementation. For ANS85 only: The value inserted in the DATE-COMPILED paragraph will also be the value used in the When-Compiled intrinsic function. However, the format can differ. For OSVS only: The REMARKS Paragraph The REMARKS paragraph allows a comment-entry to be specified. (See Syntax Rule 3 under the section Identification Division earlier in this chapter.)
![[]](../../pic3k/M015064/FFN313c50.gif)
