Source Format
The COBOL source format divides each COBOL
source record into 72 columns. These columns are used in the following
way:
Columns 1 - 6 Sequence number
Column 7 Indicator area
Column 8 - 11 Area A
Columns 12 - Area B
72
Sequence Number
A sequence number of six digits can be used to identify each source
program line.
________________________________________________________________________
|(MF) |
|If the first character position of the sequence number field contains |
|an asterisk, or any nonprinting control |
|character (less than the character SPACE in the ASCII collating |
|sequence), then the line is treated as comments and is not output to |
|the listing file or device. This facility allows an output listing |
|file to be used as a source file to a subsequent compile. |
| |
|This support is sensitive to the MFCOMMENT compiler directive. See |
|your COBOL System Reference for details. |
________________________________________________________________________
________________________________________________________________________
|(ANS85) |
|The sequence number can contain any character in the computer's |
|character set. |
________________________________________________________________________
Indicator Area
An asterisk (*) in this area marks the line as documentary comment only.
Such a comment line
can appear anywhere in the program after the IDENTIFICATION DIVISION
header. Any characters from the ASCII character set can be included in
area A and area B of the line.
________________________________________________________________________
|(OSVS) (VSC2) (MF) |
|A comment line can appear before the IDENTIFICATION DIVISION |
|header. |
________________________________________________________________________
A slash (/) in the indicator area acts as a comment
line above but causes the page to eject before printing the comment.
A "D" or "d" (MF) (VSC2) in the indicator area represents a debugging
line. Areas A and B can contain any valid COBOL sentence.
A "-" in the indicator area represents a continuation
of the previous line without spaces or the continuation of a non-numeric
literal (see the chapter COBOL Concepts).
Areas A and B
Section names and paragraph names begin in area
A and are followed by a period and a space. Level indicators FD, SD, CD
and 01, 66, 77, 78 (MF) and 88 begin in area A and are followed in area B
or area A (ANS85) by the appropriate file and record description.
________________________________________________________________________
|(MF) |
|No rules regarding area A and area B are enforced except in relation |
|to comment-entries in the Identification Division. |
________________________________________________________________________
More than one sentence is permitted in each source record.
Figure 1-1 shows the source format of a typical program.
000010 IDENTIFICATION DIVISION.
000020 PROGRAM-ID. STOCK-FILE-SET-UP.
000030 AUTHOR. MICRO FOCUS LTD.
000040 ENVIRONMENT DIVISION.
000050 CONFIGURATION SECTION.
000060 SOURCE-COMPUTER. MDS-800.
000070 OBJECT-COMPUTER. MDS-800.
000075 SPECIAL-NAMES. CONSOLE IS CRT.
000080 INPUT-OUTPUT SECTION.
000090 FILE-CONTROL.
000100 SELECT STOCK-FILE ASSIGN "STOCK.IT"
000110 ORGANIZATION INDEXED
000120 ACCESS DYNAMIC
000130 RECORD KEY STOCK-CODE.
000140 DATA DIVISION.
000150 FILE SECTION.
000160 FD STOCK-FILE; RECORD 32.
000170 01 STOCK-ITEM.
000180 02 STOCK-CODE PIC X(4).
000190 02 PRODUCT-DESC PIC X(24).
Figure 1-1. Sample Program Listing Showing Source Format (Cont'd Overleaf)
![[]](../../pic3k/M013027/FFN83c50.gif)

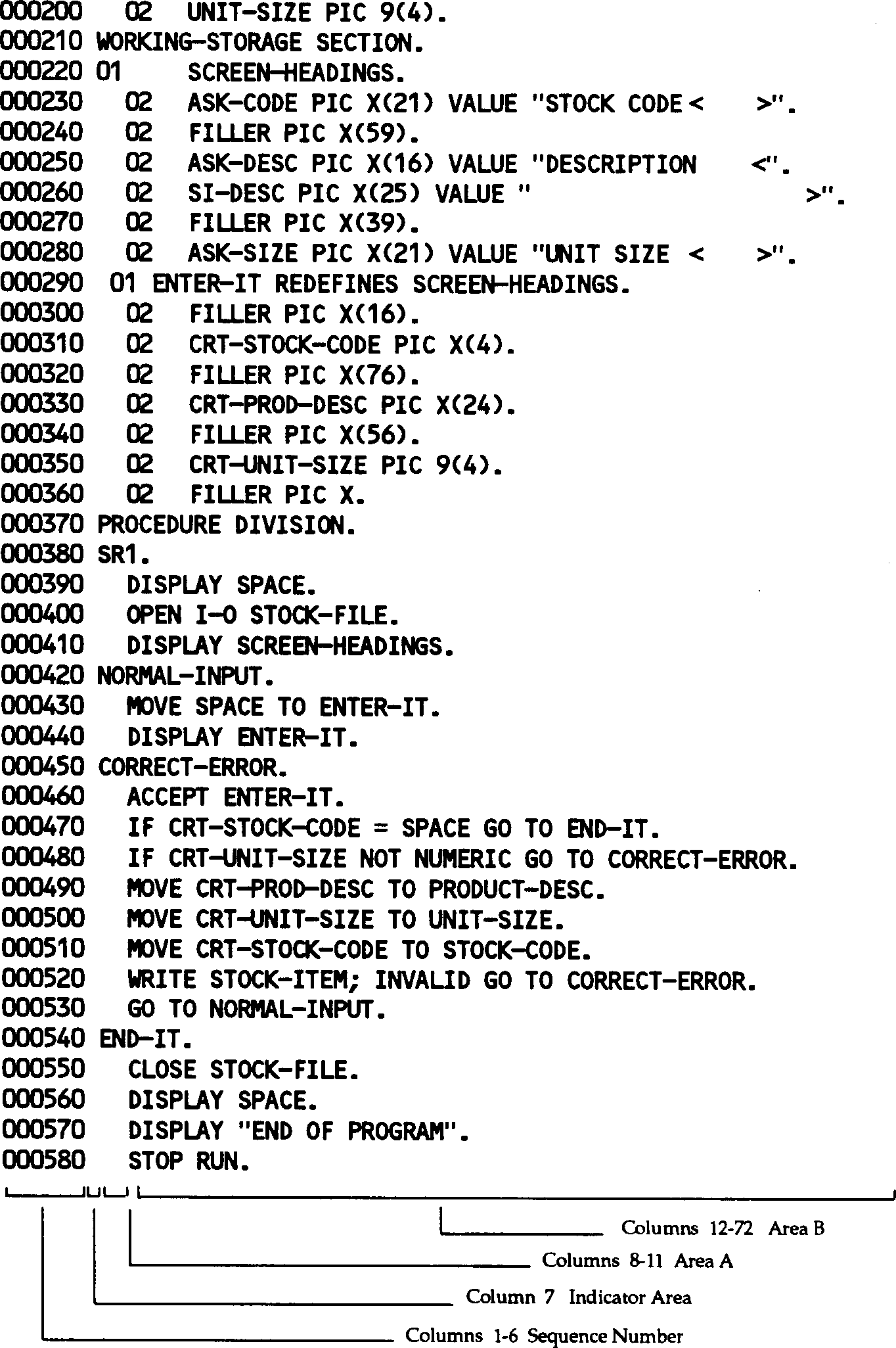

Figure 1-1. (Cont'd) Sample Program Listing Showing Source Format
