Preparing and Using a Program
This sample session illustrates all the essential steps in preparing an
application for use:
* compiling - checking its syntax and producing intermediate code
* animating - testing and debugging it
* generating - producing an object program in native machine code
* running it
* linking - producing a single executable file containing the object
program, plus the support modules it needs from the Micro Focus
Run-Time Environment
Compiling
1. Copy the source file tictac.cbl into one of your work directories.
You will find this file in the directory containing the tutorial
programs supplied with the COBOL system. They are in subdirectory
"demo" within the directory pointed to by the $COBDIR environment
variable.
2. Enter the following command:
cob -av tictac.cbl
The explanation of this command line is:
cob tells the system to check the syntax and
compile your source code.
- indicates the start of the flags that you
set to control compilation.
a is a flag that tells cob that you will be
using Animator to test the program.
v is a flag that sets "verbose" mode, in which
cob displays messages to show progress.
tictac.cbl is the name of the program source file to
compile. The Compiler looks for the file
tictac with the extension .cbl or .cob.
You could in fact omit the "a" flag, as it is the default; we have
included it here for clarity.
The Compiler banner appears, including the version number of the
COBOL system. The Compiler then checks the source code for syntax
errors and creates intermediate code, displaying a number of
messages indicating its progress. The system then outputs the
intermediate code in the .int file, and extra information needed
by the Animator in a .idy file. When compiling is complete, the
following message appears:
Data=xxxxxxxxx Code=yyyyyyyyy
This means the compilation produced an object program needing
xxxxxxxxx bytes of data storage and yyyyyyyyy bytes of storage for
Procedure Division code.
You could run the .int program now, using cobrun. However, there
is a very powerful tool available for testing and debugging the
logic of your program, and it's a good idea to use this tool next.
Animating
Now use Animator to watch the source code executing.
Note: Animator animates .int files; if it finds a .gnt file, it runs
it without animation. If you run through this sample session a
second time, make sure you have no tictac.gnt file left from the
previous time.
3. Enter:
anim tictac
The system displays the Animator banner, including the version number
and copyright information, and then displays the Animator main menu

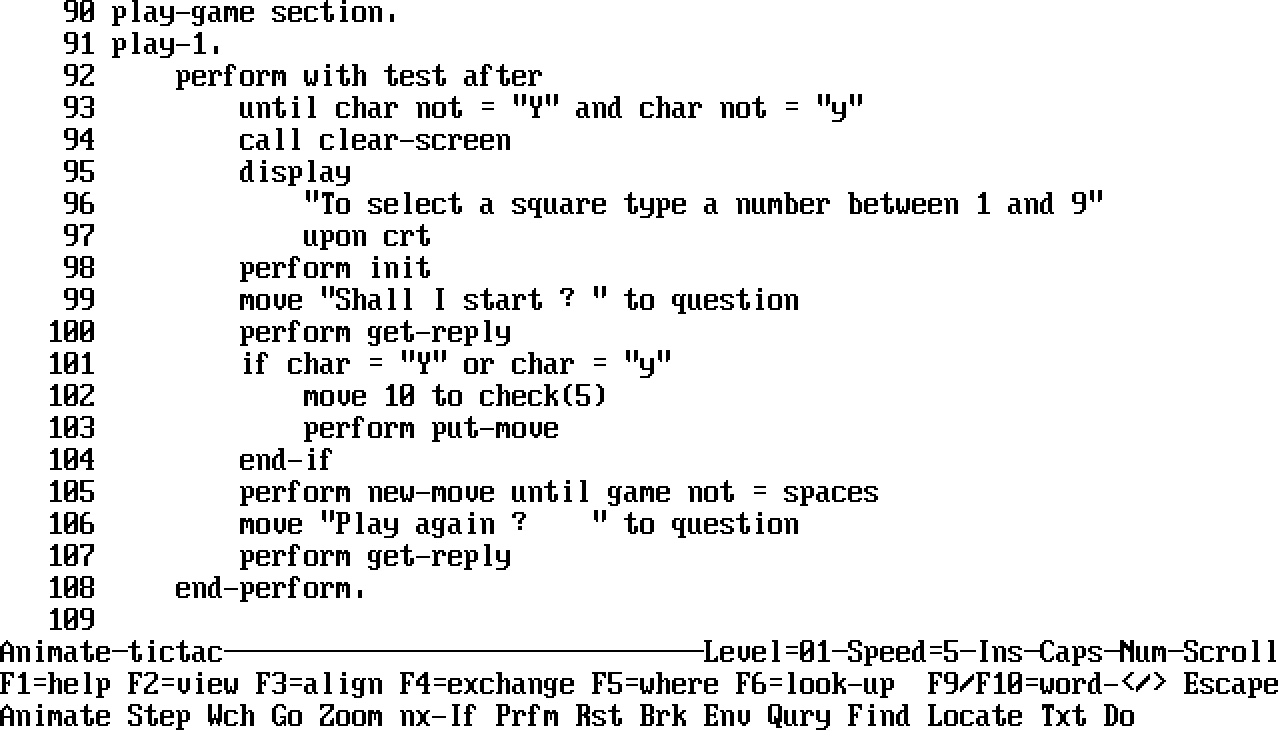

screen, shown in Figure 3-1
![[]](../../pic3k/M013011/FFN13c50.gif)
Figure 3-1. The Animator Screen
This screen consists of four parts:
* the text area
* the information line
* the menu
* the message area
The text area means the main body of the screen.
The menu, at the bottom of the screen, shows the functions available at
this point. Each function has a function key (shown as Fnn=) associated
with it; pressing the key activates the function.
Above the menu is the third part of the screen, the information line.
This line contains a mixture of fixed and variable information. For
example, the information line can contain the menu name, the name of the
program you are working with, the status of the Insert, Caps,
Num Lock and Scroll Lock keys, and toggle settings. A toggle is a key
that selects between options.
The message area is below the menu, on the bottom line of your display,
and is where messages are usually displayed.
The source code is displayed with the cursor positioned under the first
executable statement:
perform with test after
The Animate main menu appears at the bottom of the screen. It displays
an information line containing the program name Tictac, together with
level, speed, Ins, Caps, Num and Scroll indicators. The next two lines
contain the function and letter key options you use to control the way
the program is animated.
Controlling the Speed.
You can execute your program in one of three modes: Step, Go and Zoom.
When you execute your program in Step mode, you manually control the
execution of each statement. In Go mode, you initially set the speed of
execution, then watch as each statement is automatically executed. Zoom
mode executes the entire program without displaying the source until it
reaches the end of the program (you can interrupt it, or set a breakpoint
where it will stop). These modes of execution are described in the
following sections.
Stepping Through the Program.
The first letter command on the Animate menu is Step.
4. Press S to begin stepping through your program.
The cursor is now positioned under the next executable statement:
call clear-screen
5. Press Step again twice.
This positions the cursor on the DISPLAY statement and then executes
the statement.
This causes a brief display of the user screen in its current state.
The user screen is the screen displayed by the program itself, that
is, the screen that would be seen by the user if you were running the
program without Animator. The screen showing the source is called
the Animator screen. The user screen briefly appears each time you
execute a DISPLAY statement.
The cursor then moves to the beginning of the statement:
perform init
6. Now press F2=view.
The user screen appears showing the text displayed by the executed
DISPLAY statement:
To select a square type a number between 1 and 9
You can use the view facility to view the user screen at any time
during animation.
7. Press any key to return to the Animator screen.
8. Now execute the next three statements in the program by pressing Step
three times.
Each time you press Step another statement is executed, and you can
see what is actually happening in the program.
Executing in Go Mode.
In Go mode, your program is automatically executed at the speed you
select, and you can watch exactly what is happening in the program.
9. To start Go mode, press G.

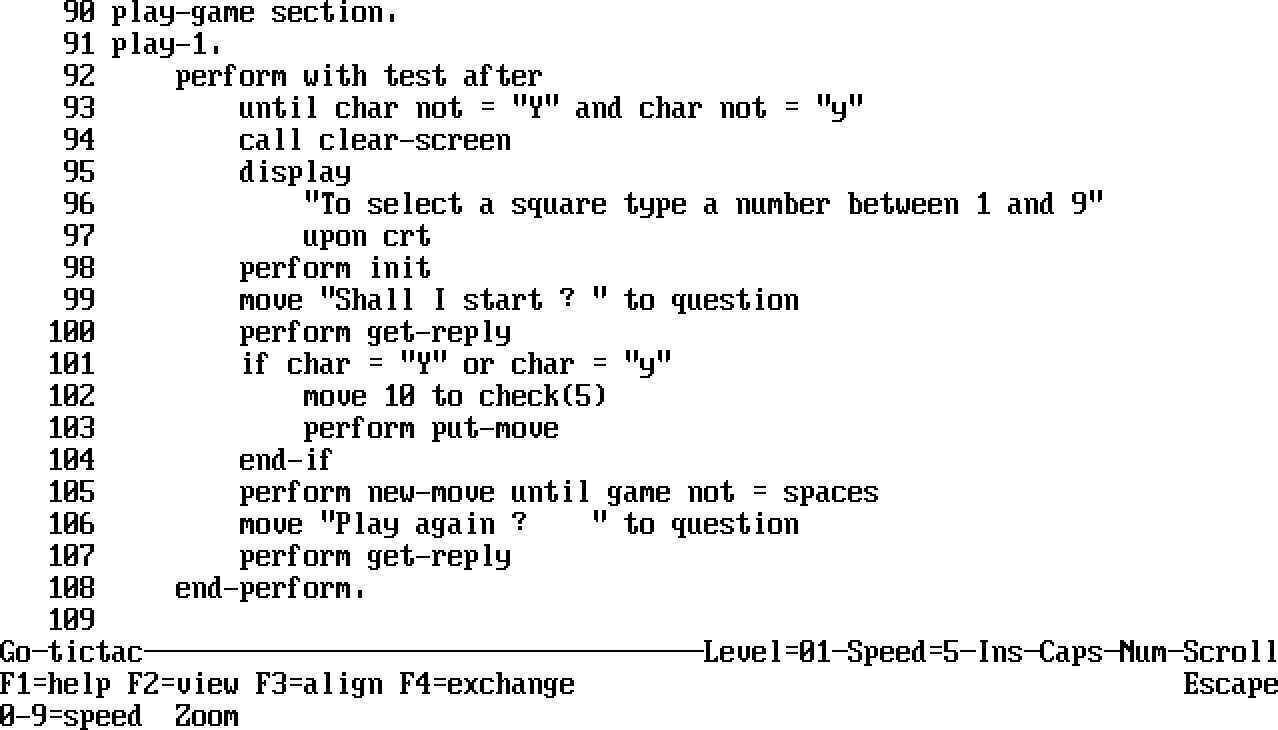

The Go menu shown in Figure 3-2 appears at the bottom of the
screen as execution begins. The program is currently executing at a
speed of 5, the default setting.
10. Press 7 to increase the speed.
![[]](../../pic3k/M013011/FFN23c50.gif)
Figure 3-2. The Go Menu
This change in speed is displayed on the information line. You can
set execution speed from either the Animate main menu or the Go
menu. The range of speeds is from 0 to 9, with 0 the slowest speed.
You can change this speed at any time during execution by pressing a
key between 0 and 9.
Program execution halts when an ACCEPT statement is encountered.
The system now pauses on the user screen after executing the ACCEPT
statement on line 114 anticipating data entry.
11. Respond by typing N to indicate that you will be the one to start
the game.
The system continues animation in Go mode at a speed of 7 and pauses
after the next ACCEPT, displaying the user screen and prompting
again for data entry.
12. Select square 9 by pressing 9 on your keyboard.
This places an "X" in square 9 and resumes program execution in Go
mode. Remember, you can press F2=view at any time to see the user
program's screen.
Execution stops again when you are prompted to select another
square. Notice that the system has placed a 0 in square 5.
13. Press 8 to select the square and to resume execution.
You can temporarily halt execution at any time.
14. Press Escape.
The message:
Keyboard interrupt
appears at the bottom of the screen. The cursor is positioned on
the next executable statement.
Executing in Zoom Mode.
15. Now press Z to begin execution in Zoom mode. The program resumes
execution at full speed and displays only the user screen. Continue
playing until the game is complete. Then the message:
Play again?
appears.
16. Respond by typing N (No).
The source code returns to the screen with the cursor positioned
under STOP RUN, indicating that the program has completed execution.
The message:
STOP RUN encountered with RETURN-CODE=+00000: use Escape to
terminate
appears at the bottom of the screen.
Exiting Animator.
17. Press Escape to terminate your Animator session.
The message:
Exit from animator? Y/N
appears at the bottom of the screen.
18. Press Y (Yes) to return to the operating system.
Generating Native Code
Having animated the program, you will now want to convert it to optimized
native code in a .gnt file.
1. Enter:
cob -uv tictac.cbl
In this command line, all is as before, except:
u is a flag that tells cob to process the program through to
producing dynamically loadable generated code.
This time, cob invokes the Compiler and the Generator.
The last message displayed comes from the Generator, and
is similar to the Compiler's message giving data and code
sizes, but also shows space taken by literals.
Since you had already produced a tictac.int in your
previous call of cob (see the section "Compiling" ,
above), you could have omitted the Compiler step by
specifying .int instead of .cbl.
Running
2. To run Tictac, enter:
cobrun tictac
You need not specify an extension, as cobrun will automatically look
for the .gnt file.
The system runs the program, which starts off by displaying the first
message of the game on your screen. Have fun playing it; it can be
beaten!
You could run the intermediate code instead by specifying an
extension of .int (also, if cobrun does not find a .gnt file it will
run the .int file). The above call of cob to produce generated code
would then be unnecessary. However, although the difference is not
apparent in a small program such as Tictac, generated code runs much
faster than intermediate code.
Linking
As an alternative to using cobrun, you can create an optimized .o file
and link it to form an executable file.
Note: You can link your program only if you have a "C"/Operating
System Development System installed on your machine. This
provides the system tools that cob needs, like ld, the system
linker.
1. Enter:
cob -xv tictac.cbl
In this command line, all is as before, except:
x is a flag that tells cob to process the program all the
way through to producing an executable file.
This time cob invokes the Compiler, Generator, and UNIX
system linker, one after the other. The last thing
displayed is a list headed "Entry points defined in
module: tictac.o", after which there may be a long pause
before the operating system prompt appears.
Since you had already produced a tictac.int in your
previous call of cob (see the section "Compiling" ,
above), you could have omitted the Compiler step here; if
you had specified .int instead of .cbl, cob would have
used the existing .int file and just invoked the Generator
and Linker. The end effect would have been the same.
Running the Linked Program
2. To run Tictac, simply enter:
./tictac
The system runs the program.
