Transaction Intrinsic Profile

This screen shows which intrinsics were called, the average number of
times they were called, and the processing time information for each
intrinsic for the active transaction.

Access this screen by selecting  Intrinsic Profile.

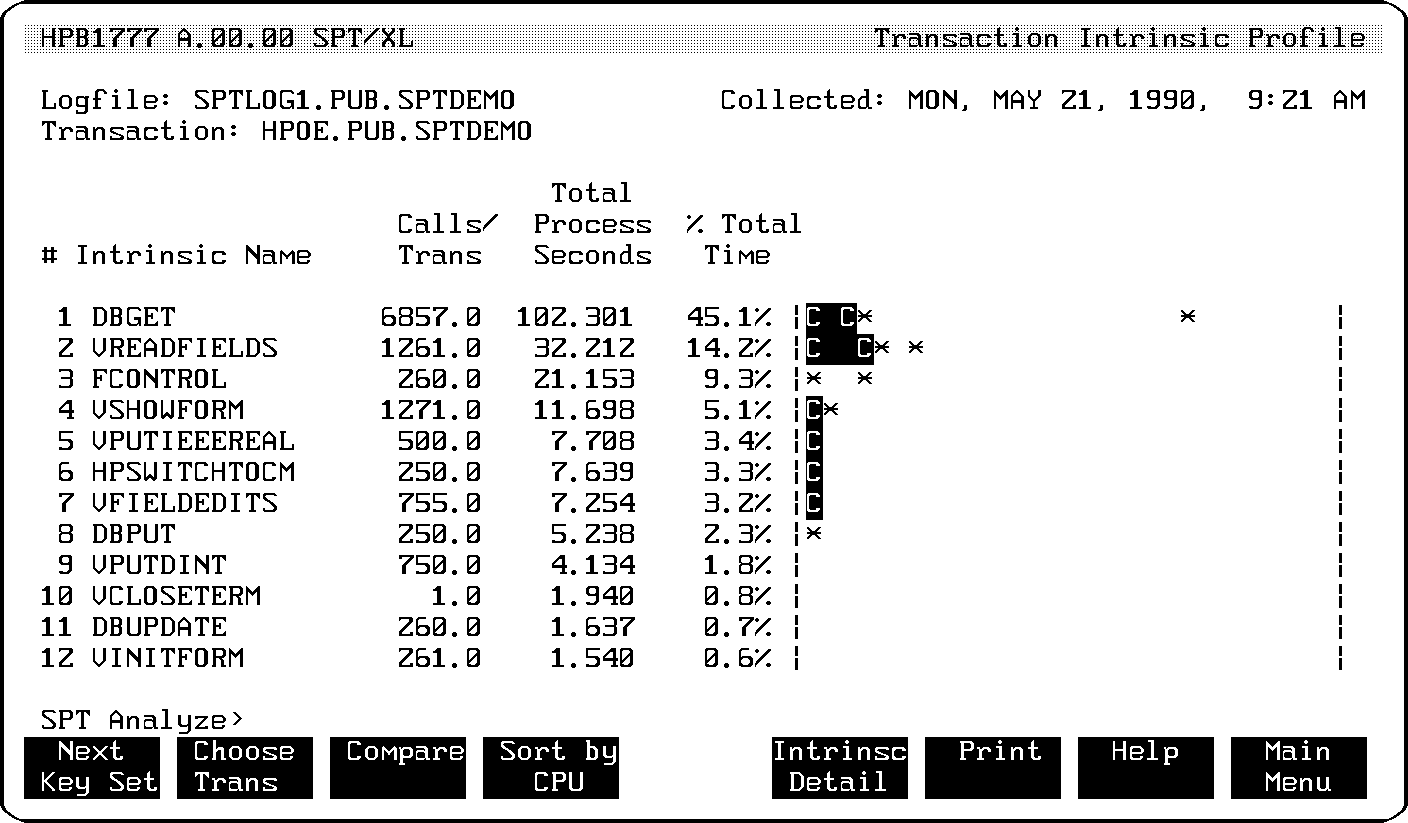

          Figure 5-24.  Transaction Intrinsic Profile

Screen Definitions

Transaction               Active transaction.

Calls/Trans               Average number of times this intrinsic was
                          called during this transaction type.

Total Process Seconds     Total time per transaction spent in this
                          intrinsic.

% Total Time              Percentage of transaction processing time spent
                          in this intrinsic.

Histogram                 Graphic representation of the percentage of
                          transaction processing time spent in this
                          intrinsic.

                          It is understood as follows:

                            C to C = CPU time.

                            * to * = Wait time.

                            C to * = Total processing time.

 Sort by CPU              To Transaction Intrinsic Profile by CPU screen.

Selecting  Compare on this screen allows you to compare the same
transaction type for two different HP SPT/XL logfiles.

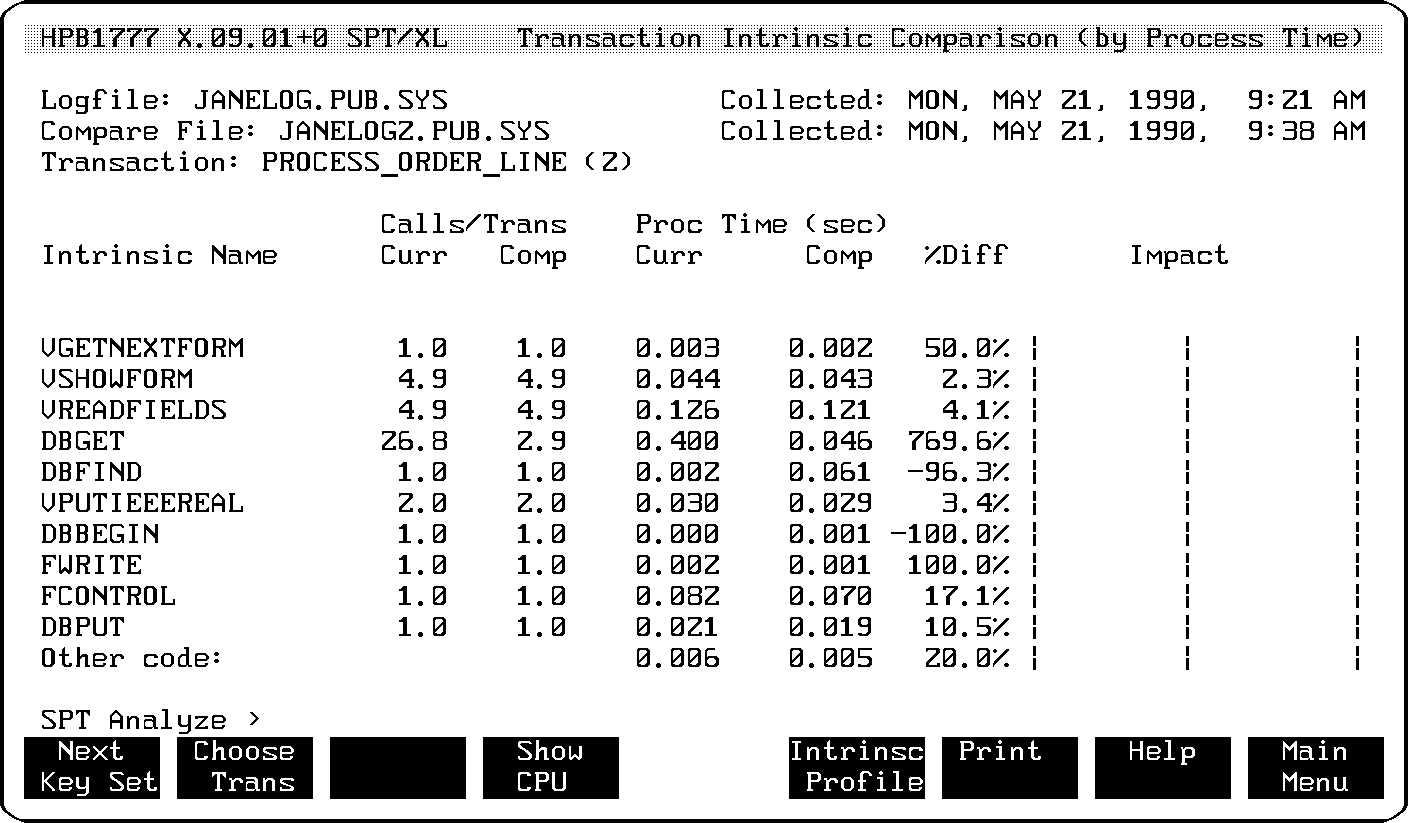

          Figure 5-25.  Transaction Intrinsic Profile Comparison
