Intrinsic Trace

This screen shows the intrinsics called during the transaction in the
order they were called.  Individual intrinsic processing and CPU times
are also shown, together with selected parameter information.

Occasionally you will see "...", which indicates CPU time executed by
application code in between system intrinsic calls.  This will be
displayed only if the CPU time exceeds 0.001 second.

Processing times do not include terminal read/wait times for those
intrinsics that perform terminal reads, for example, VREADFIELDS, FREAD.

Access this screen by selecting  Individual Trans to display the
Individual Transaction List screen (if only a few instances of the
transaction exist).  If there are many instances of the transaction, you
will see the Individual Transaction Percentiles screen.  From this screen
select  Choose %-tile and enter a percentile band number to narrow down
the number of instances of the transaction you are reviewing.  Continue
this until the Individual Transaction List screen is displayed.  From
this screen select  Choose Trans and enter the number of a transaction
instance.  This displays the Individual Transaction Intrinsic Profile
screen.  Select  Intrinsic Trace.

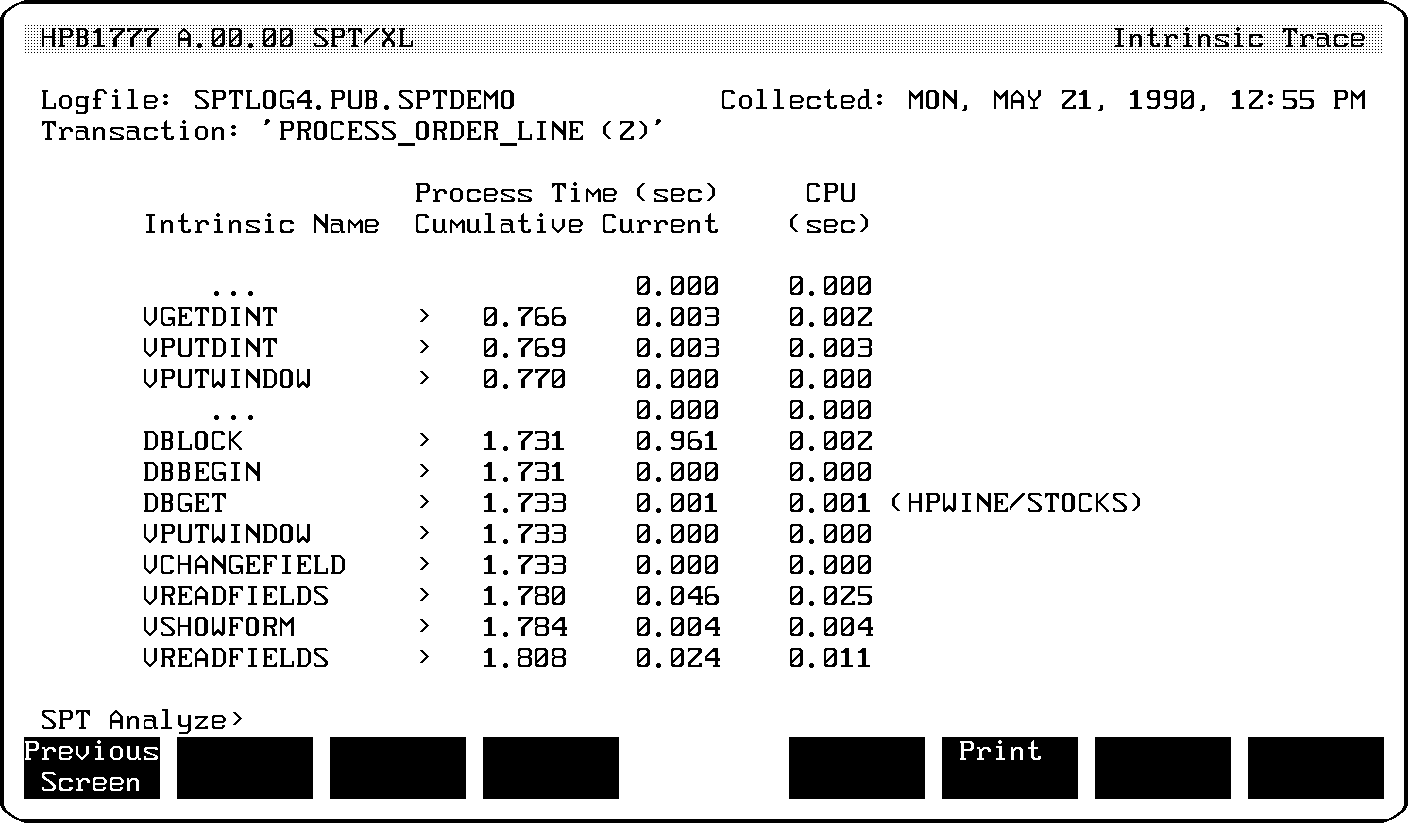

          Figure 5-14.  Intrinsic Trace

Screen Definitions

Intrinsic Name             Intrinsics encountered for this instance of
                           this transaction.

Process Time Cumulative    Cumulative processing time of all intrinsics
                           for this transaction.

Process Time Current       Individual processing time for this intrinsic.

CPU (sec)                  CPU time for this intrinsic.

(HPWINE/STOCKS)            Selected parameter information.
