Individual Transaction Intrinsic Profile

When examining a particular transaction you may find that the transaction
was executed many times.  This screen allows you to view an intrinsic
profile of one particular instance.

Access this screen by selecting  Individual Trans to display the
Individual Transaction List screen (if there are only a few instances of
transaction).  From this screen select  Choose Trans and enter the number
of a transaction instance.

If there are many instances of the transaction, the Individual
Transaction Percentiles screen will be displayed first.  From this screen
select  Choose %-tile and enter a percentile band number to narrow down
the number of instances of the transaction you are reviewing.
Eventually, the Individual Transaction List screen will be displayed, and
you can select  Choose Trans and enter the number of a transaction
instance.

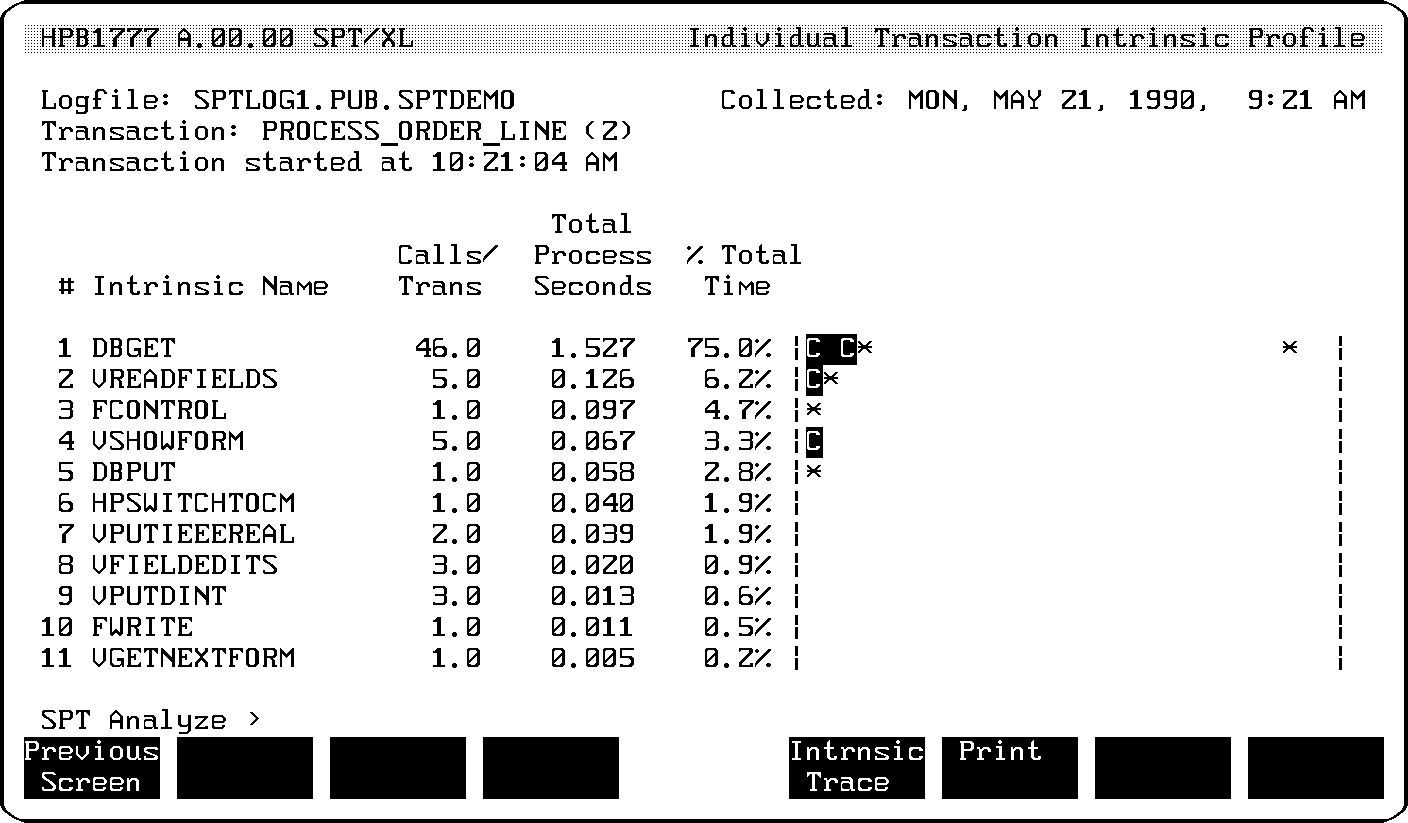

          Figure 5-9.  Individual Transaction Intrinsic Profile

Screen Definitions

Calls/Trans               The number of times this intrinsic was called
                          during the transaction.

Total Process Seconds     Total time this transaction spent in this
                          intrinsic.

% Total Time              Percentage of the transaction's total
                          processing time spent in this intrinsic.

Histogram                 Graphic representation of the percentage of the
                          transaction's total processing time spent in
                          this intrinsic.

                          It is understood as follows:

                            C to C = CPU time.

                            * to * = Wait time.

                            C to * = Total processing time.
