Getting Started Tutorial

This tutorial uses sample HP SPT/XL logfiles from the tape that came with
this manual.  You can follow the instructions marked with a > to look at
HP SPT/XL online, or if you prefer, you can just read through it.

If you wish to follow this tutorial by running HP SPT/XL and entering the
commands, you must be sure the demonstration logfiles are installed on
your system.  You may put the logfiles in any group to which you have
read-and-write access, but the best place to put them is either in the
group where you will log on when you follow along with the tutorial.  To
put the files on your system, log on to the group in which you want to
place the logfiles and issue these commands:

:FILE T;DEV=TAPE

:RESTORE *T;@.@.@;LOCAL

This will place all the files necessary for the tutorial in your logon
group.


NOTE  These logfiles are also referred to in the program-tuning example
      in chapter 4 which includes a more detailed analysis of the data
      including checking for consistency of transactions and identifying
      causes of wait states.


Overview of the Example Application

The application used for this tutorial performs a simple order- entry
function for a fictitious wine store.  It is written in PASCAL and uses a
single TurboIMAGE database called HPWINE.

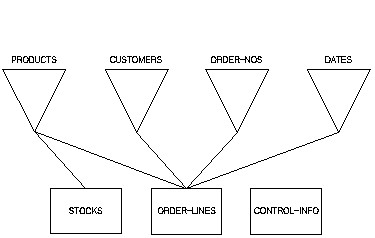

The structure of the database is shown in the following diagram.


          Figure 3-1.  Database Layout

The Order Entry program is composed of three logical types of
transactions that are executed during the entry of an order:

 *  START_ORDER

 *  PROCESS_ORDER_LINE

 *  COMPLETE_ORDER

START_ORDER and COMPLETE_ORDER are executed once per order and
PROCESS_ORDER_LINE is executed once per order line.  The three
transactions are described in more detail below.

The START_ORDER transaction displays a VPLUS form (also called
START_ORDER) and reads the customer account number.  A database inquiry
against the CUSTOMERS data set of the HPWINE database is performed to
validate the customer account number and retrieve customer details such
as name, address, and credit information.  The START_ORDER transaction
also accesses the CONTROL_INFO data set to generate the next sequential
order number.

The PROCESS_ORDER_LINE transaction displays a VPLUS form (called
ORDER_LINE) and reads the required product code (PRODUCT-NO). A database
inquiry against the PRODUCTS data set of the HPWINE database is performed
to validate the product number and retrieve product description
information.  The required vintage (VINTAGE) and quantity are also input
by this transaction which searches the STOCKS data set based on
PRODUCT-NO and matching on VINTAGE. Stock information is updated for each
order line.  On completion of each order line, a record is written to the
ORDER-LINES data set of HPWINE. A record is also written to a temporary
MPE file (SCRATCH) that is summarized during the COMPLETE_ORDER
transaction.  PROCESS_ORDER_LINE is executed iteratively until the order
is complete.

The COMPLETE_ORDER transaction does not employ any VPLUS forms, but
updates details of a customer's balance in the CUSTOMERS data set of the
HPWINE database.  Some statistical analysis of the complete order is also
performed.  Once this transaction has been executed, control is
transferred to START_ORDER and the whole sequence executes again.

For this tutorial, data was collected on the Order Entry application
program executing as a single process in a test environment.  The data is
based on the input and processing of 5 orders, each containing 50 order
lines.

The first data collected is recorded in the logfile SPTLOG1.

Profiling the Entire Program

To get the big picture of how this program acts, first we must look at
the Order Entry program as a whole.  This will tell us whether it is
system-code or user-code intensive, and whether its performance is
limited by CPU, memory, disk I/O, or contention for software locks.

To run the HP SPT/XL analyzer, do the following:

> Type RUN SPT.PUB.SYS at the MPE (:)  prompt.

> Select the  Analyze key on the Main Menu.

> Enter the logfile name SPTLOG1 at the prompt.  Respond YES or press
ENTER at the prompt asking if this is the correct logfile.

HP SPT/XL reads the logfile and displays the top ten intrinsics found
during monitoring on the Logfile Summary Information screen.

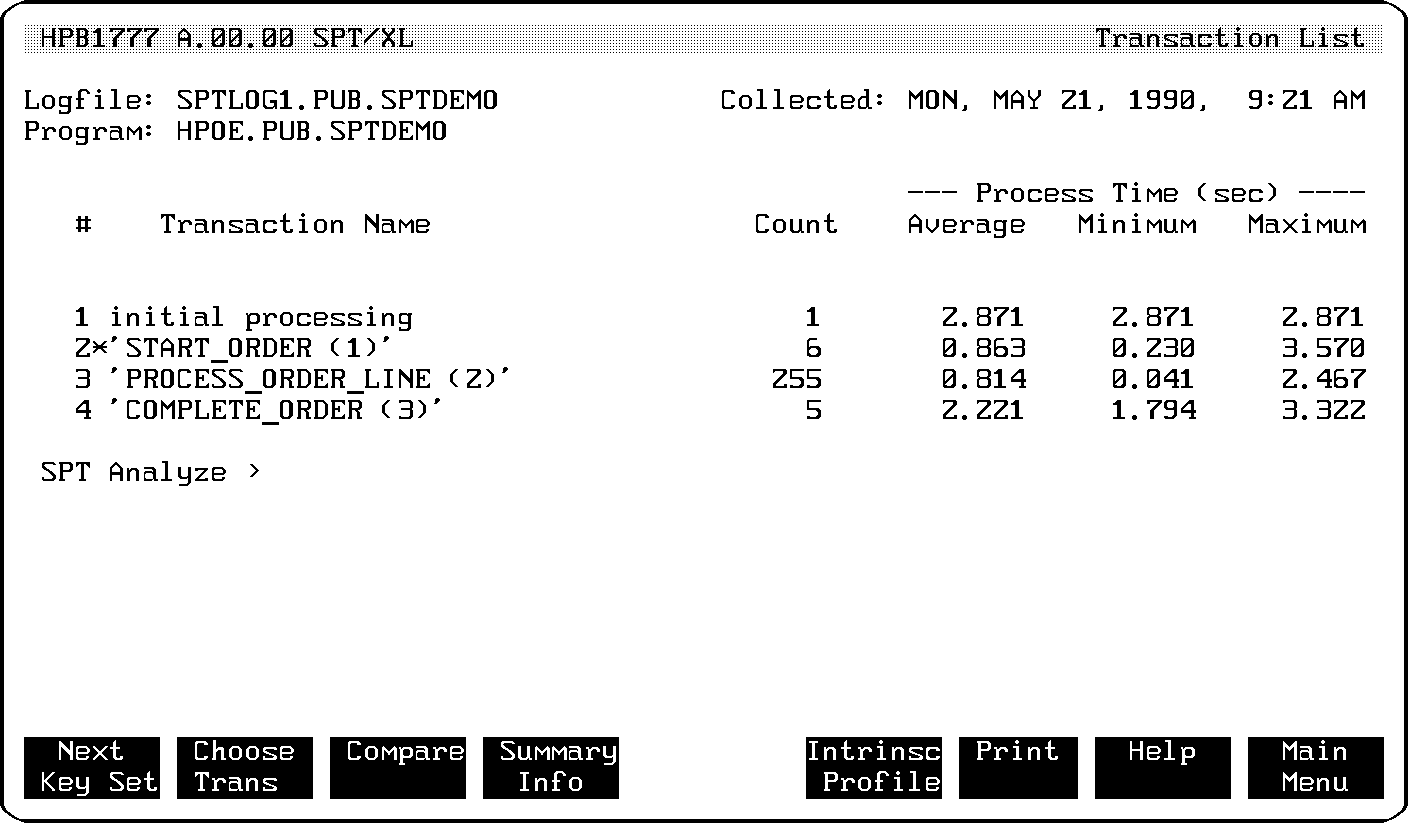

NOTE  If the first display you see is the Transaction List screen, this
      indicates that the logfile has been processed previously.  If you
      wish to start from the beginning of this tutorial, cycle through
      the function keys using the  Next Key Set key and select  Redefine
      Trans.  After the logfile is scanned, the Logfile Summary
      Information screen will be displayed.

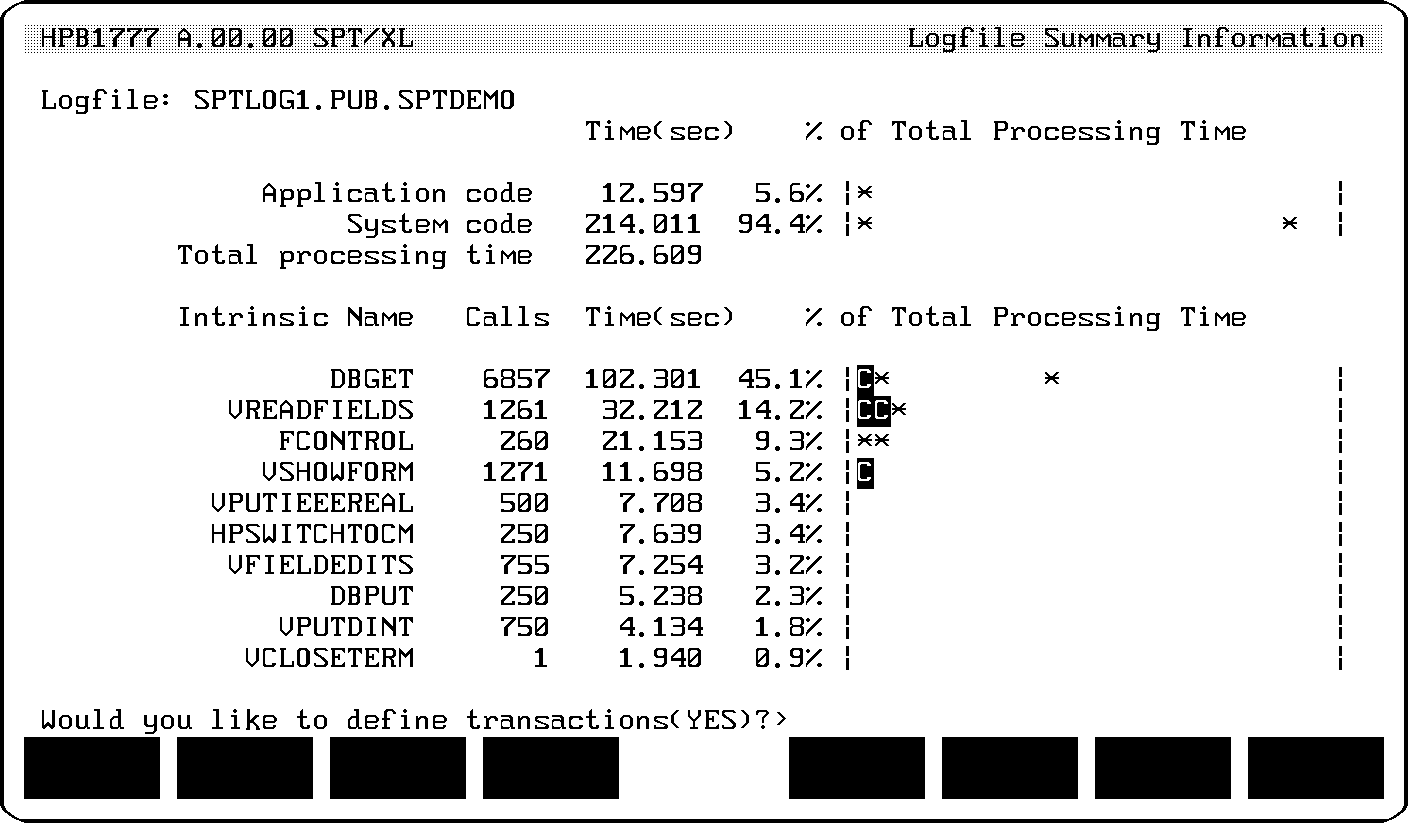

          Figure 3-2.  Logfile Summary Information

The Logfile Summary Information screen shown in figure 3-2 presents an
initial summary of the data in the logfile.  It shows the overall
processing time for data collection, the relative percentage of time
spent in application code and in system code, and the top 10 system
intrinsics in which the monitored application spent its processing time.
Even from this introductory display, it is clear that the Order Entry
program spends most of its processing time within system intrinsics.

HP SPT/XL asks if we want to divide the program into discrete
transactions.  At present we simply require a more detailed big picture
profile of the whole application.  By responding NO, we tell HP SPT/XL to
regard the entire program as a single transaction and a second logfile
scan takes place.

> Respond NO to the define transactions?  prompt.

The Transaction Intrinsic Profile appears:

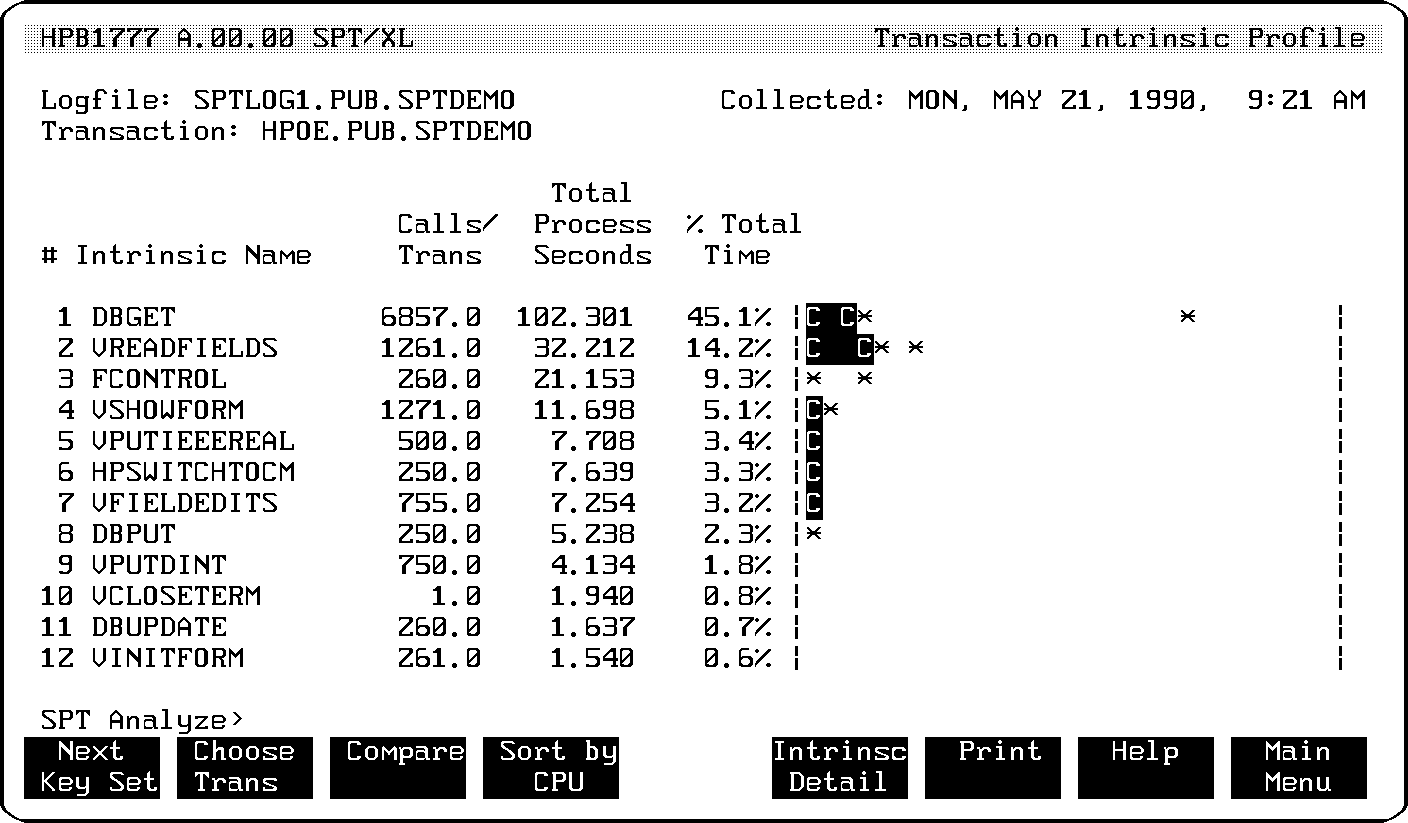

          Figure 3-3.  Transaction Intrinsic Profile

This profile shows that the vast majority of Order Entry's processing
time was spent in intrinsics associated with TurboIMAGE database
processing (particularly DBGET) and with those that constitute VPLUS and
the MPE file system.  Time spent in the HPSWITCHTOCM intrinsic indicates
that the application also relies on some reliance upon user procedures
that are implemented in compatibility mode.

There is an absence of any repetitious file and database openings or
closings that would tend unnecessarily to accumulate significant
processing time in intrinsics such as FOPEN/FCLOSE and DBOPEN/DBCLOSE.
Similarly, there is no evidence of significant processing time being
incurred in those facilities used in migration from MPE-V environments,
for example, Extra Data Segment use.

The substantial time spent in TurboIMAGE intrinsics such as DBGET may
indicate that the data on databases and data sets processed by the
application needs to be reviewed.

 Next do the following:

> Cycle the function keys using  Next Key Set and select the  Summary
Info key to display the Transaction Summary Information screen.


          Figure 3-4.  Transaction Summary Information

This display shows that when the overall application is defined as a
single transaction, 94.4 percent of its processing time is spent in
system code; only 5.6 percent is spent in the application code.

You can use the 226.642 seconds of processing time as the basis for
comparison when evaluating the effect of optimization efforts.

The display shows that 36.0 percent of the program's processing time was
spent using CPU and 39.6 percent was spent waiting for disk I/O. Given
that the optimal situation for MPE-based applications is to maximize the
percentage of processing time spent using CPU, this indicates that there
is a substantial margin for improvement in the application.

The time spent in TurboIMAGE intrinsics shown in figure 3-3 and the time
spent waiting for disk I/O shown in figure 3-4 leads us to want to find
out about the databases and data sets processed by the application.

Next do the following:

> Cycle through the function keys using  Next Key Set and select the  DB
Use key to display the Summary TurboIMAGE Database Information screen.
It shows data for the one database accessed by the application.

> Select the  Detailed DB Use key and respond to the prompt by entering
the number 1.  The Detailed TurboIMAGE Database Information screen is
displayed showing detailed data for the HPWINE database.

> Select the  Summary DSet Inf key to display the Summary TurboIMAGE Data
Set Information screen.


          Figure 3-5.  Summary TurboIMAGE Data Set Information

The Summary TurboIMAGE Data Set Information screen indicates that the
STOCKS data set is a prime candidate for further investigation.

In summary, the information from the Transaction Intrinsic Profile in
figure 3-3 and the Transaction Summary Information screen in figure 3-4
shows that the Order Entry application is spending most of its total
processing time in system code.  In addition, the Summary TurboIMAGE Data
Set Information screen in figure 3-5 indicates a data set for further
investigation.

From these initial displays it is clear that it would be best to
concentrate optimization efforts on the intrinsics rather than on
economizing computation within the application code.

This is the most common profile for interactive, MPE-based,
database-processing programs.  To tune this type of program effectively
would require reducing the frequency of intrinsic calls or the total
intrinsic processing time by improving database processing paths or
loading characteristics.

Defining Logical Transactions

Application programs usually process many types of transactions with
different individual performance characteristics.  In software tuning, it
is crucial to be able to divide a program's overall performance profile
into individual logical units of work--transactions--for three reasons:

 *  Logical transactions let you identify the dominant type of
    transaction in a program to pinpoint where tuning will give the best
    return for your effort.

 *  Specific transaction performance may not be apparent from looking at
    a program's overall performance.  For example, a program with a
    system-code-intensive profile could be hiding a computation-intensive
    transaction.

 *  Logical transactions let you see a performance profile in the same
    way a user perceives program behavior.  Users usually identify the
    program area by the processing associated with a particular screen,
    and perceive throughput or consistency problems with it.  Isolating
    user-oriented transactions helps you tune the program to address user
    needs.

In "Profiling the Entire Program" we looked at Order Entry as one entity,
as if it were one big transaction.  This gave us an overall profile of
the program.

The next step is to identify which transactions contribute the most to
total processing time.  They offer the best opportunity to improve
overall program processing by tuning the code, and associated files and
databases.

Looking at Transaction Defaults.  The first step in defining transactions
is to look at what HP SPT/XL found in Order Entry as possible transaction
delimiters.

> Select the  Redefine Trans key (find this key label by using  Next Key
Set to cycle through the function keys).

> HP SPT/XL scans the logfile looking for intrinsics which potentially
could be used to define the start of logical transactions, then displays
the Logfile Summary Information screen.  Respond YES to the define
transactions prompt and the Transaction Defaults screen in figure 3-6 is
displayed.

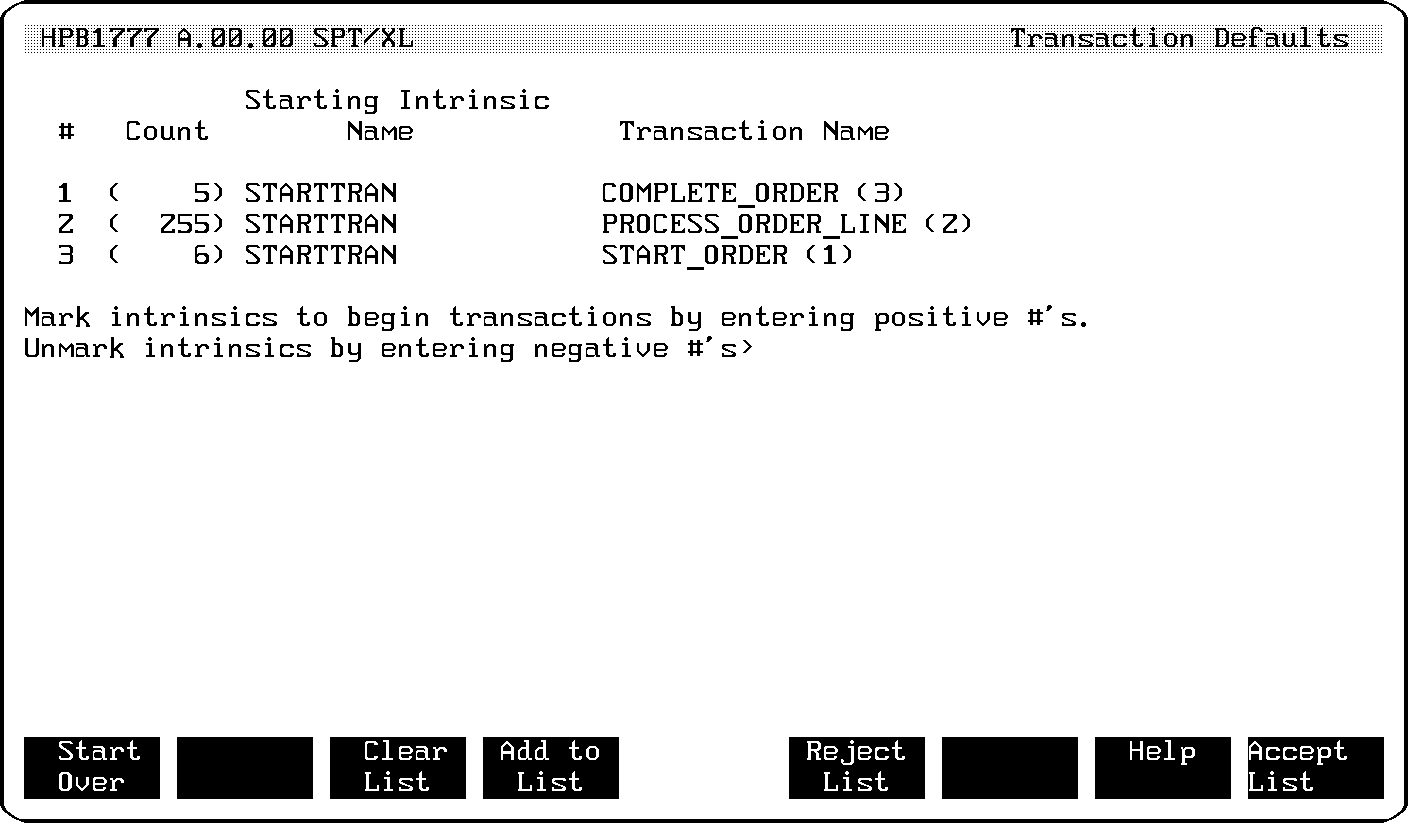

          Figure 3-6.  Transaction Defaults

The Order Entry program includes explicit transaction definitions with
calls to the STARTTRAN intrinsic, so this is what is shown on the
Transaction Defaults display.  However, let's investigate how we might
define transactions using TurboIMAGE and VPLUS intrinsic calls instead of
the STARTTRAN intrinsic.

Redefining Transactions.  > From the Transaction Defaults screen, select
the  Reject List key to display the Intrinsic Categories screen.


          Figure 3-7.  Intrinsic Categories

> For an interactive application such as order entry, one obvious
transaction delimiter is a function that performs a terminal read.  To
define VPLUS terminal reads (VREADFIELDS calls) as a transaction
delimiter, enter a 3 and press ENTER on the intrinsic categories screen.

The corresponding events are shown in the Transaction Definition screen
in figure 3-8.

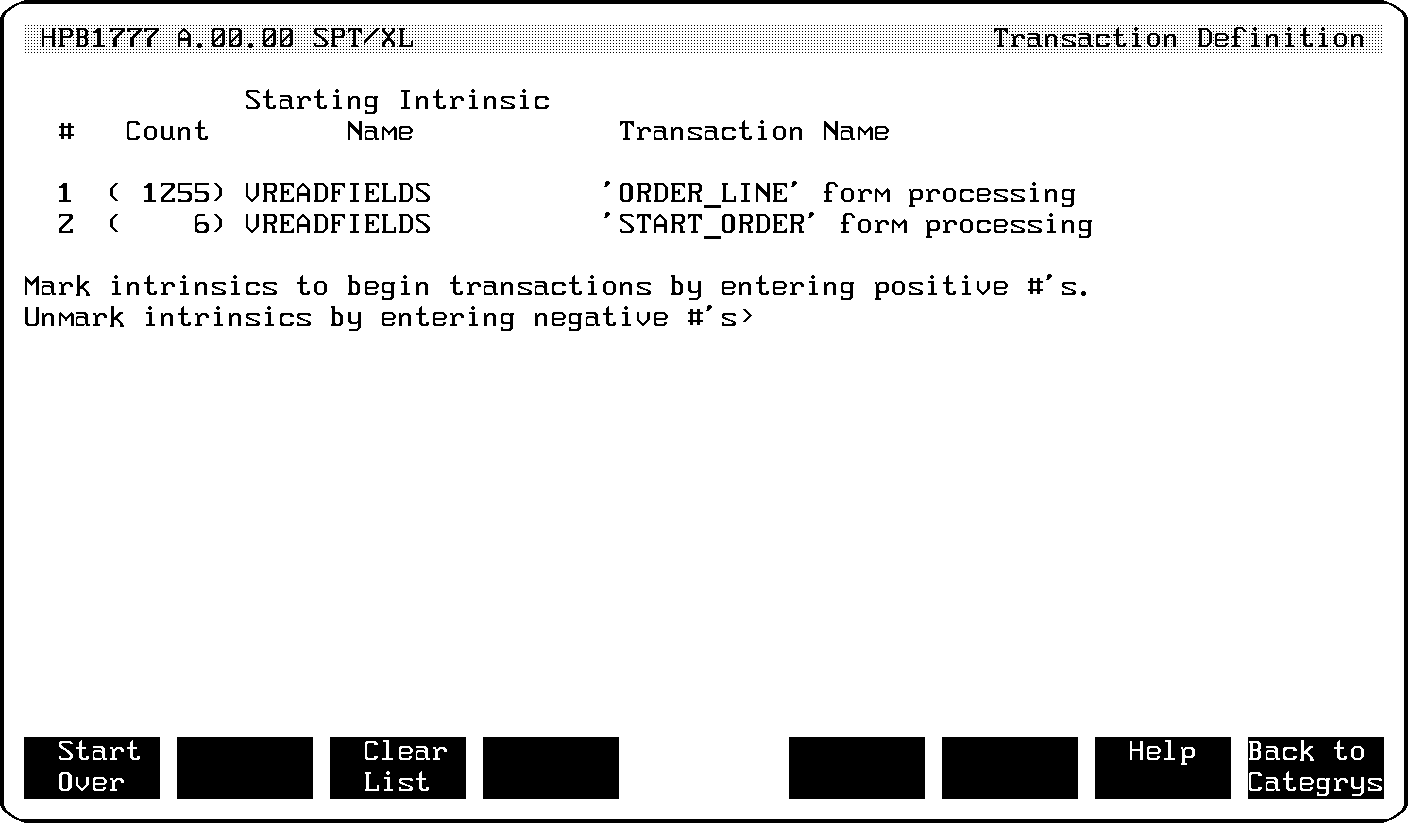

          Figure 3-8.  Transaction Definition

An important part of defining transactions is to ensure that the
definitions used by HP SPT/XL correctly represent the logical units of
work that have been processed.

The Order Entry program is comprised of three user functions--START_ORDER,
PROCESS_ORDER_LINE, and COMPLETE_ORDER--and our test involved the
processing of five orders and a total of 250 order lines.

A study of the transaction definitions in figure 3-8 reveals that the
defaults accurately identified one of the three actual logical
transactions.  (See the "Overview of the Example Application" section in
this chapter for details on the three transactions).

The START_ORDER transaction is accurately defined in the defaults (six
calls to VREADFIELDS against the START_ORDER form--one per order and one
to exit the program).

The call to VREADFIELDS against ORDER_LINE does not accurately represent
the PROCESS_ORDER_LINE transaction, since figure 3-8 shows that 1255
calls to VREADFIELDS were incurred in 250 PROCESS_ORDER_LINE
transactions--one occurrence of this logical transaction incurs five
VPLUS terminal reads.

Also the COMPLETE_ORDER transaction was not identified, since it is
purely involved in database updating and does not perform VPLUS terminal
reads.

Because the default definitions aren't accurate, we will redefine them.

> On the Transaction Definition screen, mark event 2 as defining the
start of the START_ORDER transaction because this was correct.

> Select the  Back to Categrys key to start defining the
PROCESS_ORDER_LINE transaction.  On the Intrinsics Categories screen,
enter the category number 4 for a VPLUS form retrieval (a VGETNEXTFORM
call).

> On the Transaction Definition screen, enter a 1 to select the intrinsic
VGETNEXTFORM call against the ORDER_LINE form.

> Select the  Back to Categrys key to start defining the COMPLETE_ORDER
transaction.  On the Intrinsics Categories screen, enter the category
number 5 for database accesses.

> On the Transaction Definition screen, select the  Next Page key and
enter 16 to select the DBUPDATE on the CUSTOMERS data set in the HPWINE
database to represent the start of the COMPLETE_ORDER transaction.

> Select the  Back to Categrys key TWICE and then the  Finished key, to
display the Transaction Definition Review screen.

> Select the  List OK key to end transaction definition.

If you get lost during these steps, you can start over by selecting the
Start Over key.

Once we've defined transactions to match Order Entry's logical
transactions, HP SPT/XL restructures the logfile to encompass all

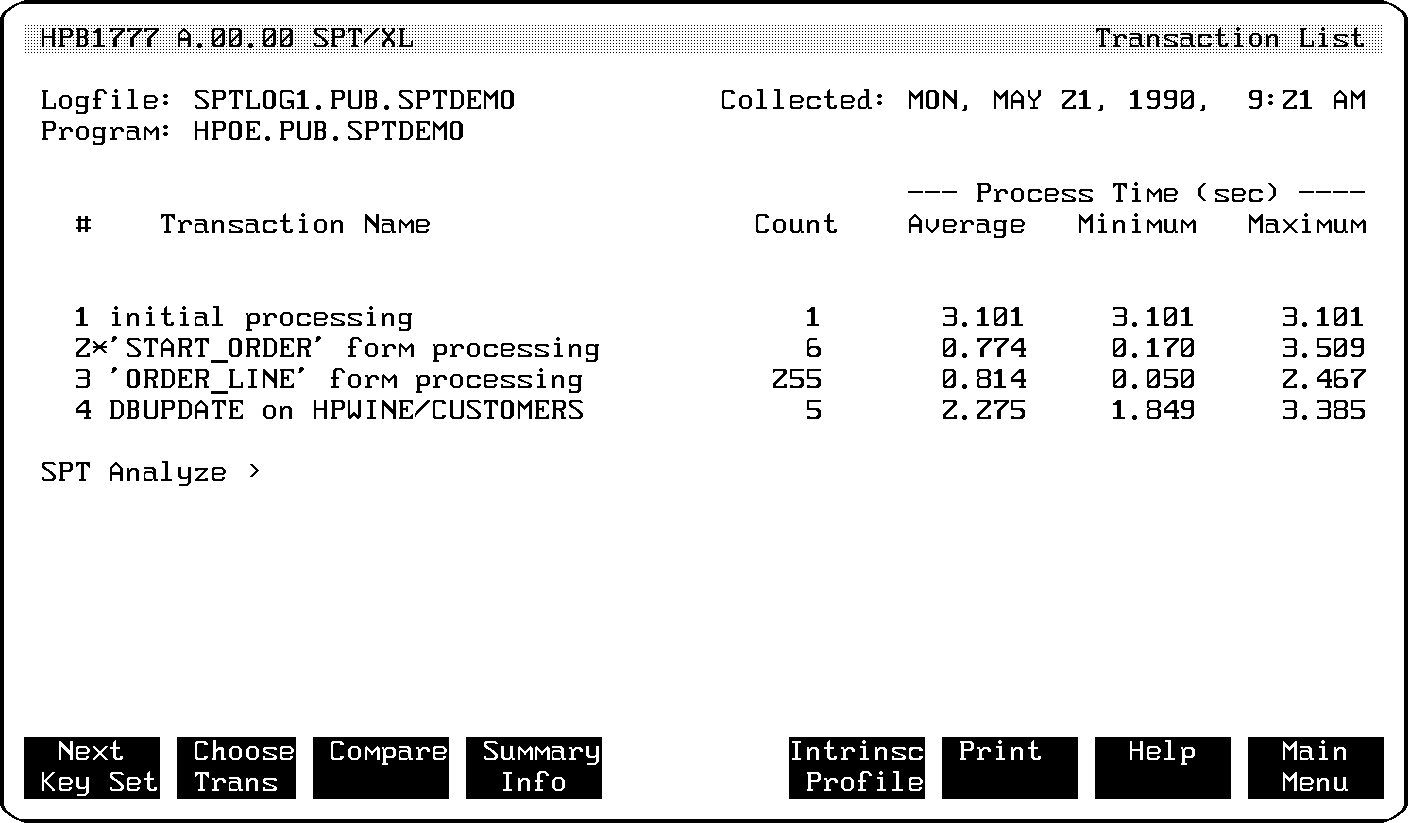

currently-defined transactions.  The Transaction List shown in figure 3-9
is displayed.


          Figure 3-9.  Transaction List

Note that an additional transaction--"initial processing"--is included to
cover the time between the start of HP SPT/XL data collection and
detection of the first transaction beginning.

As mentioned previously, the Order Entry program actually has logical
transactions defined within the code using calls to the STARTTRAN and
ENDTRAN intrinsics.  Let's see what the transaction content would have
been if it had been based on these definitions.

> Cycle through the function keys and select the  Redefine Trans key.
After the logfile is scanned, the Logfile Summary Information screen is
displayed.

> Respond YES to the Define Transactions prompt.  The transaction
defaults based on STARTTRAN calls are displayed.

> Select  Accept List.  After the logfile is scanned, the Transaction
List screen shown in figure 3-10 is displayed.


          Figure 3-10.  Transaction List

As you can see, there is little difference between this transaction list
and the one derived without the STARTTRAN and ENDTRAN intrinsics.  The
remainder of this tutorial will be based on the definitions using
STARTTRAN as shown in figure 3-9.


NOTE  Before selecting events to represent the start of logical
      unit-of-work transactions, you may need to understand a program's
      processing logic.

      HP SPT/XL's STARTTRAN and ENDTRAN intrinsics let you define logical
      transactions precisely.  See Appendix B for more on these
      intrinsics.


Profiling the Dominant Transaction

We continue our example by identifying and looking at Order Entry's
dominant transaction--the one that consumed the most processing time.

From the Transaction List in figure 3-10 we identify the relative
contributions of individual transactions to program processing time.
PROCESS_ORDER_LINE occurred 255 times during data collection with an
average processing time of 0.814 seconds.  It is the dominant
transaction.

We'll apply our tuning effort to it, since tuning it will give us the
greatest return.

First we'll look at how this transaction acts, just as we did with the
overall program.

> Select the  Choose Trans key and enter a 3 to mark the
PROCESS_ORDER_LINE as the active transaction for further analysis.

> Select the  Intrinsic Profile key.  Use the f1 key until this function
key label is displayed.

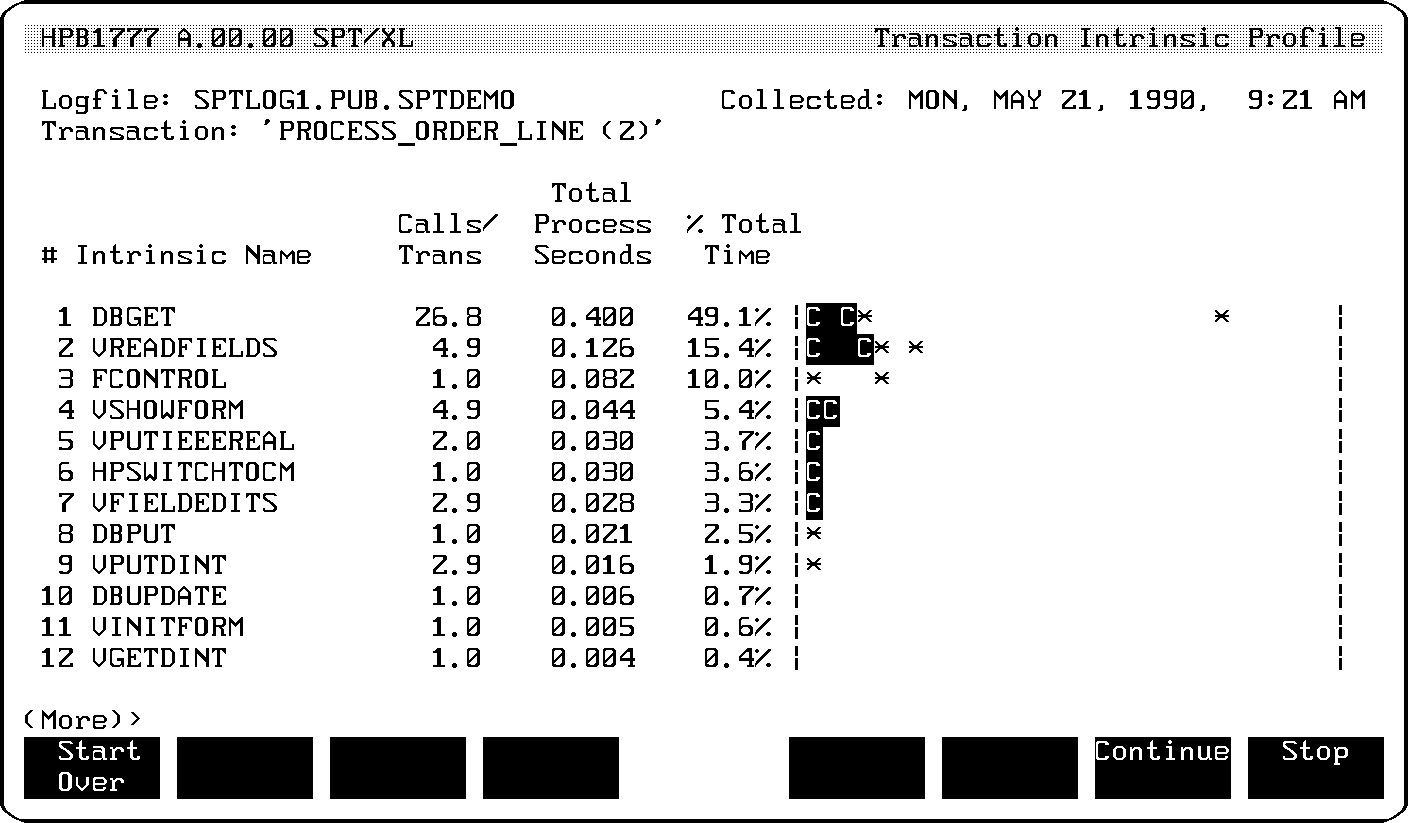

Figure 3-11 shows the Transaction Intrinsic Profile for
PROCESS_ORDER_LINE.


          Figure 3-11.  Transaction Intrinsic Profile

This profile of PROCESS_ORDER_LINE is slightly different than the overall
program's profile, but it confirms that the majority of this
transaction's processing time is spent in TurboIMAGE, VPLUS, and the MPE
file system intrinsics.  Of this time, 49.1 percent is spent in DBGET.

This information suggests that we can achieve maximum overall benefit in
either of two ways:

 *  Reduce the frequency of calls to these intrinsics from within
    PROCESS_ORDER_LINE.

 *  Reduce the intrinsics' individual processing times by optimizing
    loading characteristics of the files and databases PROCESS_ORDER_LINE
    accesses.

> Select the  Summary Info key.  Use the f1 key until this function key
label is displayed.

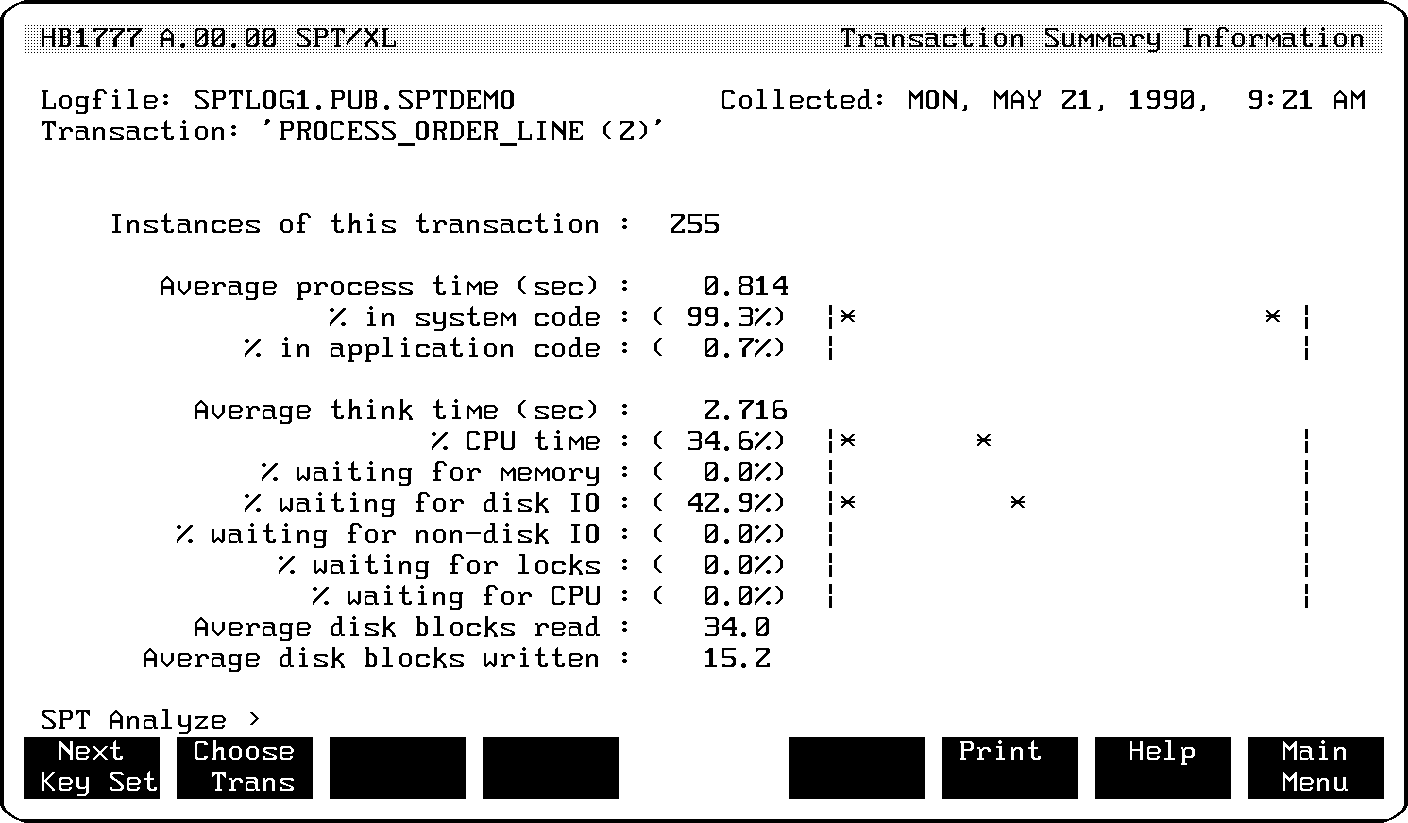

To further review how this transaction spent its time, we look at its
Transaction Summary Information screen as shown in figure 3-12.


          Figure 3-12.  Transaction Summary Information

The display identifies an average profile for the PROCESS_ORDER_LINE
transaction, showing that it spends a relatively high percentage of its
time--42.9 percent--waiting for disk I/O.

Thus far we identified the dominant transaction within the Order Entry
application as being one whose processing time is dominated by time spent
in TurboIMAGE's intrinsic DBGET in accessing the STOCKS data set of the
HPWINE database.  We also found that the transaction is not maximizing
processing time efficiently because it spends a significant time waiting
for completion of disk I/O.

> To exit from HP SPT/XL, cycle through the function keys to select  Main
Menu and then select  Exit.

MPE/iX 5.0 Documentation
