HP Resource Sharing for MPE/iX : COPYRIGHT NOTICE [ HP Resource Sharing for MPE/iX ] MPE/iX 5.0 Documentation

HP Resource Sharing for MPE/iX

(c) Copyright Hewlett-Packard Company 1994. All rights reserved.
HP Part No. B1718-90002
Printed in U.S.A.
Edition E1294
Printed November 7, 1997

NOTICE

------------------------------------------------------------------------------------------
| |
| The information contained in this document is subject to change without notice. |
| |
| HEWLETT-PACKARD PROVIDES THIS MATERIAL "AS IS" AND MAKES NO WARRANTY OF ANY KIND, |
| EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF |
| MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. HEWLETT-PACKARD SHALL NOT BE |
| LIABLE FOR ERRORS CONTAINED HEREIN OR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES IN |
| CONNECTION WITH THE FURNISHING, PERFORMANCE OR USE OF THIS MATERIAL WHETHER BASED ON |
| WARRANTY, CONTRACT, OR OTHER LEGAL THEORY. |
| |
| Hewlett-Packard assumes no responsibility for the use or reliability of its software |
| on equipment that is not furnished by Hewlett-Packard. |
| |
| This document contains proprietary information which is protected by copyright. All |
| rights are reserved. No part of this document may be photocopied, reproduced or |
| translated to another language without the prior written consent of Hewlett-Packard |
| Company. |
| |
------------------------------------------------------------------------------------------

Company or product names listed below are U.S. registered trademarks of the
respective company.

Lotus and 1-2-3 are U.S. registered trademarks of Lotus Development Corporation.

Microsoft(R) and MS-DOS(R) are U.S. registered trademarks of Microsoft Corporation.

RESTRICTED RIGHTS LEGEND

------------------------------------------------------------------------------------------
| |
| Use, duplication or disclosure by the U.S. Government is subject to restrictions as |
| set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer |
| software clause in DFARS 252.227-7013. |
| |
| Rights for non-DOD U.S. Government Departments and Agencies are as set forth in FAR |
| 52.227-19(c)(1,2). |
| |
------------------------------------------------------------------------------------------

Hewlett-Packard Company
Worldwide Response Center Operation
8000 Foothills Boulevard
Roseville, CA 95747-5614
USA

The manual printing date and part number indicate its current edition.
To ensure that you receive the updated or new edition, you should
subscribe to the appropriate product support service. See your HP sales
representative for details.

Printing date Edition Number

---------------------------------------------------------------------------------------

September 1986 First

December 1986 Second

February 1988 Update 1

March 1989 Third

April 1990 Fourth

March 1991 Fifth

December 1994 Sixth

Introduction

HP Resource Sharing gives PC users access to the power and flexibility of
the HP 3000 and its peripherals.

Together with HP LAN Manager Client, Resource Sharing links PC users to
the HP 3000 over a local area network (LAN), allowing them to share and
save files on the HP 3000, print documents on HP 3000 printers, and back

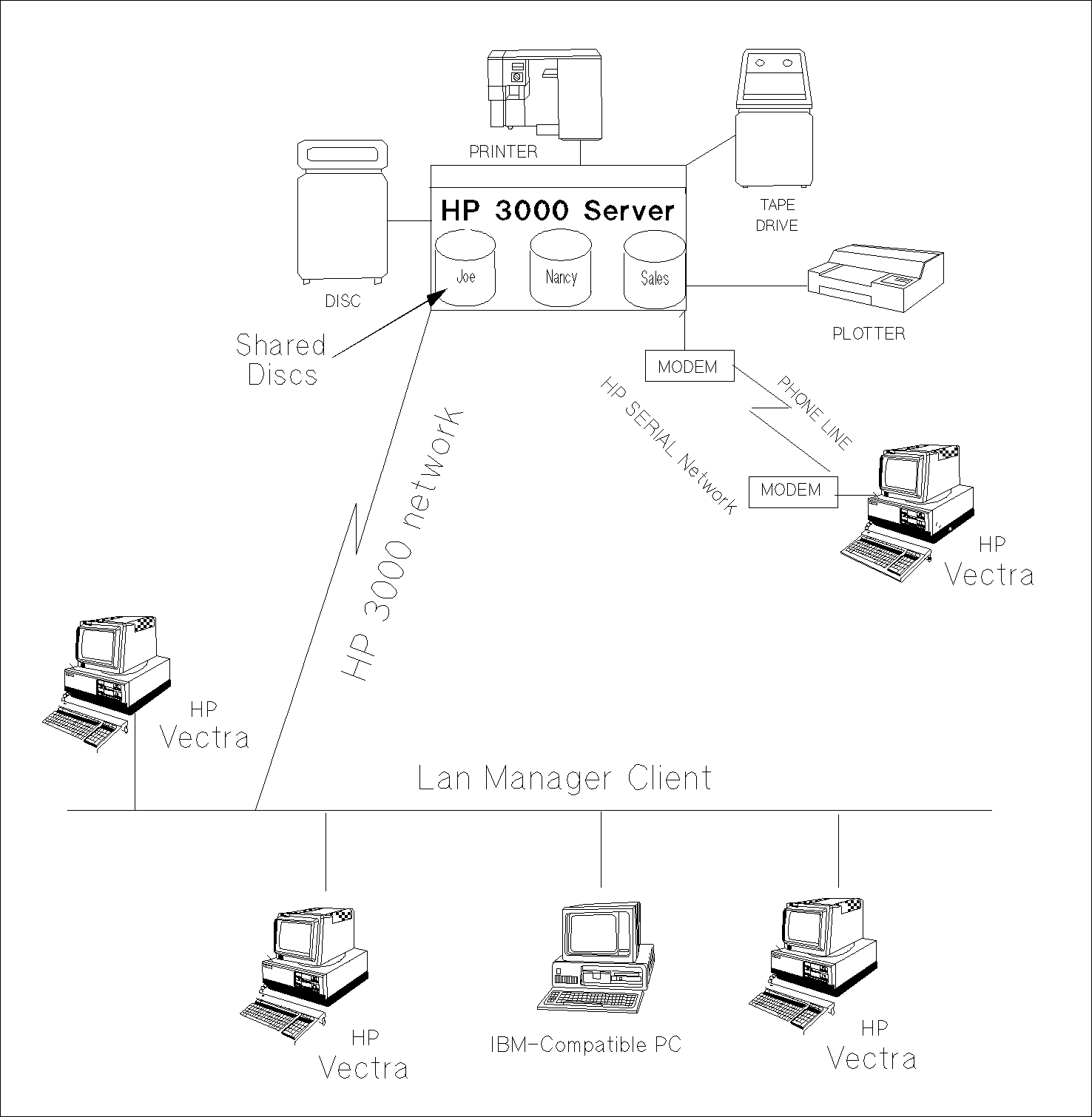

up files to tape. The figure below shows a sample network configuration.

Resource Sharing includes Resource Manager (RESMGR) and Disc Manager
(DISCMGR) utilities and additional functions that significantly increase
PC users' efficiency.

Resource Manager Utility (RESMGR)

RESMGR lets you create and manage shared disc space and shared printing
on the HP 3000. RESMGR also provides:

* Expanded file space - You can create shareable discs on the HP
3000 server to act as extensions of PC discs.

* File sharing - Data is available in a central location, so you
don't need to make copies of identical files for each PC.

* Print sharing (see following sections)

* Backup and recovery (see following sections)

Disc Manager Utility (DISCMGR)

This utility provides easy access to shared discs files for MPE jobs and
terminal sessions. DISCMGR includes:

* File conversion - You can convert files from DOS format to MPE
format for access by HP 3000-based applications, and from MPE to
DOS for PC-based applications.

* File copy - You can copy and manage HP 3000 shared disc files and
subdirectories.

* Batch access - DISCMGR can be executed from job streams.

Printing

Printing capabilities include:

* Printer access - PC users can use the HP 3000 server's configured
print devices.

* Print status - The user can find out the status of files that have
been directed to a shared print device.

* Print formatting - The user can use environment files and
formatters for specialized printing.

Backup and Recovery

Backup of all shared discs takes place during regular HP 3000 backup
procedures, since shared disc files reside on the HP 3000. You can use
the Resource Manager Utility (RESMGR) to select individual shared disc
files for backup if necessary. Backup is done to a tape drive on the HP
3000.

Using RESMGR, shared disc files can be recovered from either system
backup tapes or from tapes created with RESMGR.
