HP 3000-to-IBM Communications [ General Information Manual ] MPE/iX 5.0 Documentation


General Information Manual

HP 3000-to-IBM Communications

Hewlett-Packard offers a broad range of communications products that
connect HP and IBM systems, which provide interactive, batch, and
programmatic communications capabilities.  Multiple alternatives exist
for HP to IBM interoperability, including SNA, binary synchronous
communications (BSC), and X.25.

BSC communication

BSC Remote Job Entry.

BSC Remote Job Entry (BSC RJE) software emulates IBM 2780 and
3780 workstations on HP 3000 systems.  BSC Link manages the data
communications protocol and link between the HP 3000 and the
IBM-compatible mainframe and communications controller.  BSC RJE users
can transmit batch jobs and receive output from a host processor
supporting standard IBM 2780/3780 devices.  Also BSC RJE users can
exchange files with another HP 3000 or other processors that emulate
standard IBM 2780/3780 devices.

[]

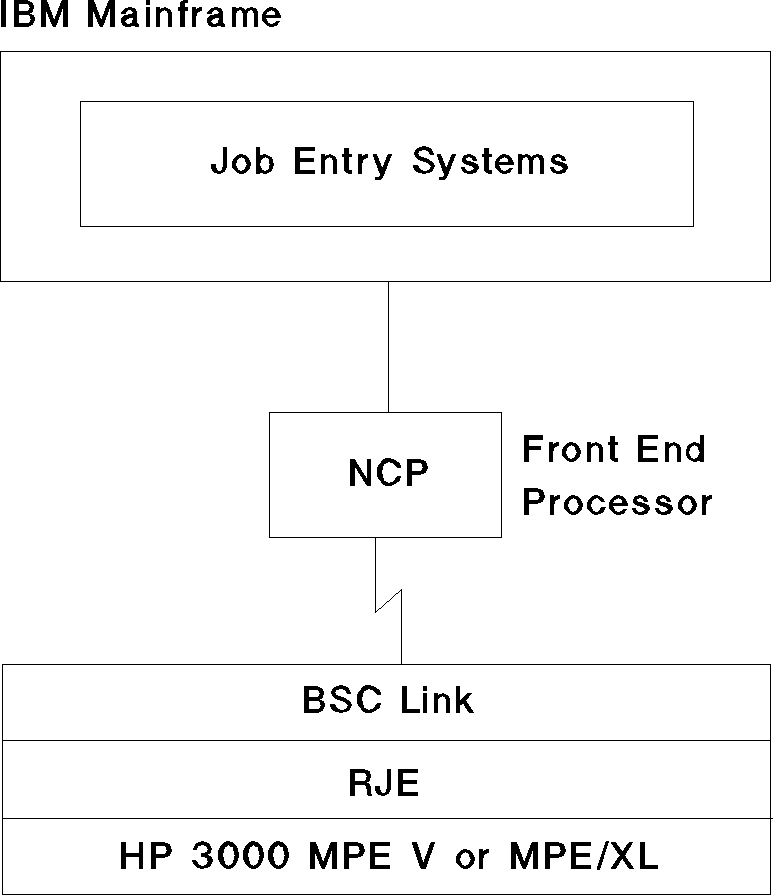

Figure 5-12. BSC Communication SNA communication The HP 3000 supports a broad range of SNA services providing interactive, batch, and program-to-program communication. These services work in conjunction with SNA Link, which provides the physical interface and lower layer SNA software for SNA network communication. A single SNA Link can concurrently support all SNA services. Products with an XL suffix are available only on the HP 3000 900 Series. SNA IMF. SNA Interactive Mainframe Facility (IMF) resides on an HP 3000 and allows access to 3270 applications on the IBM mainframe. In programmatic mode, application programs on the HP 3000 emulate IBM 3270 terminals and printers, exchanging data with the IBM host using intrinsics (user-callable procedures). In PassThru mode, users of HP terminals and printers can access 3270 applications on the host as if they were using IBM 3270 displays and printers. SNA NRJE. SNA NRJE allows HP 3000 users to submit batch jobs and transfer files between the IBM mainframe and the HP 3000 system. Additionally, SNA NRJE allows routing of the job output from the IBM host to any standard output device on the HP 3000 , such as tape units, disk files, and printers. SNA NRJE emulates an IBM 8100 DPPX/RJE workstation. SNA LU6.2 API. SNA Logical Unit 6.2 Application Program Interface (LU6.2 API) gives HP 3000 users program-to-program communication between an HP 3000 and an IBM mainframe in an SNA environment. With SNA LU6.2, HP 3000s and IBM mainframes can automatically prompt each other to start a program or send data. LU6.2 API also allows customers and third-parties to develop HP 3000 applications that use the LU6.2 protocol. Peer-to-peer communications (LU6.2 over PU2.1) will be supported on the HP 3000 900 Series system in 1991. SNA DHCF/XL. SNA Distributed Host Command Facility/XL (DHCF/XL) allows users with IBM 3270 terminals to access interactively many applications on a 900 Series system through their SNA network. SNA DHCF is supported with both TTY-line-mode and HP VPLUS block-mode applications. SNA DHCF/XL can support up to 120 concurrent sessions.
[]

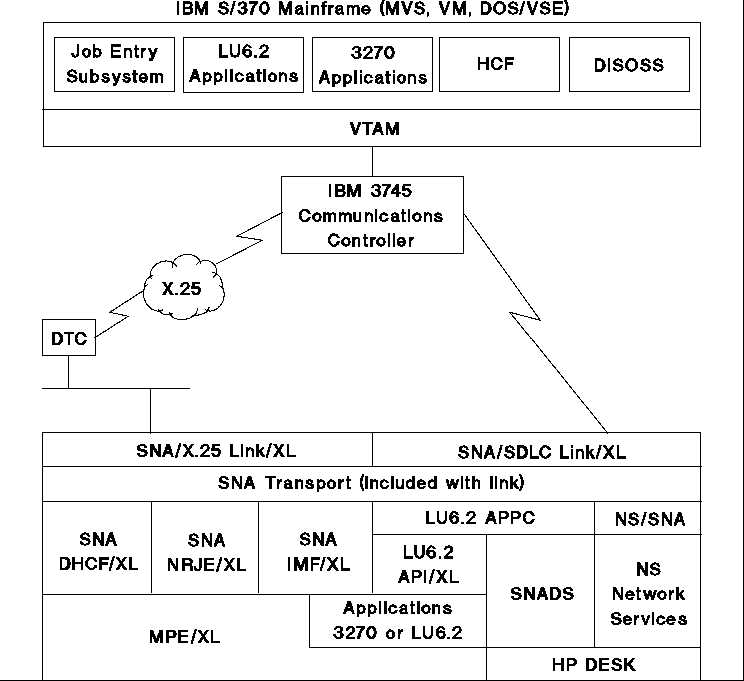

Figure 5-13. SNA Communications X.25 or SNA backbone HP SNA/X.25 Link/XL (SNA over an X.25 backbone) and HP NS over SNA/XL (NS over an SNA backbone) provide the choice of supporting and managing only one network backbone for HP-to-HP, IBM-to-IBM, and HP-to-IBM communications. If the environment is primarily IBM, NS over SNA/XL provides an economical way to leverage an existing SNA network. If the environment is multivendor and includes a variety of systems, SNA/X.25 Link/XL provides standardization on an X.25 network, the OSI/ARPA standard. NS SNA/XL. NS over SNA/XL is a cost-effective way for HP 3000 900 Series users to implement NS services over an existing IBM SNA backbone network. NS over SNA/XL requires NS3000/XL Network Services and SNA/SDLC Link/XL. SNA/SDLC Link/XL manages the physical link to the IBM host and implements the lower three SNA protocol levels. Running both SNA/XL and NS/XL services over the same SNA network connection reduces overall networking costs by using the SNA network for NS backbone traffic. NS can run over SNA/XL simultaneously with other HP SNA service products, such as SNA IMF or SNA DHCF/XL over the same network connection. HP SNA X.25 Link/XL. HP SNA X.25 Link/XL reduces networking costs by consolidating NS and SNA services on one X.25 link, while allowing access to multiple destination host systems. Fewer communication links are needed, resulting in decreased monthly telecom costs and a simpler, more manageable network. SNA X.25 Link/XL software supports HP SNA Services over an X.25 network. The HP 3000 900 Series systems communicate with the X.25 network using the DTC. The target IBM system can be accessed from either the X.25 network using an HP Model 45 Multiprotocol X.25 Switch or using the IBM X.25 Network Packet Switching Interface (NPSI). NetView integration The SNA/SDLC Link/XL product provides link-level alerts to IBM's network management product, NetView. If an HP 3000 900 Series system goes down, the SNA/SDLC Link/XL will send a delayed link-level alert to the NetView console when the link comes back up. This feature also allows an operator on the HP node to send an operator-generated alert to the NetView Console. Electronic mail integration HP SNA Distribution Services/XL (HP SNADS/XL) allows users on HP systems to exchange electronic messages between HP DeskManager and IBM Office Vision/MVS (DISOSS). HP SNADS/XL is required on only one HP 3000 Series 900 system in an HP DeskManager network. HP Desk users on the HP 3000 can transparently send messages and documents of PC files to IBM DISOSS users. Messages can also be exchanged with users of other vendor's electronic mail systems who are connected to the corporate IBM host using IBM SNA/DS. IBM does not support SNA/DS for PROFS on VM mainframes; however, HP Deskmanager can access PROFS through HP X.400. Please refer to the "OSI services" section for more detail on X.400 connectivity.
