X-Axis Option

The X-Axis option appears on the Draw Graphs dialog box.

Use it to choose the horizontal time scale.

Select one of the X-Axis options--Day, Week, Month, or Year--to choose
the width of the window (the time width of the graph).

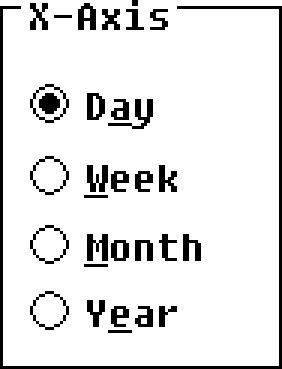

          Figure 10-78.  X-Axis Option

The X-Axis option controls the horizontal scale of the HP LaserRX/MPE
graphs.  The scale is measured in units of time.

The four options are:

   *   Day.

       The graph will show 1 day of data.  Day is defined by the Shift
       option.  That is, 1 day could be 8 a.m.  to 5 p.m., 7 p.m.  to 4
       a.m., or the default of 24 hours.

       _________________________________________________________________

       NOTE  Disc space graphs are not plotted if the X-Axis is set to
             Day, since disc space data is collected only once each day.

       _________________________________________________________________

   *   Week.

       The graph will show 7 days of data (5 days if Ignore Weekends is
       chosen).

   *   Month.

       The graph will show 31 days of data.

   *   Year.

       The graph will show 365 days of data.

If you enable Ignore Weekends, no X-Axis space is provided on the graph
for weekend days.


NOTE  The X-Axis option does not need to be as large as the amount of
      data in the logfile.  For instance, you can have a logfile with
      several months of data and decide to look at only 1 day at a time.
