HP LaserRX/MPE User's Manual: Analysis Software

Time Command

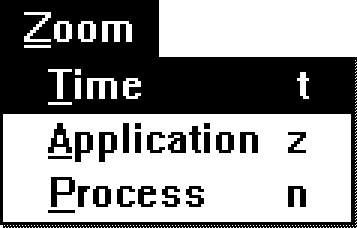

The Time command appears under the Zoom menu.


          Figure 10-74.  Time Command

Zooming-by-time is enabled when a check mark appears in front of the Time
command label.

Use the Time command to toggle the time mode of the HP LaserRX/MPE
graphic zoom on or off.  When Time is enabled, you can zoom in on a
specific period of time on a graph by holding down the left mouse button
and dragging the cursor across the period of interest.

Both the Time and Detail modes of zoom cannot be enabled at the same
time.  If you select one, the other is disabled.

When Time zoom is enabled and you drag the mouse pointer across a section

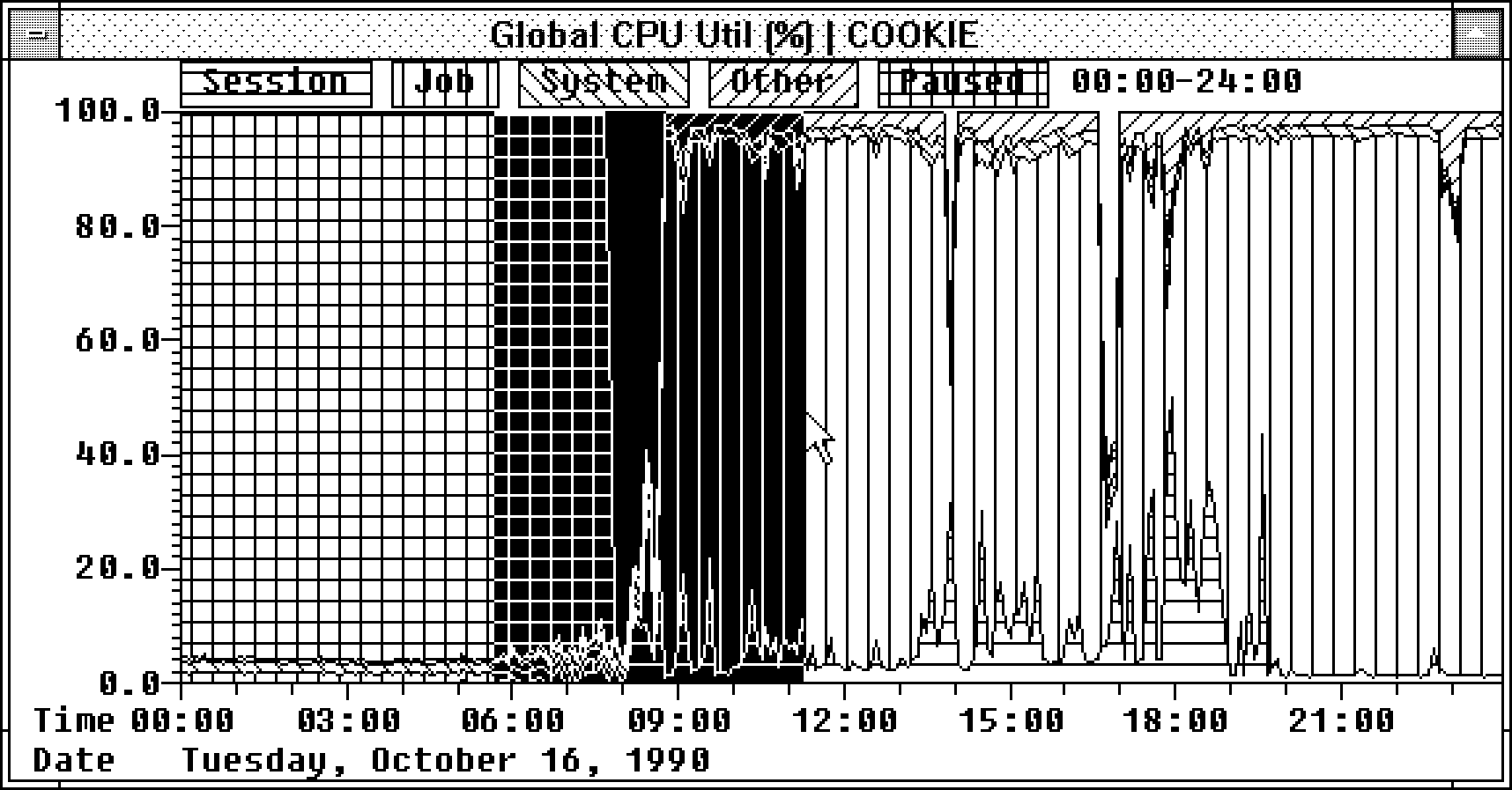

of a graph, the section is highlighted as shown below.


          Figure 10-75.  Time Zoom on a Graph

When you release the left mouse button, HP LaserRX/MPE creates a new

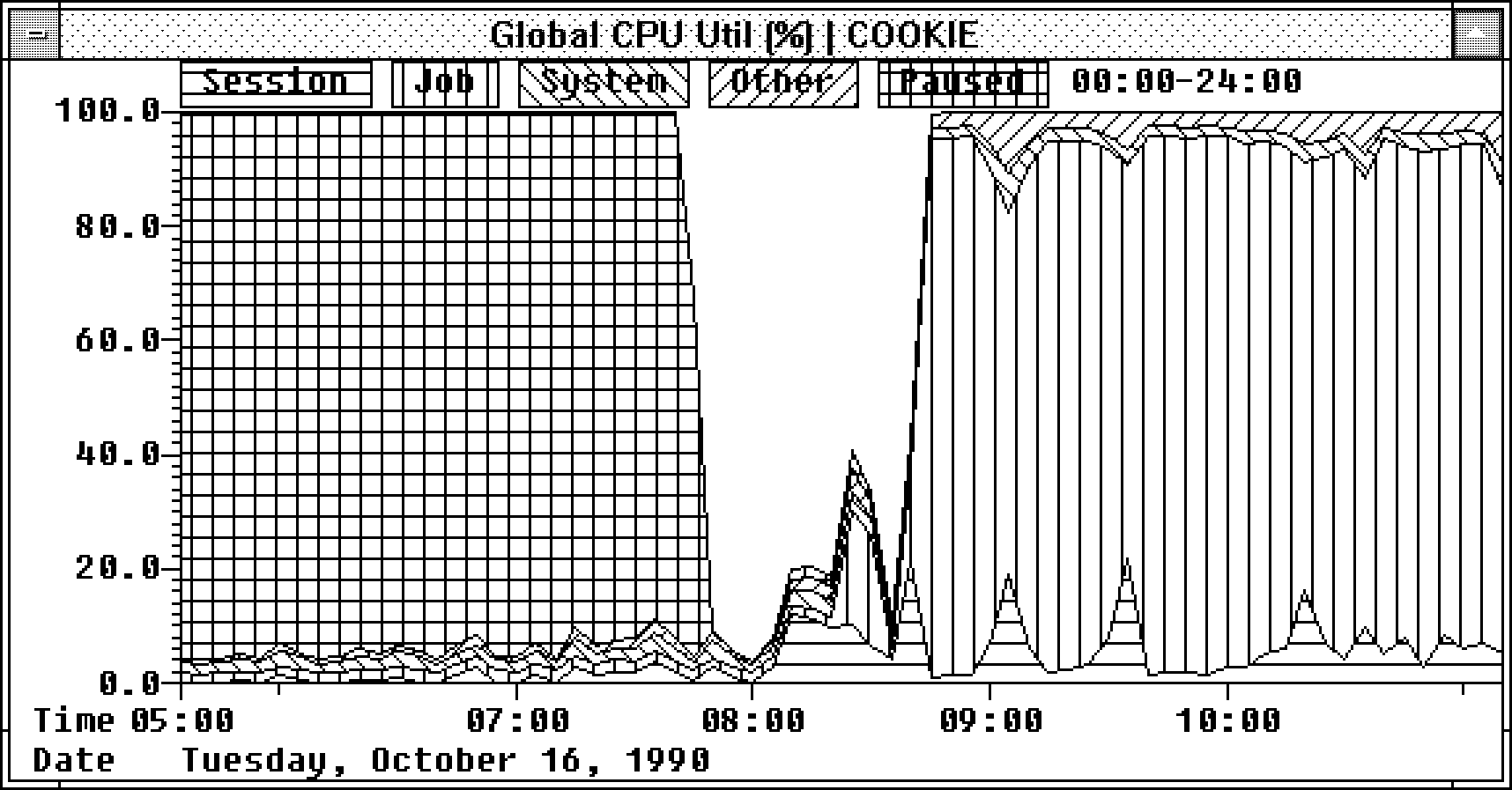

window with the horizontal axis equal to the span you selected.


          Figure 10-76.  Resulting Time Zoom Graph

Zooming by time does not change the Starting Day default in the Draw
Graphs dialog box.

Related Topics

For information on using the Time command, see Chapter 6 .

See "Application Command"  for information on zooming-by-application
on a graph.

See "Process Command"  for information on zooming-by-process on a
graph.
