DTC Telnet Access

Another Telnet implementation is DTC TelnetAccess.  DTC Telnet Access
provides Telnet connections from HP 9000 and non-HP systems running ARPA
standard Telnet services to the HP 3000.  The DTC Telnet Access solution
includes a Telnet Access Card (TAC) that resides in the DTC 72MX or DTC
48 and provides protocol conversion between Telnet and Avesta Flow
Control Protocol (AFCP). Equivalent functionality is provided by the
Telnet Express Box (TEB) (HP 2344A).

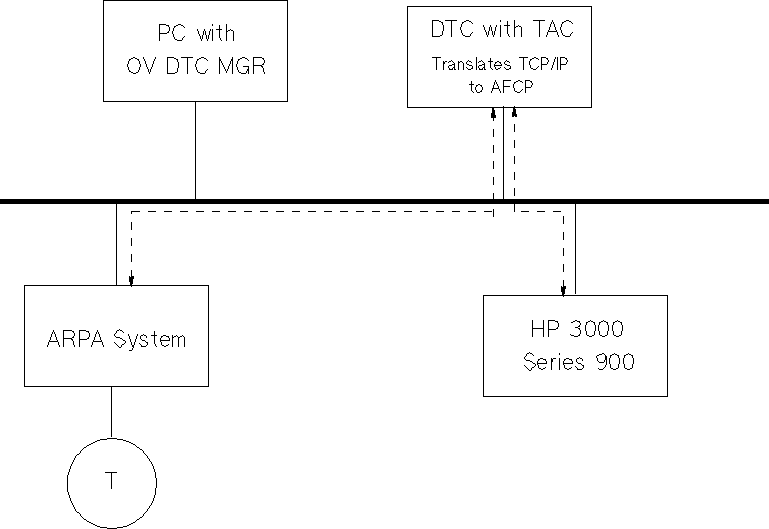

Figure 1-3  shows a terminal user connected to an ARPA node using the
Telnet service to access an HP 3000 system.  The TAC in the DTC converts
the Telnet traffic into AFCP traffic for the HP 3000.

The remainder of this manual will focus on the HP 3000 Telnet/iX product.
For more information on DTC Telnet Access, see Using HP OpenView DTC
Manager (D2355-90001) and the DTC Planning Guide (D2355-95017).


          Figure 1-3.  DTC Telnet Access
