Configuring and Managing Host-Based X.25 Links

Obtaining Status Using DTCCMTRL

The DTCCNTRL
STATUS functiondisplays the current status of each DTC/X.25 Network
Access cardinstalled in a specified DTC. The command displays the DTC
type (16, 48 or 72MX) and the software module that is currently active on
any DTC/X.25 Network Access cards that are installed.  (Asynchronous
cards installed in the DTC are not displayed.)

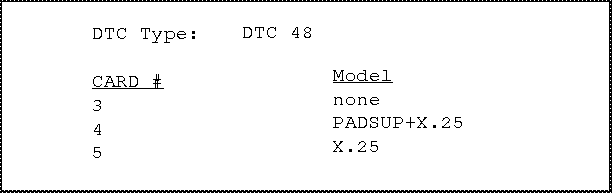

Figure 7-1  shows the display resulting from a DTCCNTRL STATUS command
issued against a DTC 48 containing DTC/X.25 Network Access cards in slots
3, 4, and 5.  Card 3 shows no X.25 network functions active.  Card 4 has
both X.25 system-to-system and PAD support active.  Card 5 has only
system-to-system support active.


          Figure 7-1.  DTCCNTRL Status Display
